Parking Assist Control Module
Parking Assist Control Module

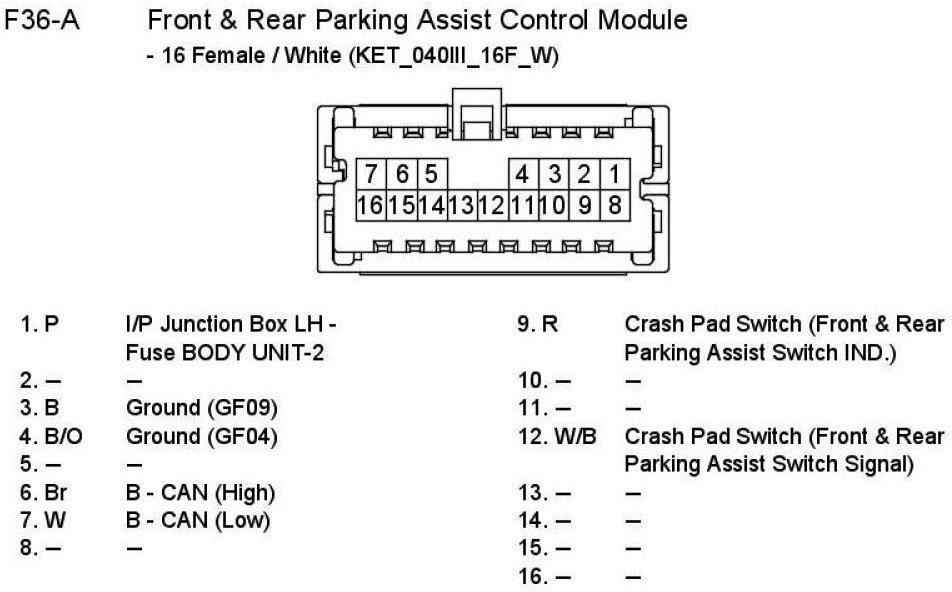

F36-A Front & Rear Parking Assist Control Module:

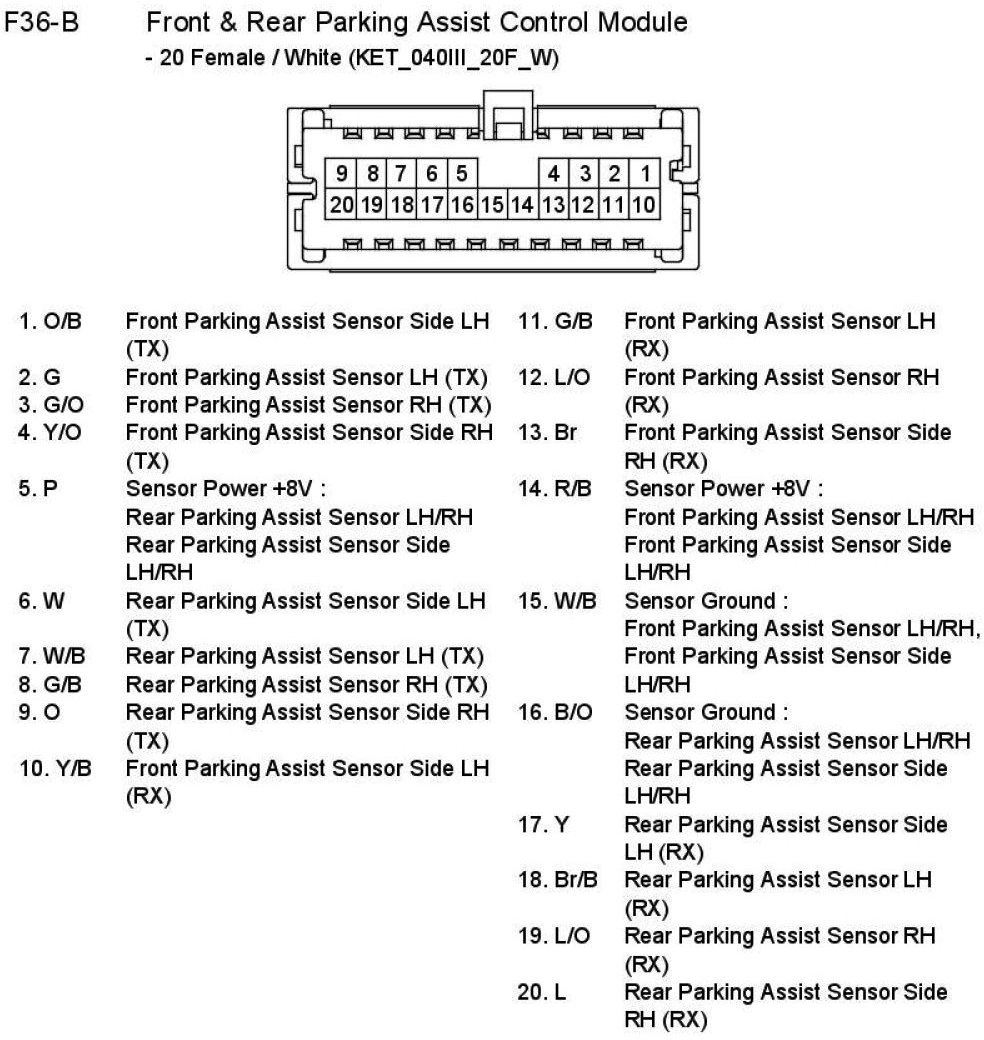

F36-B Front & Rear Parking Assist Control Module:
