Home >> Hyundai >> 2011 >> Equus V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Driver Door Module

Driver Door Module

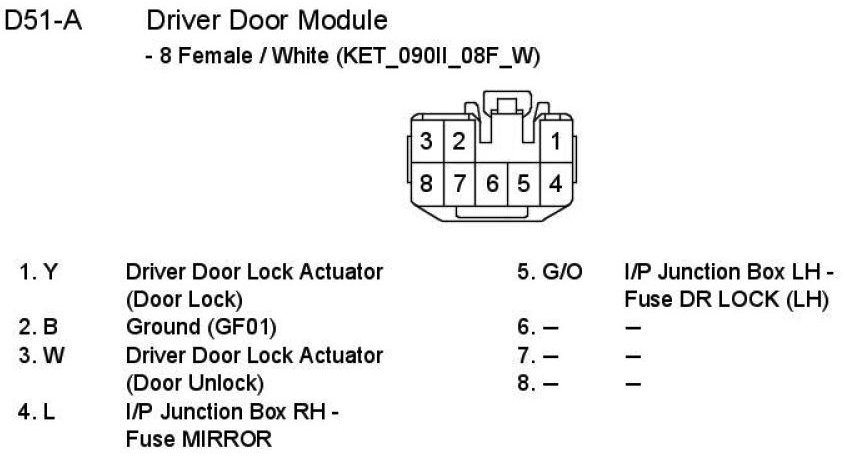

D51-A Driver Door Module:

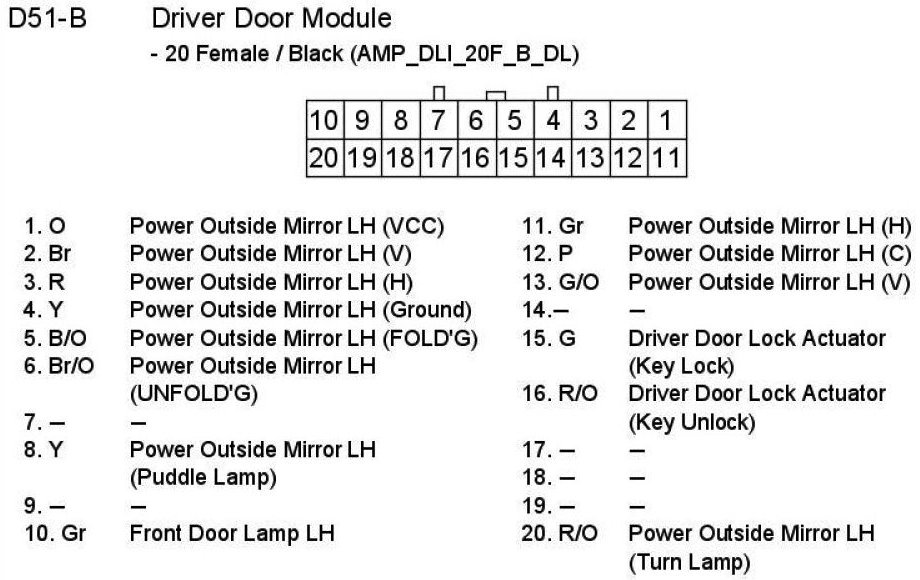

D51-B Driver Door Module:

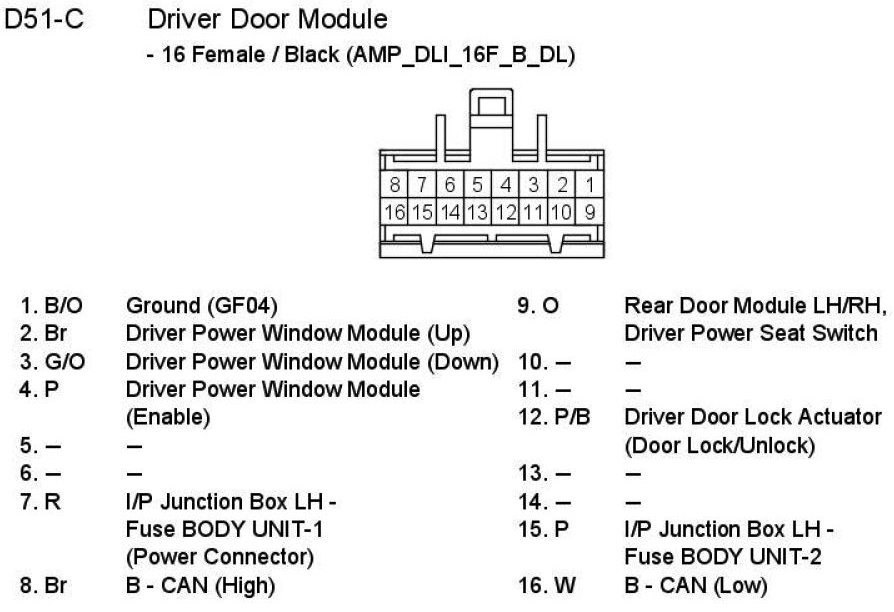

D51-C Driver Door Module:
