Home >> Hyundai >> 2011 >> Equus V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

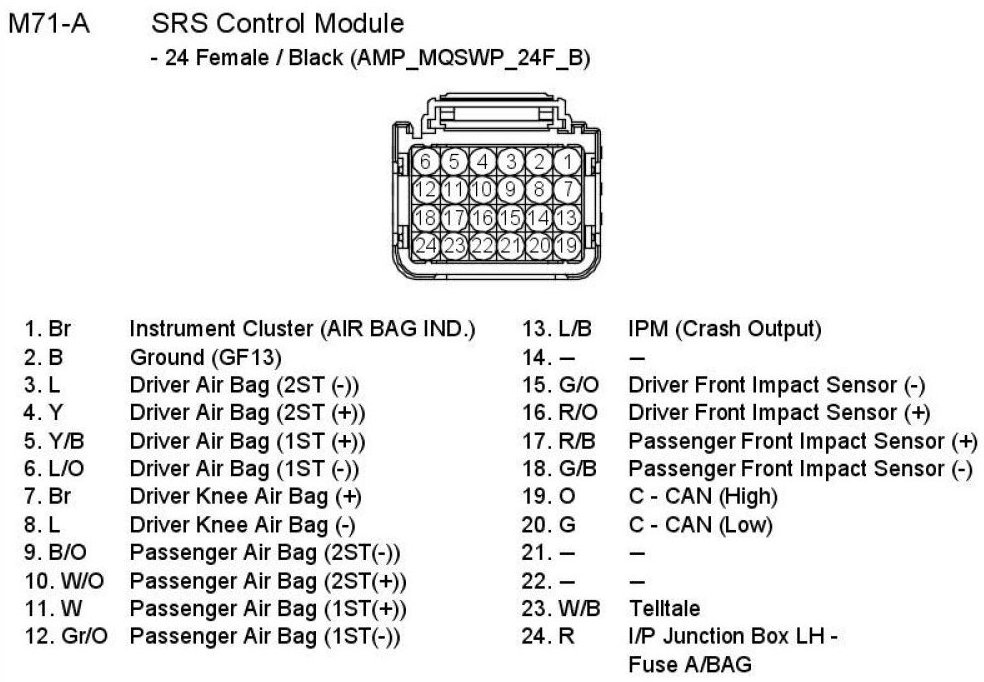

M71-A SRS Control Module:

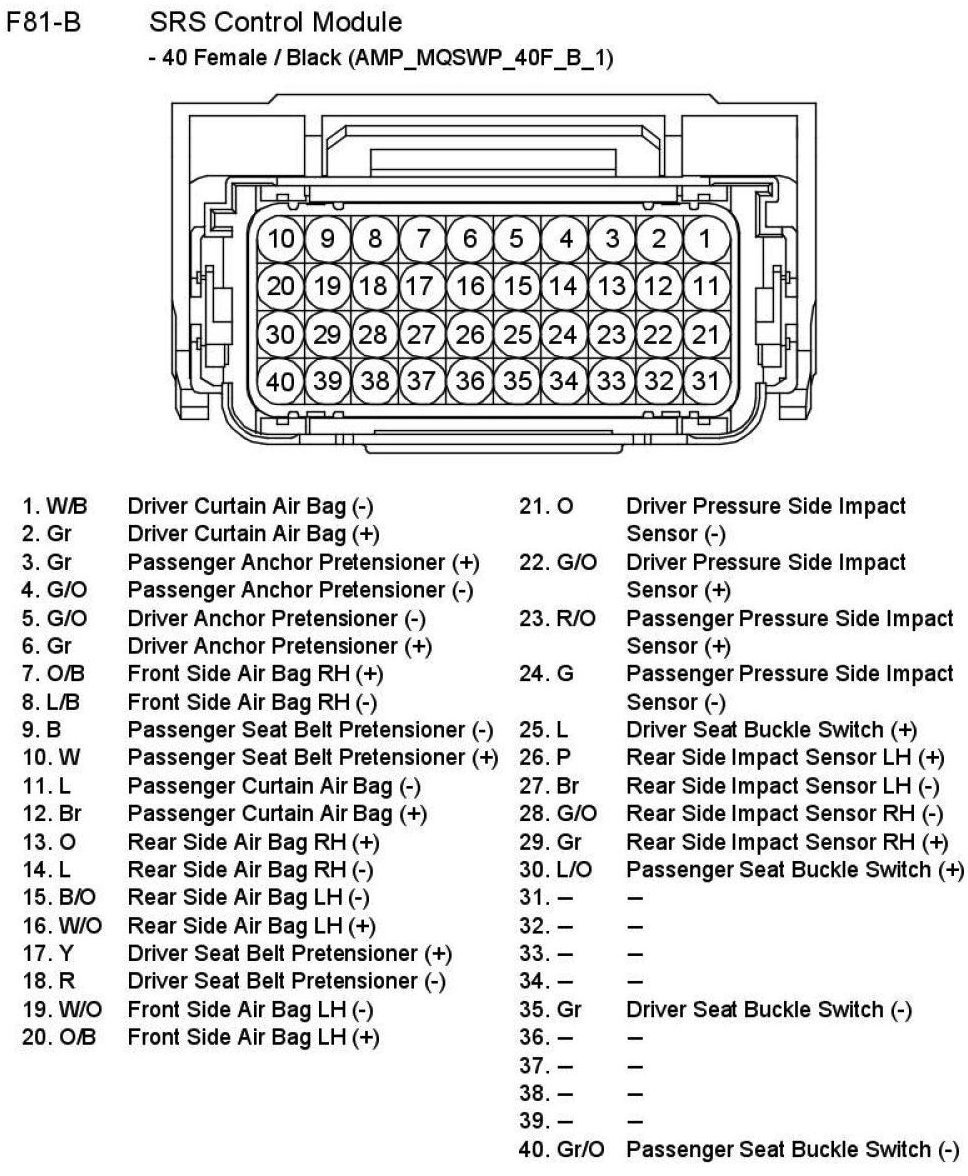

F81-B SRS Control Module:
