Ignition Relay: Locations
Fuse & Relay Information

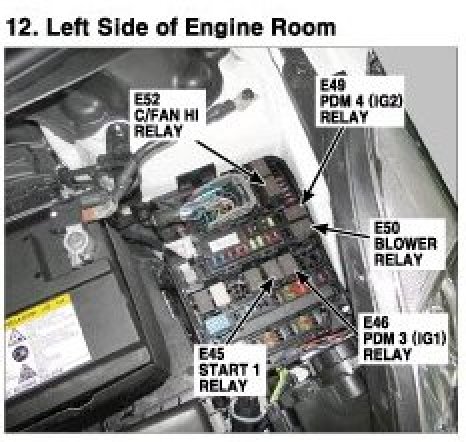

E/R Fuse & Relay Box View:

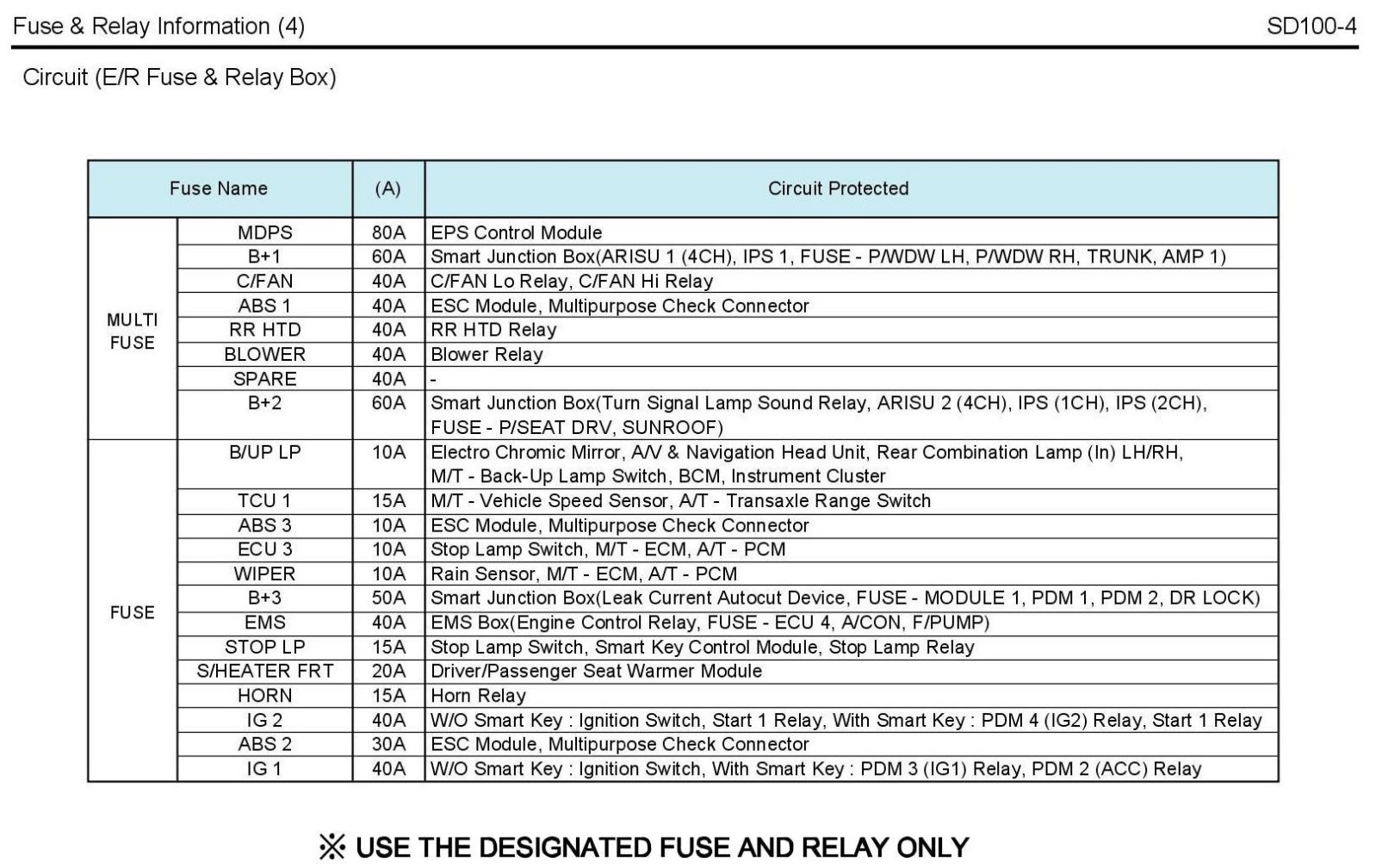

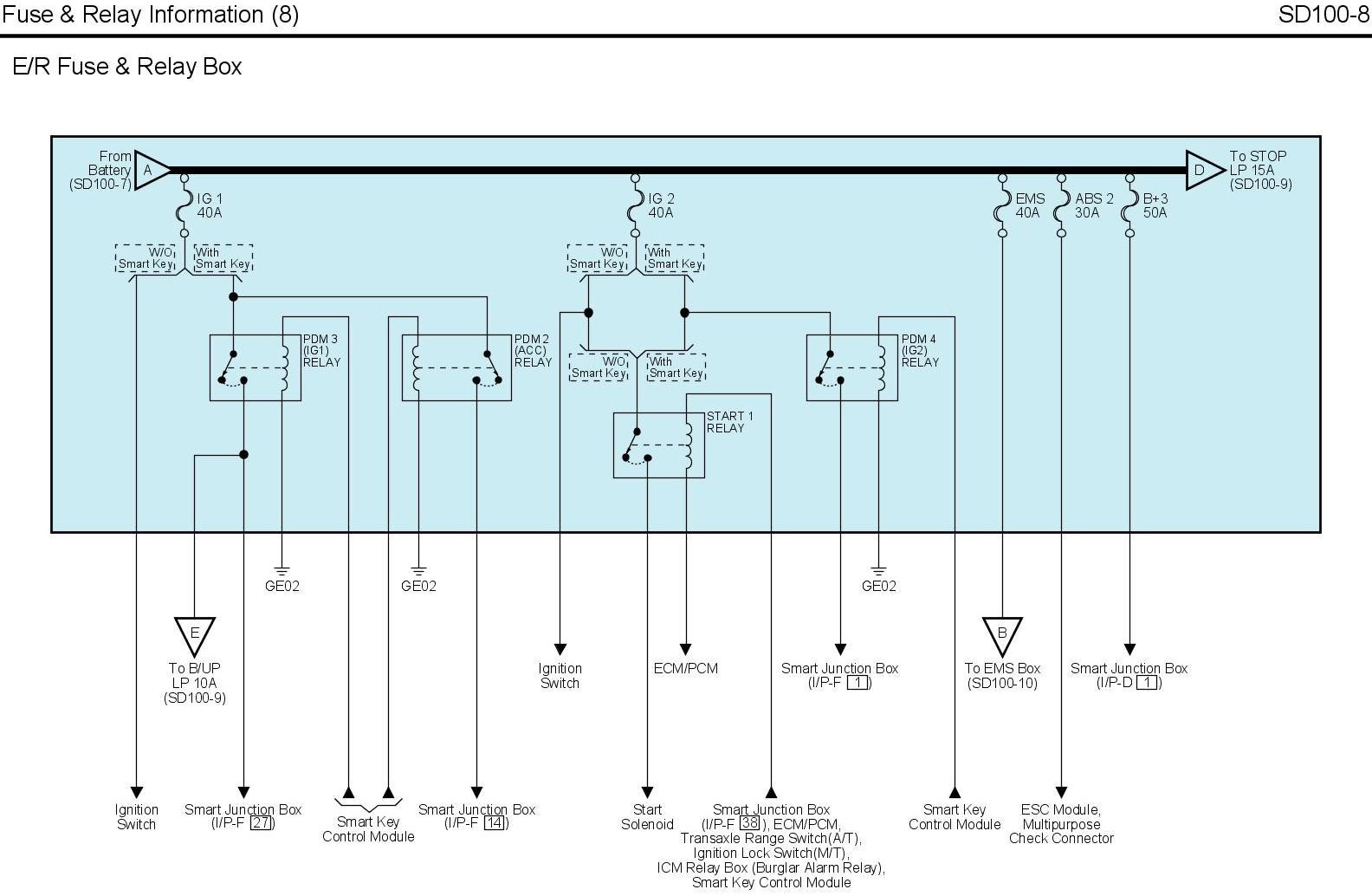

E/R Fuse & Relay Box Circuit Details:
E/R Fuse & Relay Box View:
