Home >> Hyundai >> 2011 >> Elantra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module

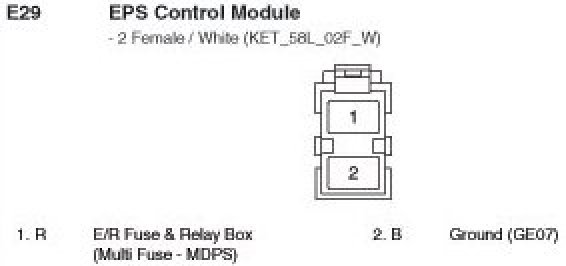

E29 EPS Control Module:

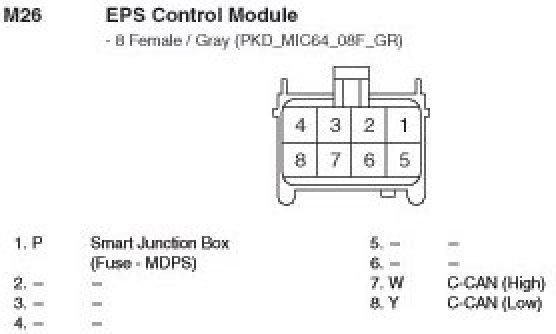

M26 EPS Control Module:
