Keyless Entry Module
Keyless Entry Module

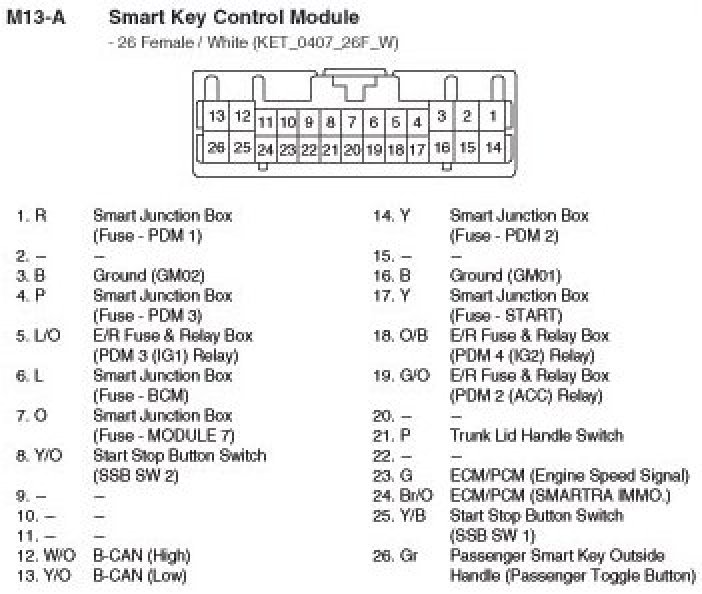

M13-A Smart Key Control Module:

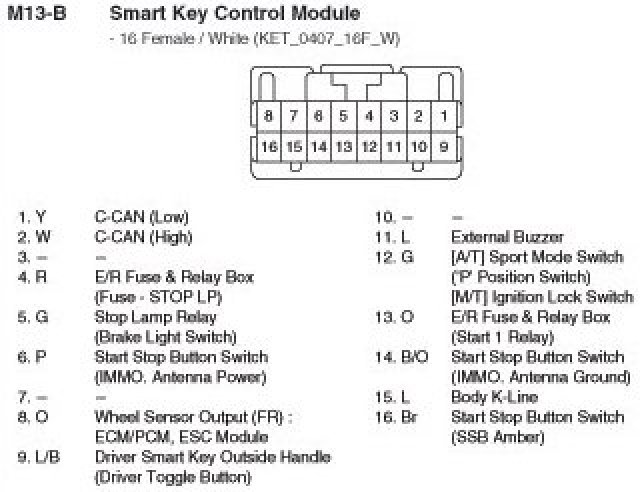

M13-B Smart Key Control Module:
M13-C Smart Key Control Module:
