A/C Control Module (Manual A/C)

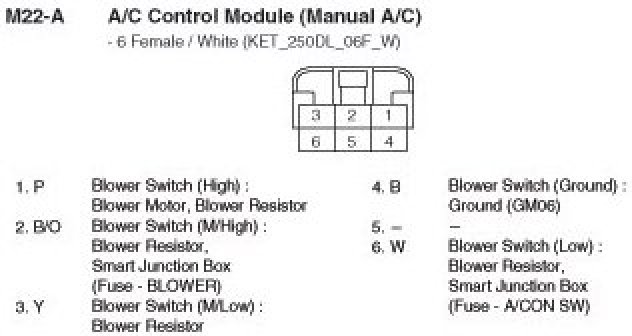

M22-A A/C Control Module (Manual A/C):

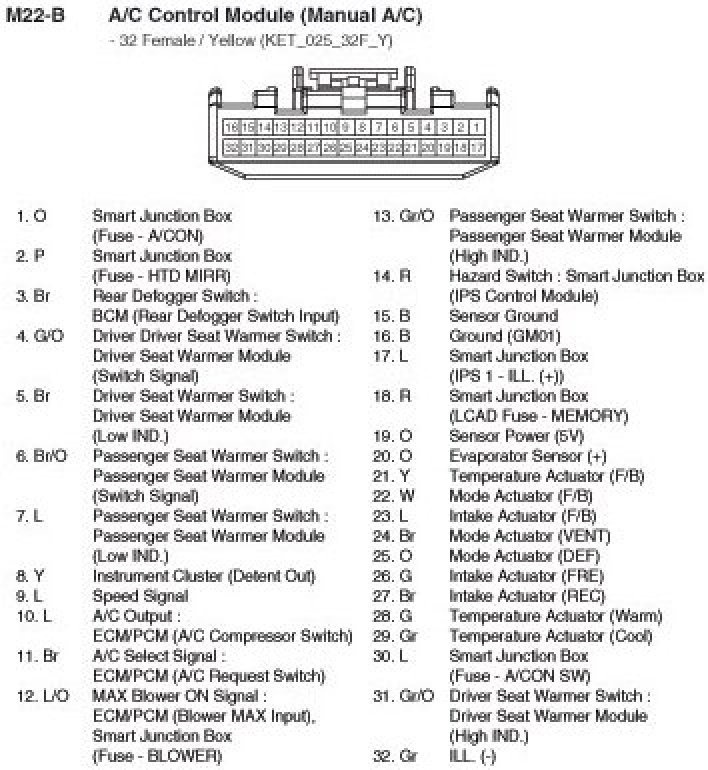

M22-B A/C Control Module (Manual A/C):
