A/C Control Module (Auto A/C)

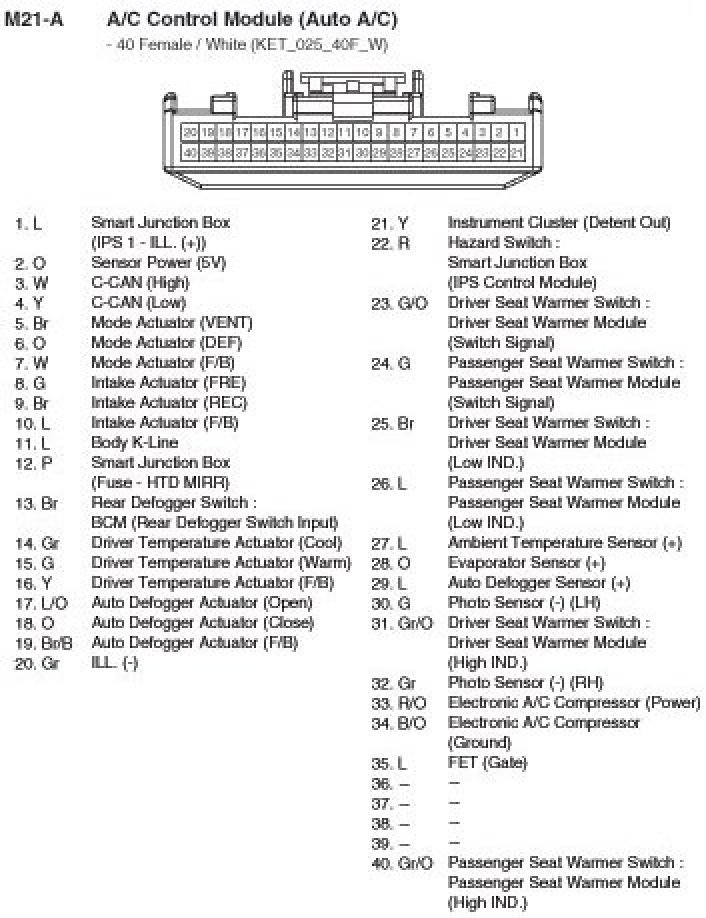

M21-A A/C Control Module (Auto A/C):

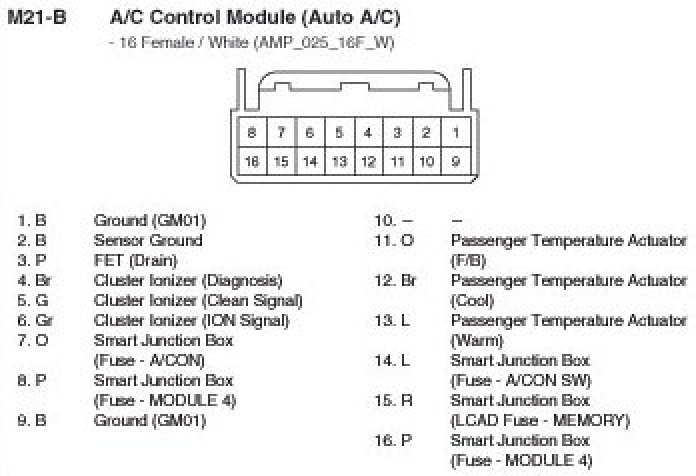

M21-B A/C Control Module (Auto A/C):
