Home >> Hyundai >> 2011 >> Elantra L4-1.8L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Starting System >> Keyless Start Control Module >> Service and Repair >> Components and Components Location

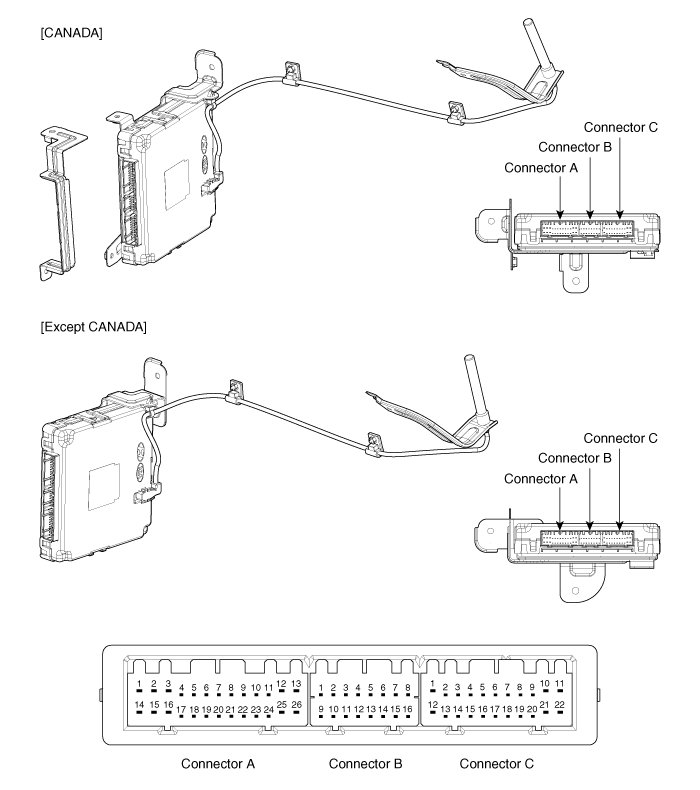

Components and Components Location





Component (1)

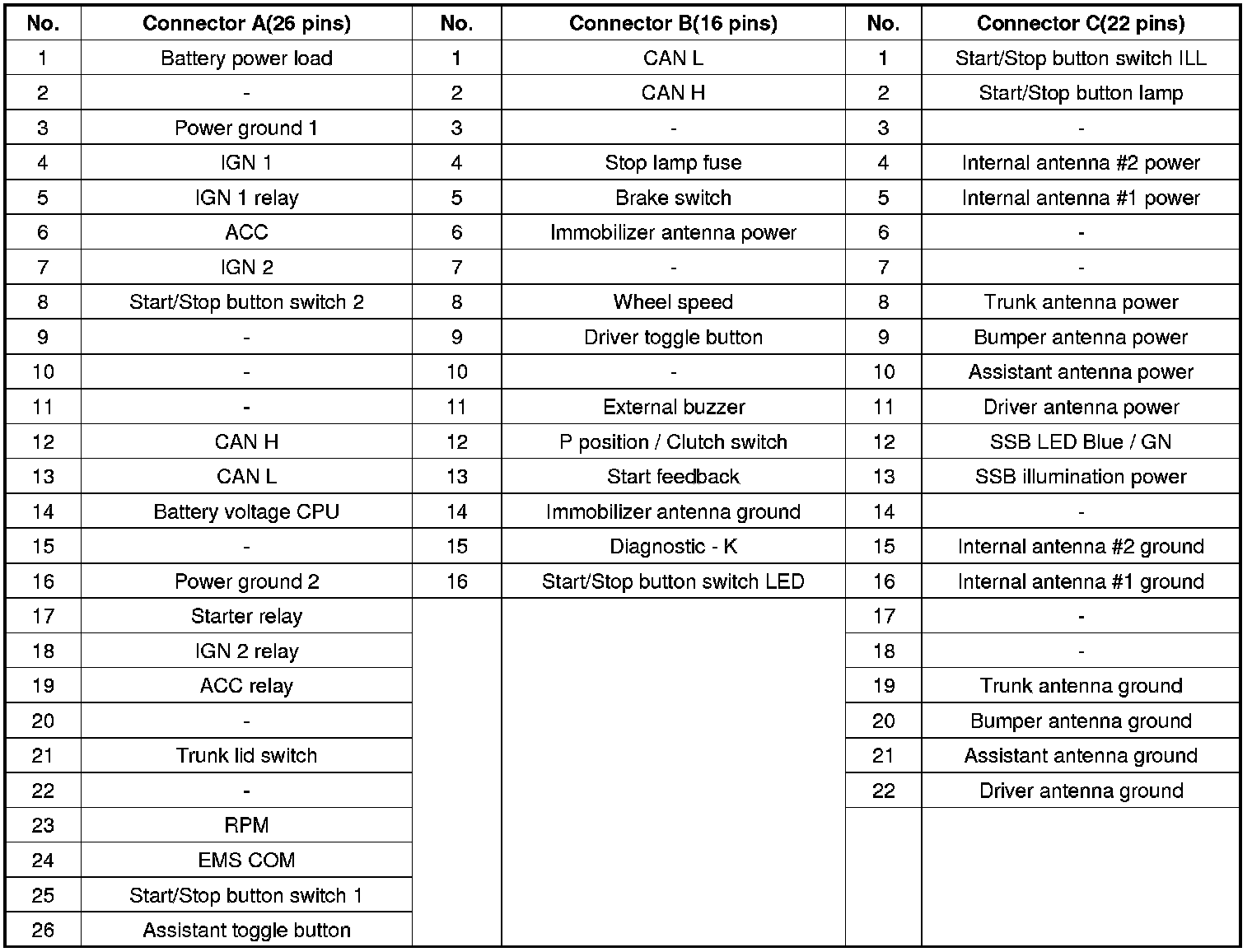

Connector Pin Information
