Engine Control Module





ECM Terminal And Input/Output signal




ECM Terminal Function

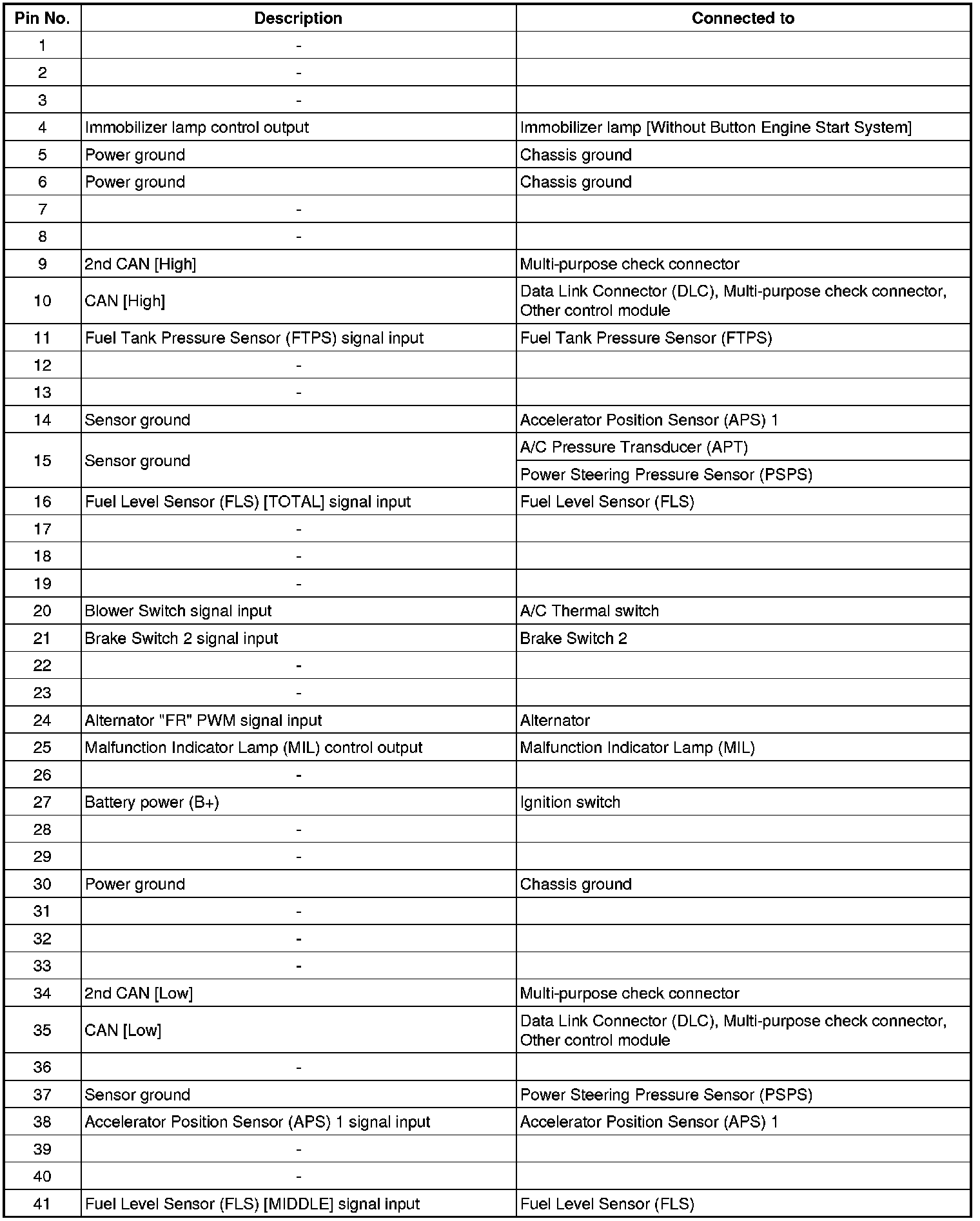

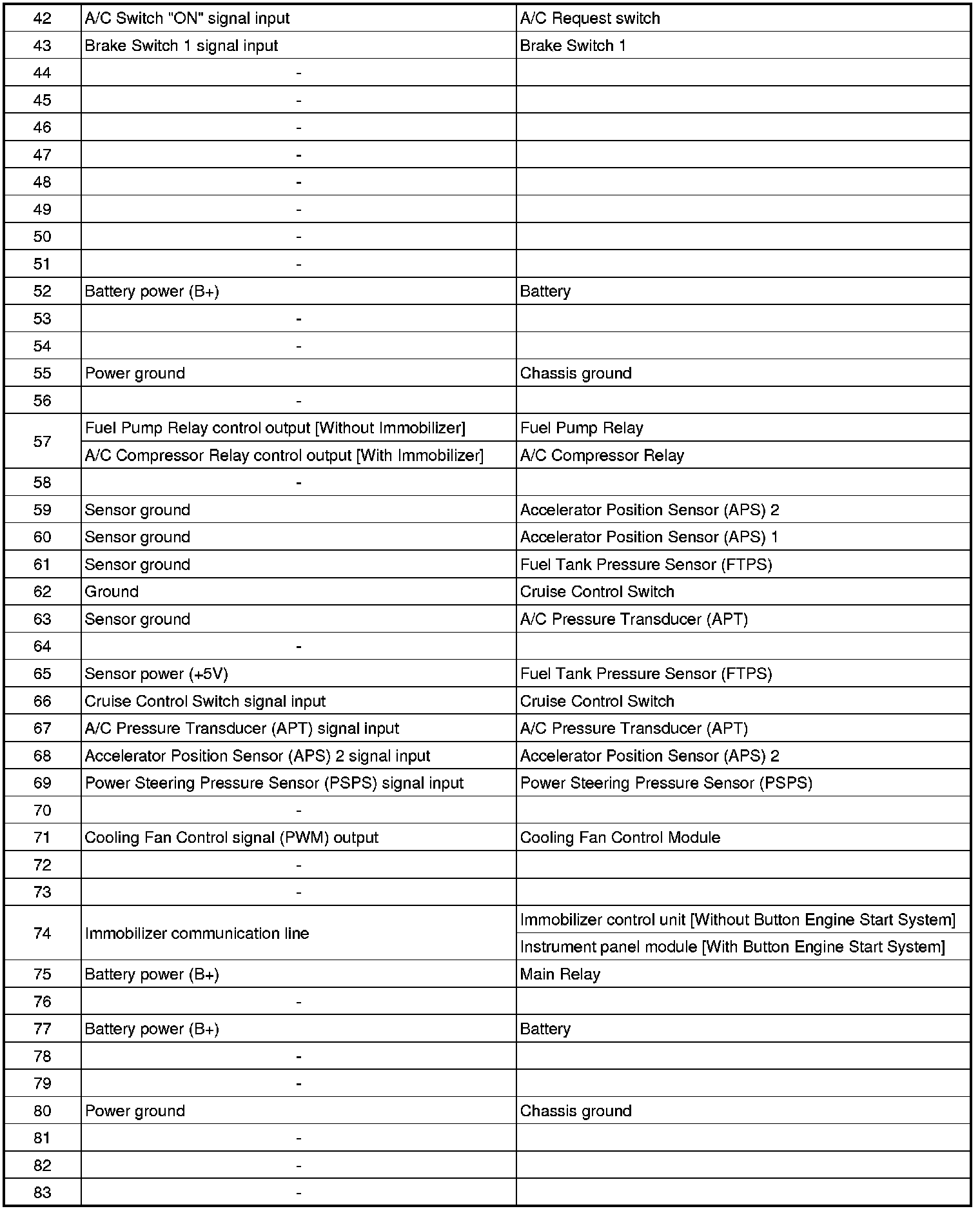

Connector [CLG-A]

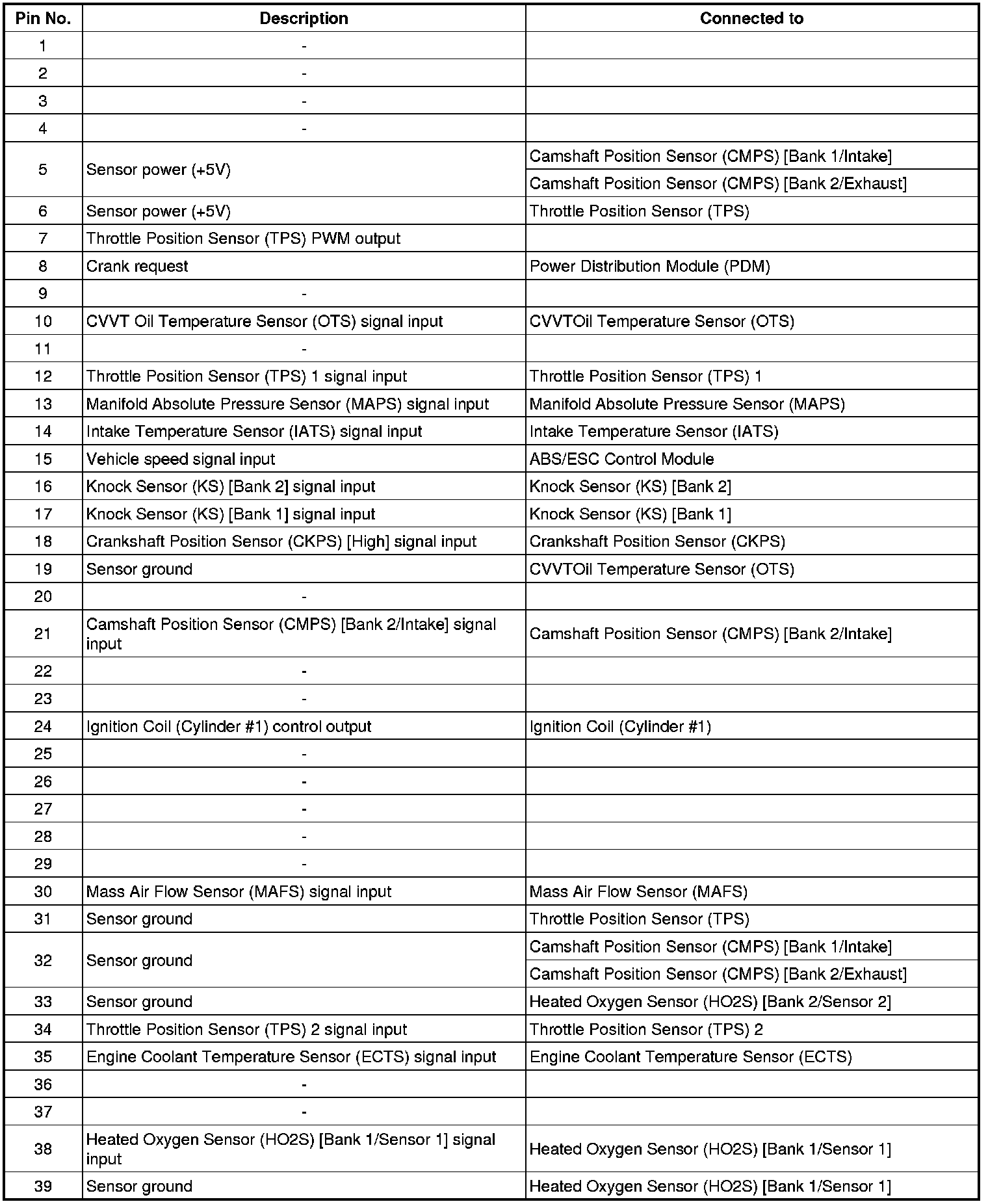

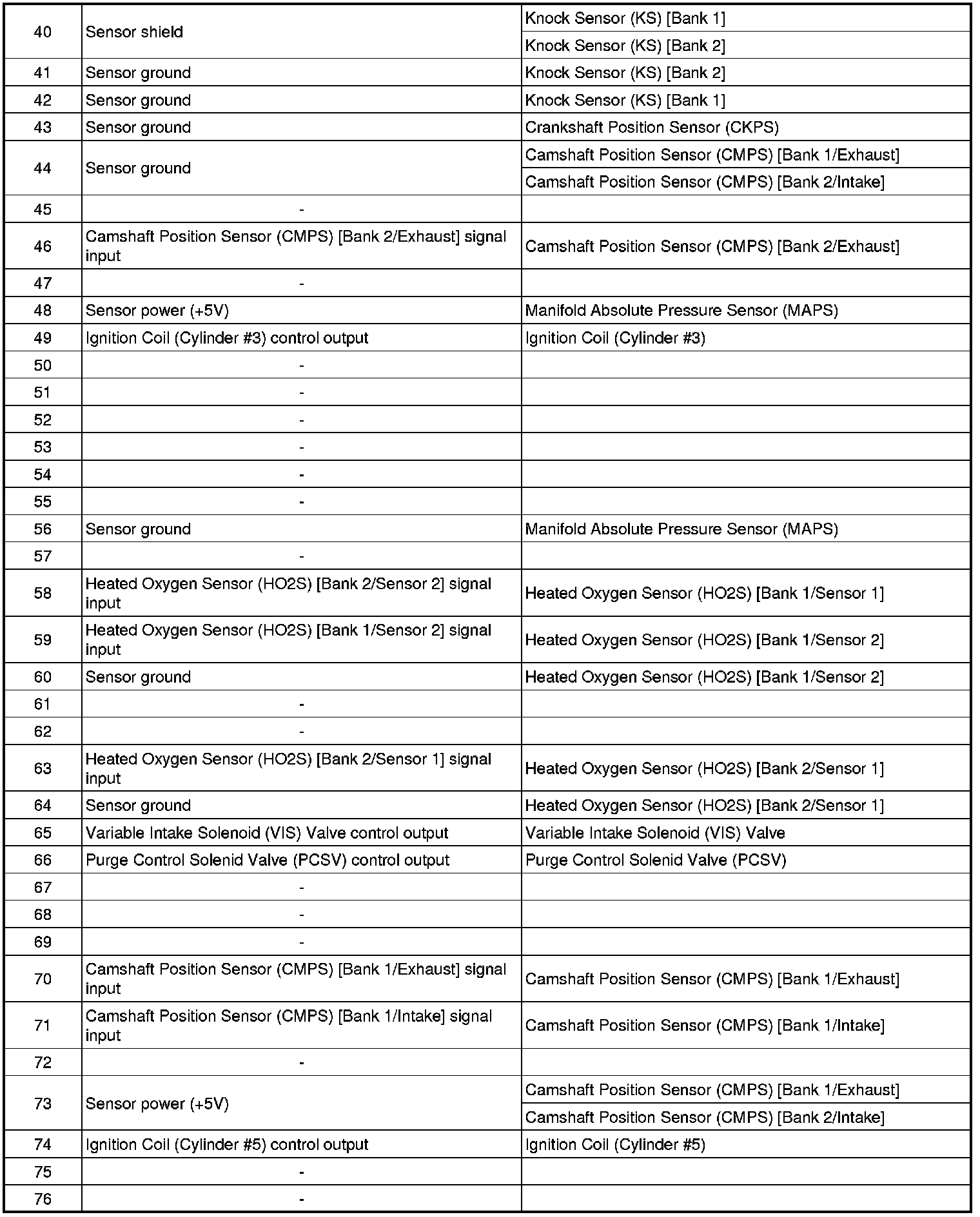

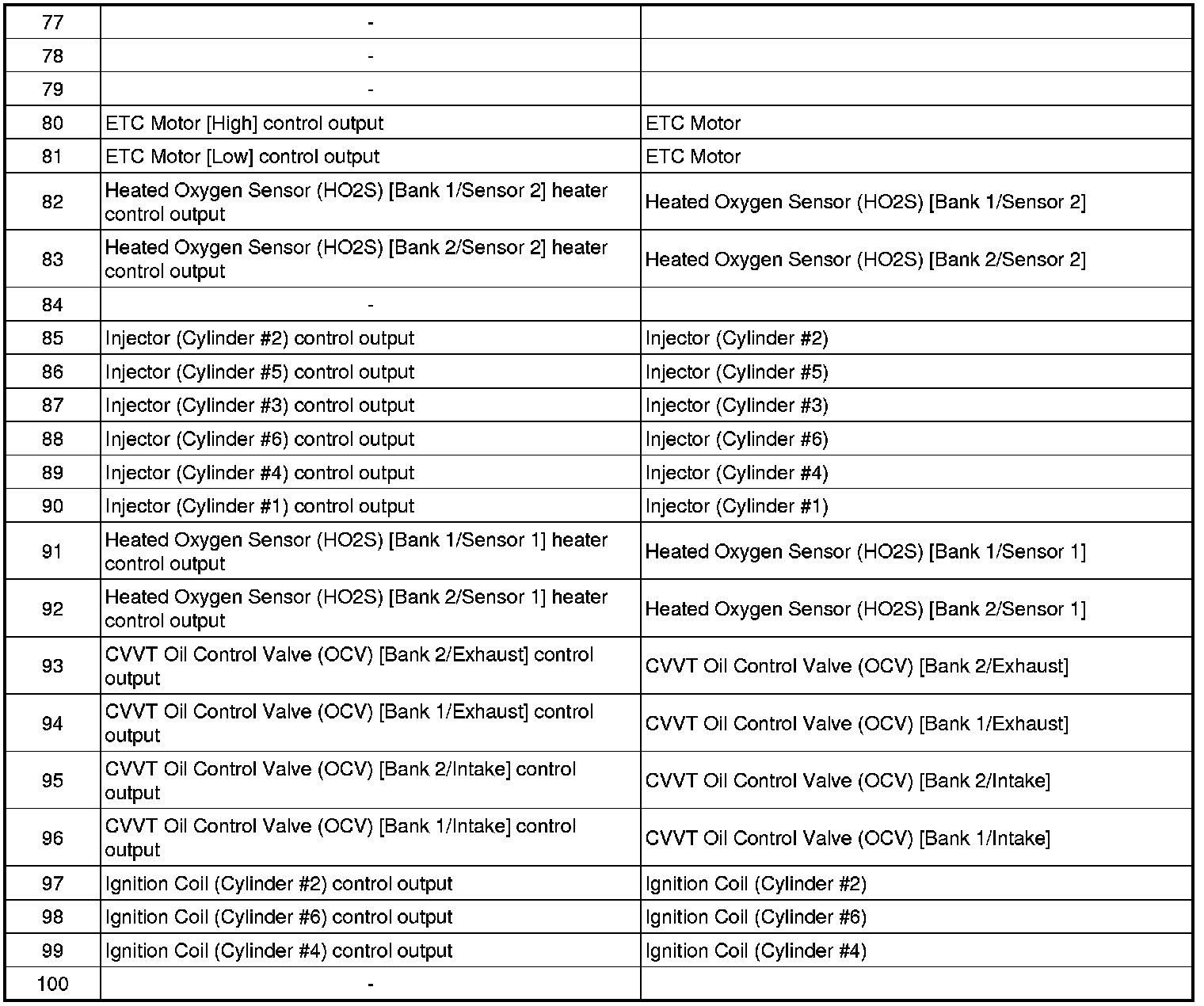

Connector [CLG-B]













ECM Terminal Input/Output Signal

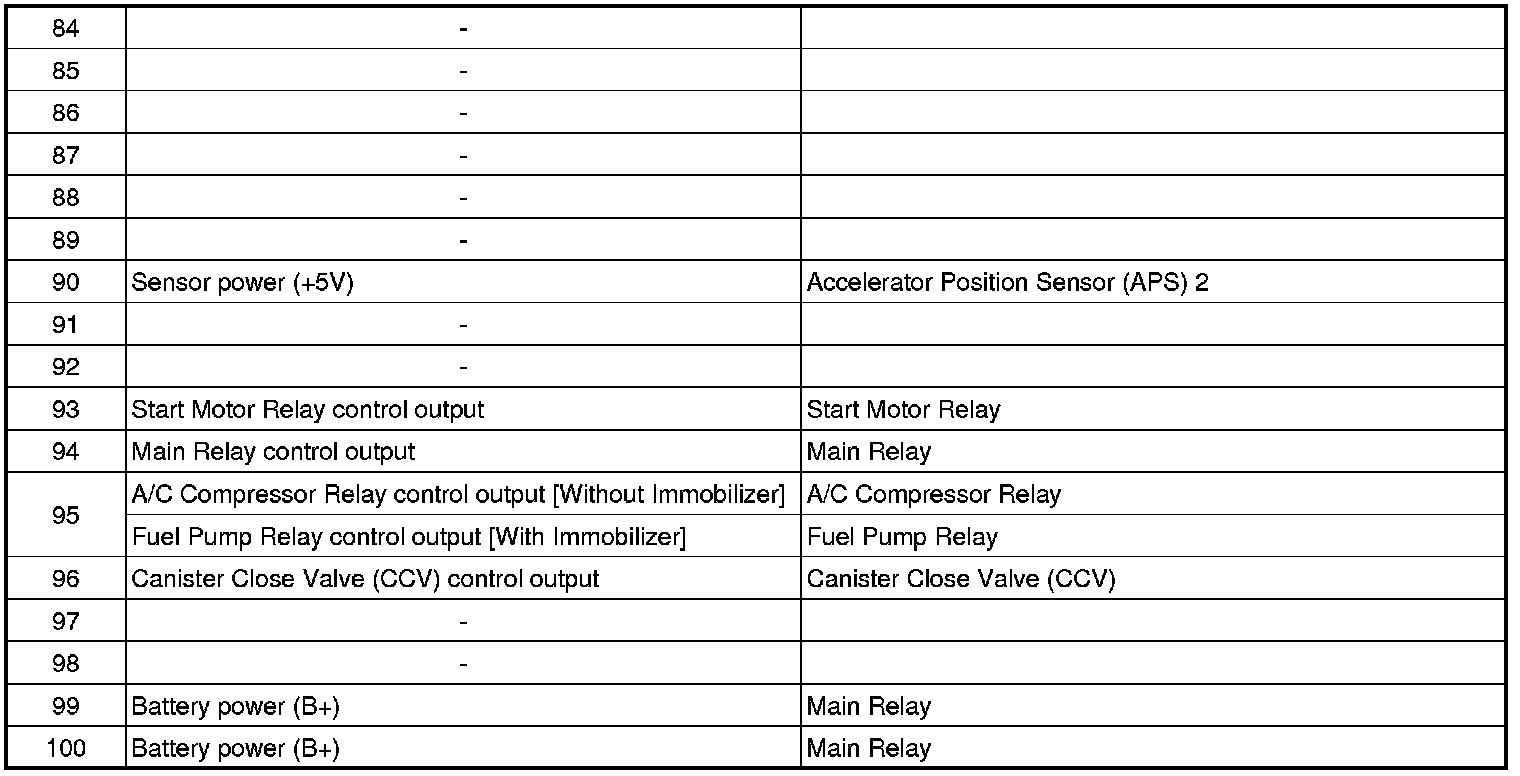

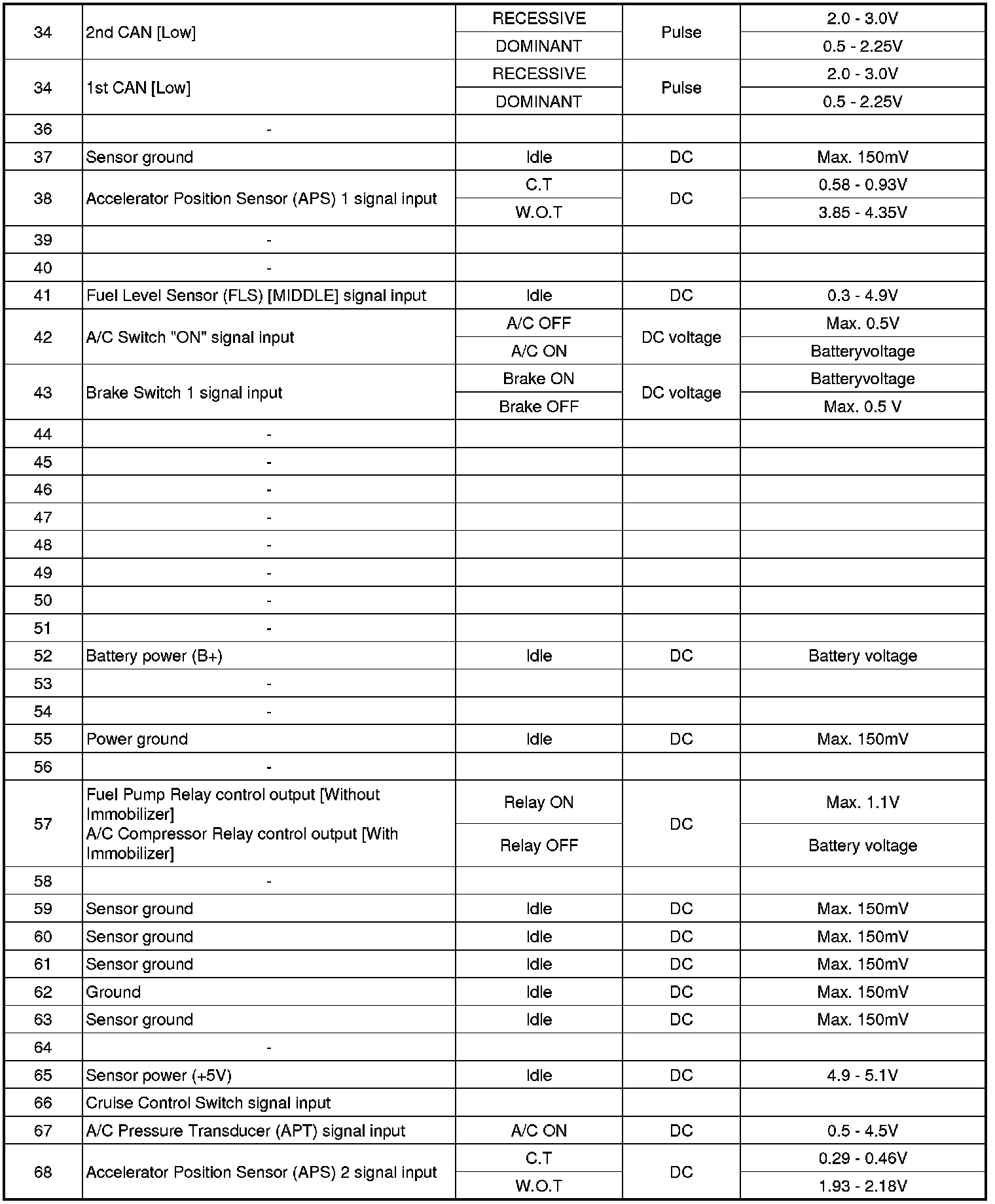

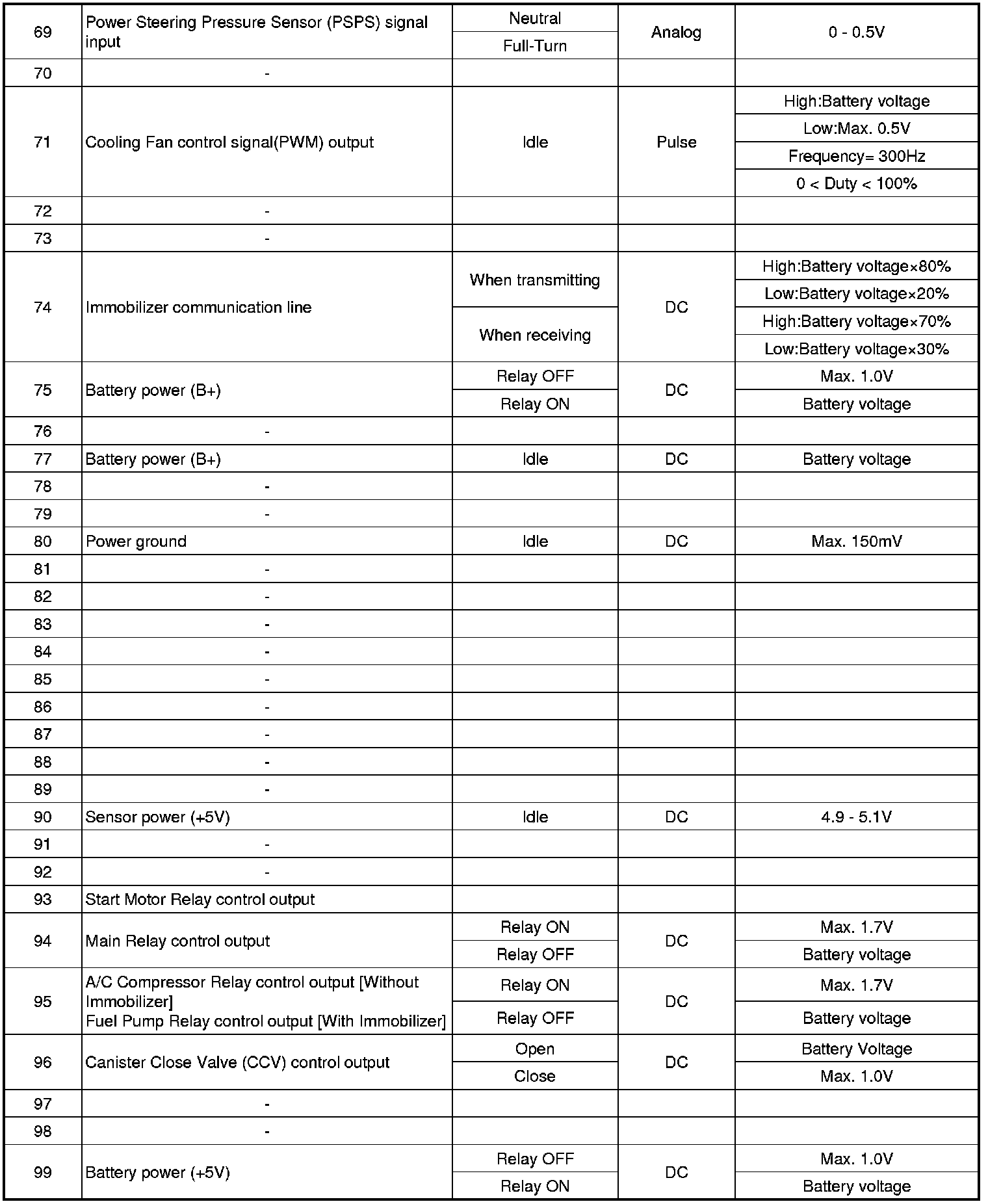

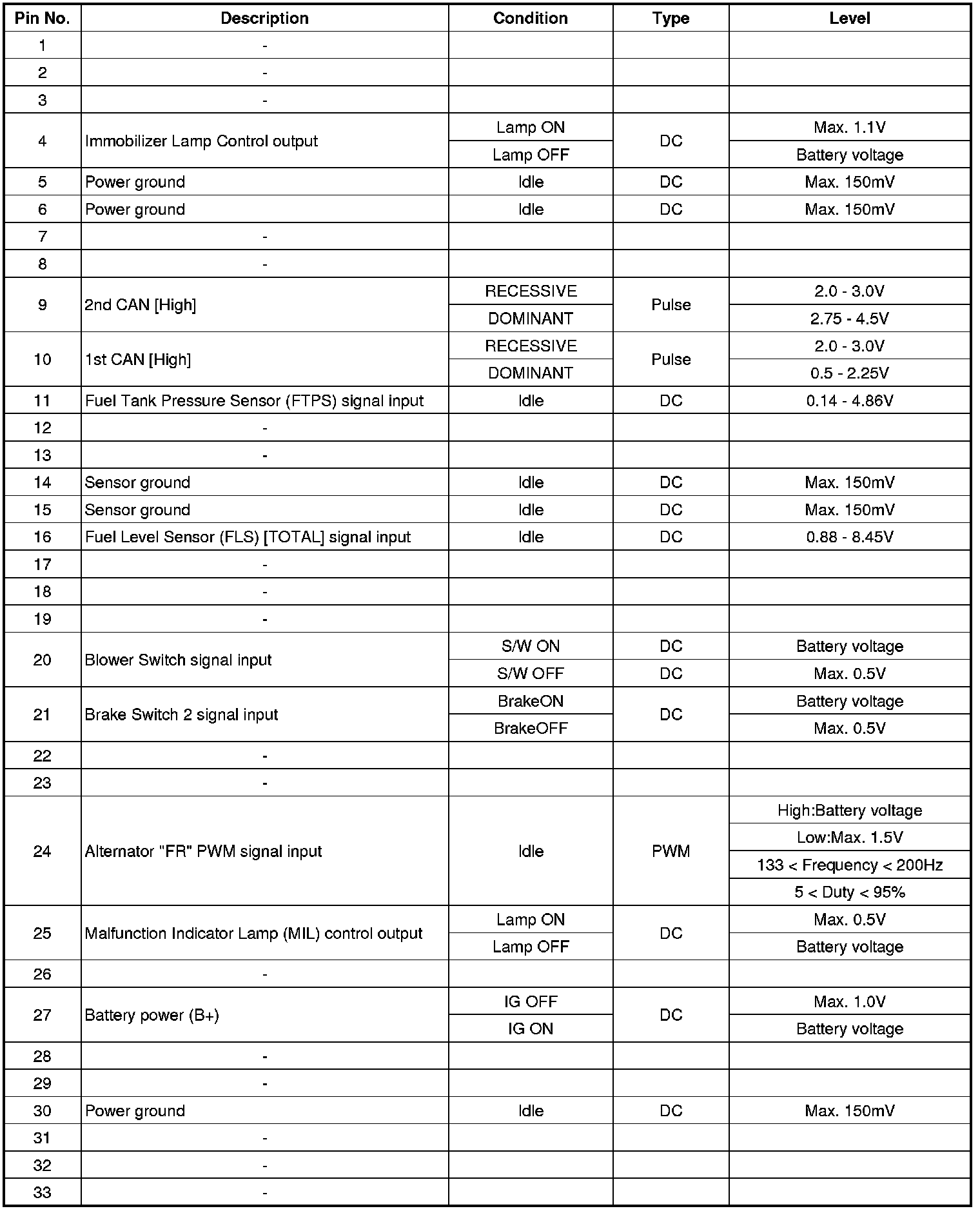

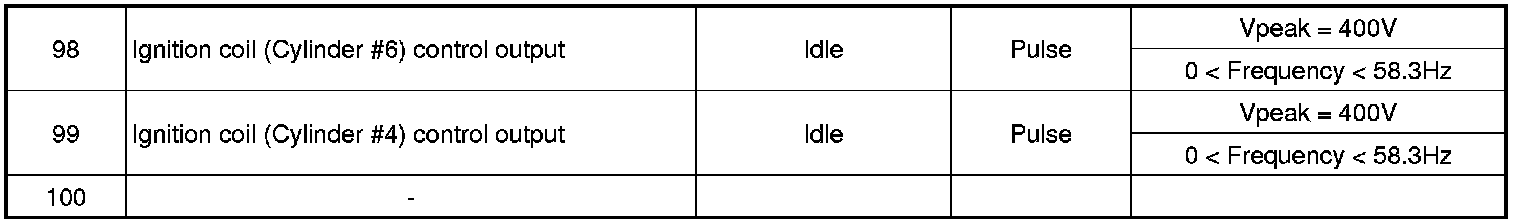

Connector [CLG-A]

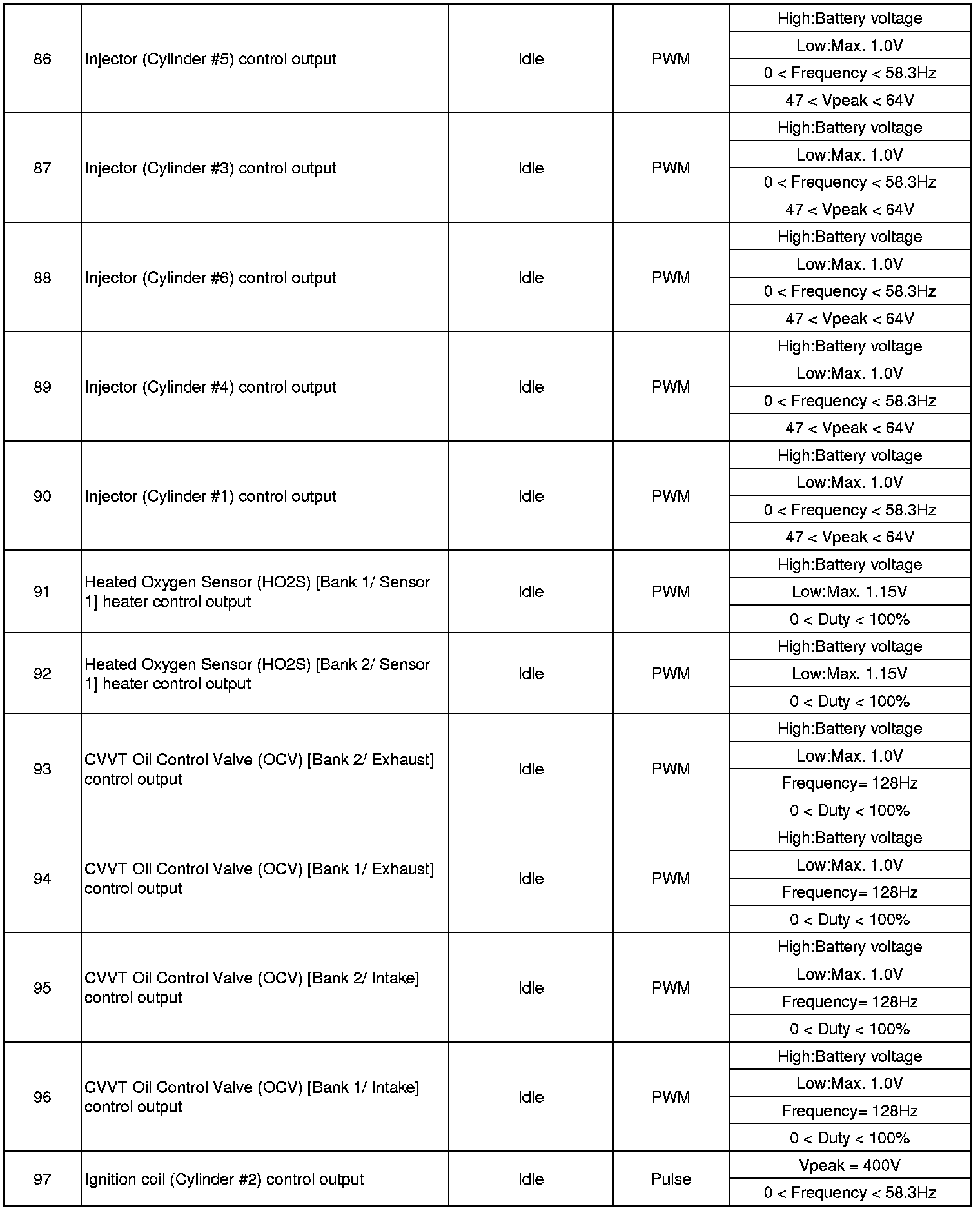

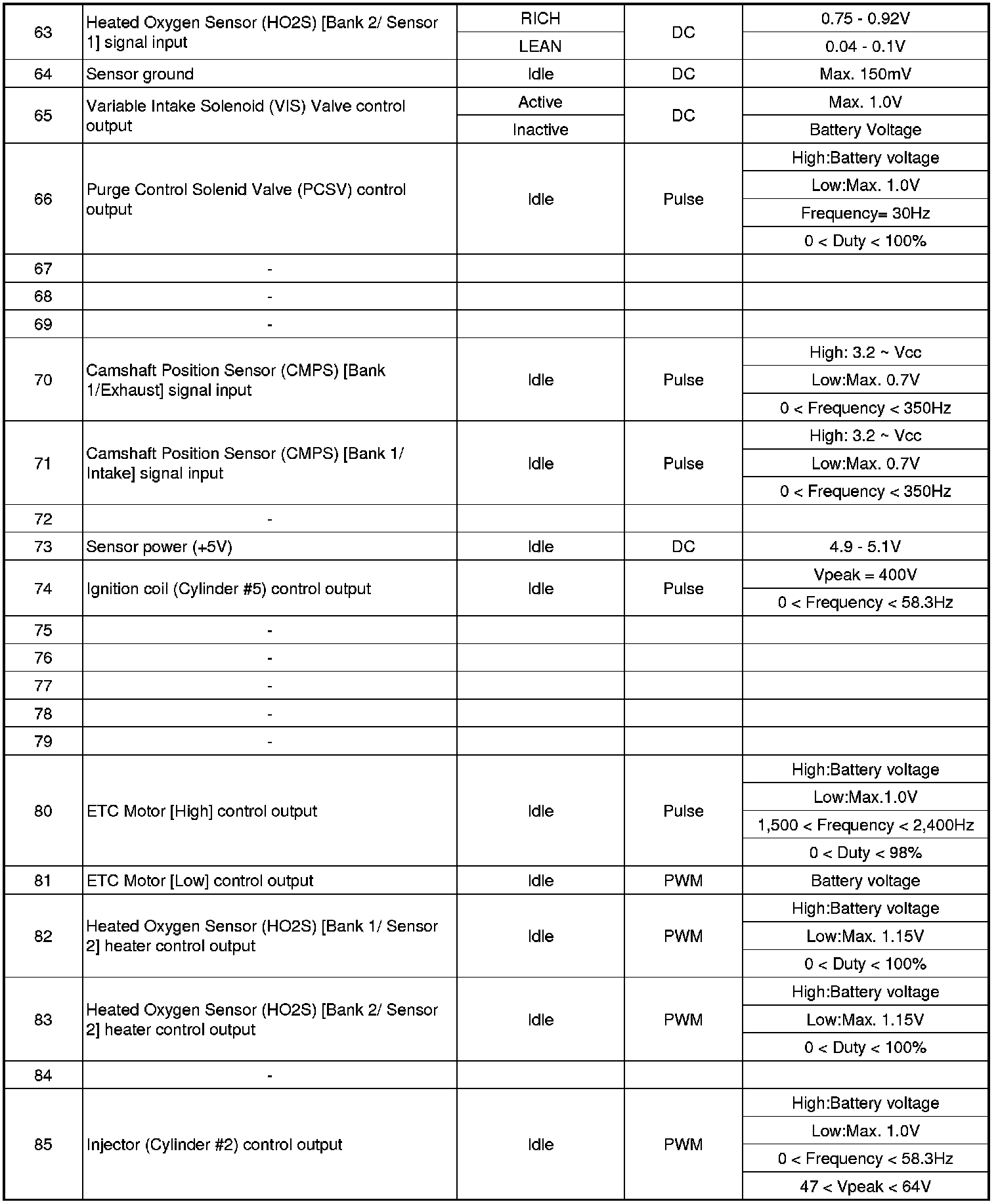

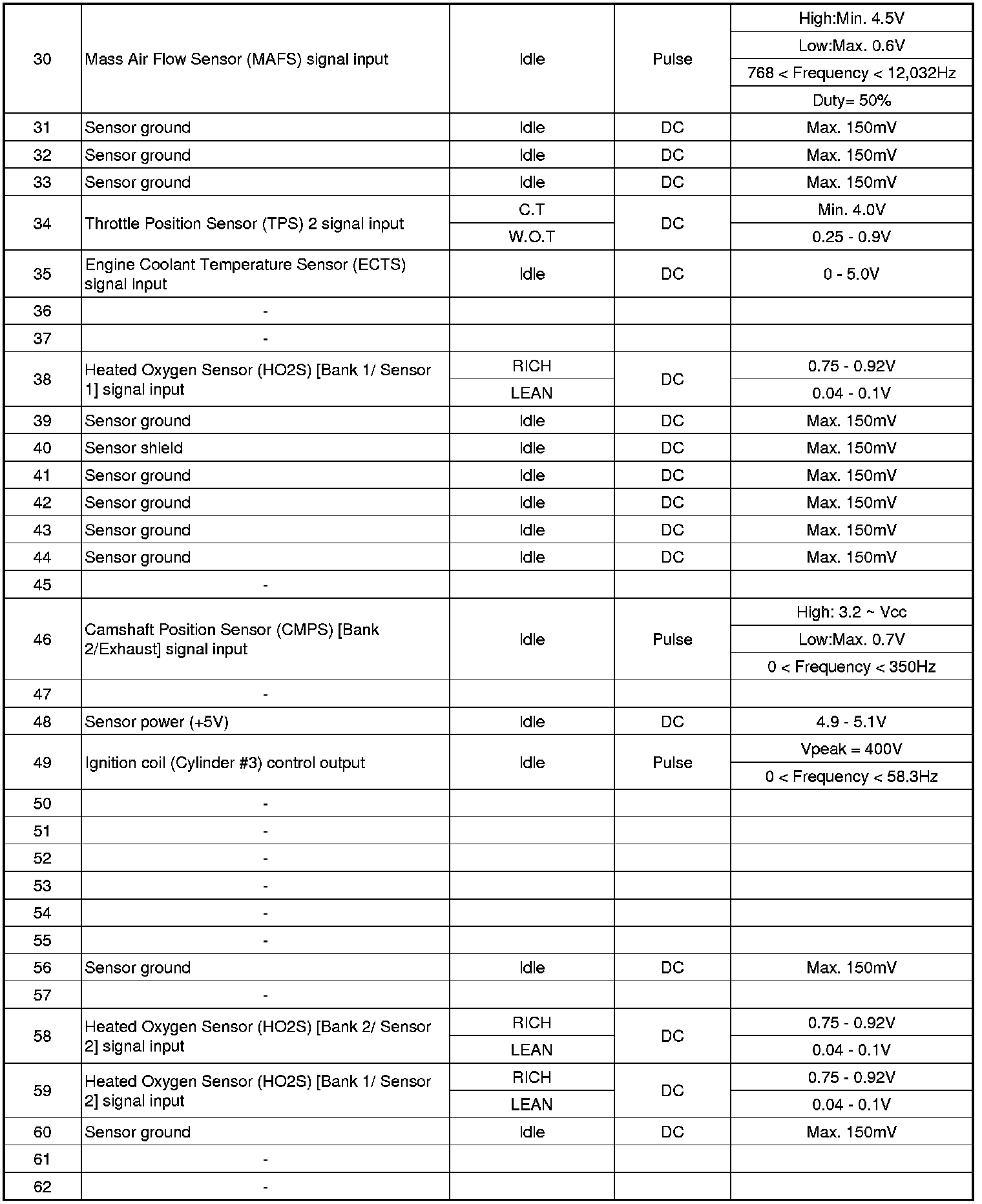

Connector [CLG-B]
