Main Relay (Computer/Fuel System)
>>
Locations
>>
Engine Control System
Engine Control System

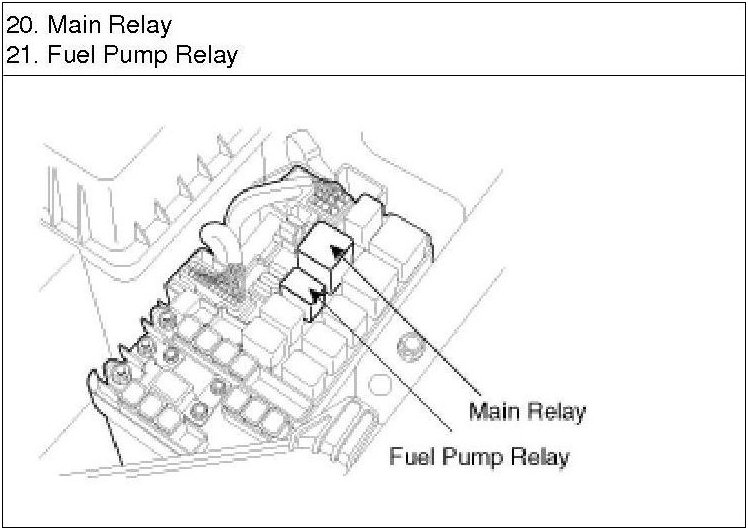

Components Location
E/R Fuse & Relay Box

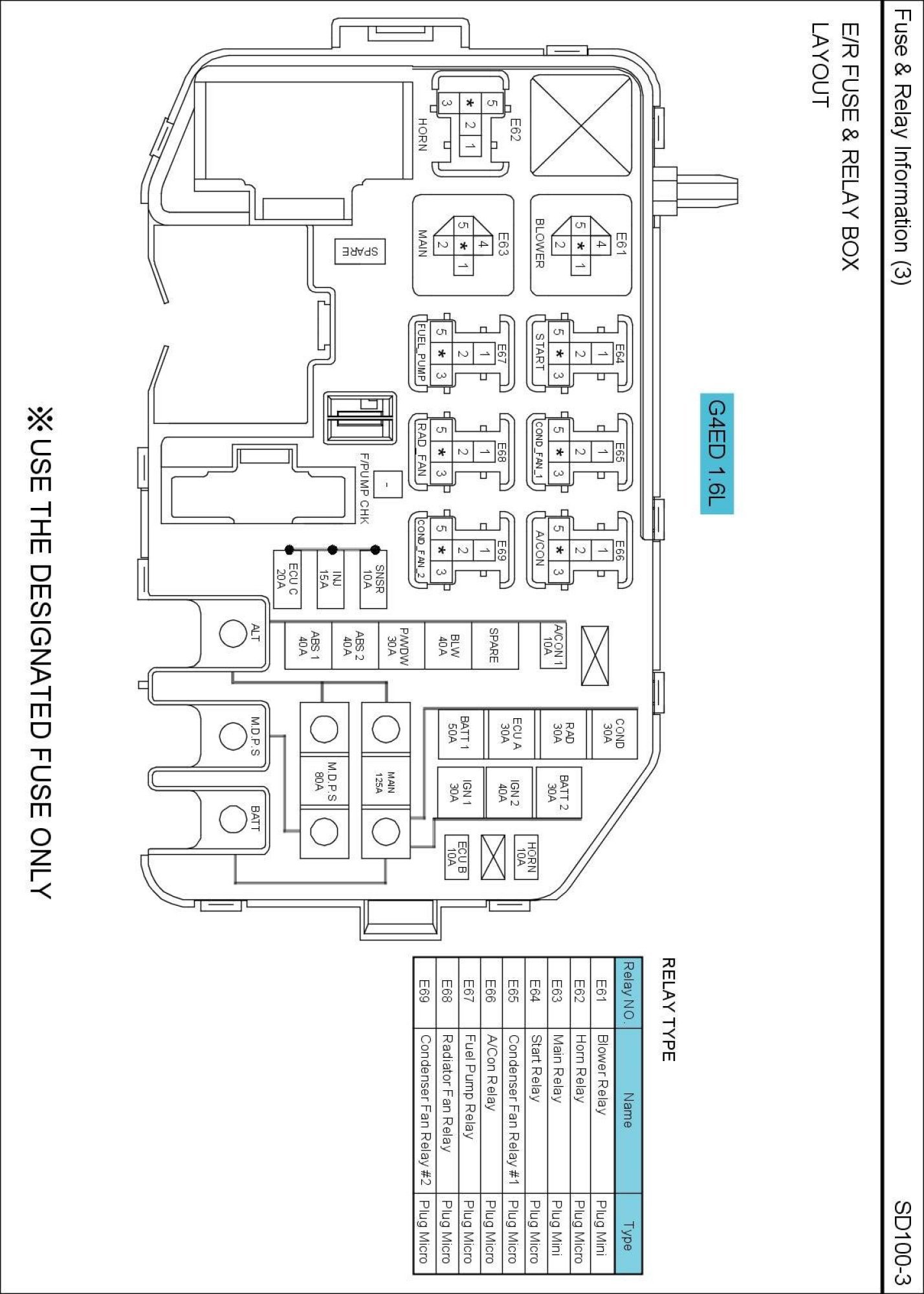

E/R Fuse & Relay Box View:

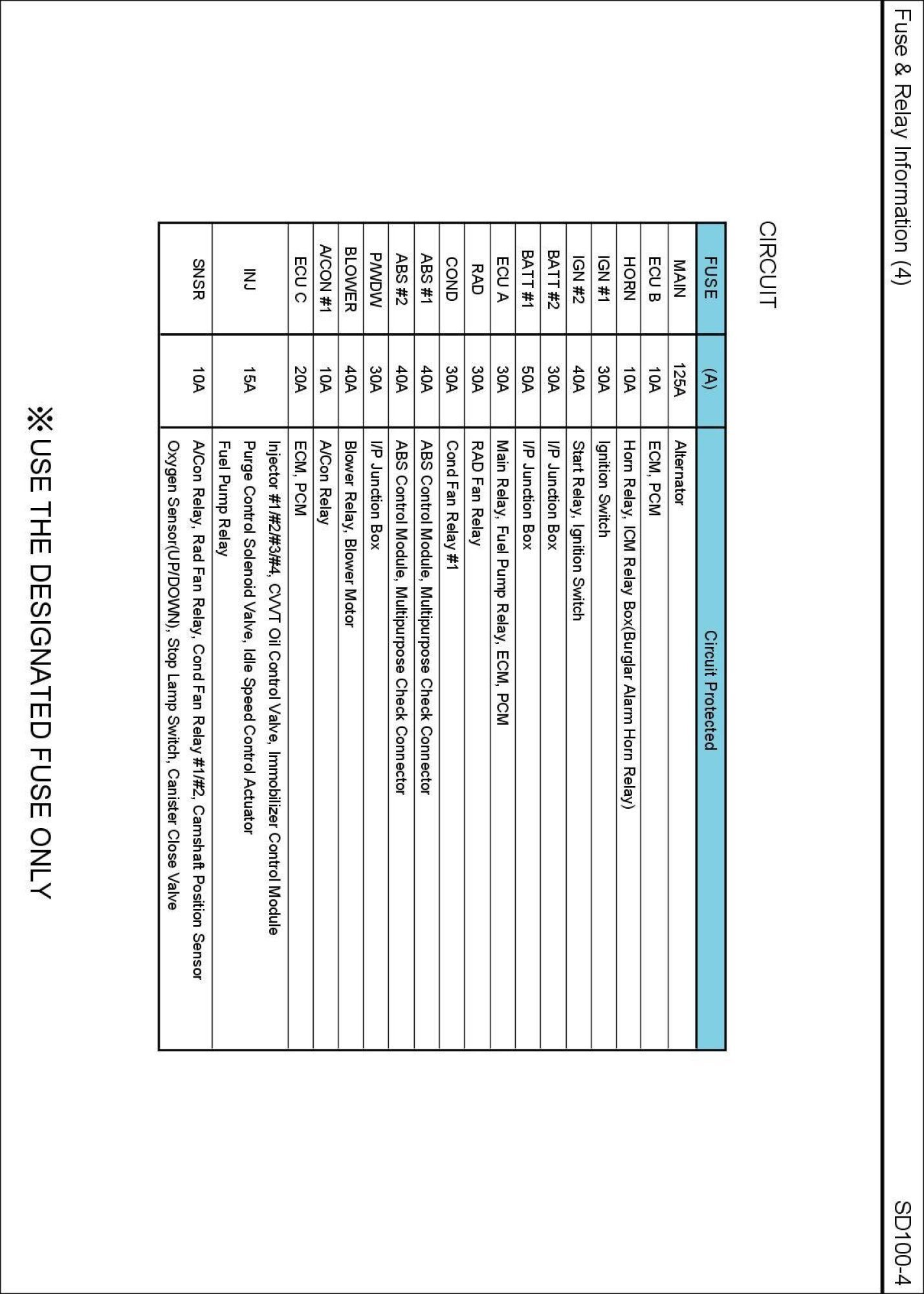

E/R Fuse & Relay Box Circuit Details:

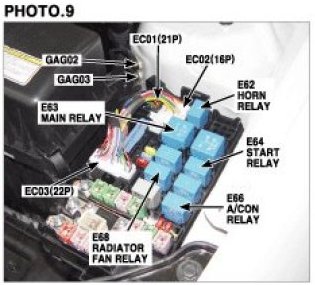

Photo 9
