Home >> Hyundai >> 2010 >> Tucson FWD L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Chain

Timing Chain

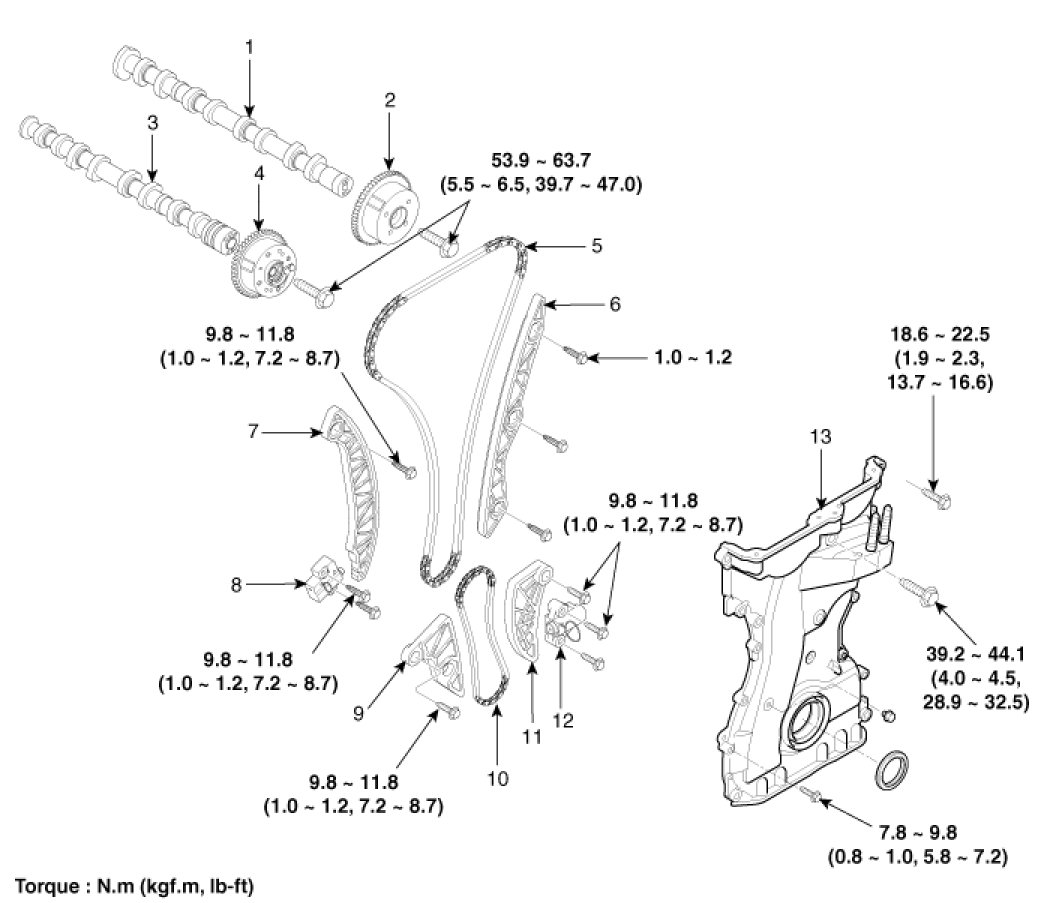

Components

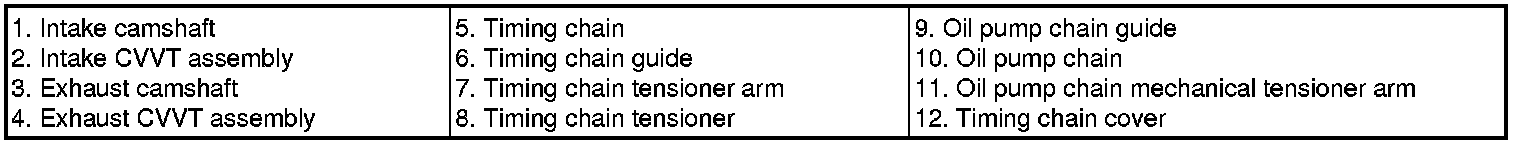

[2.0L Engine only (Oil pump type)]

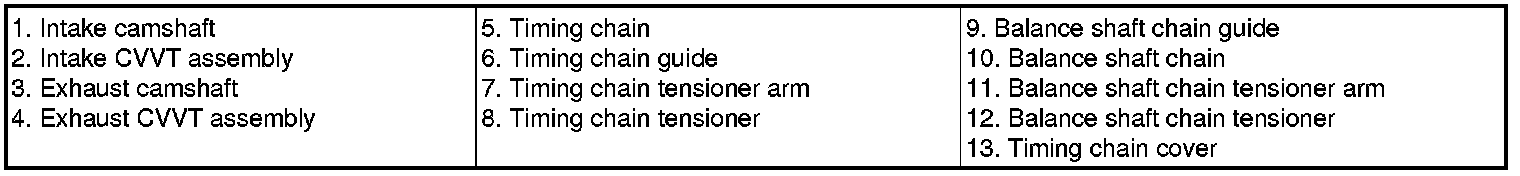

[2.4L Engine only (Balance shaft module type)]
