System Specifications





Specifications

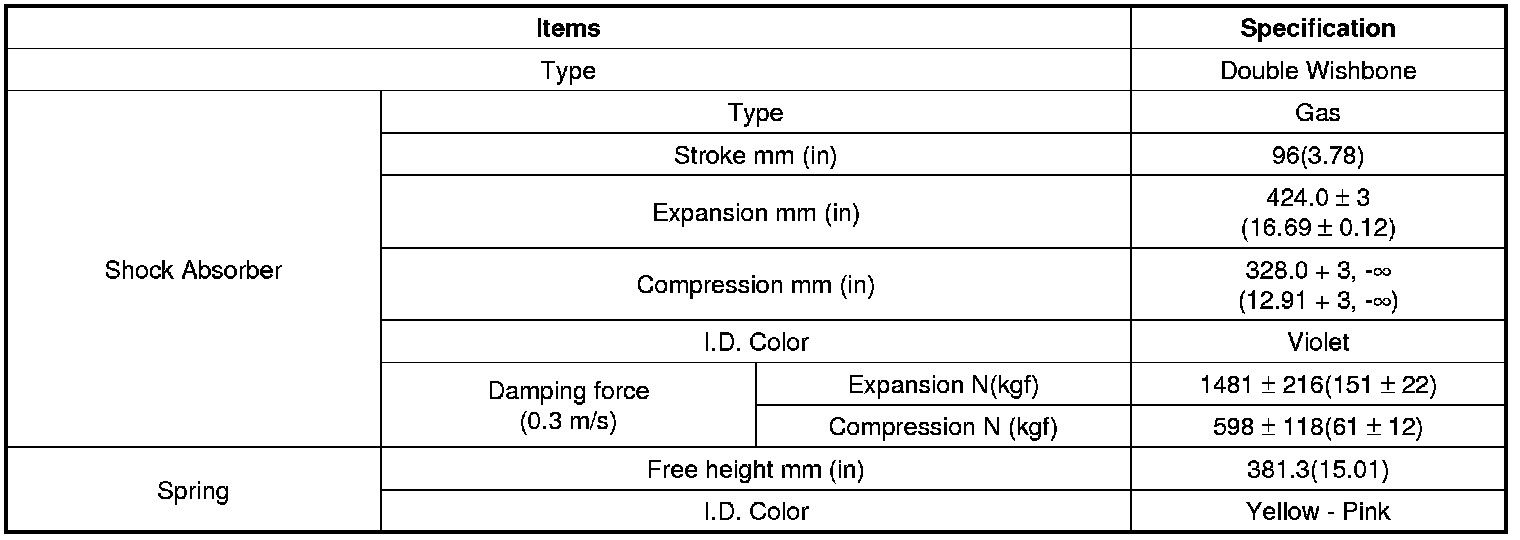

Front Suspension System

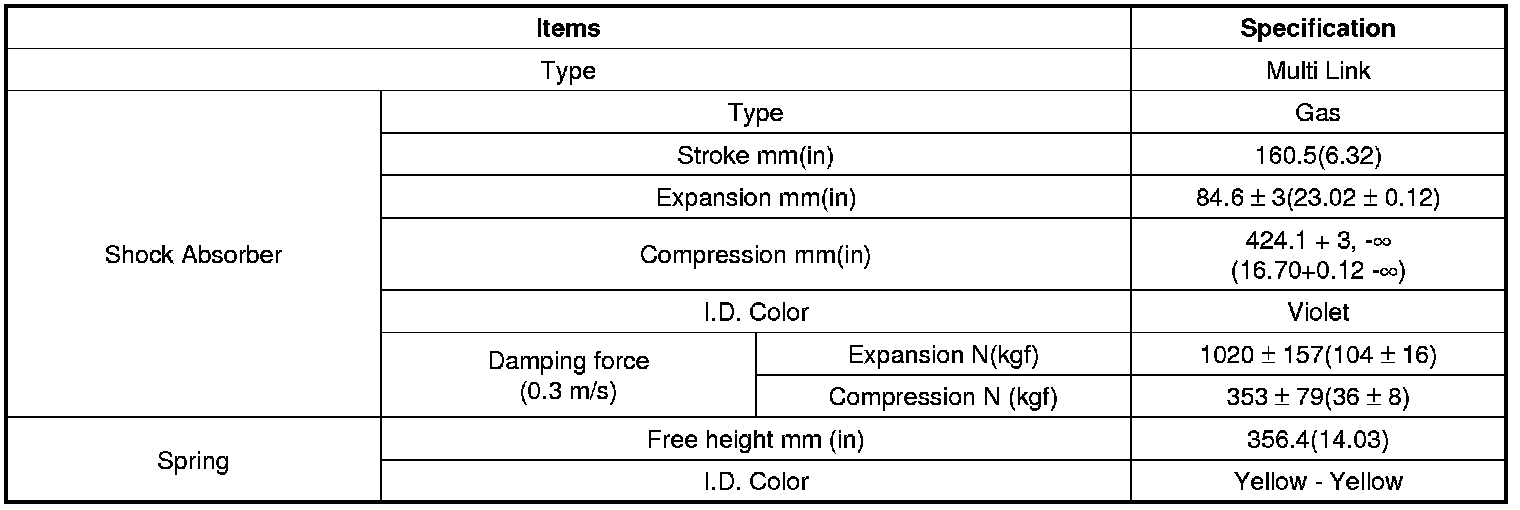

Rear Suspension System






Tightening Torques

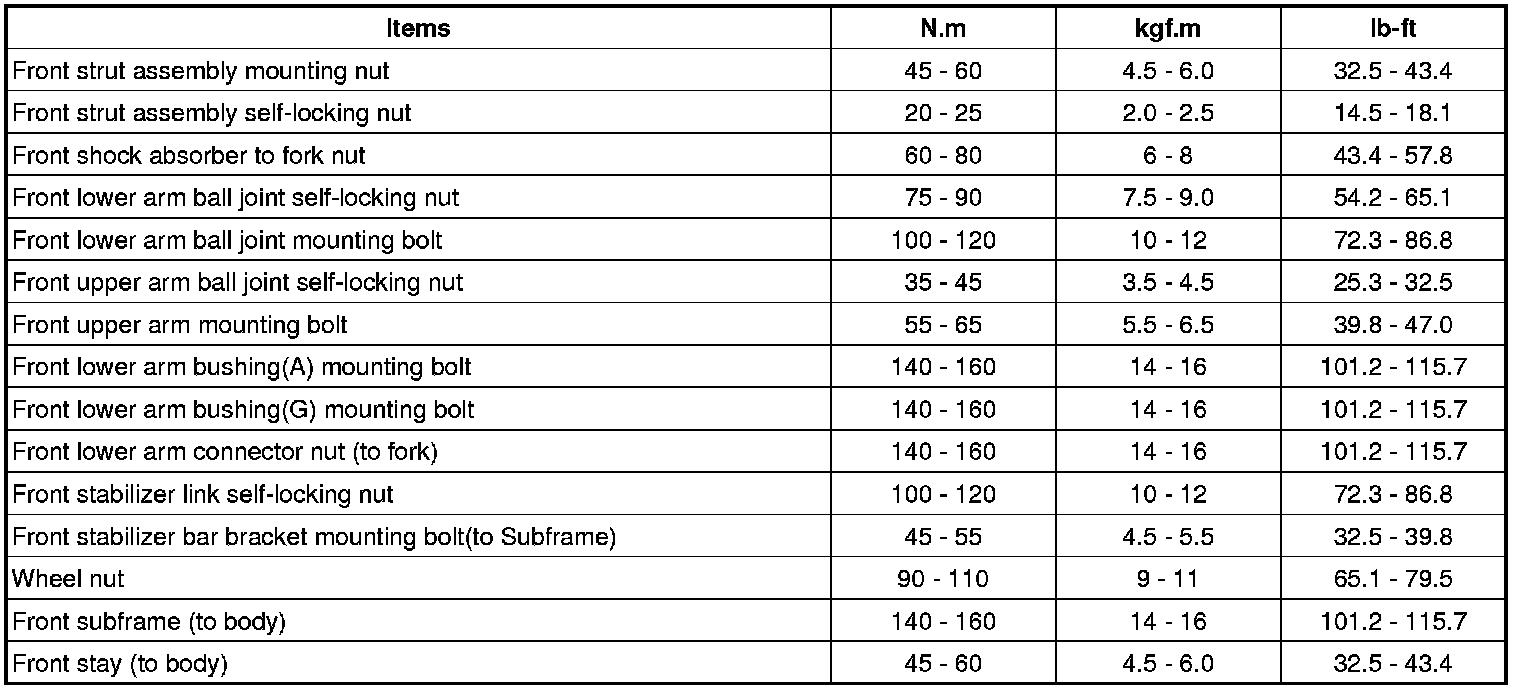

Front Suspension

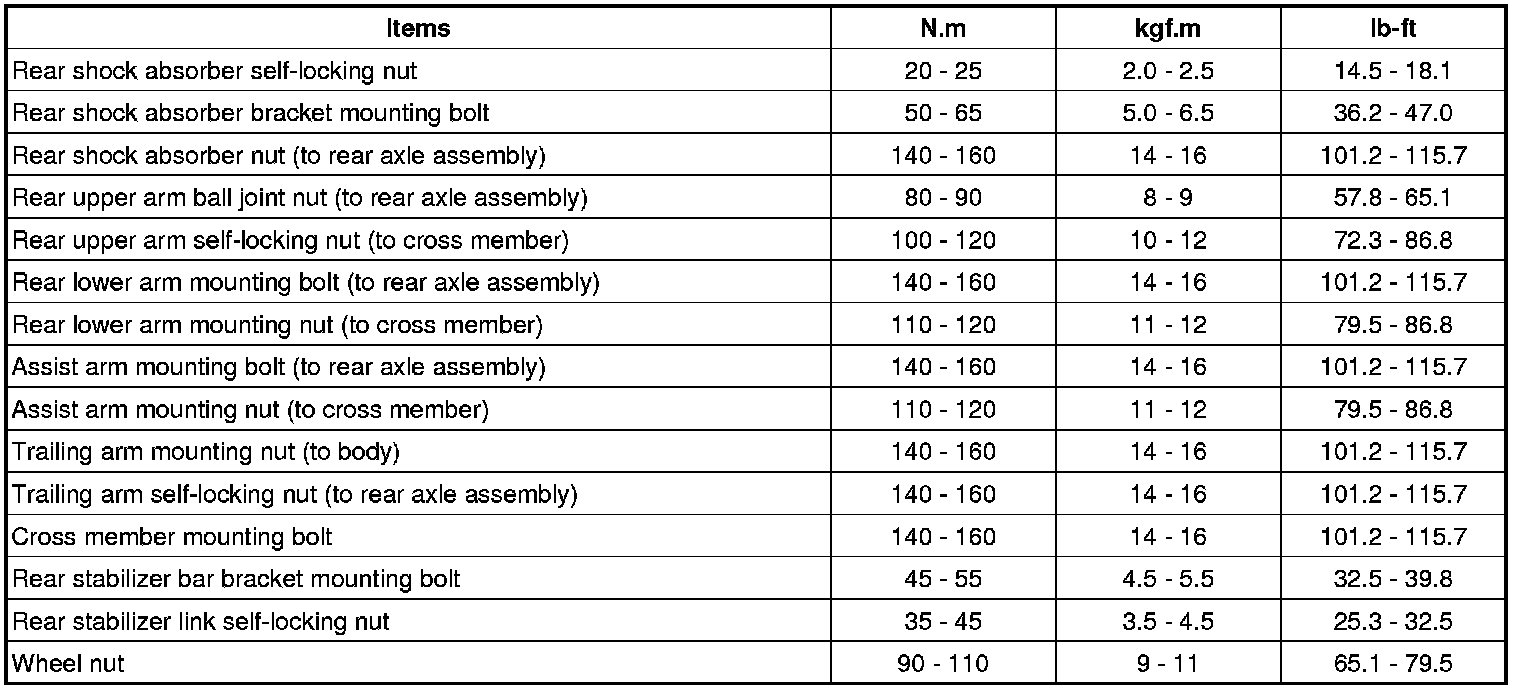

Rear Suspension






CAUTION:
Replace the self-locking nuts with new ones after removal.
