Home >> Hyundai >> 2010 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

ECM Terminal Information:

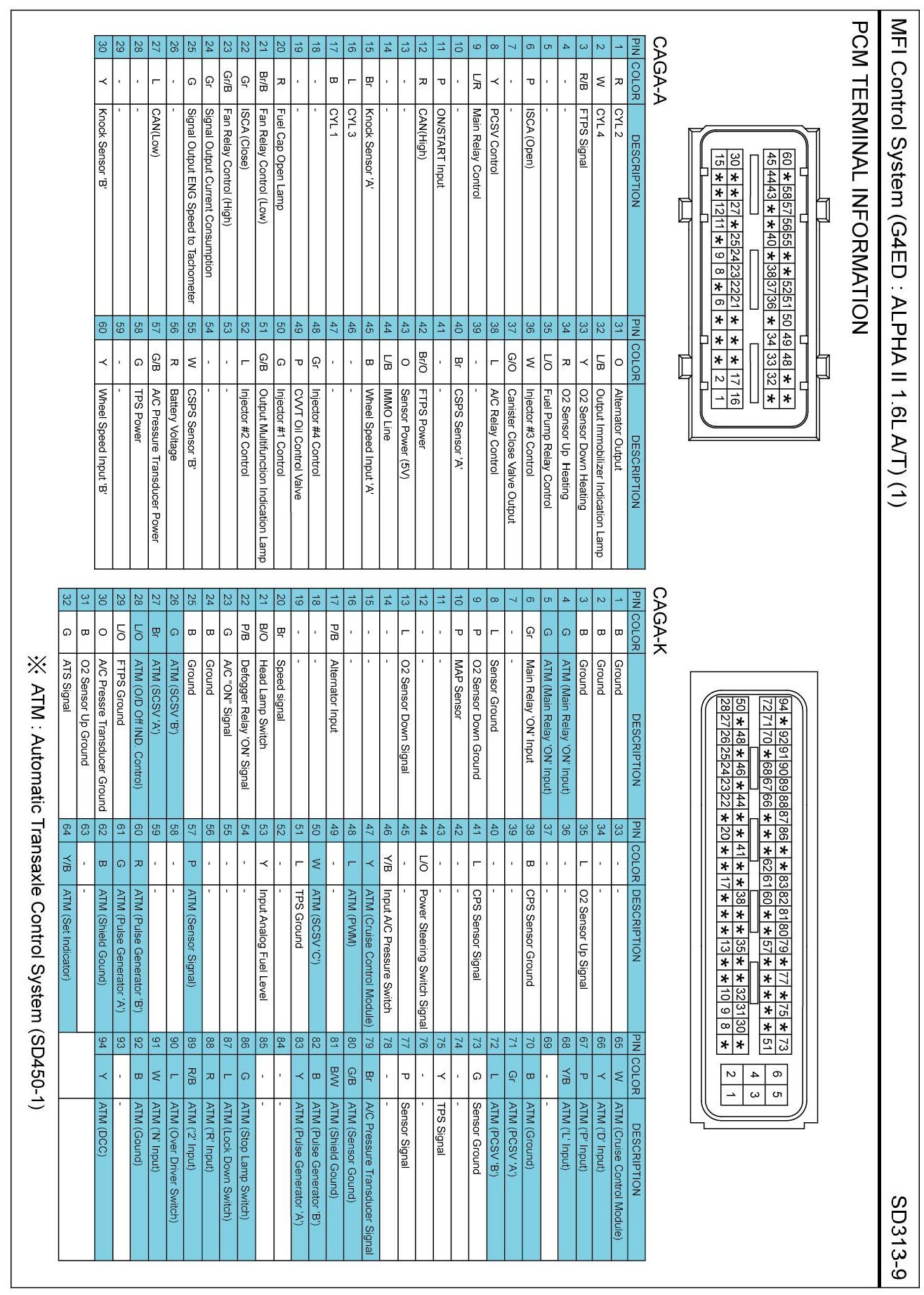

PCM Terminal Information:
