Engine Control Module - Specifications





ECM Terminal And Input/Output signal

ECM Harness Connector

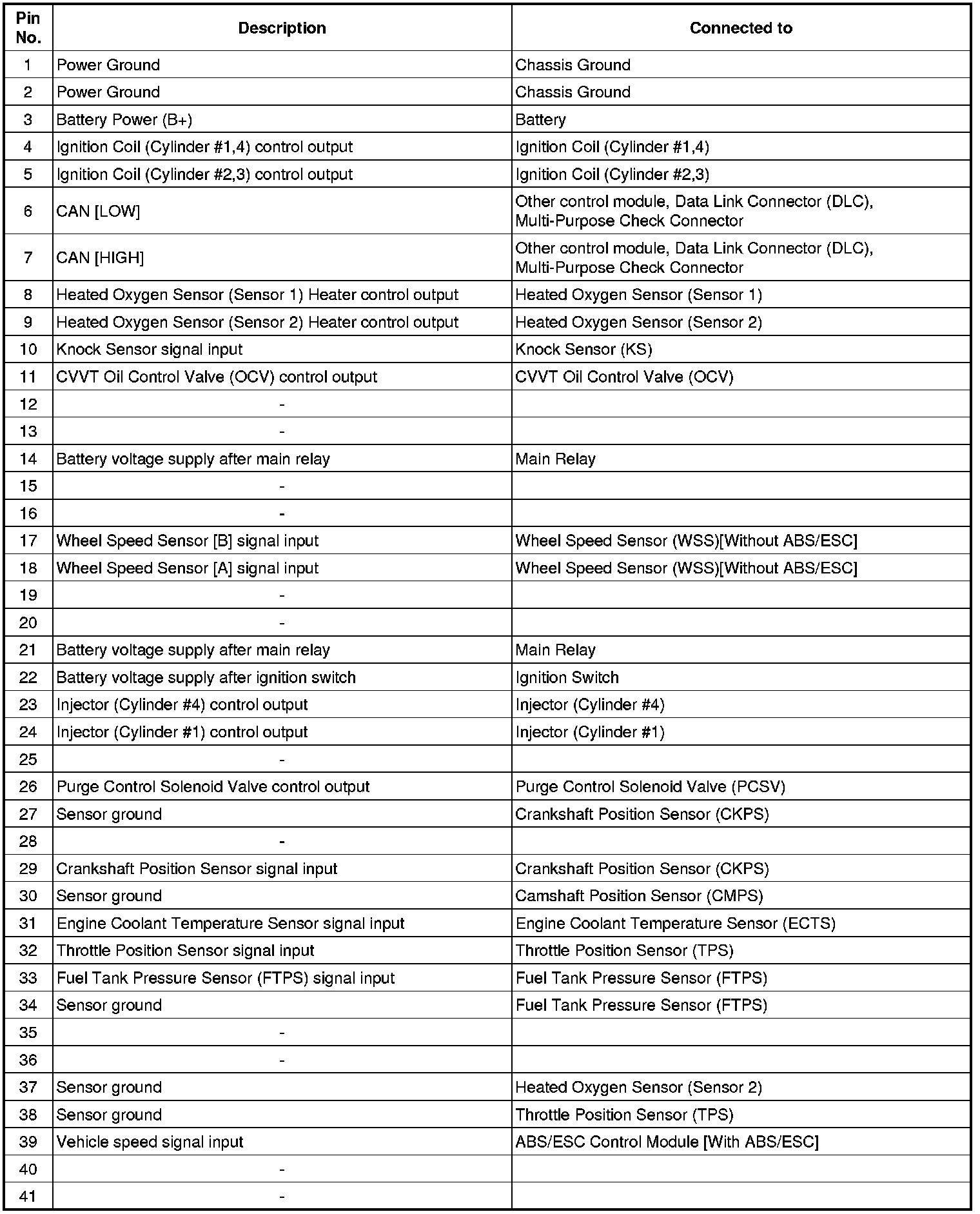

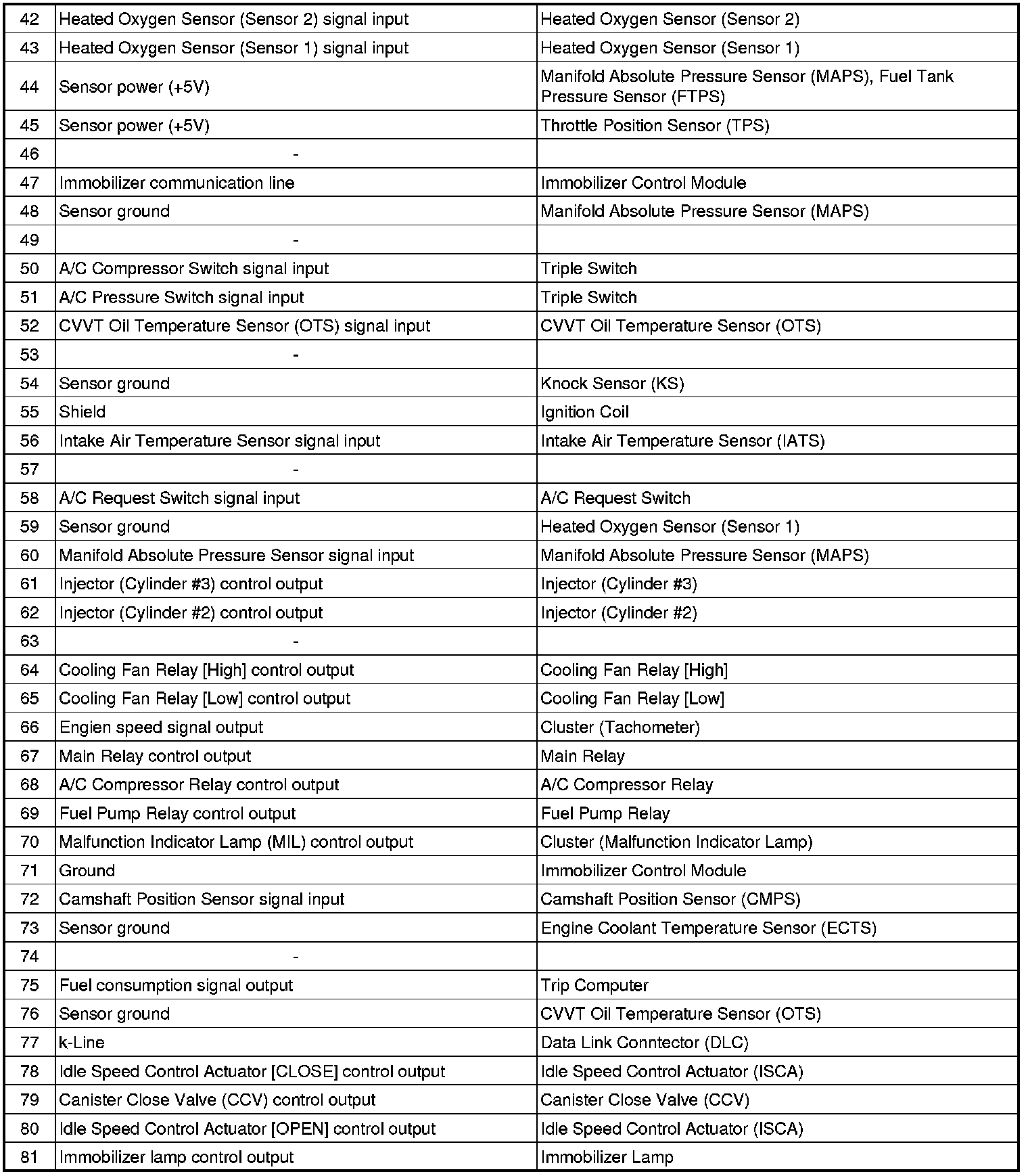

ECM Terminal Function
Connector [C130-1]

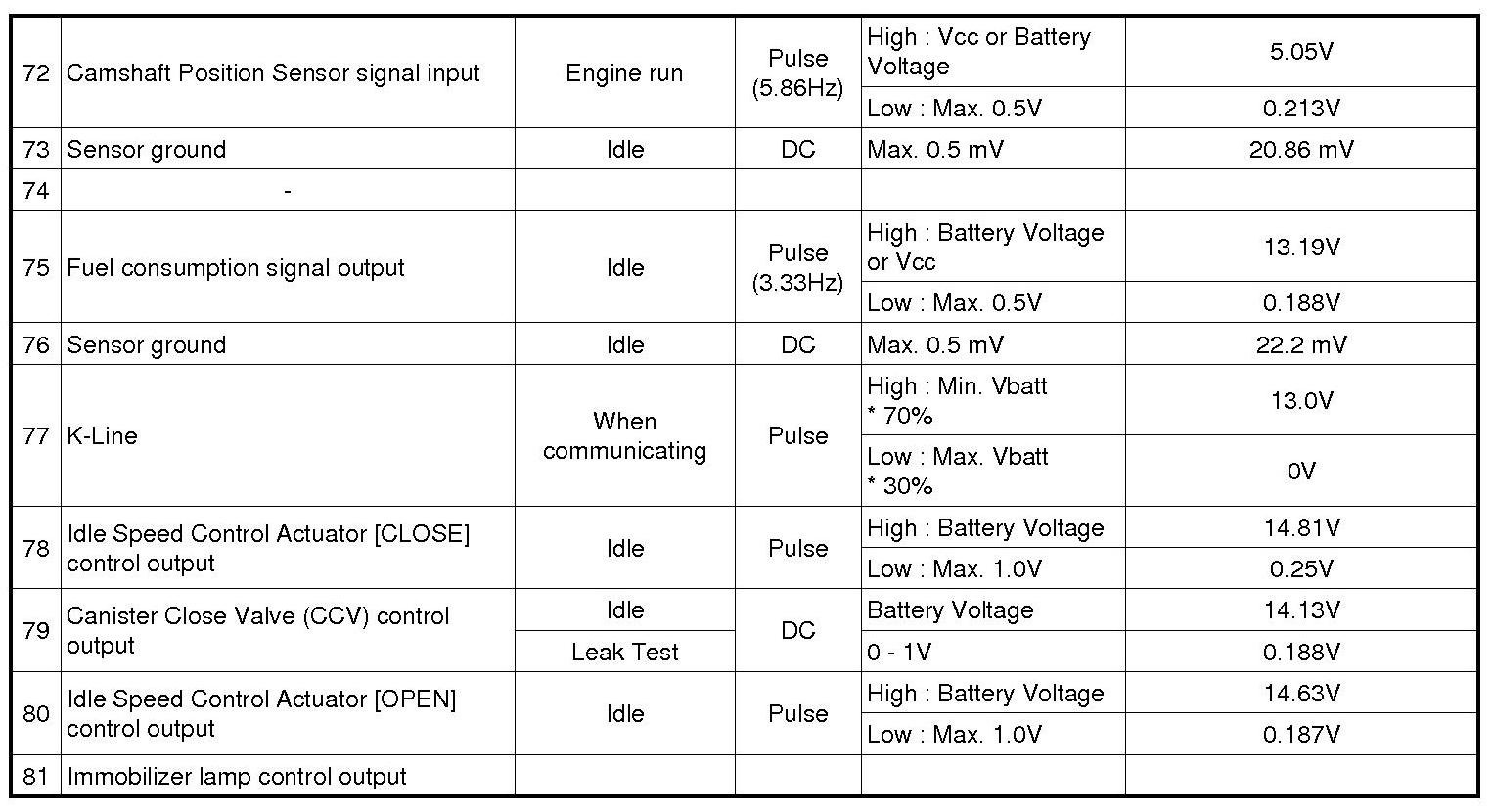

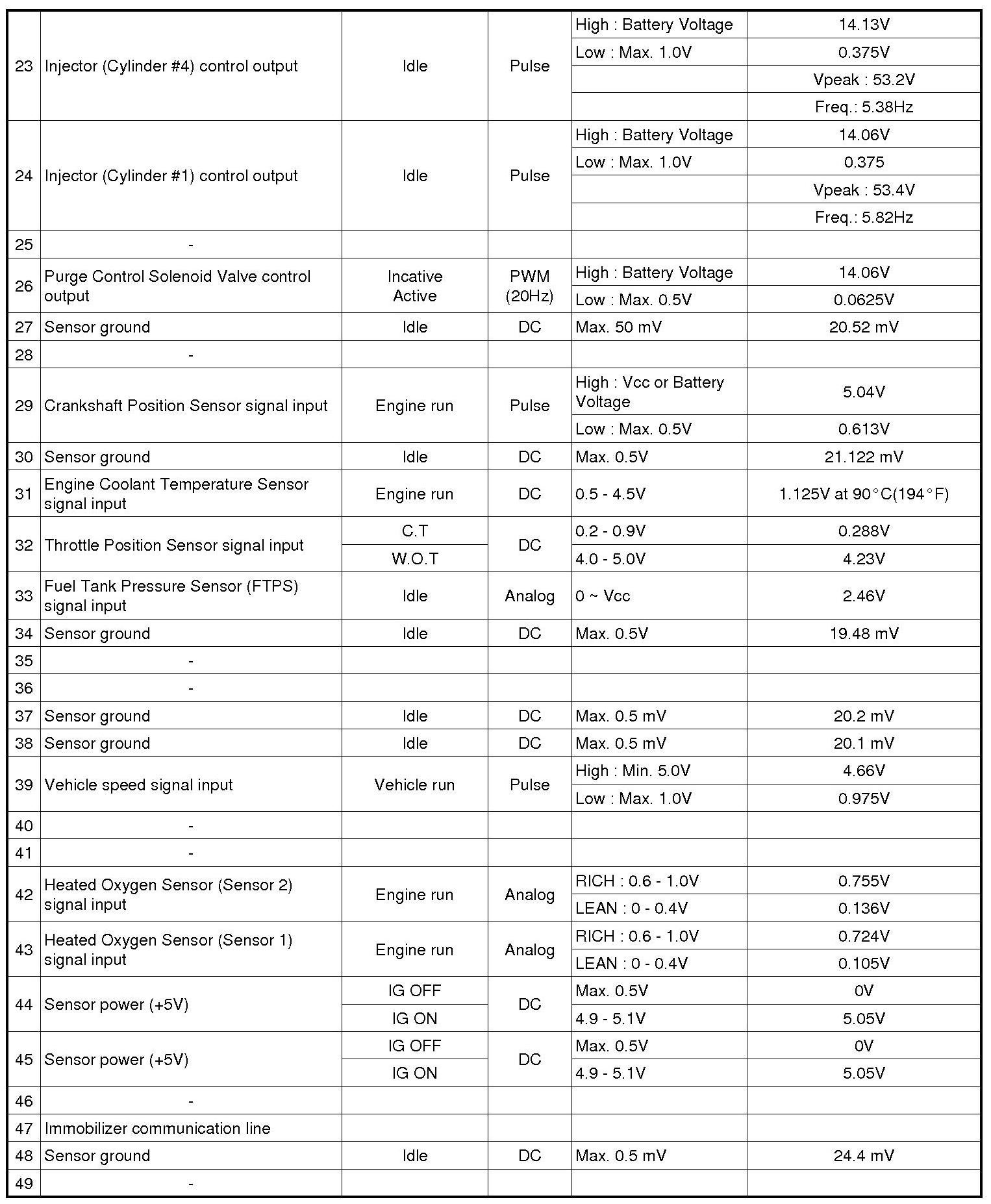

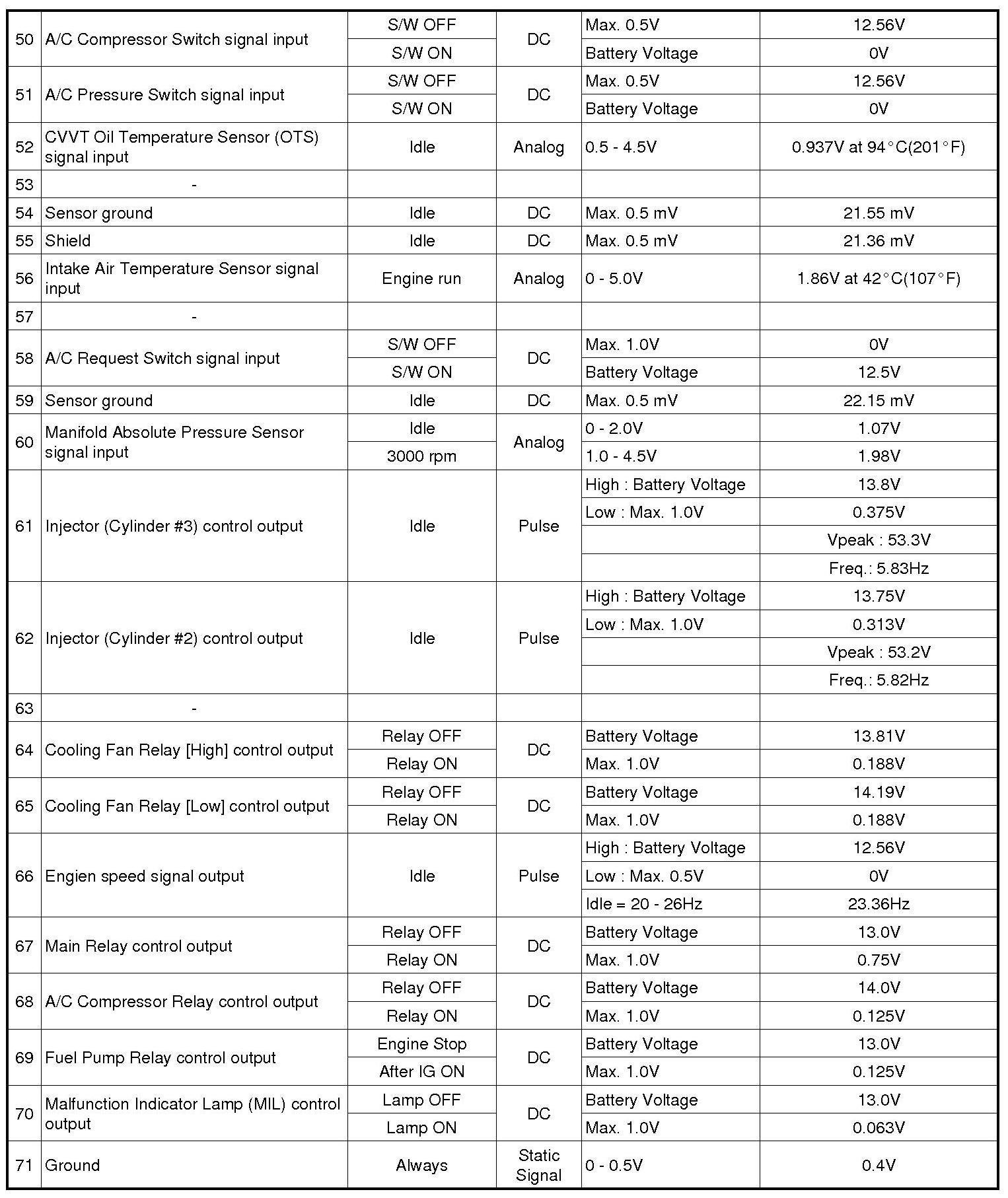

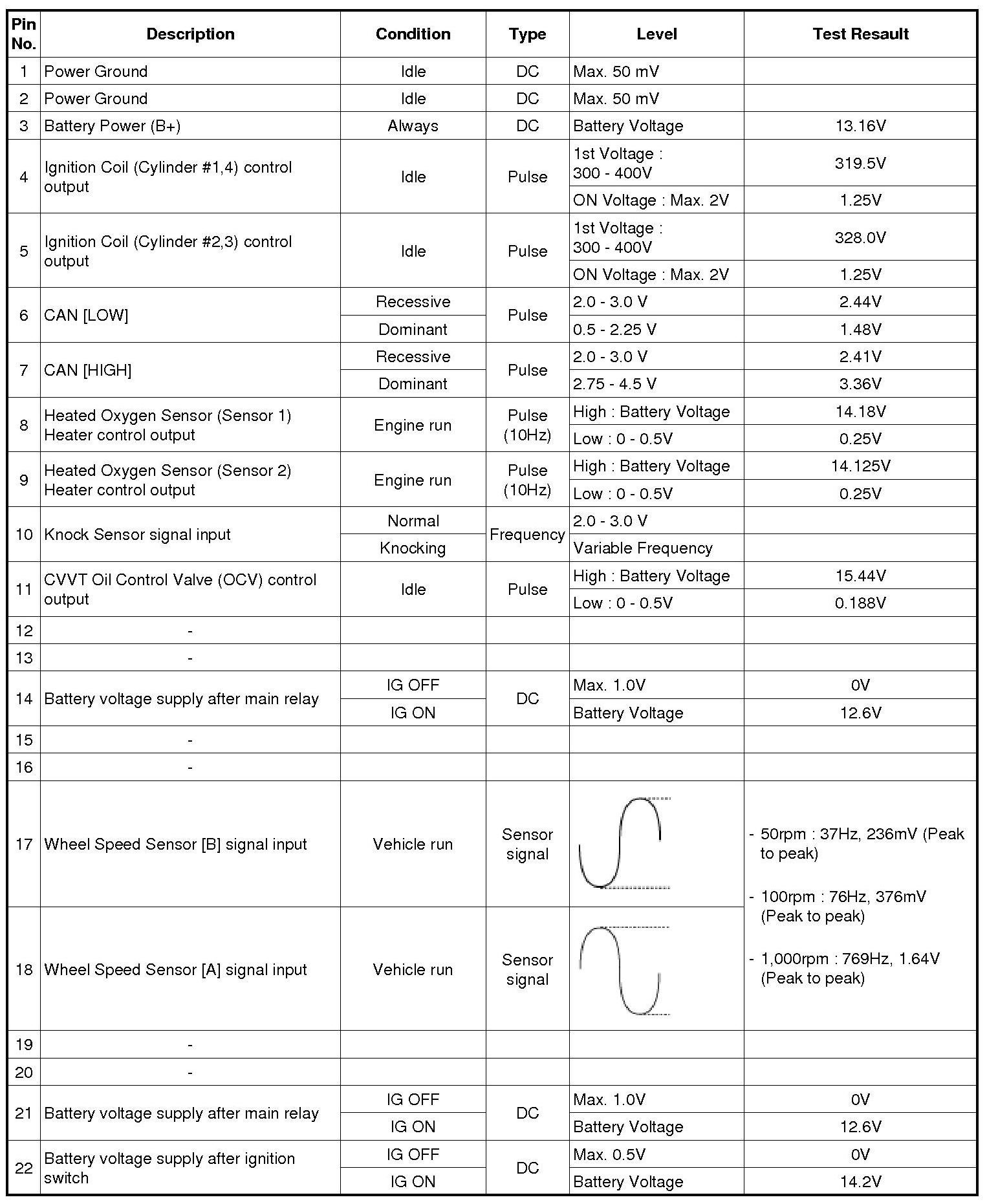

ECM Terminal Input/Output Signal
Connector [C130-1]
