Pinout Values and Diagnostic Parameters

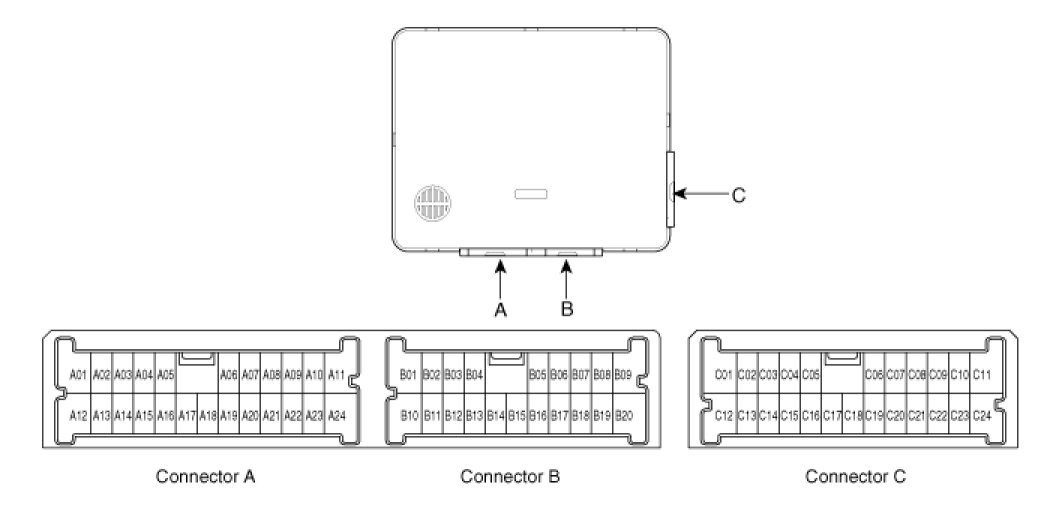

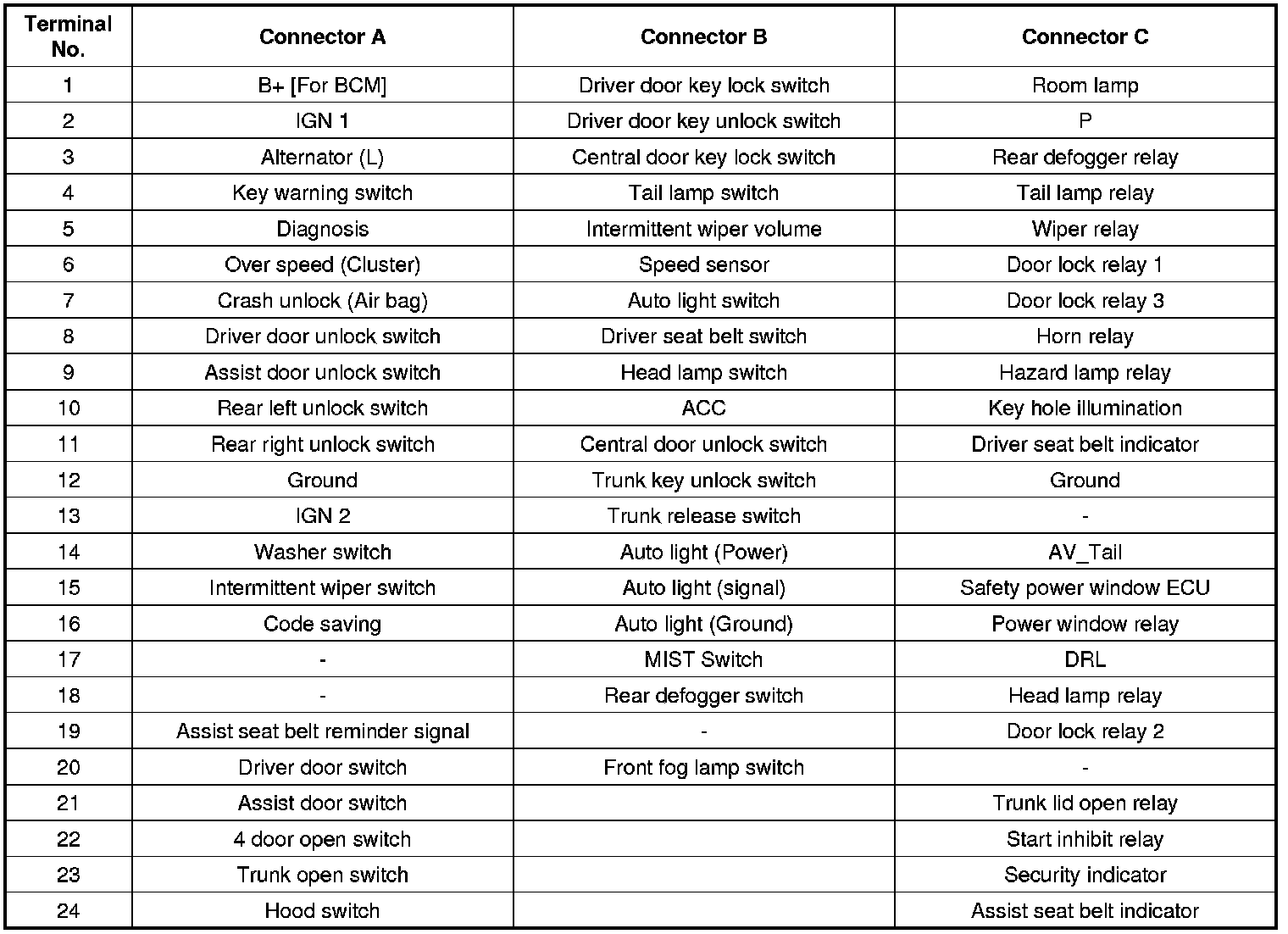

BCM Connector Terminals









BCM Module Input Signal Test
