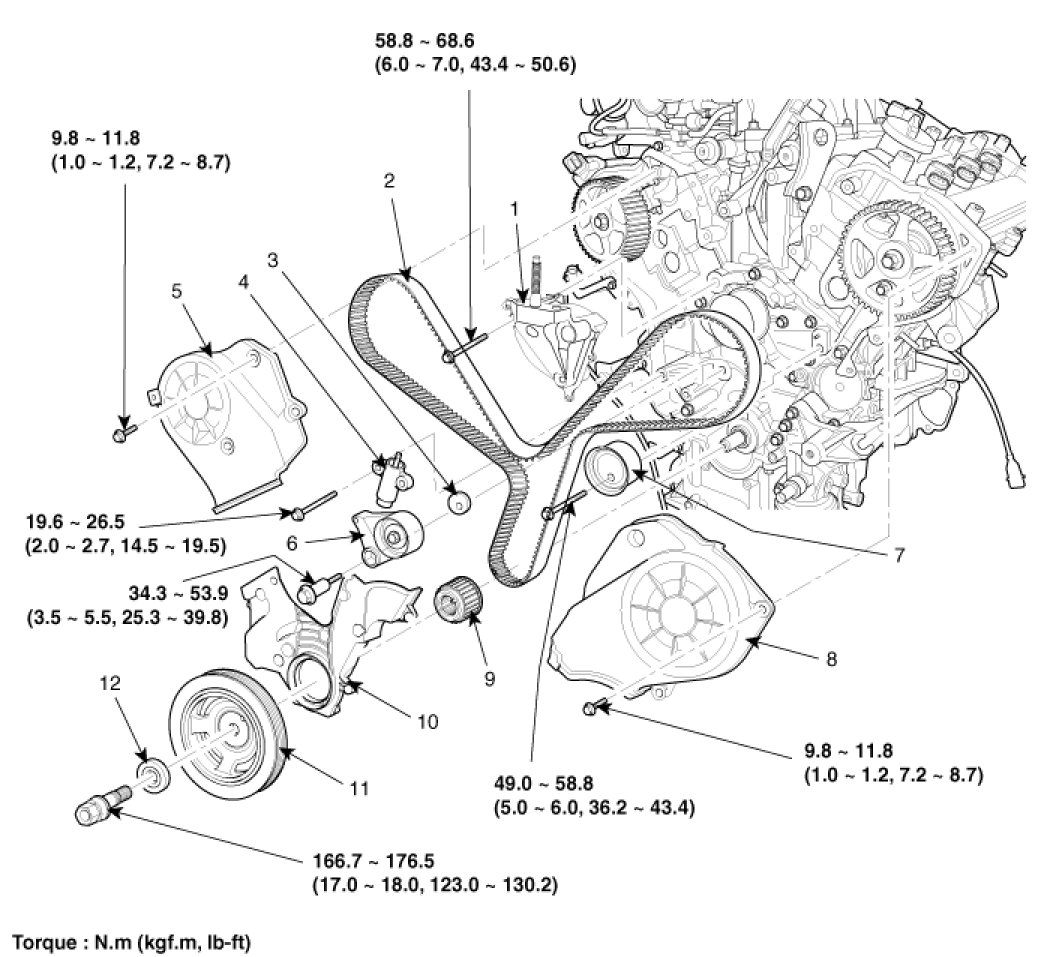

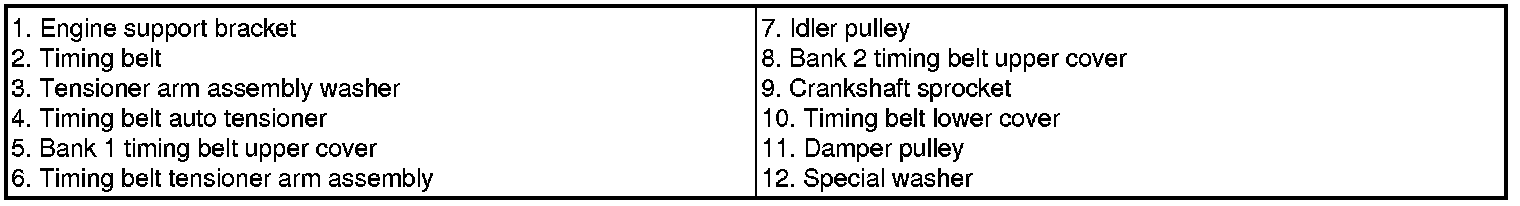

Home >> Hyundai >> 2009 >> Santa Fe FWD V6-2.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> System Specifications >> Components and Components Location
