lemon-mirror:

Home >> Hyundai >> 2009 >> Santa Fe FWD V6-2.7L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Throttle Position Sensor

Throttle Position Sensor

Specifications

Sensors
Throttle Position Sensor (TPS) [integrated into ETC Module]
- Type: Variable resistor type

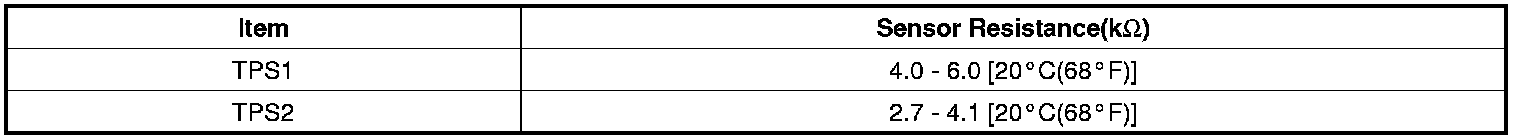

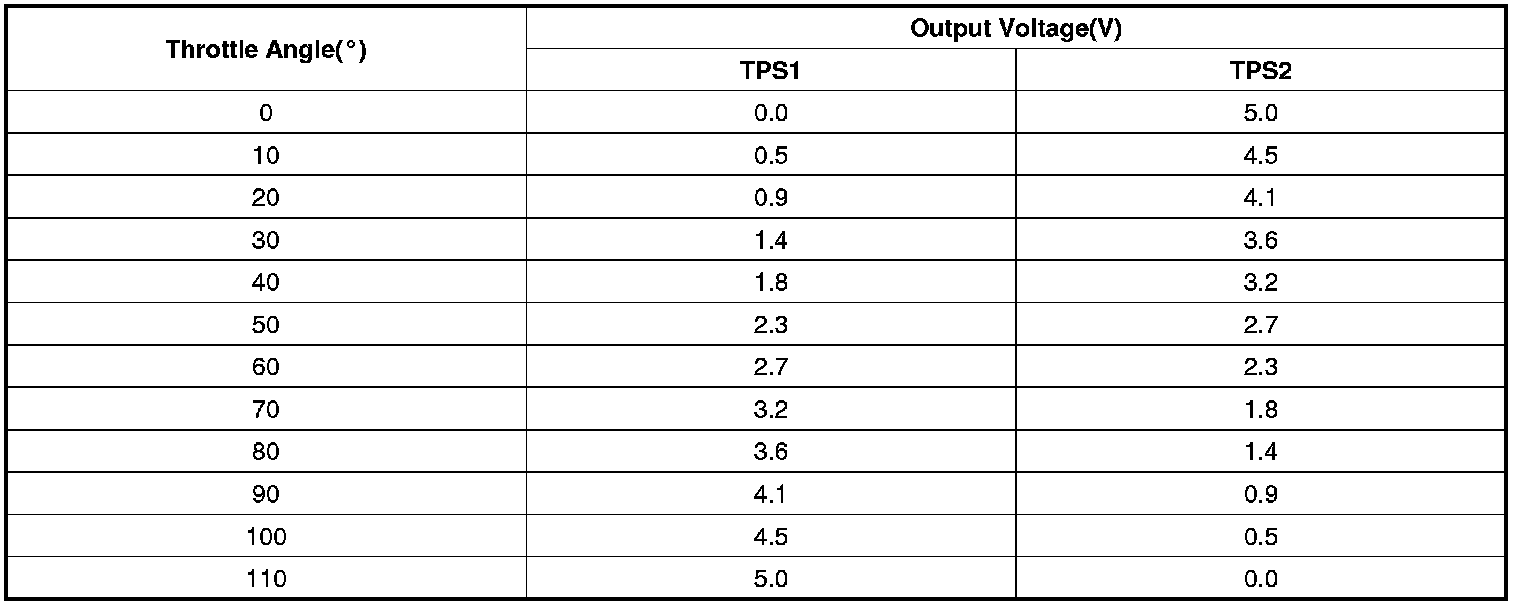

- Specification
