Engine Control Module





ECM Terminal And Input/Output signal

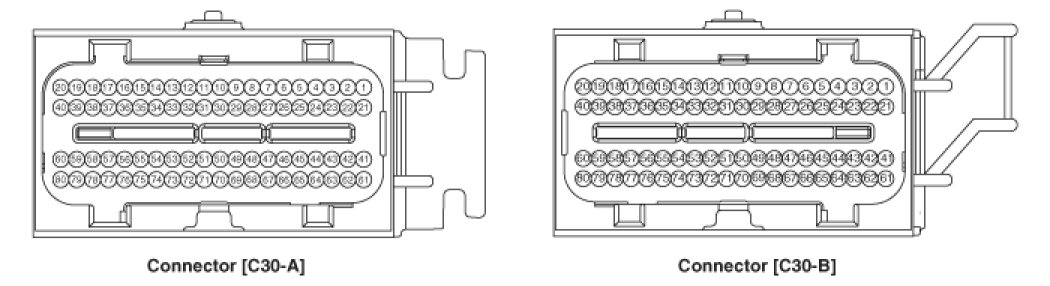

ECM Harness Connector

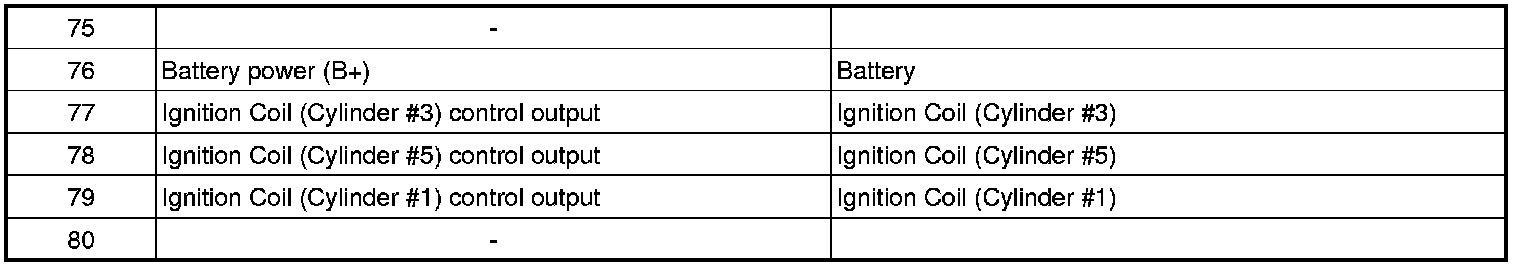

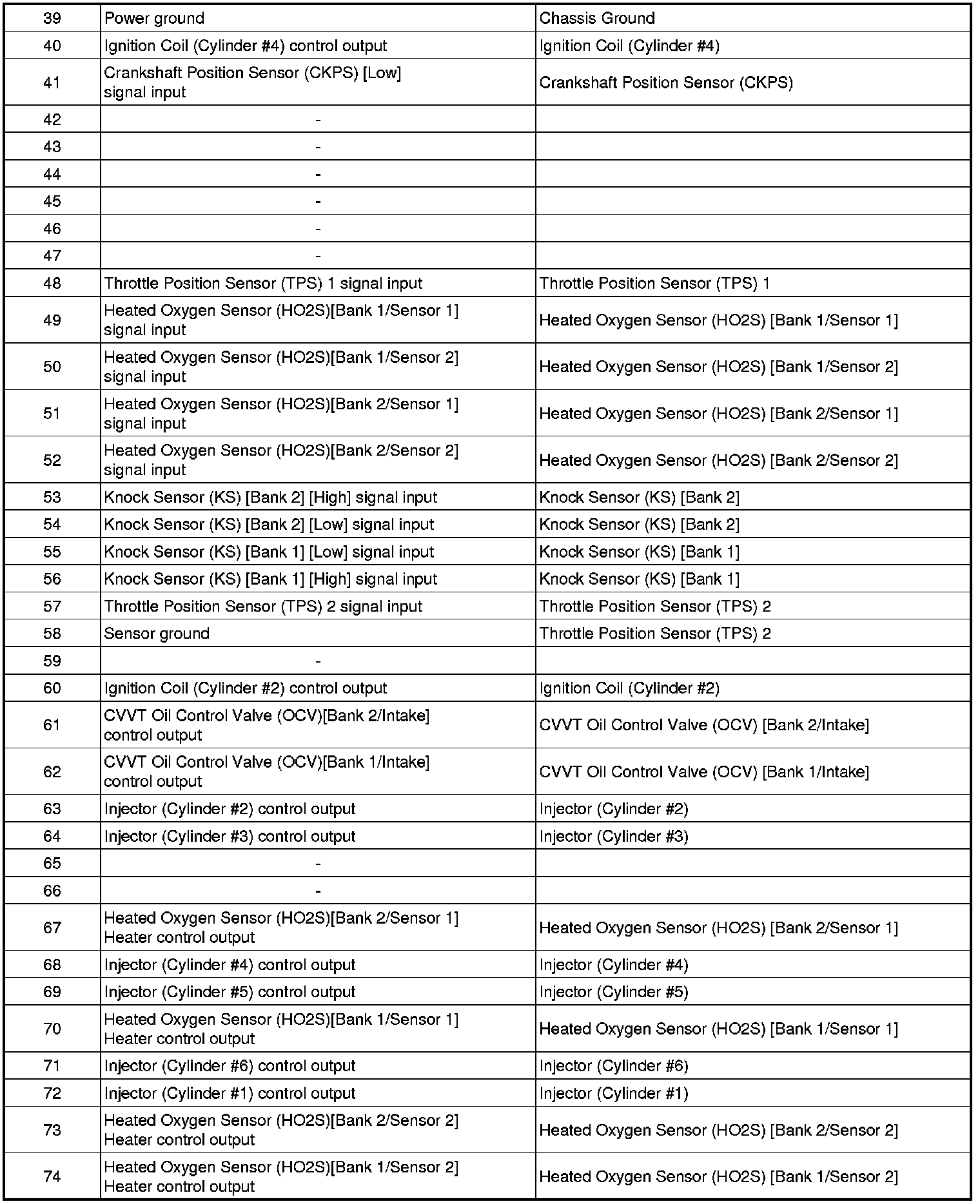

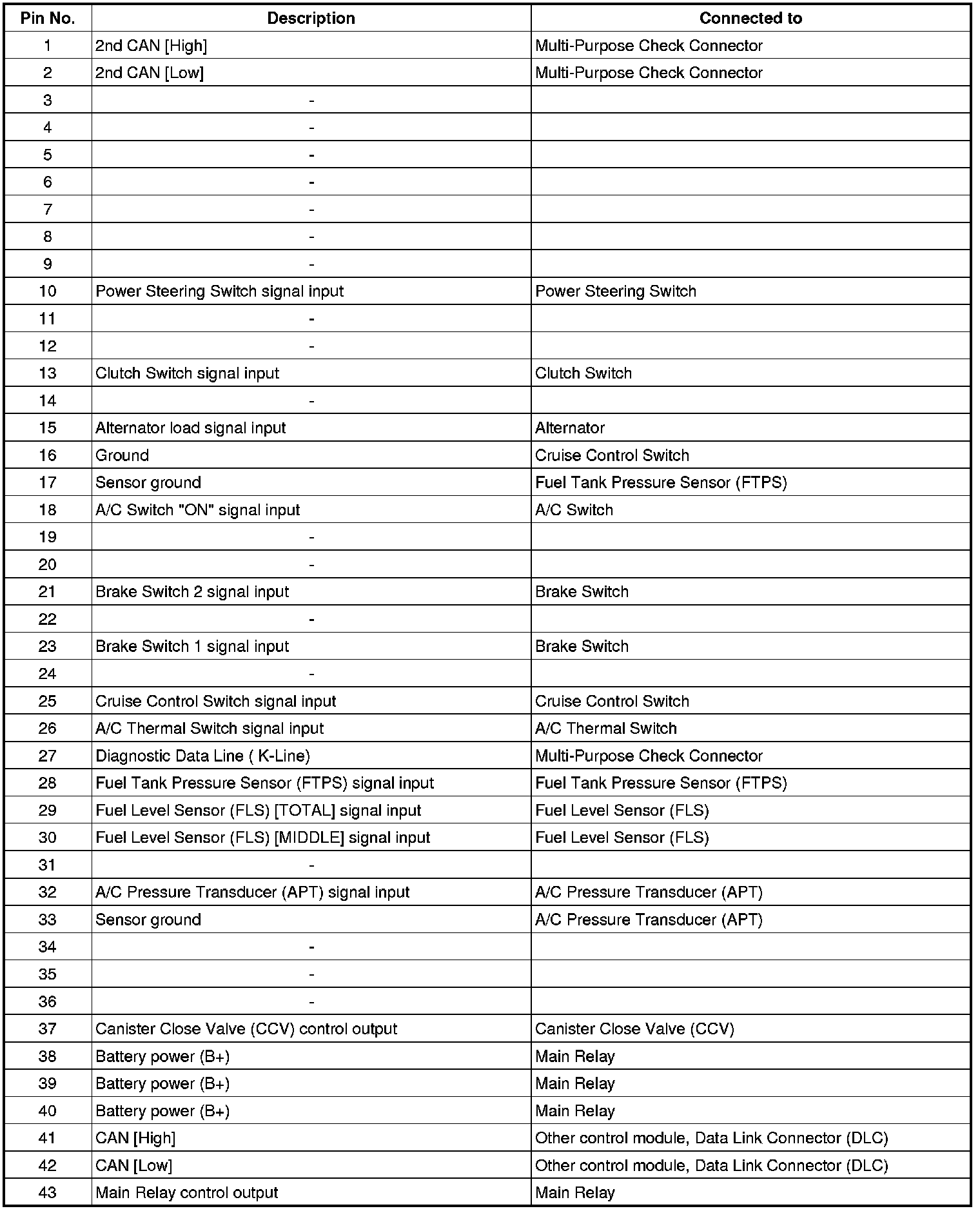

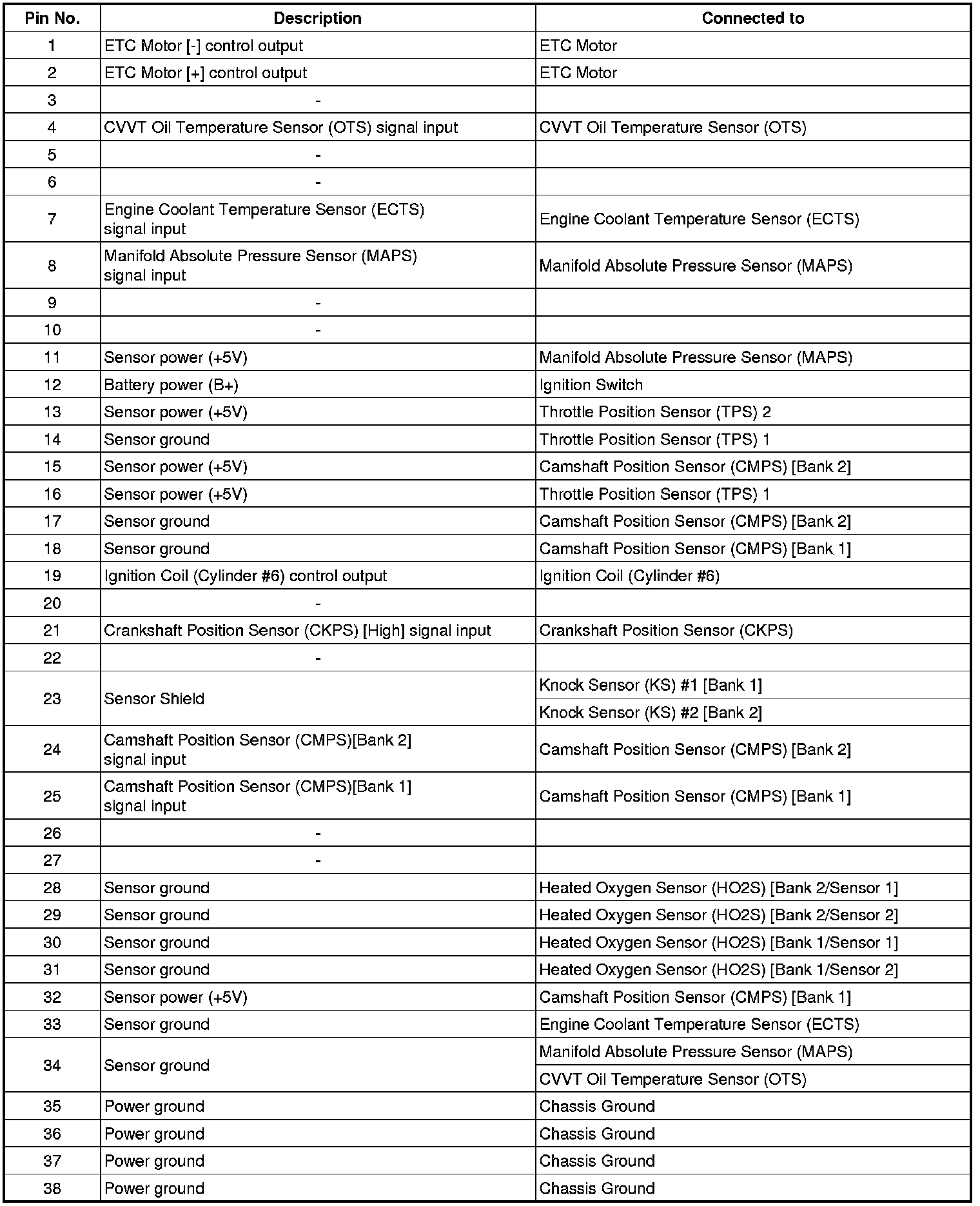

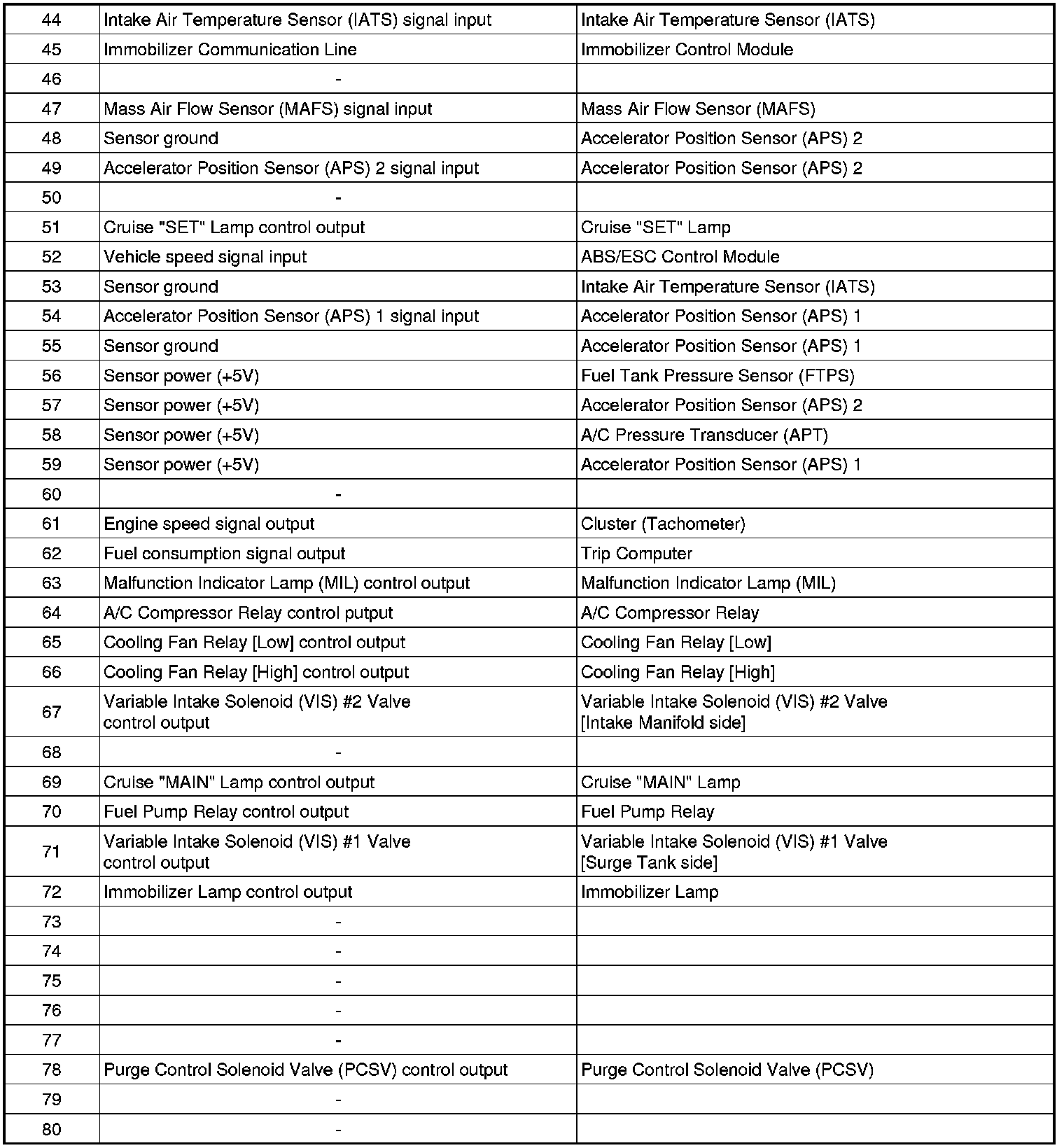

ECM Terminal Function
Connector [C30-A]









Connector [C30-B]

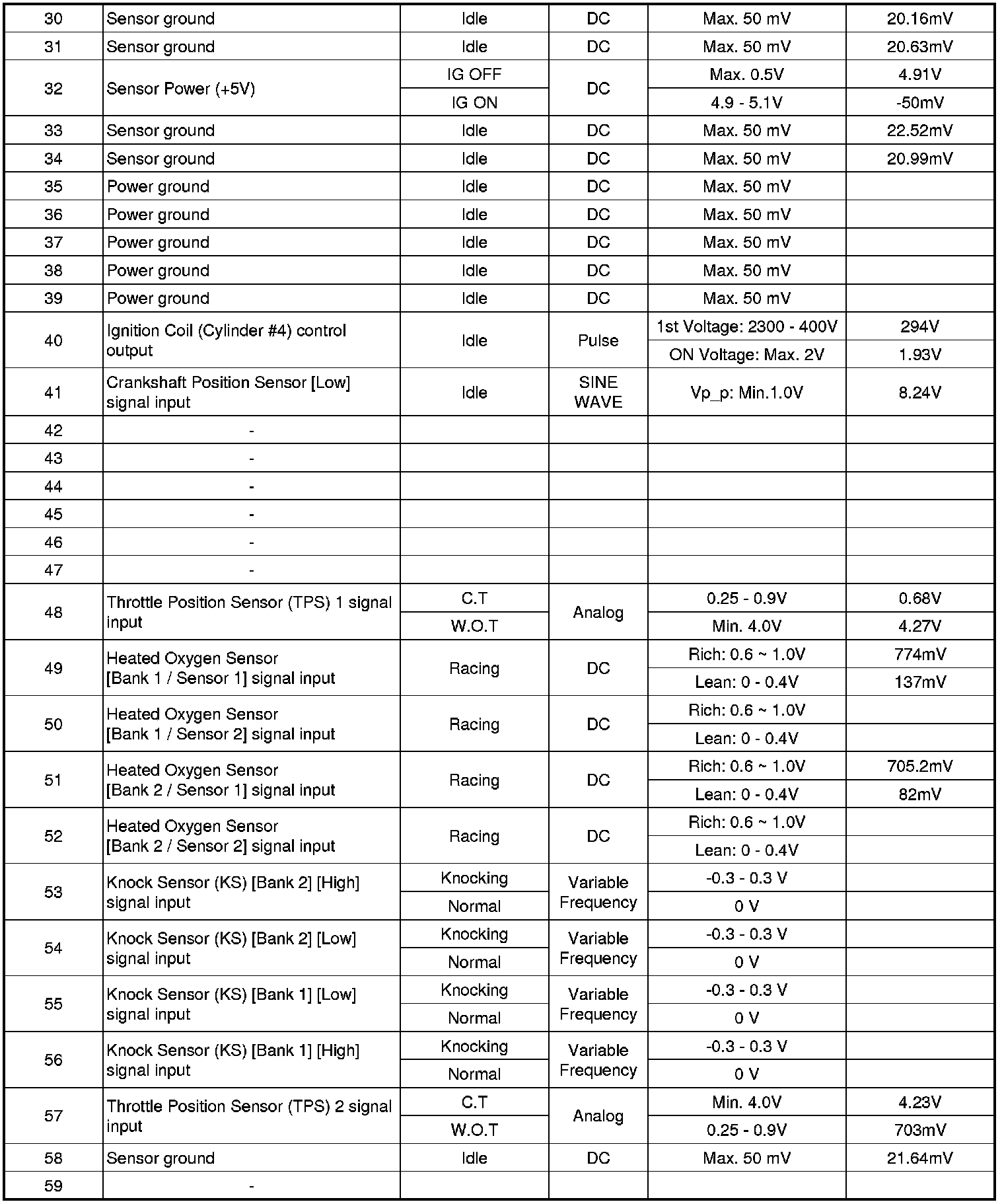

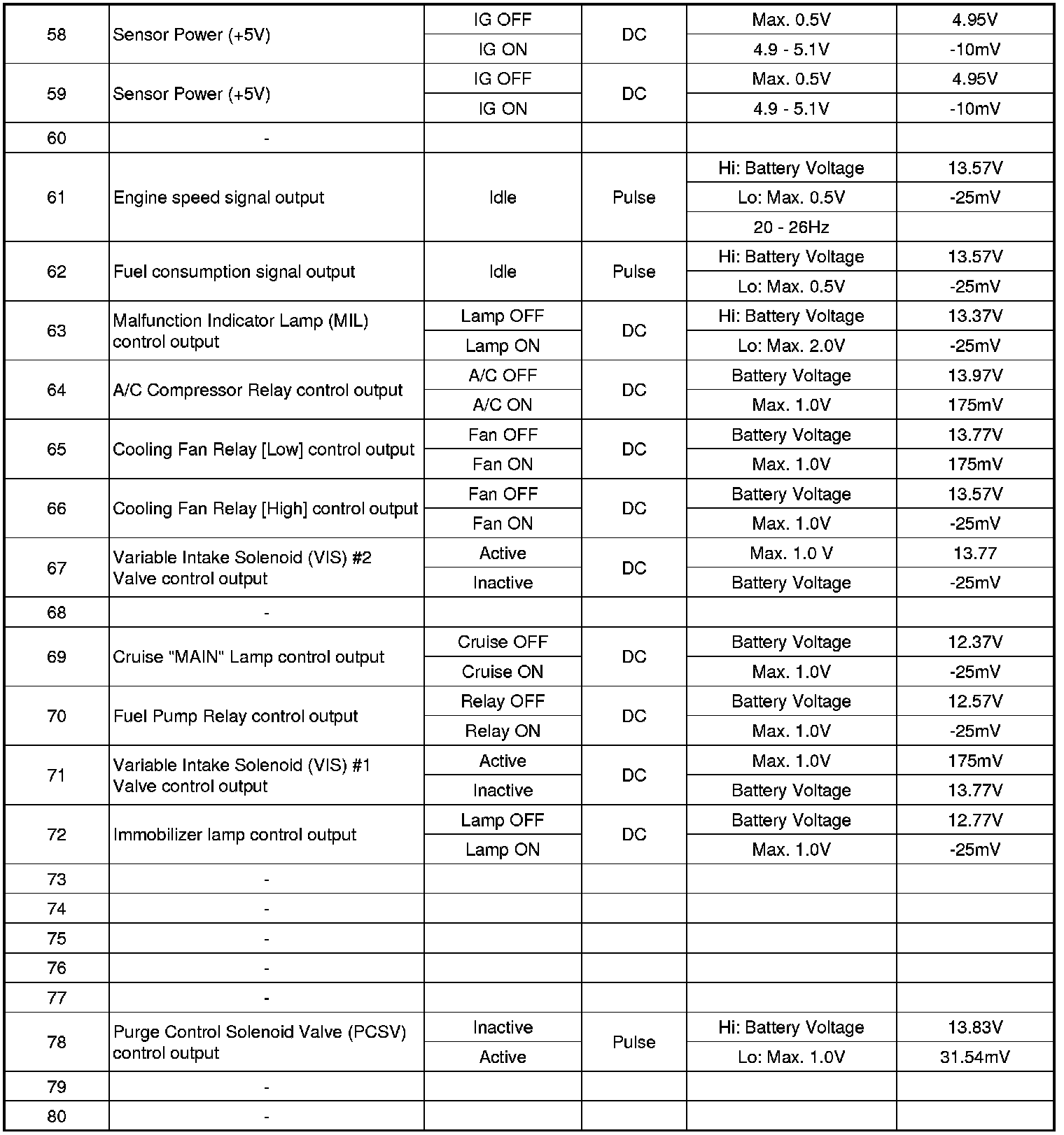

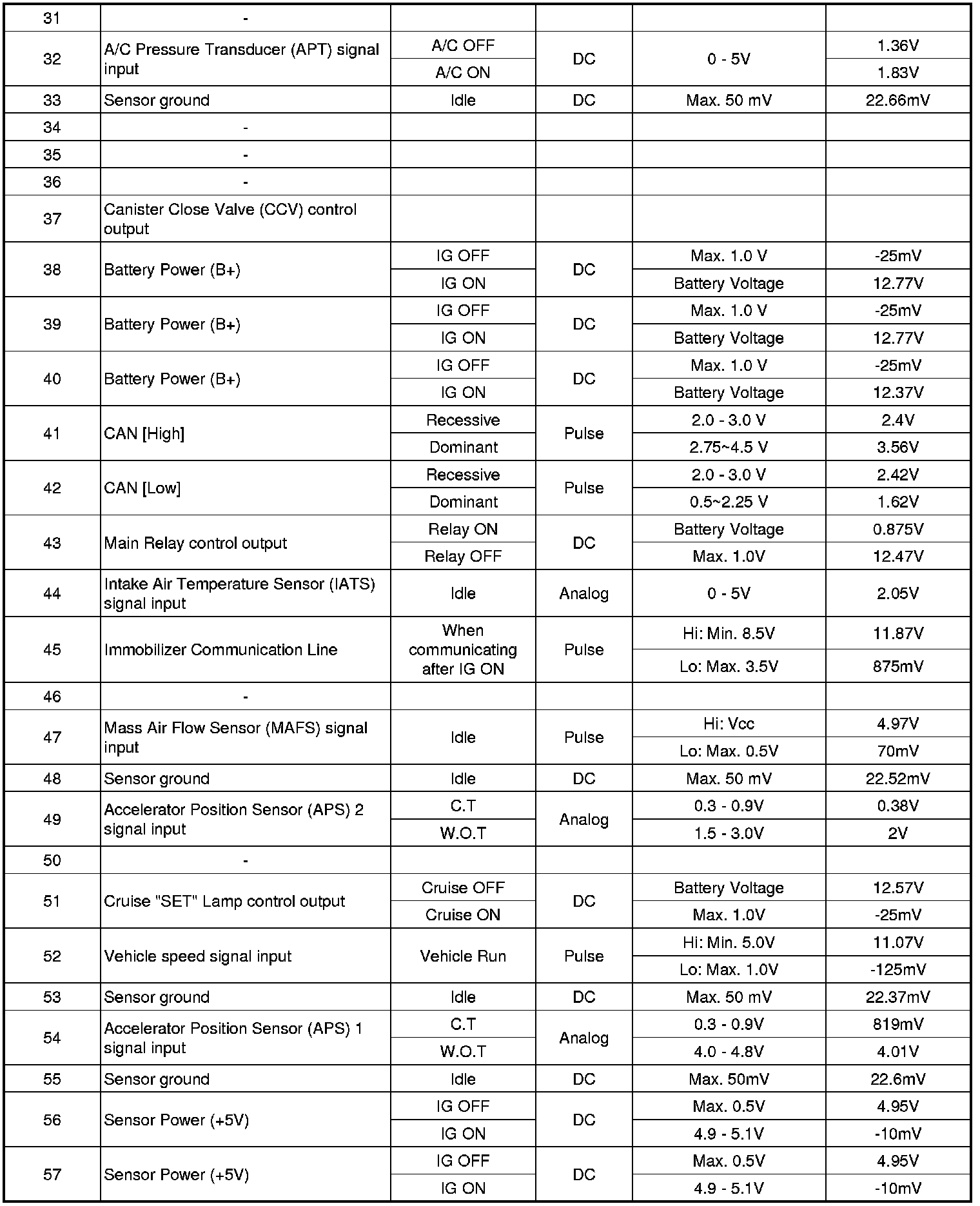

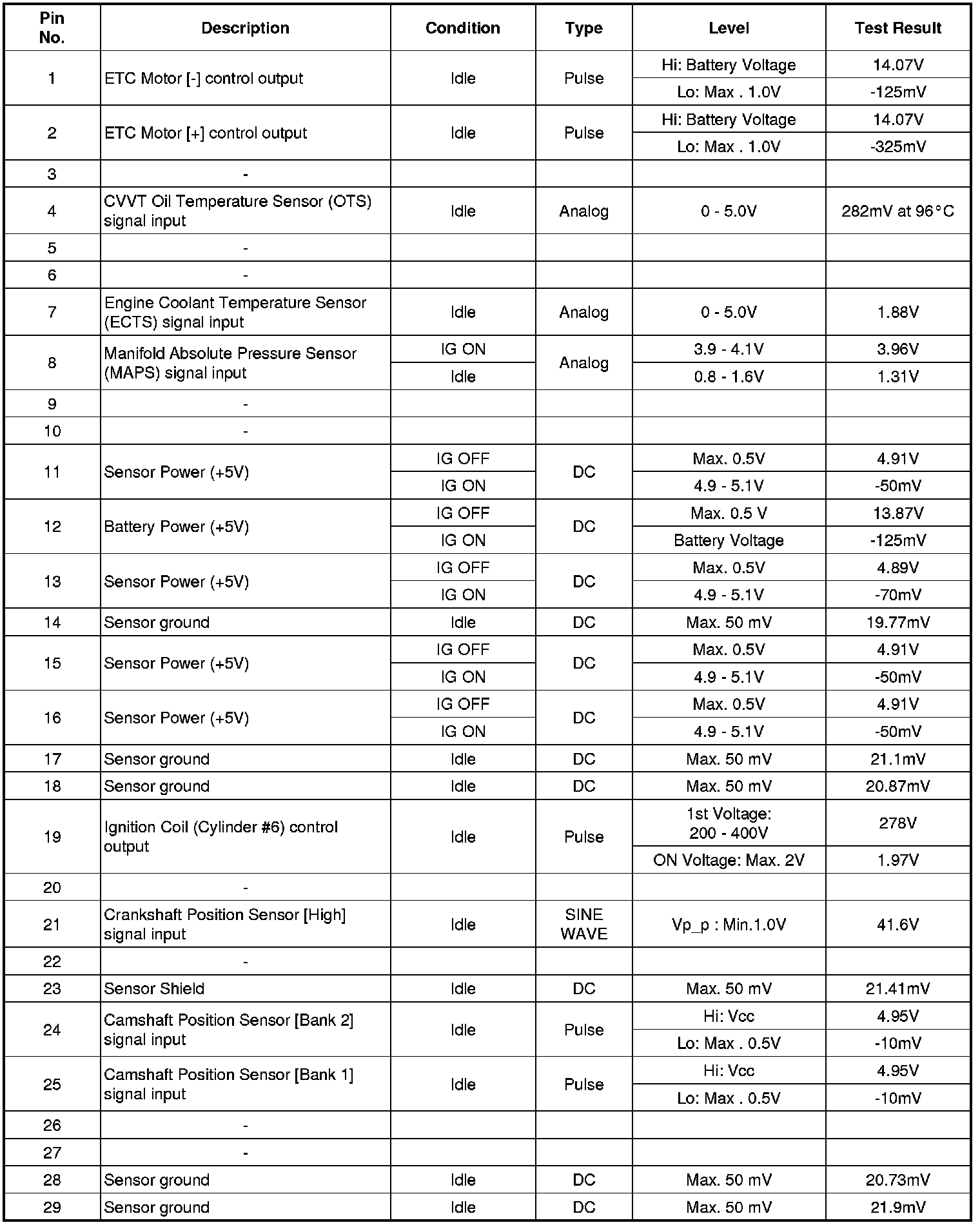

ECM Terminal Input/Output Signal

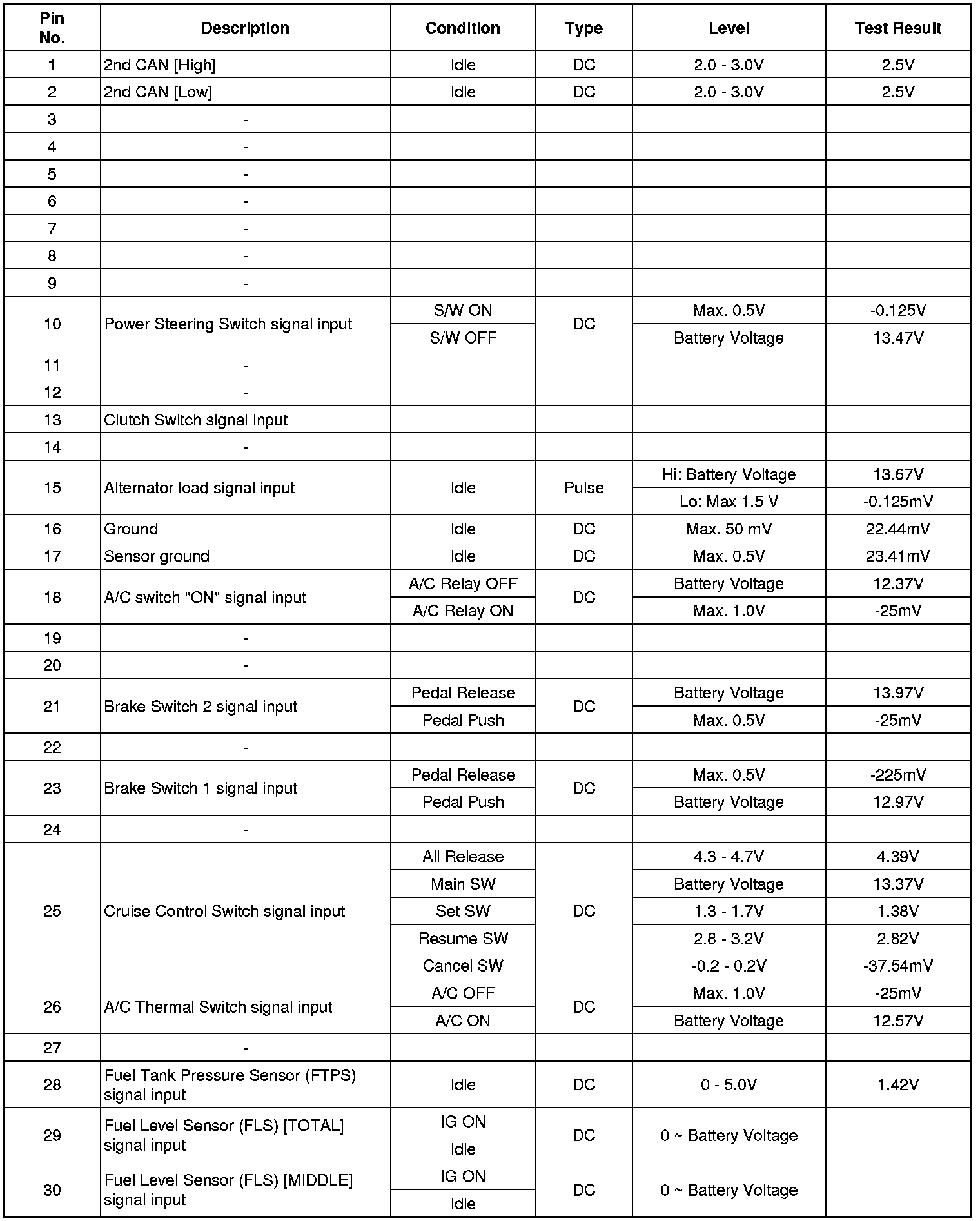

Connector [C30-A]

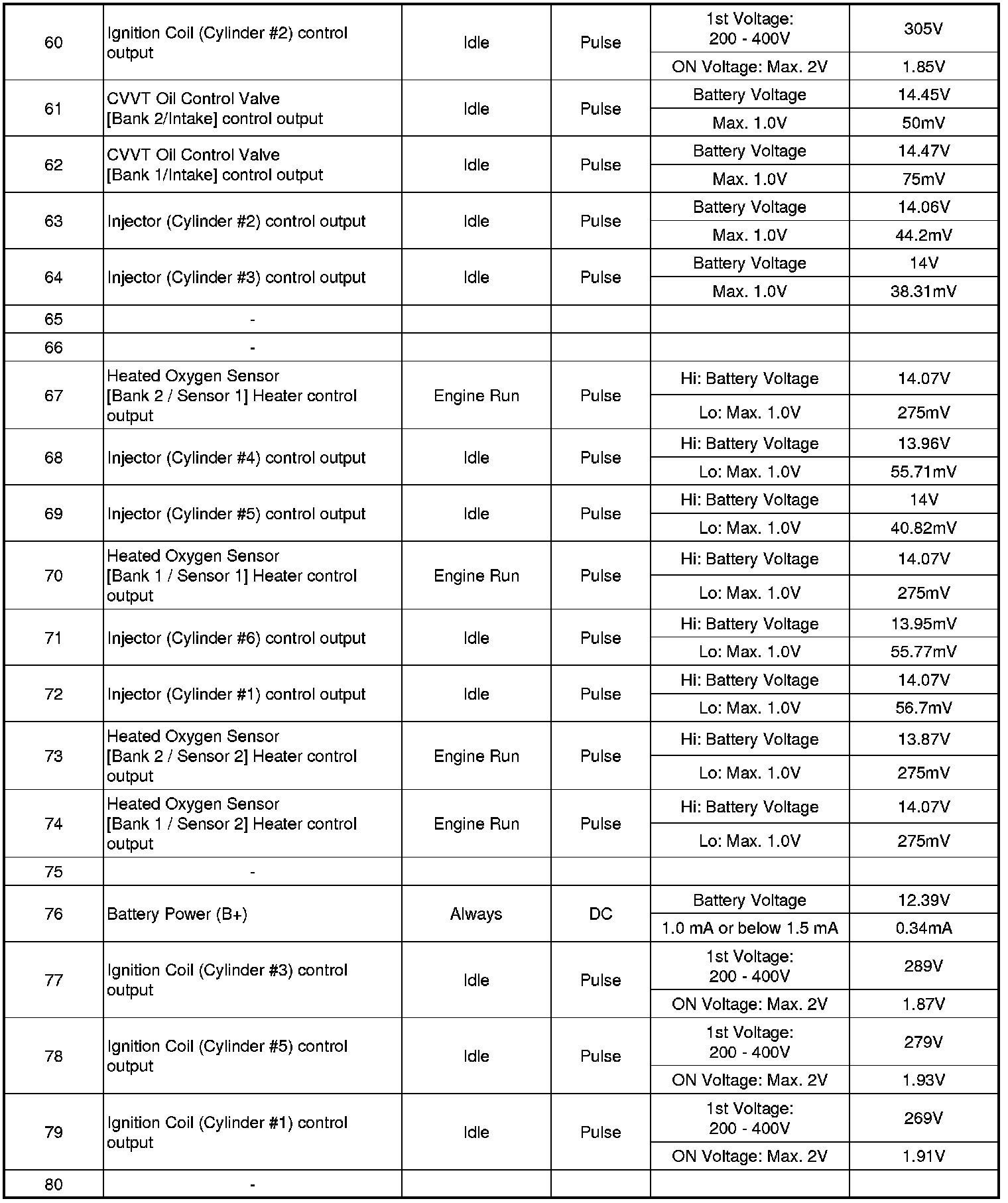

Connector [C30-B]
