Repair procedures

Removal

1. Disconnect the negative(-) battery terminal.

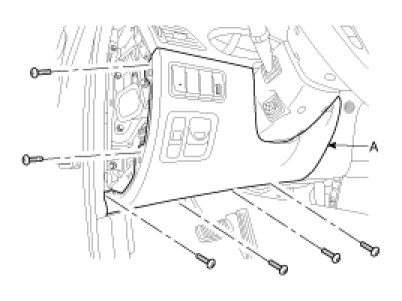

2. Remove the crash pad lower panel(A).

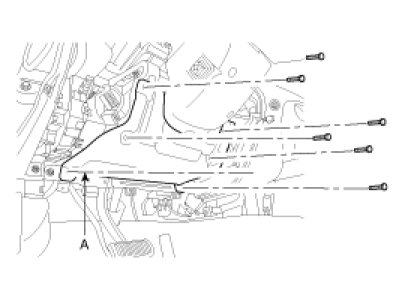

3. Remove the reinforcing panel (A).

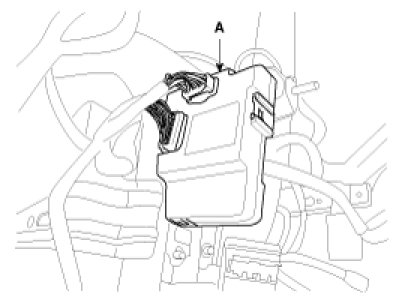

4. Remove the power distribution module(A) after loosening a bolt and nut.






Installation

1. Install the power distribution module.
2. Install the crash pad lower panel.
