Oil Pump





Oil Pump

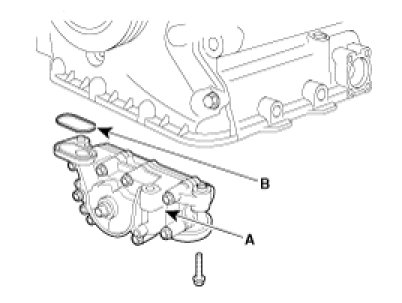

Install oil pump(A).

Tightening torque 19.6 - 23.5 Nm (2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)

NOTE: Always use a new O-ring (B).
