Components and Components Location

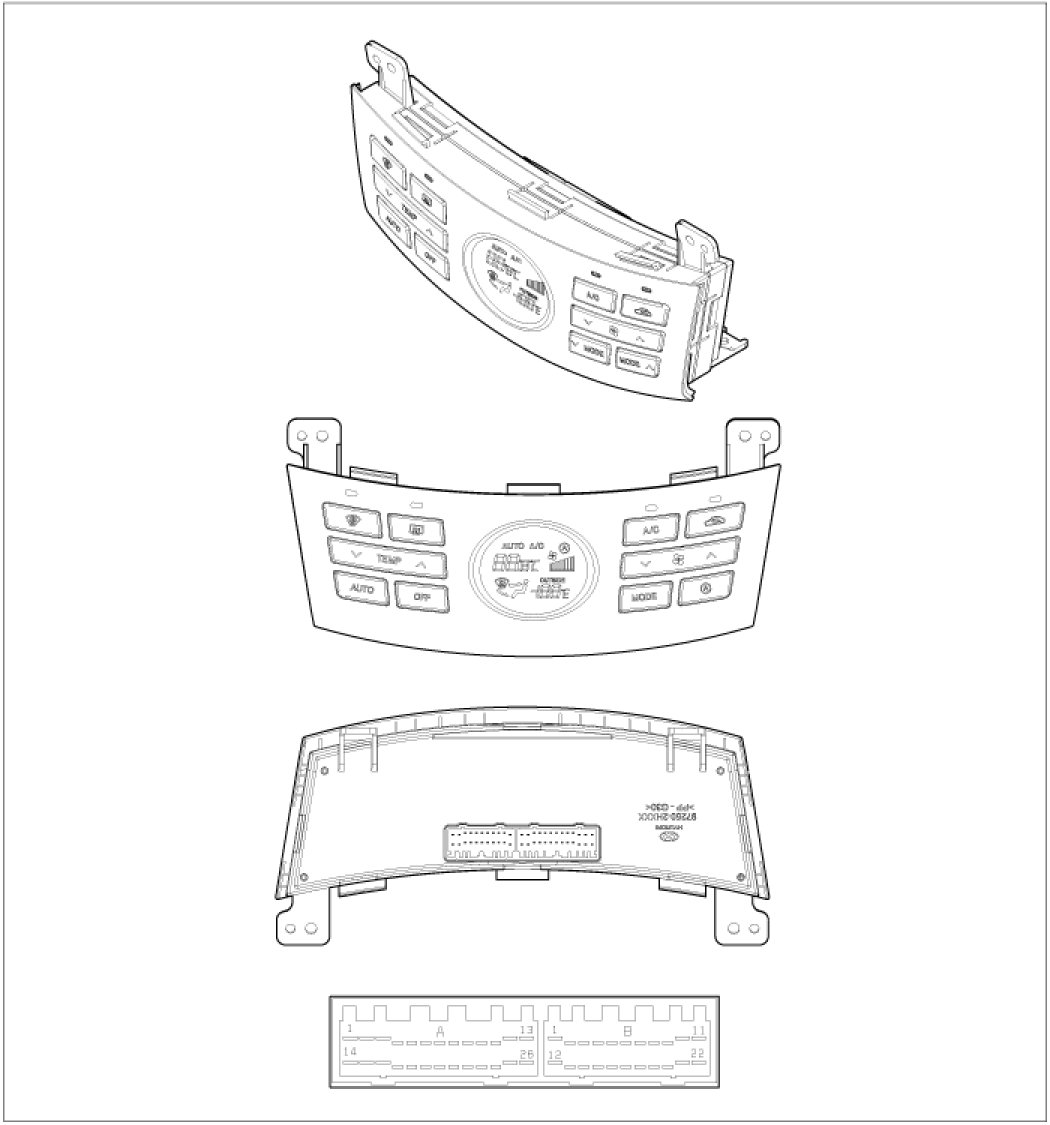

Component

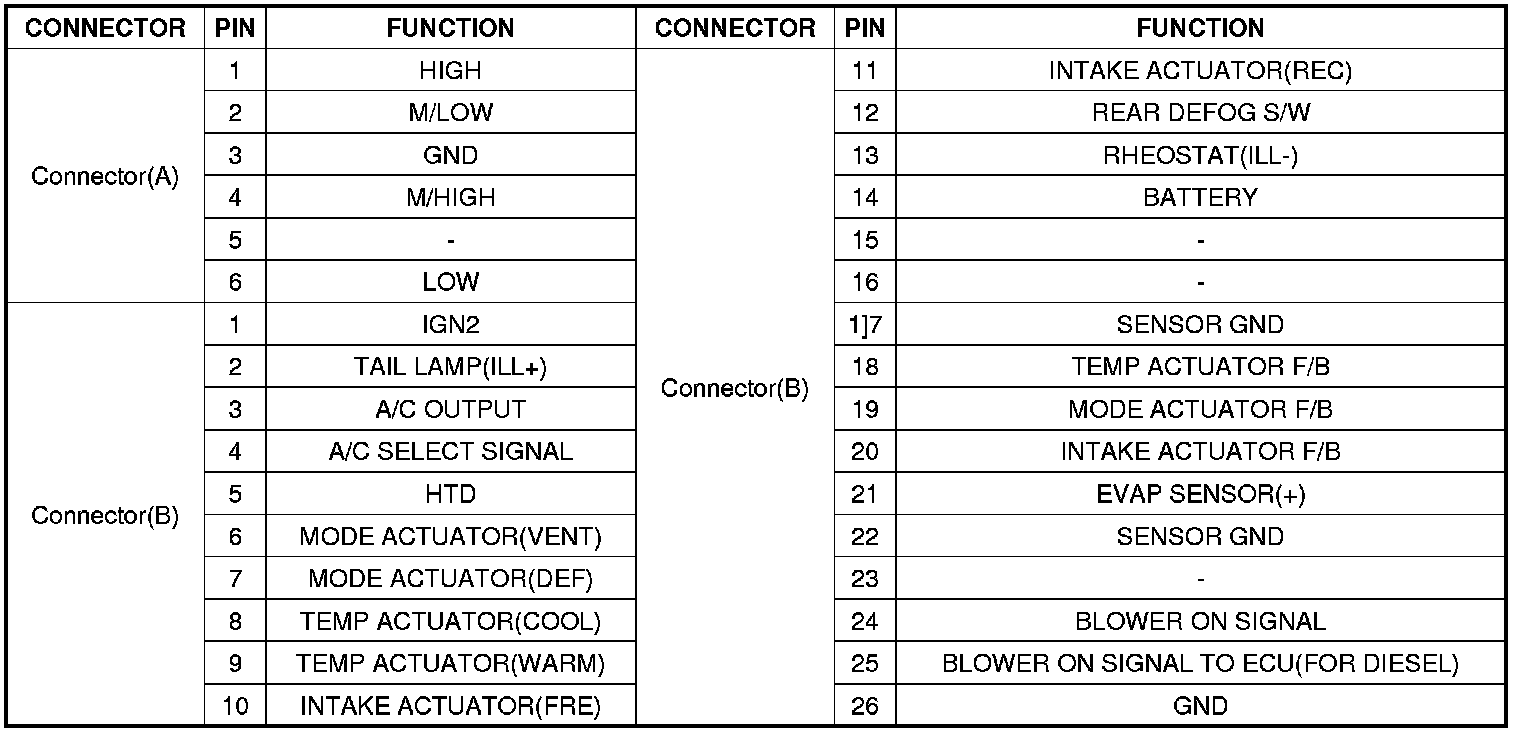

[CONNECTOR PIN FUNCTION]

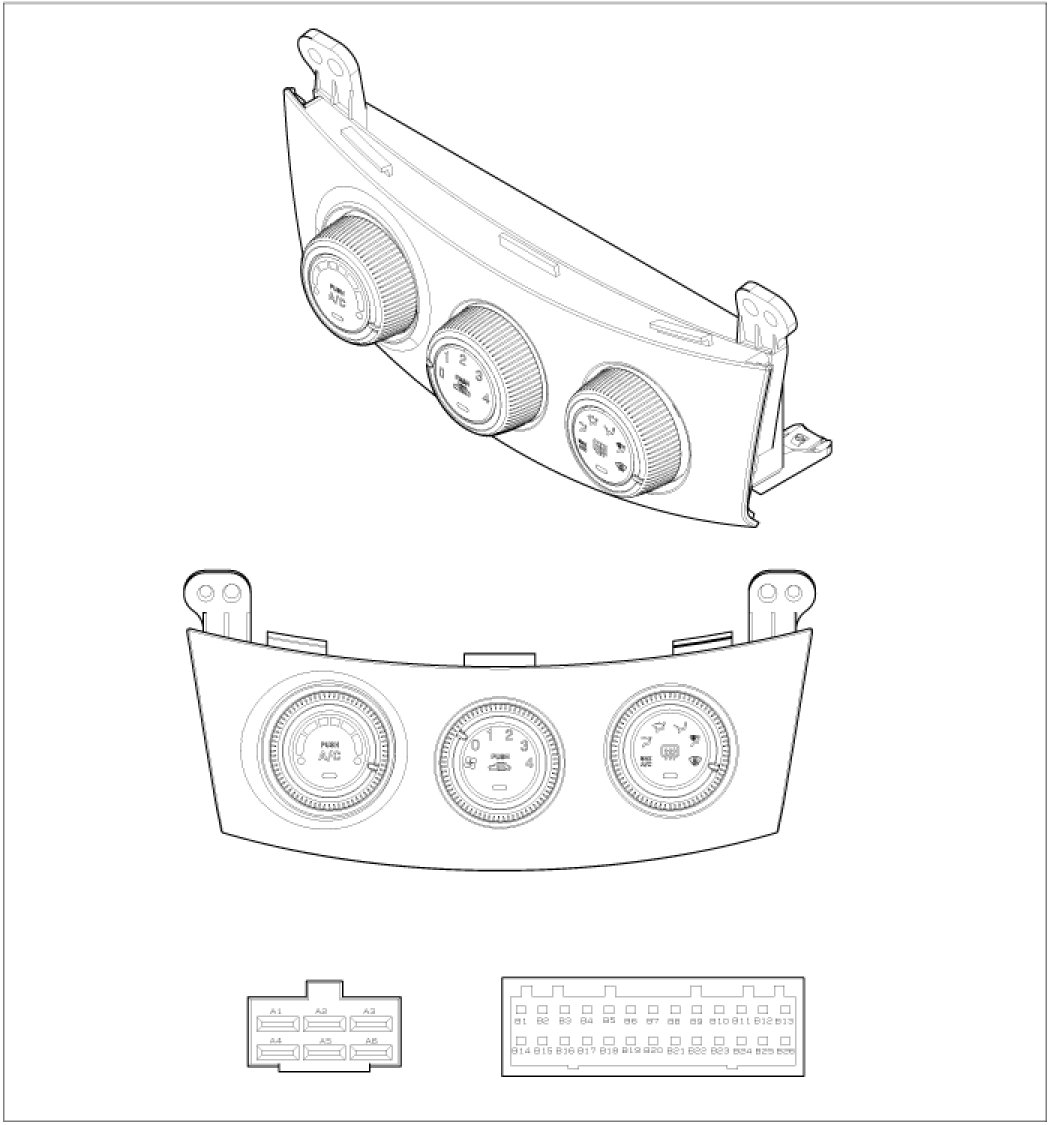

COMPONENT

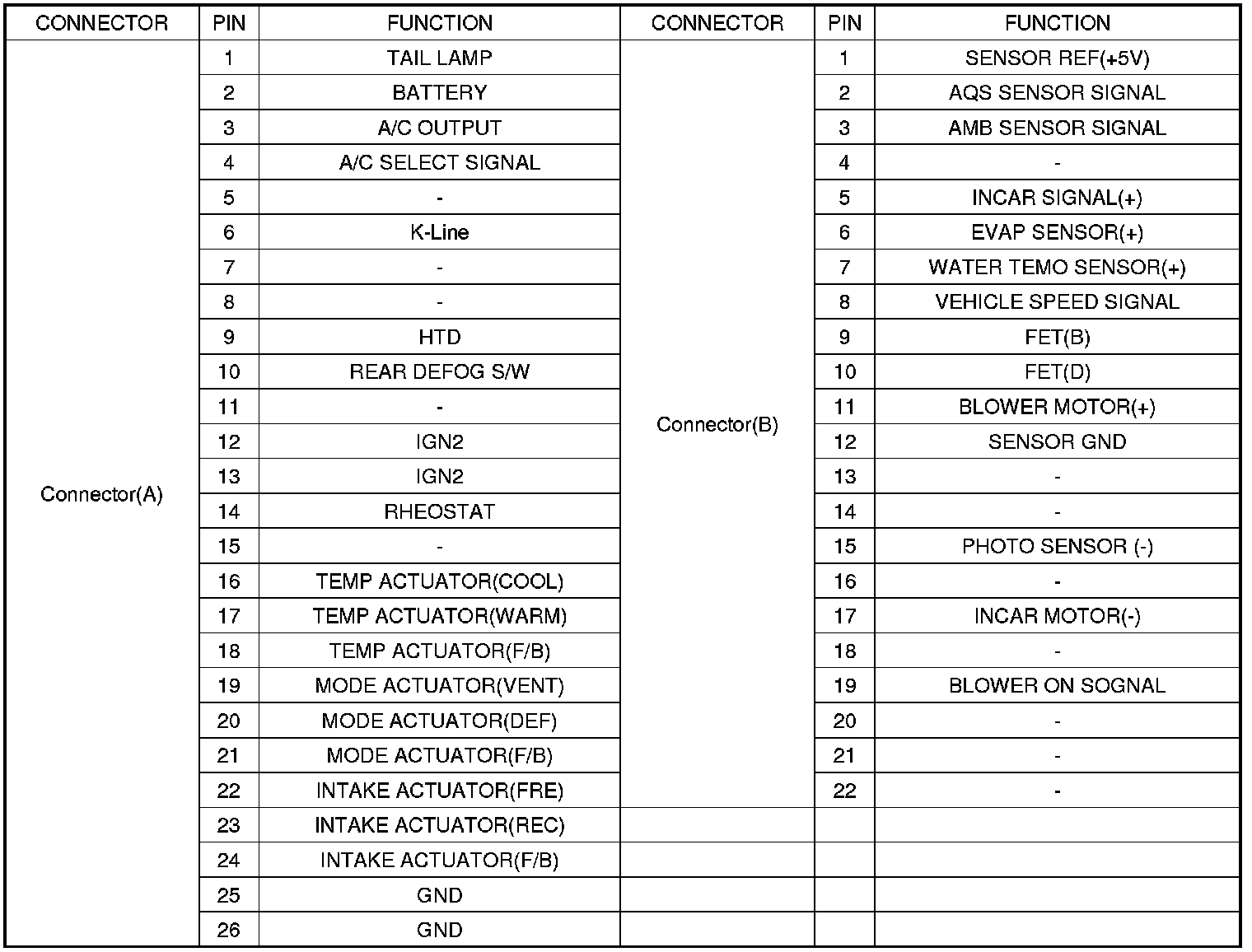

[CONNECTOR PIN FUNCTION]
