Home >> Hyundai >> 2009 >> Azera V6-3.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Service and Repair >> Components and Components Location

Components and Components Location

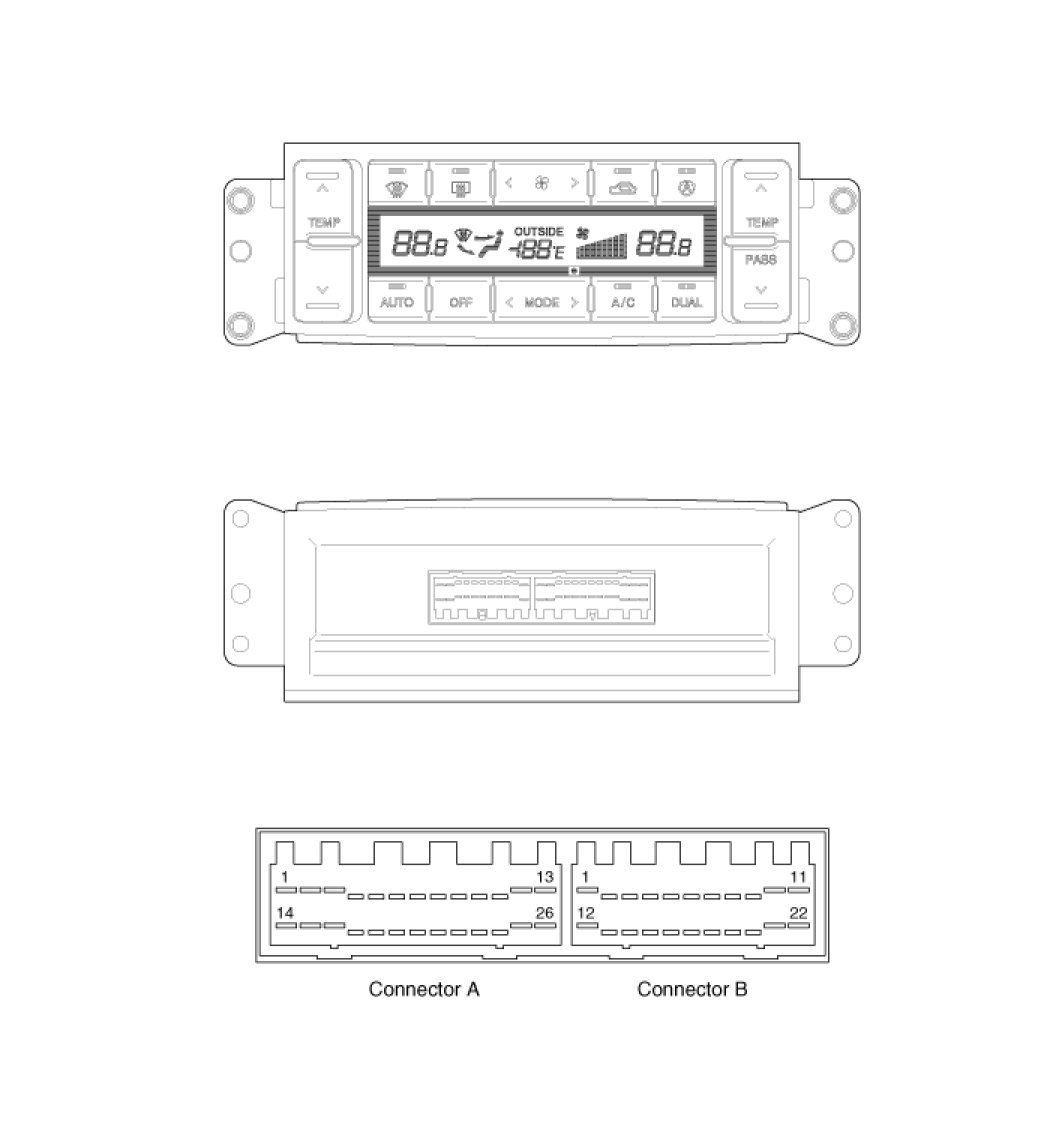

Component

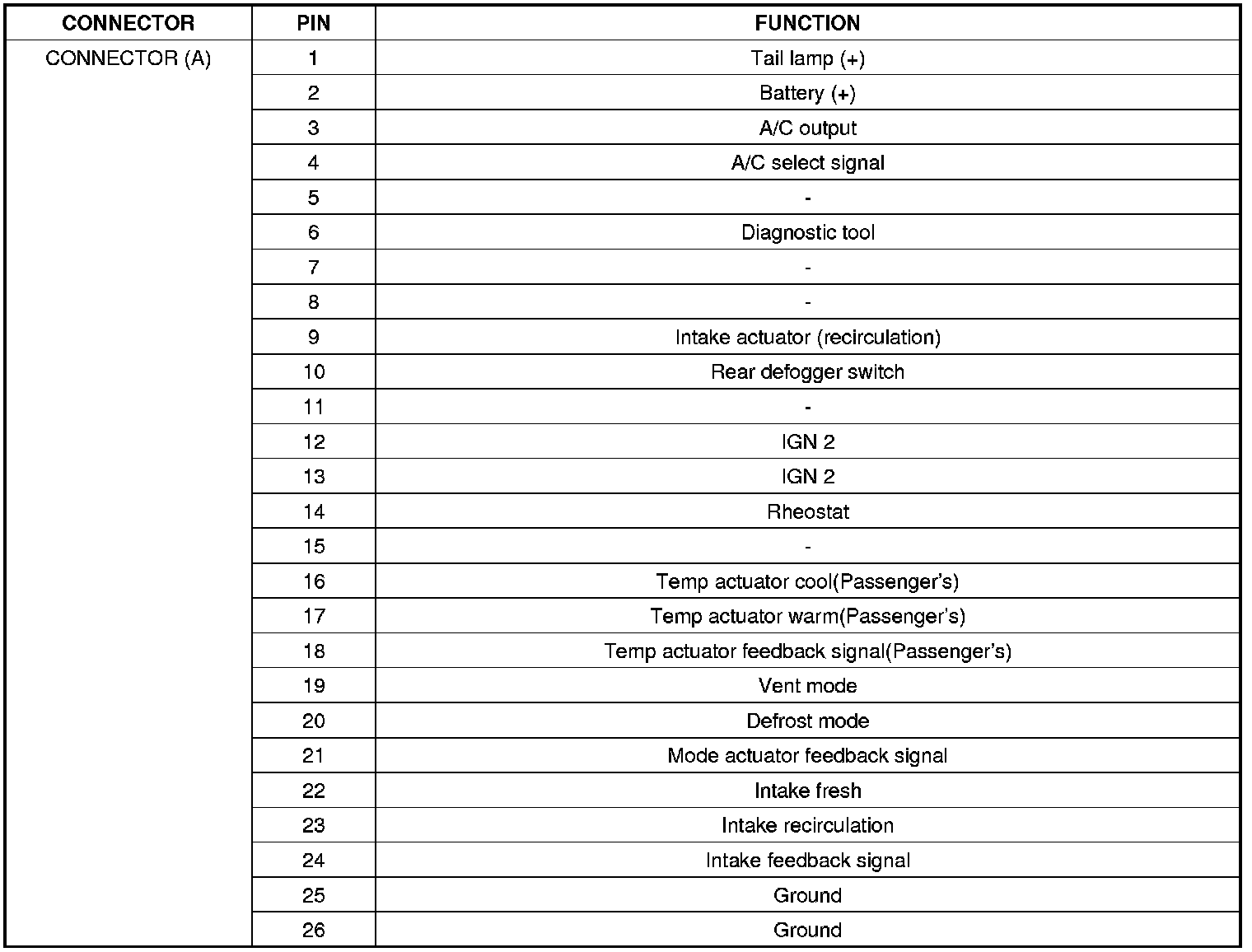

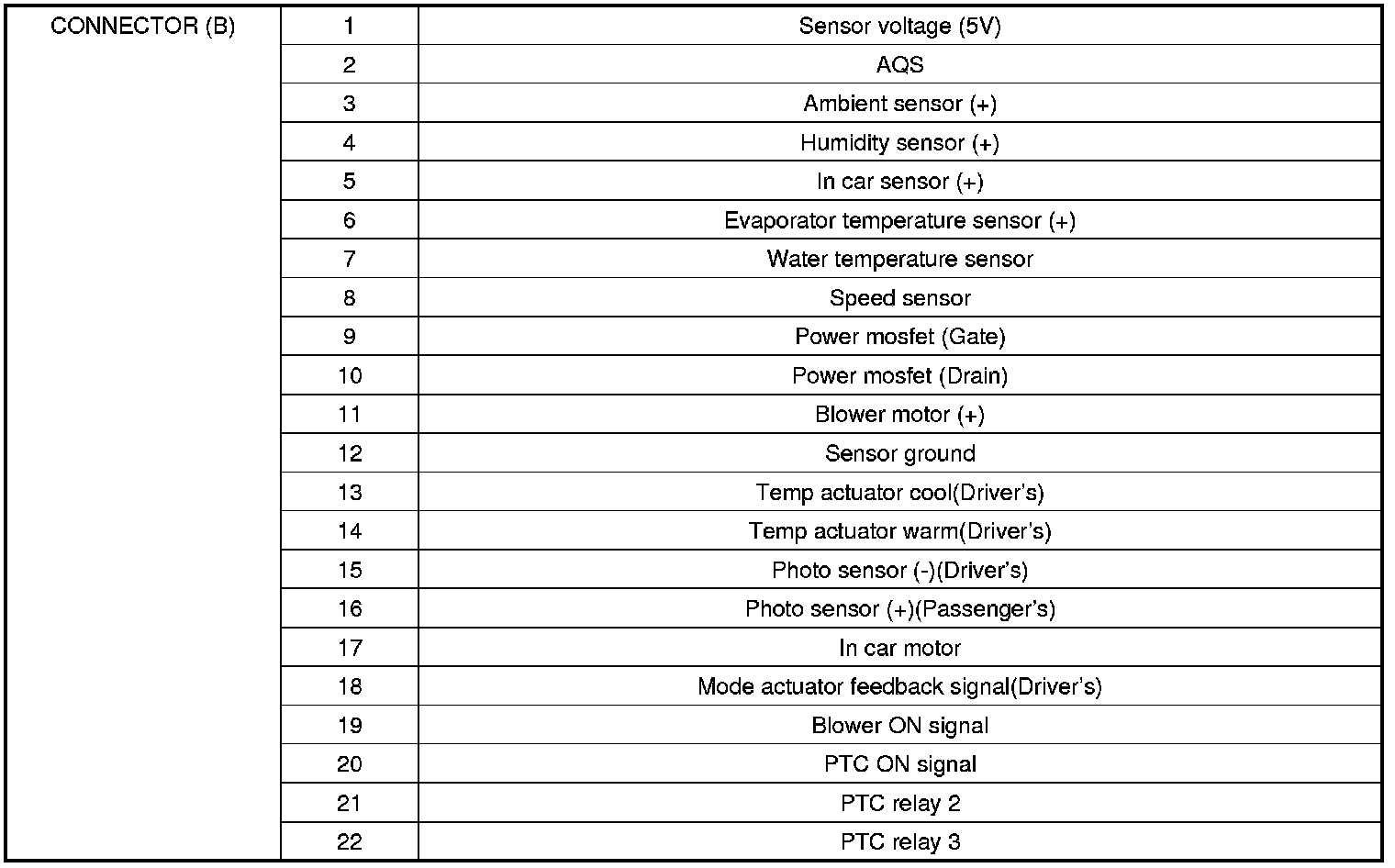

Connector Pin Function
