Timing Component Alignment Marks: Locations

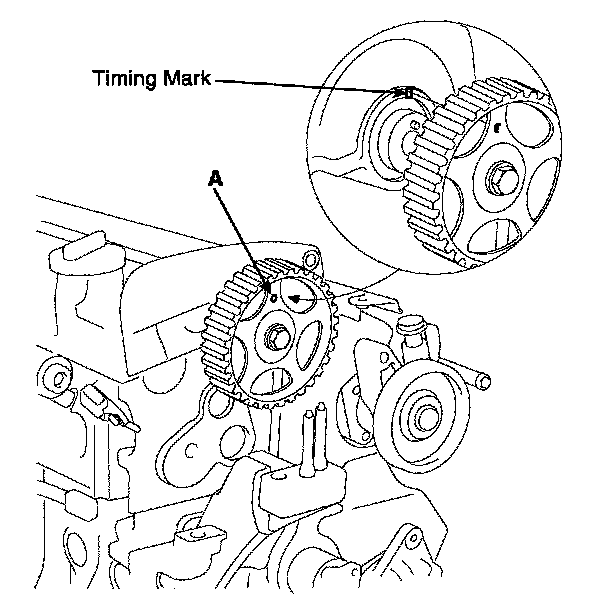

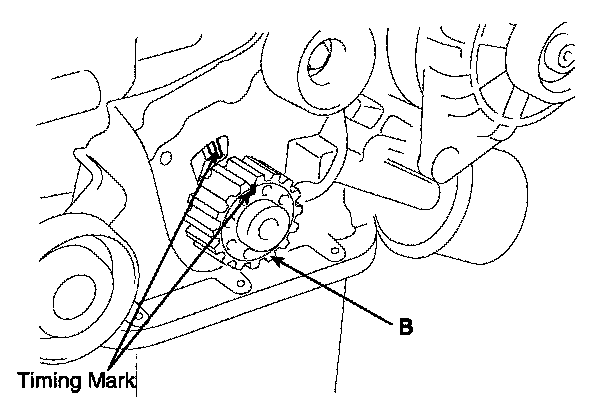

^ Align the timing marks of the camshaft sprocket(A) and crankshaft sprocket(B) with the No.1 piston placed at top dead center and its compression stroke.








^ Install the idler pulley(A) and tighten the bolt(B) to the specified torque.
