Home >> Hyundai >> 2008 >> Santa Fe FWD V6-2.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Locations

Control Module: Locations

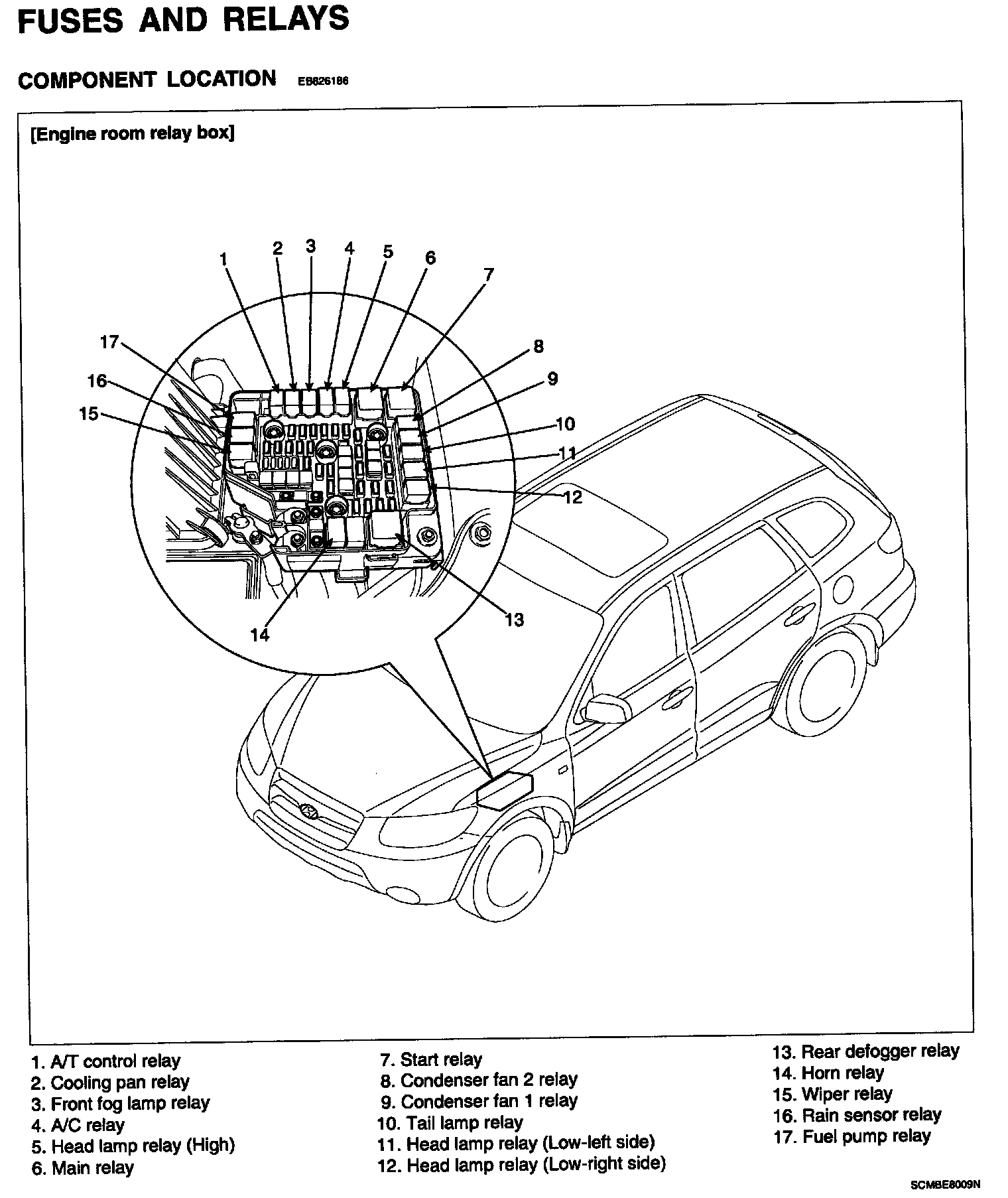

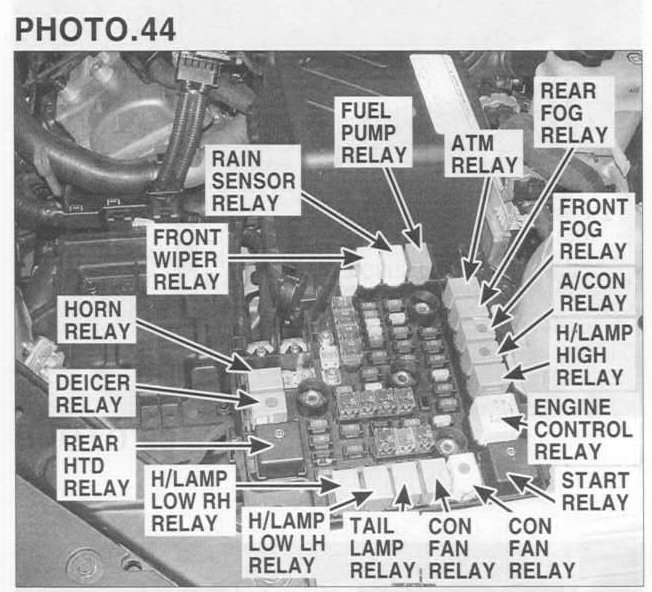

Fuses And Relays (Engine Room Relay Box) - Component Location:
