Relay Box (Engine Compartment)
Relay Box (Engine Compartment)

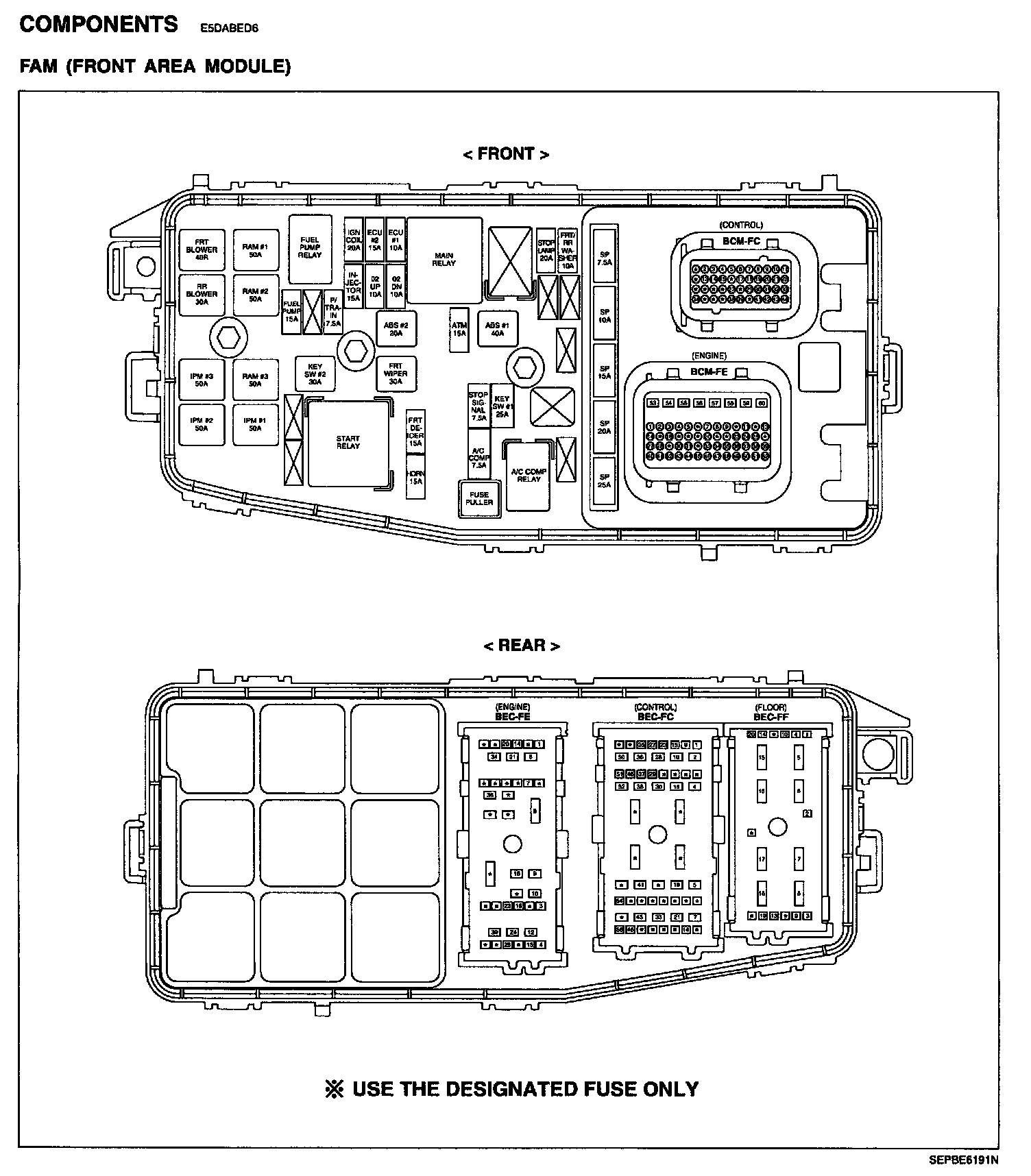

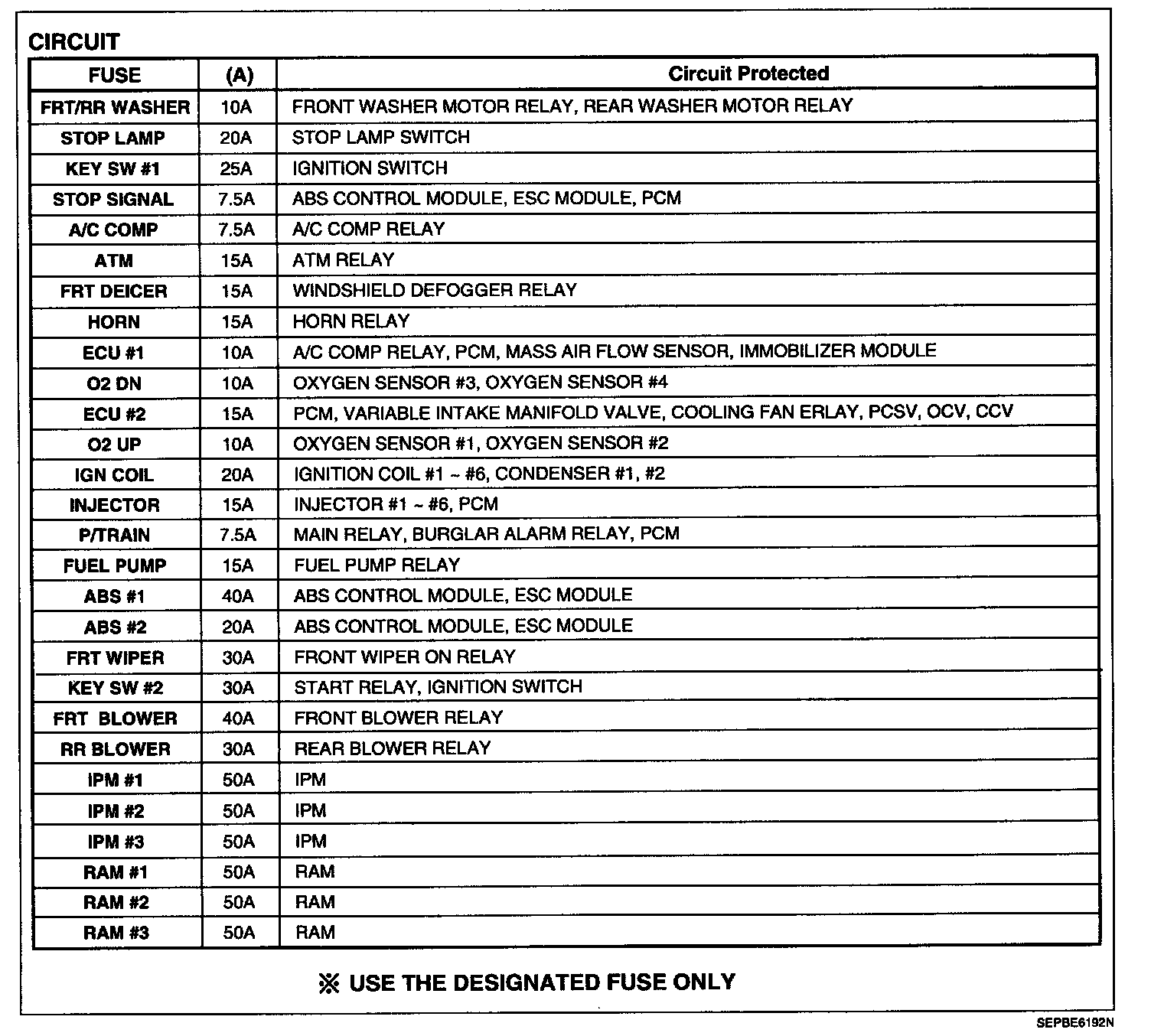

Relay Box (Engine Compartment) FAM (Front Area Module) - Components:
Relay Box (Engine Compartment) FAM (Front Area Module) - Components:
