Memory Positioning Module: Service and Repair

IMS (INTEGRATED MEMORY SYSTEM)

REPLACEMENT
1. Remove the negative (-) battery terminal.

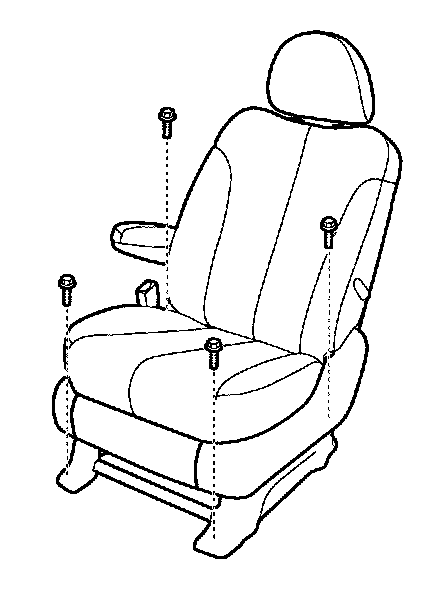

2. Remove the seats in the car.

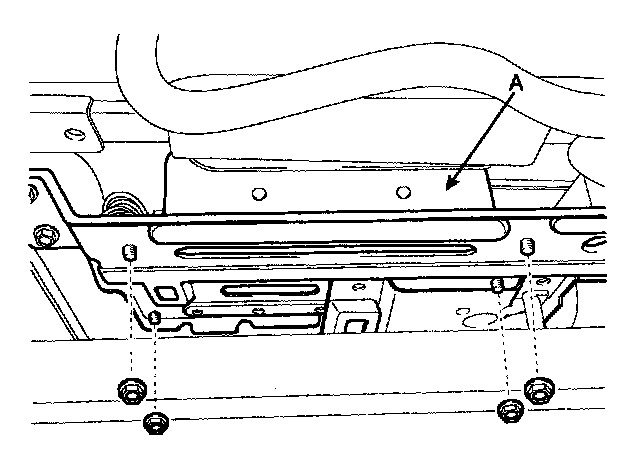

3. Remove the IMS module (A) after loosening 4 nuts and 3 connectors in the bottom of seat.






4. Installation is the reverse of removal.
