System Specifications

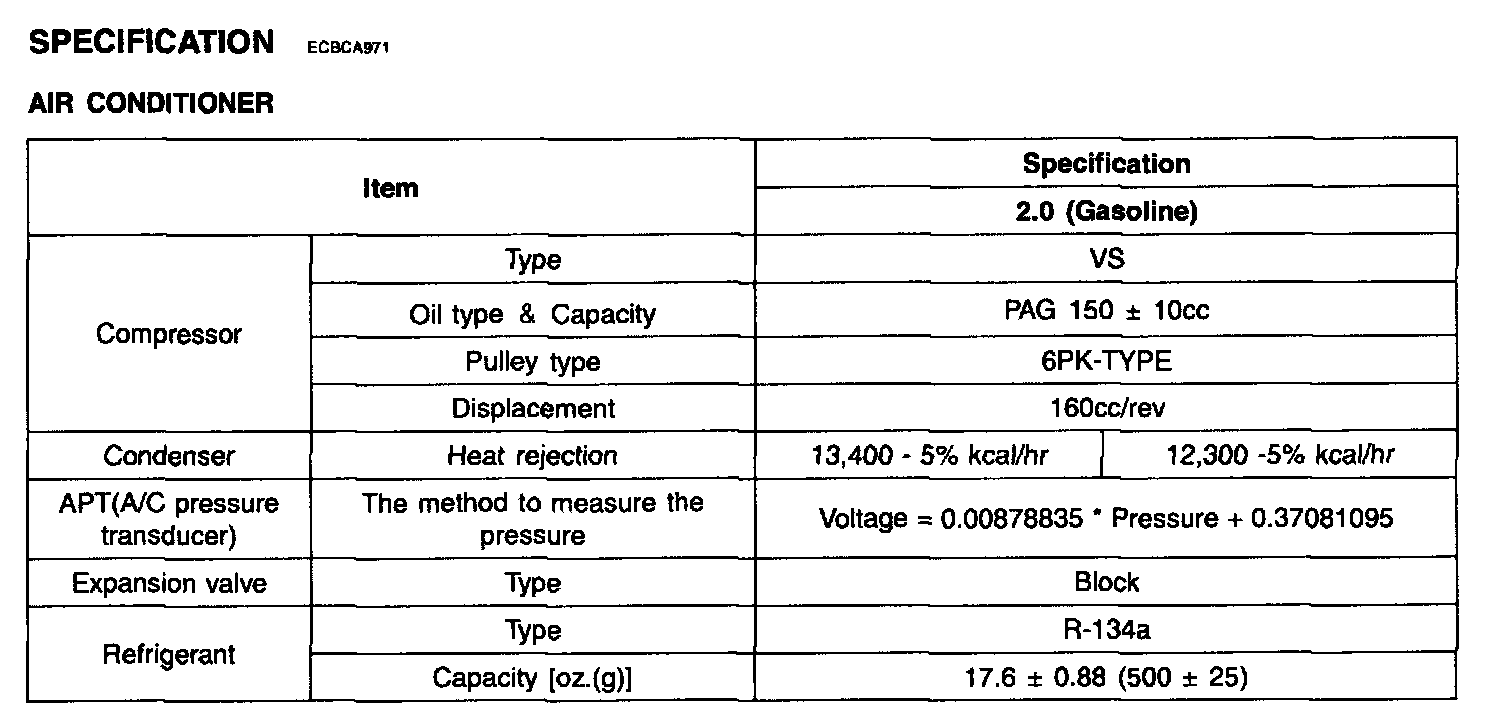

Air Conditioner - Specification:

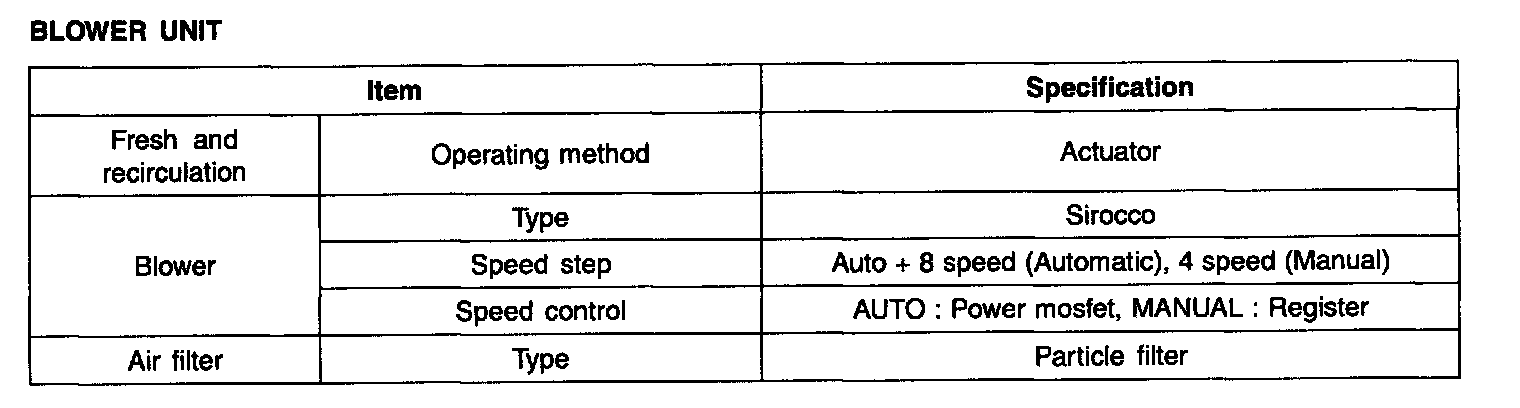

Blower Unit - Specification:

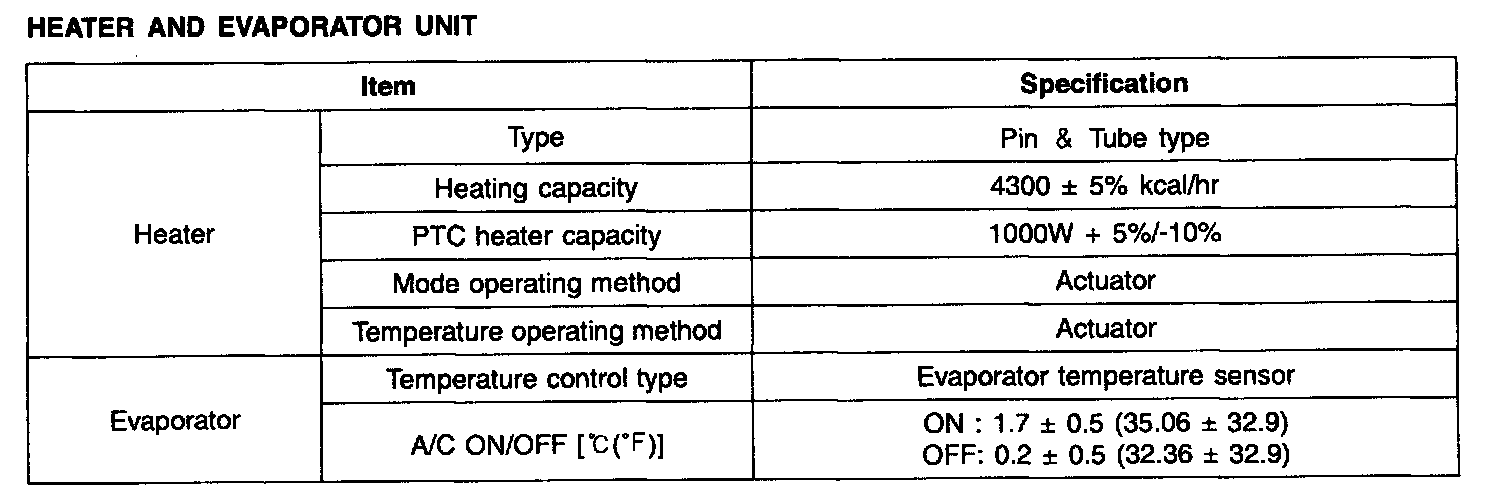

Heater And Evaporator Unit - Specification:
