Control Assembly, HVAC

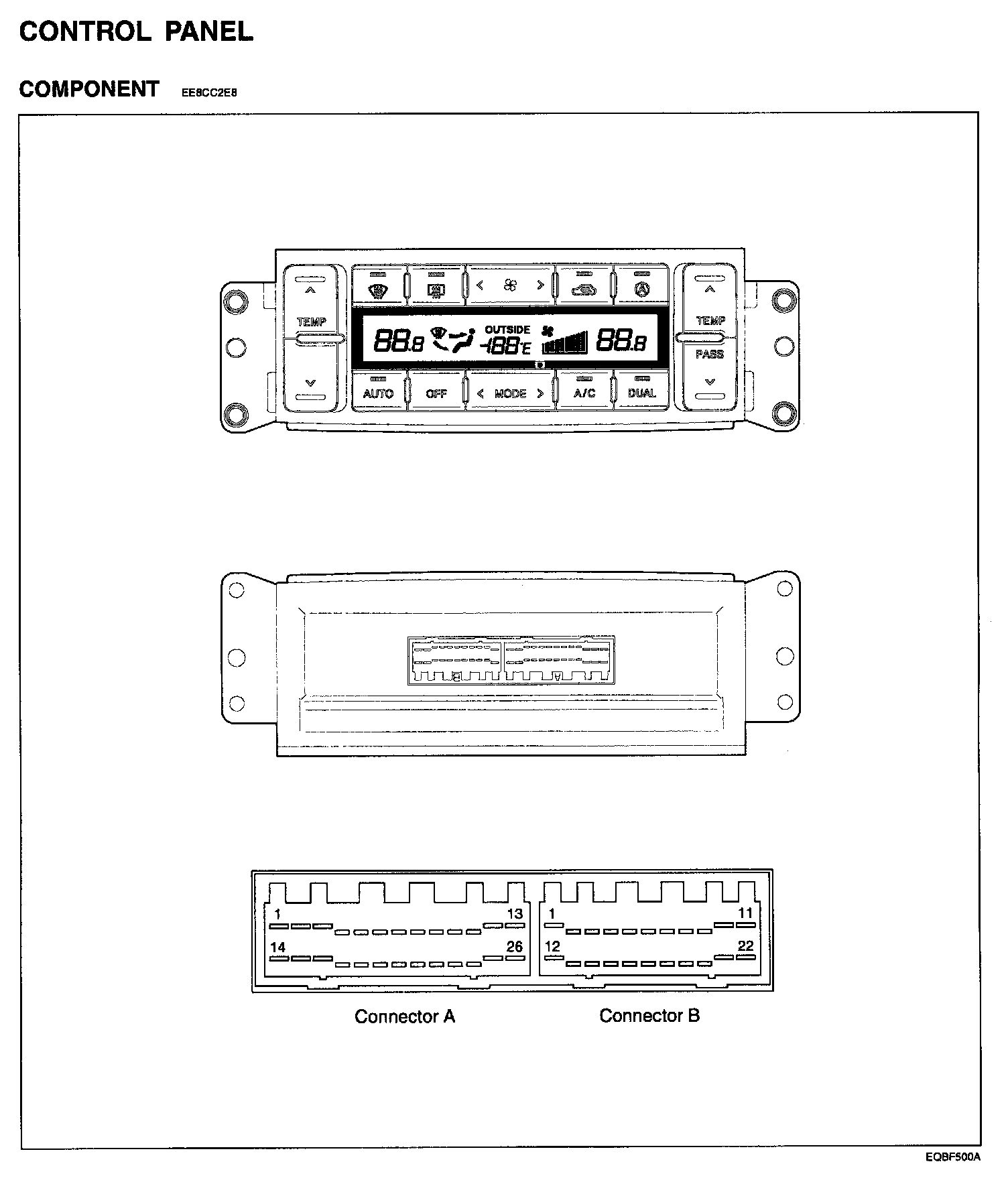

Control Panel - Component:

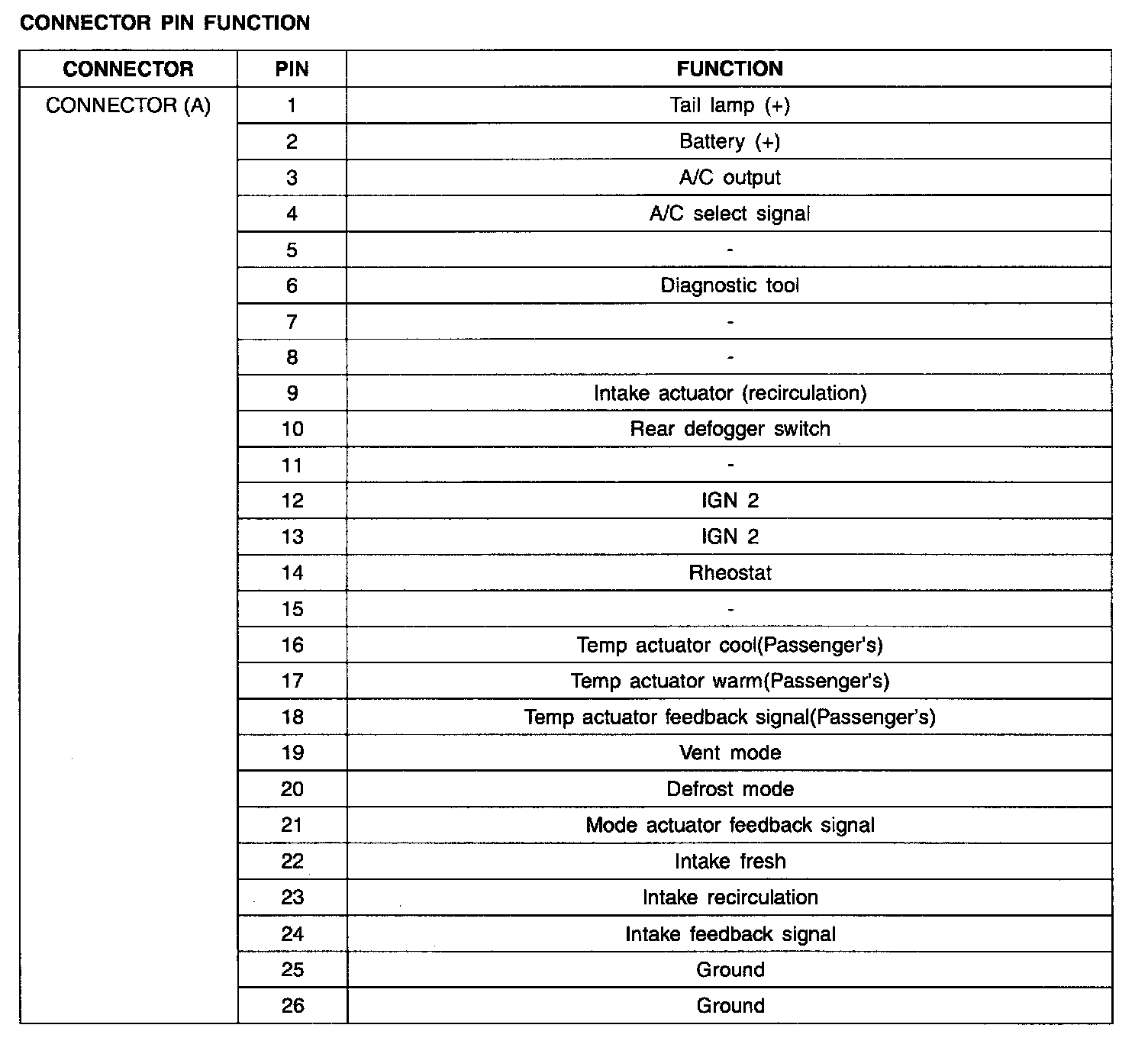

Connector Pin Function - Connector (A):

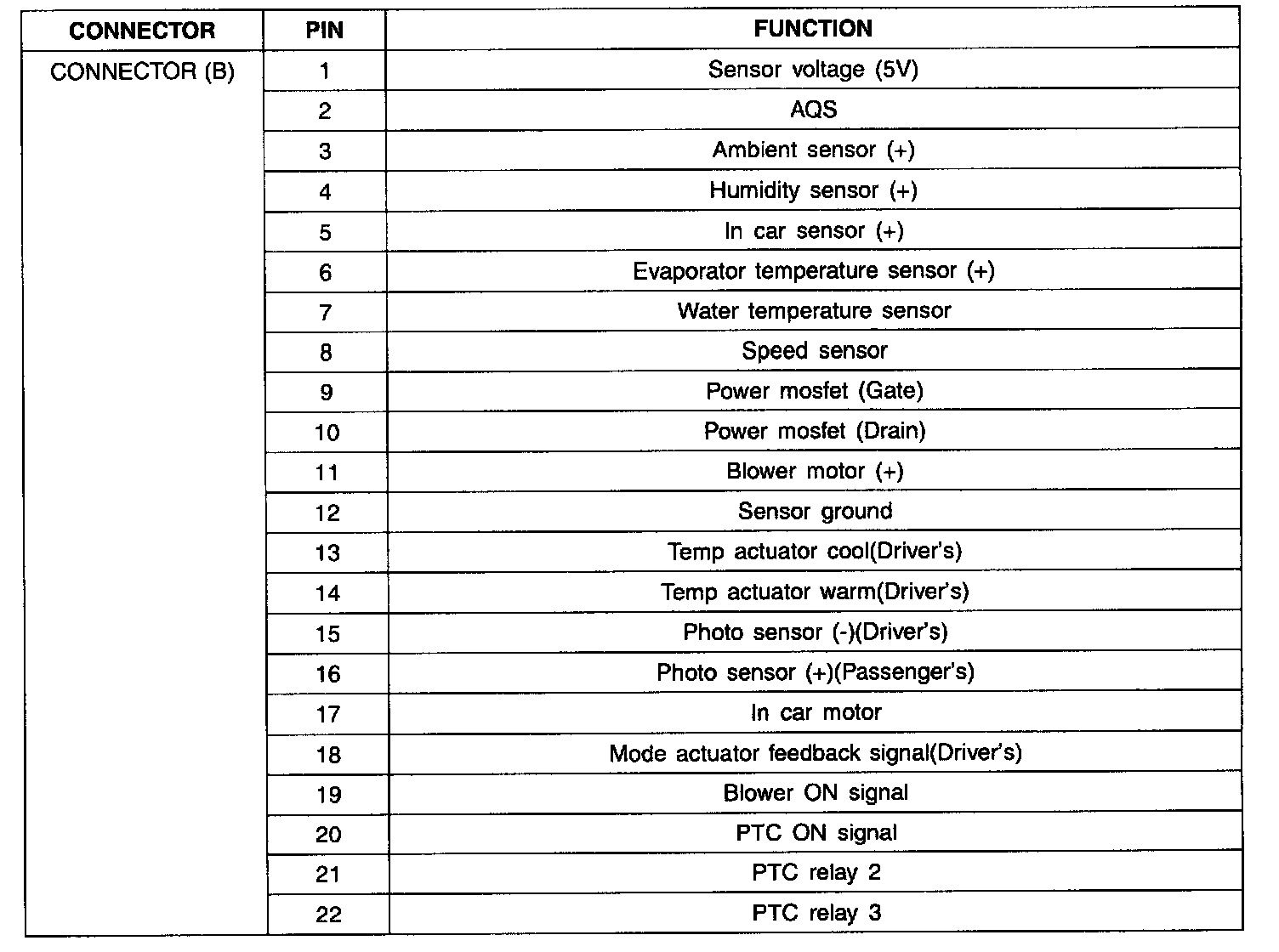

Connector Pin Function - Connector (B):
