Home >> Hyundai >> 2007 >> Veracruz FWD V6-3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

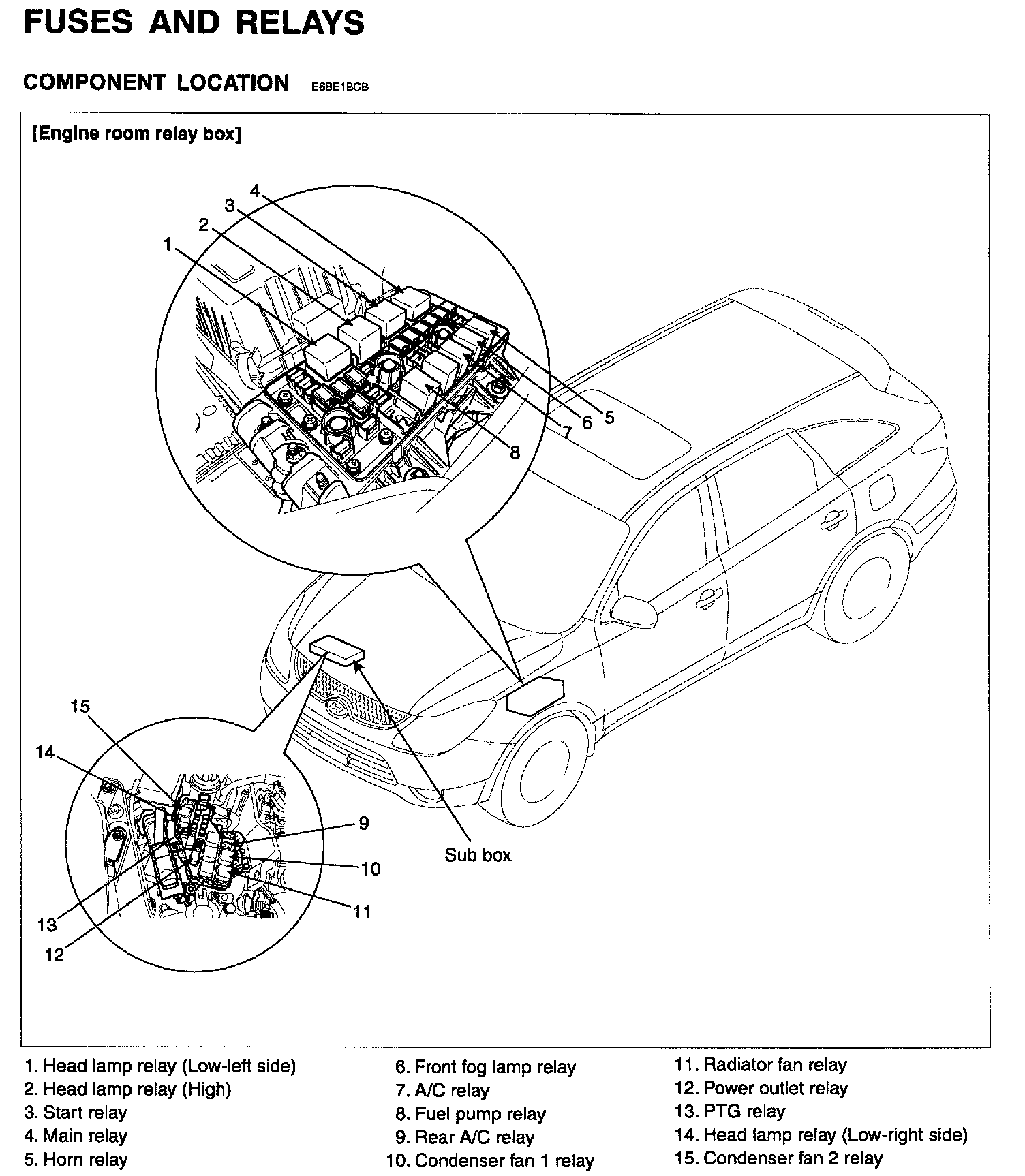

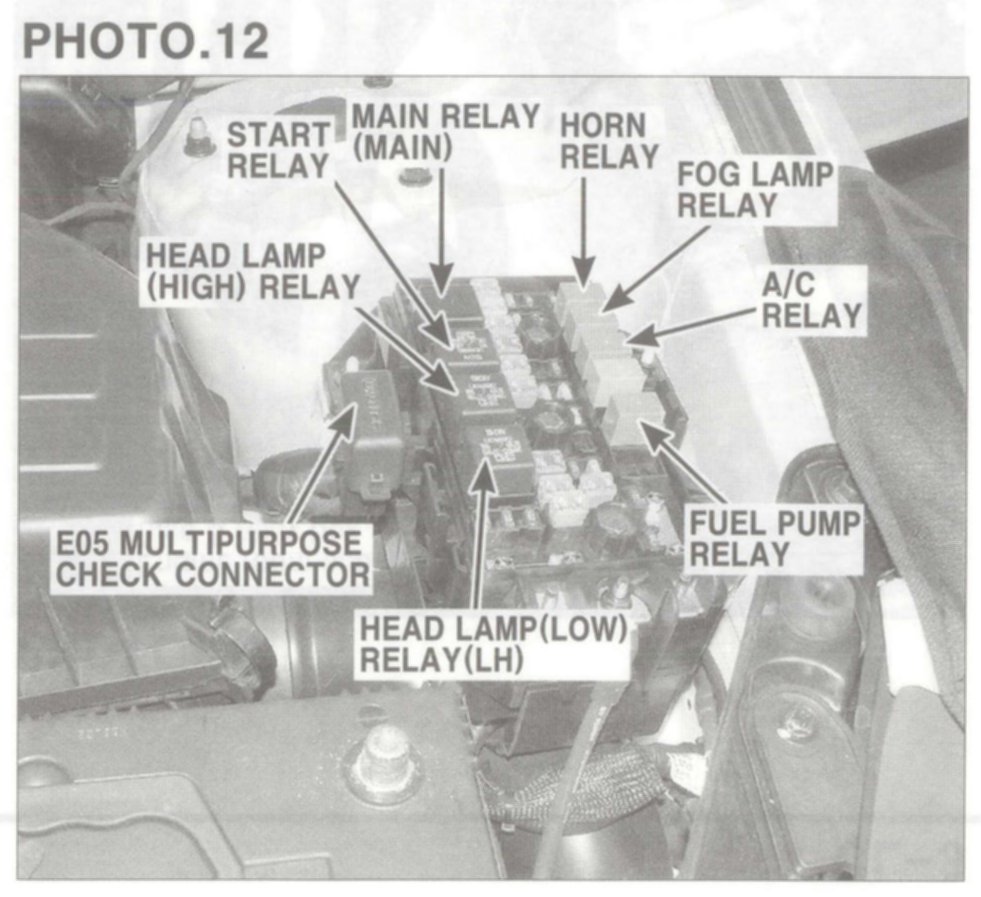

Fuses And Relays (Engine Room Relay Box) Component Location:
