Memory Positioning Systems
>>
Memory Positioning Module
Memory Positioning Module

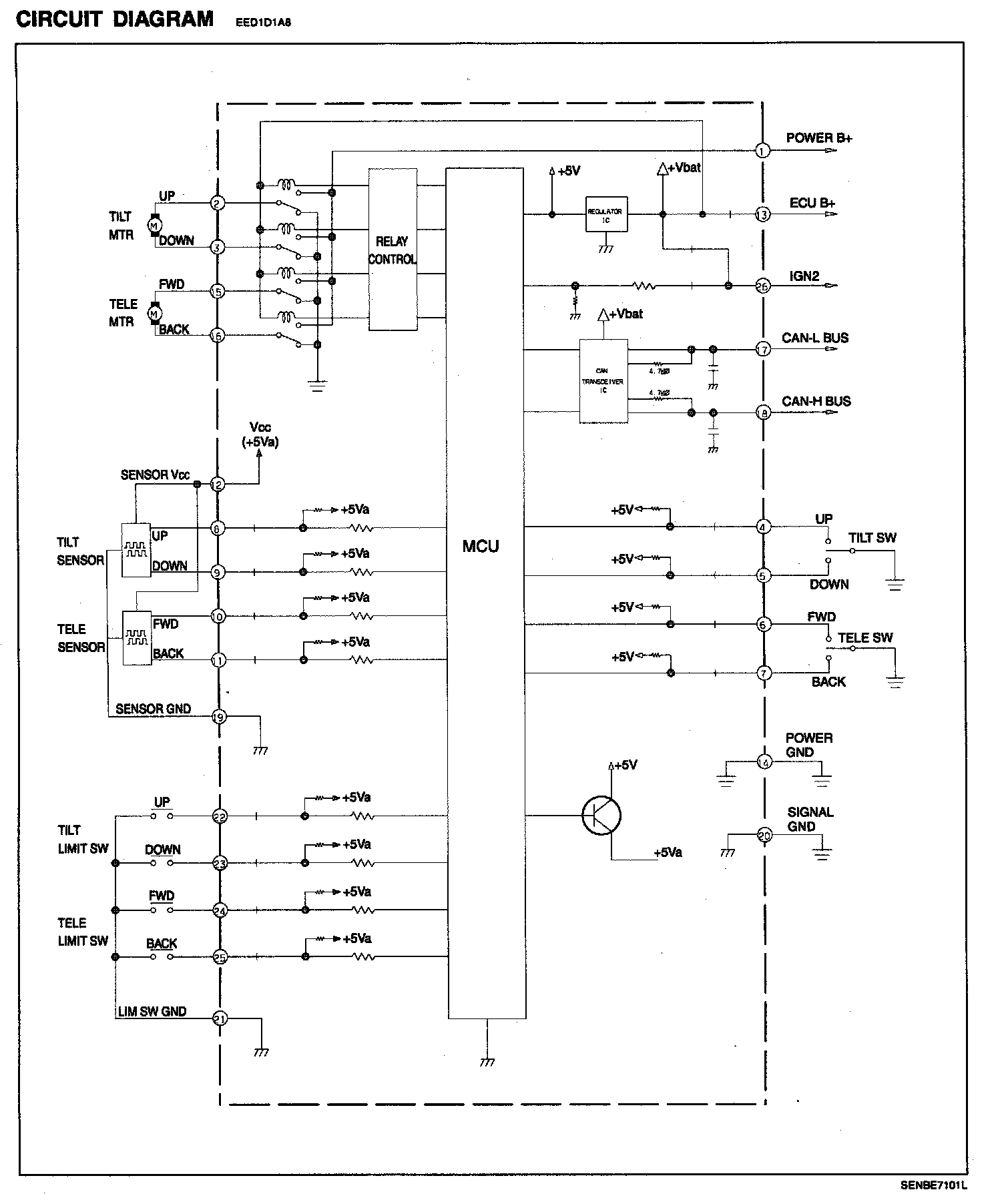

Circuit Diagram For Integrated Memory System:
