Home >> Hyundai >> 2007 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Suspension >> Front

Front

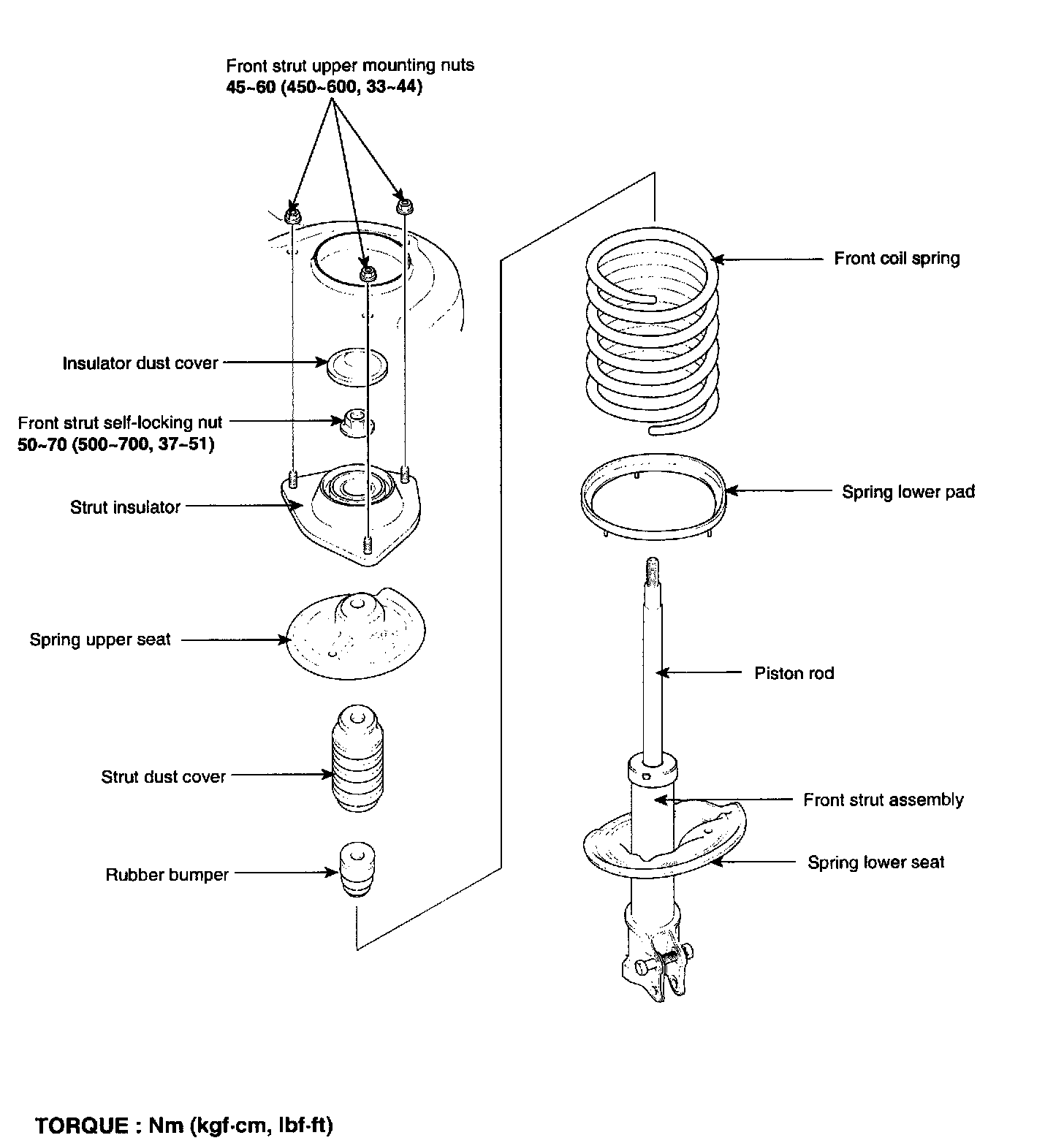

Front Strut Assembly:

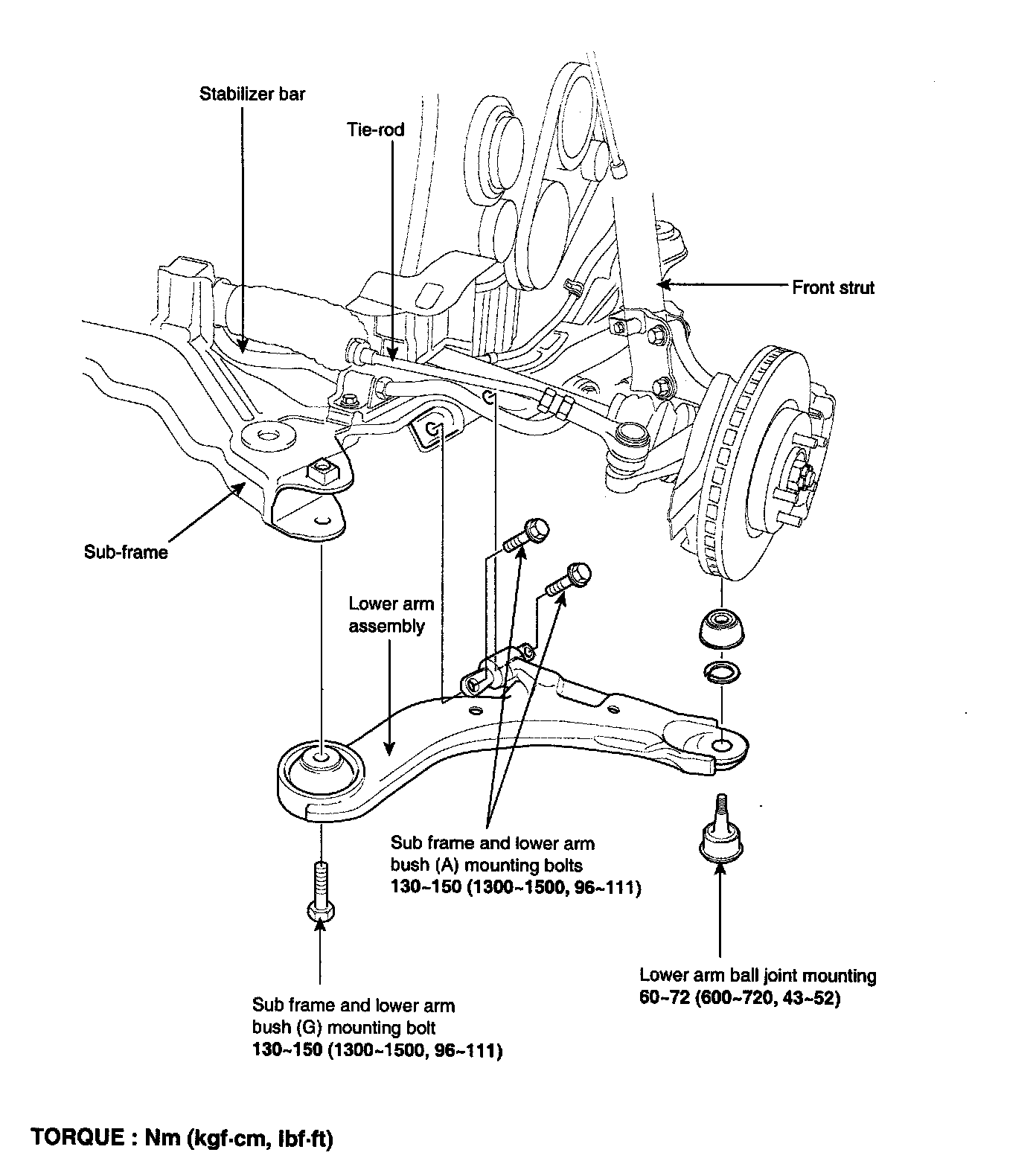

Front Lower Arm:

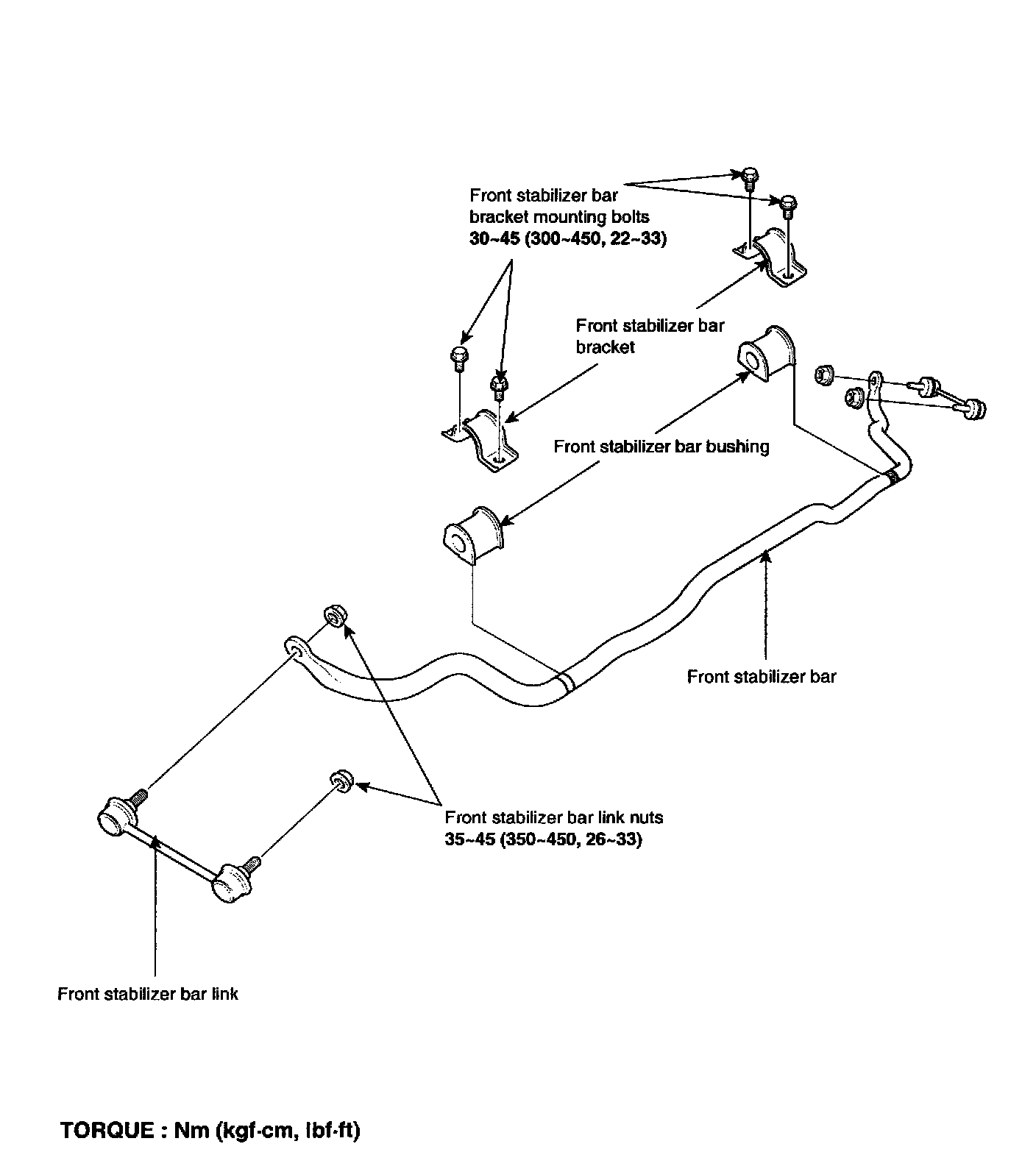

Front Stabilizer Bar:
