Body Control Systems
Body Control Systems

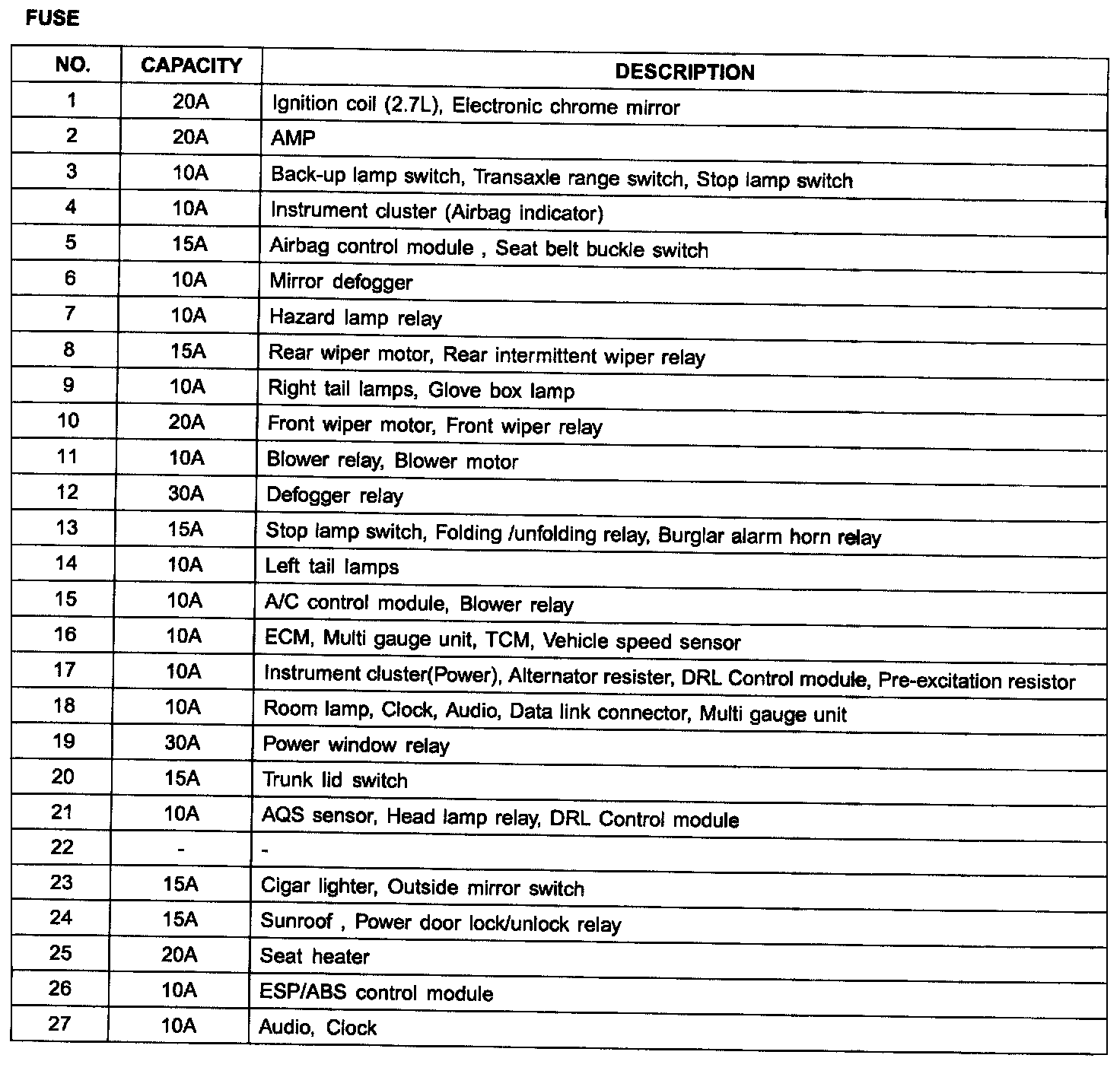

Fuse:

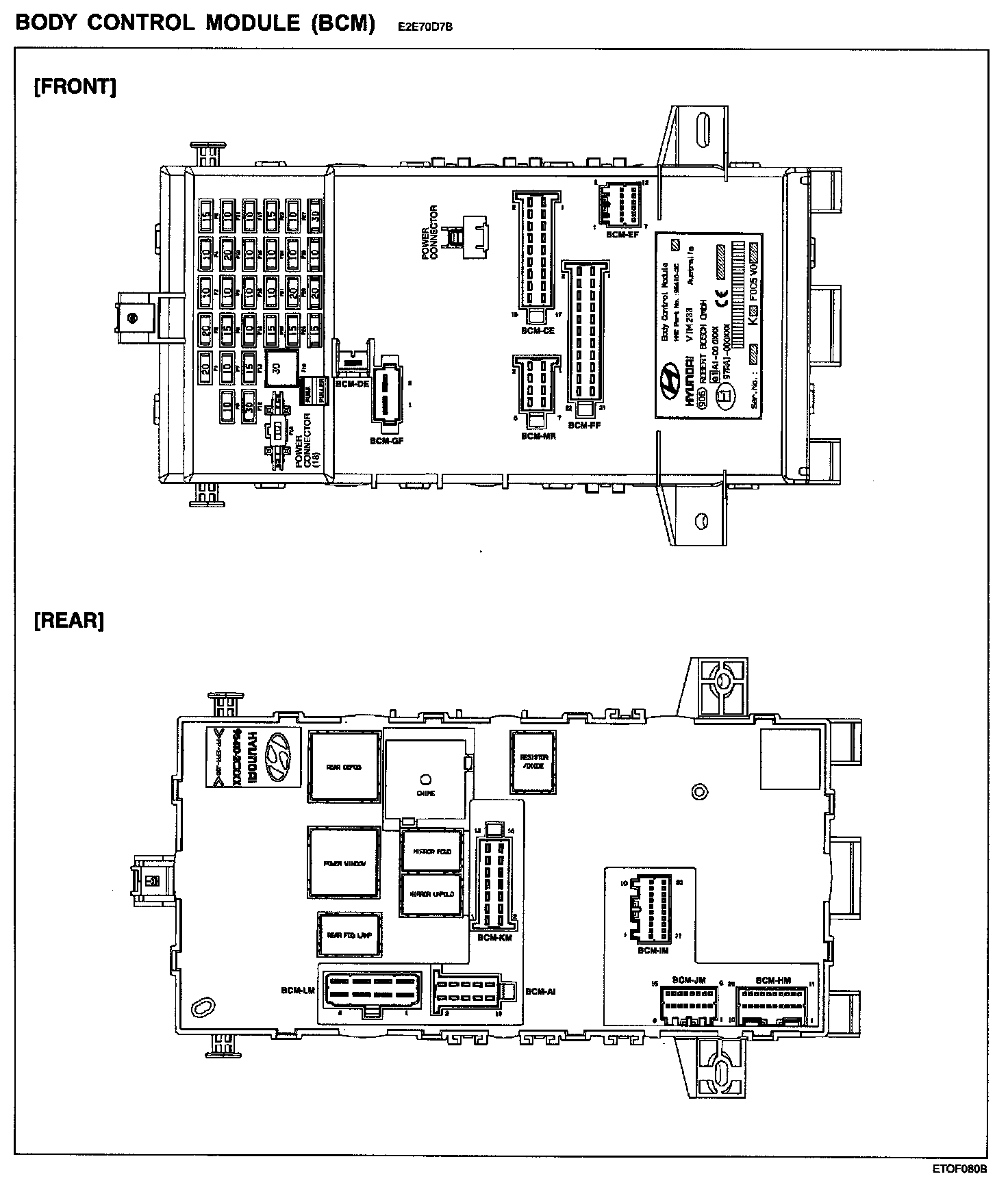

Body Control Module (BCM):

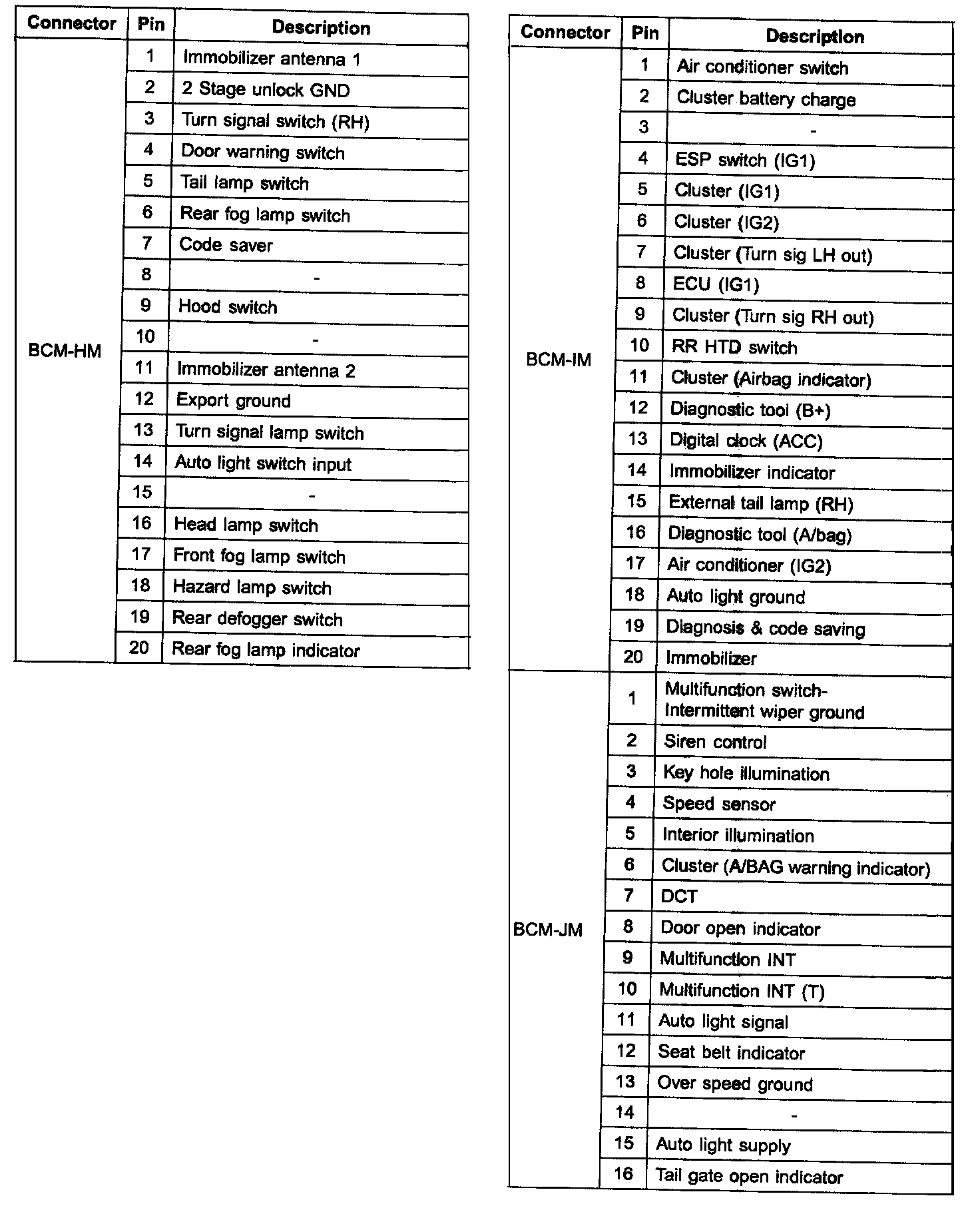

BCM Connector Terminal (Part 1):

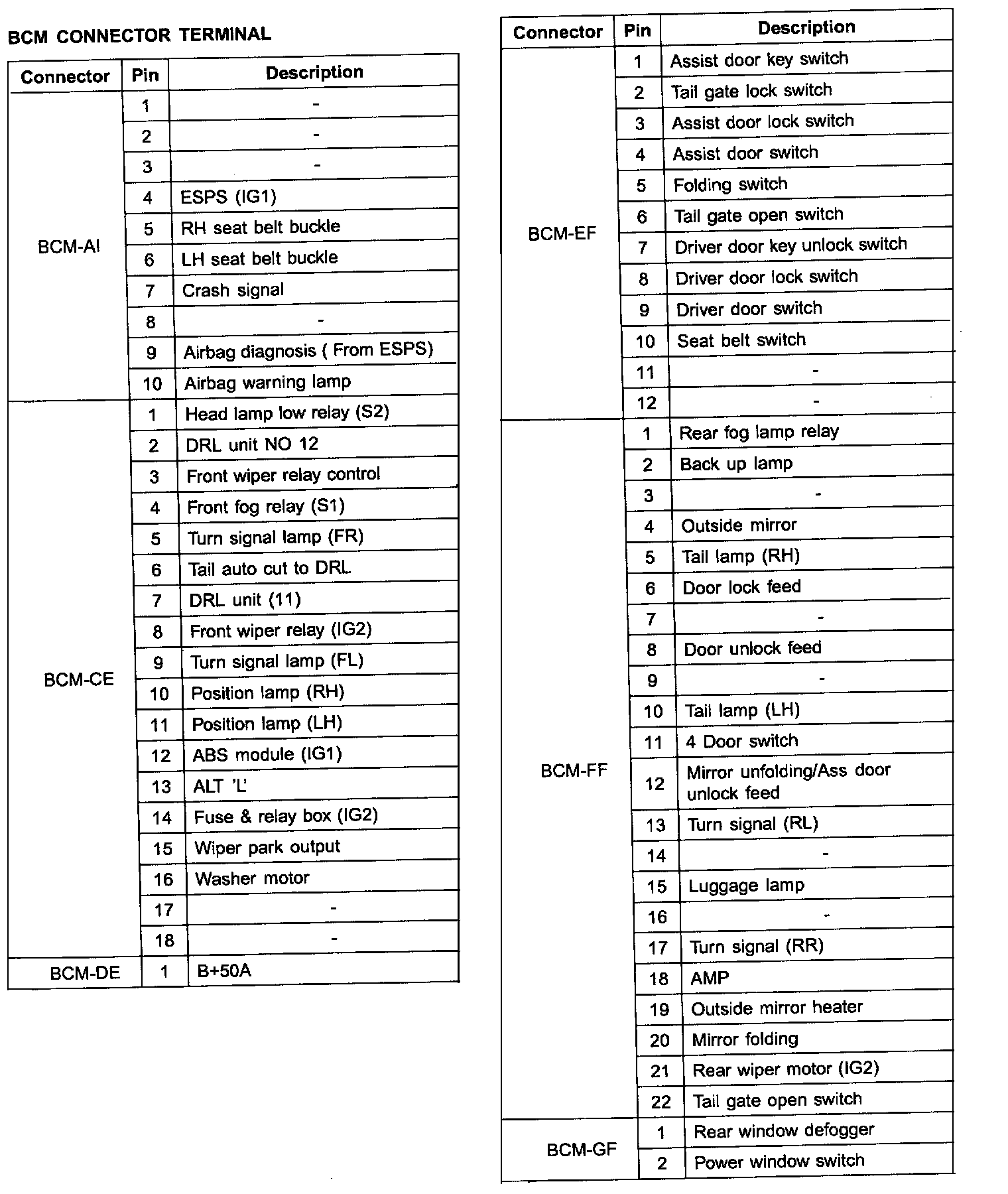

BCM Connector Terminal (Part 2):

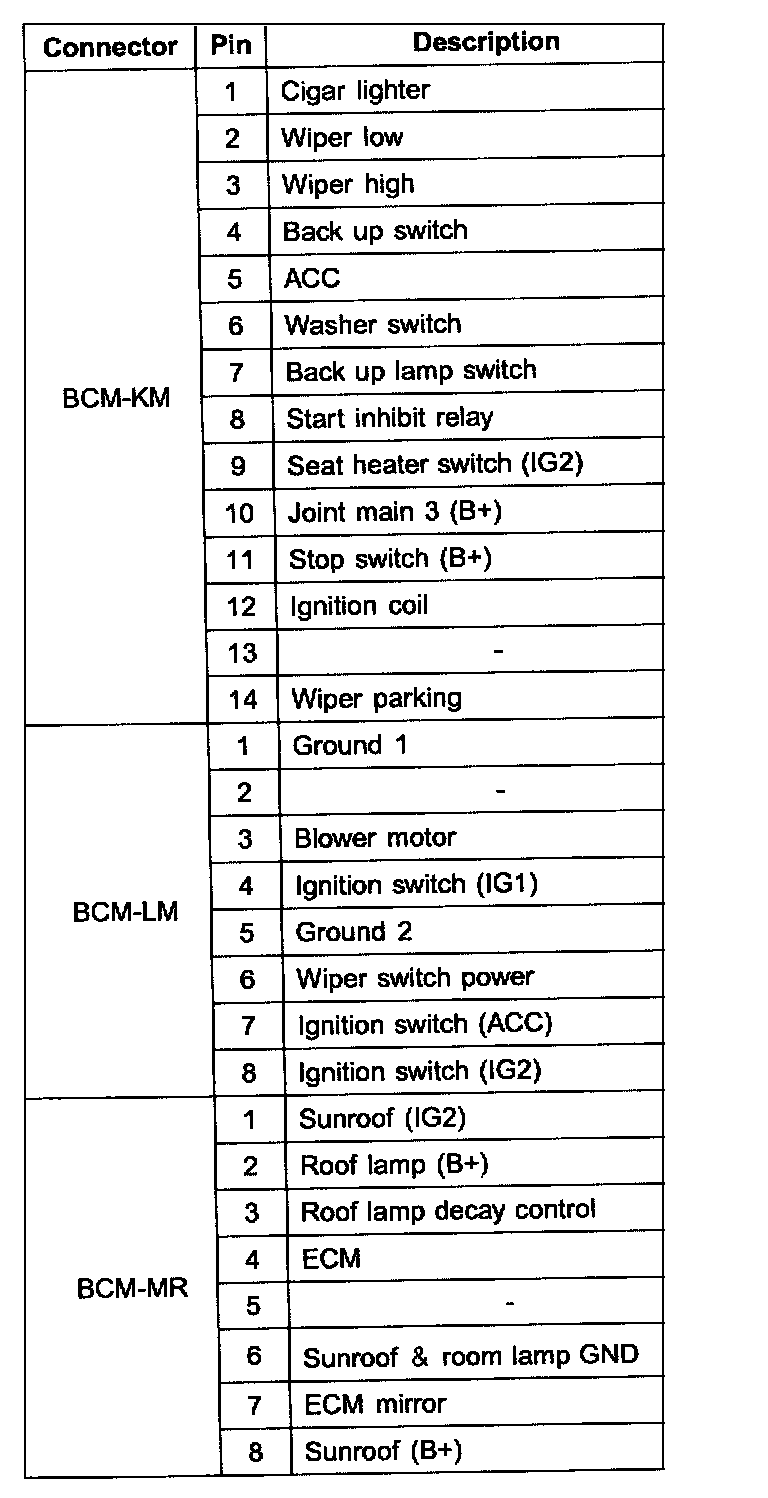

BCM Connector Terminal (Part 3):
