Spark Plug: Testing and Inspection

INSPECT SPARK PLUG

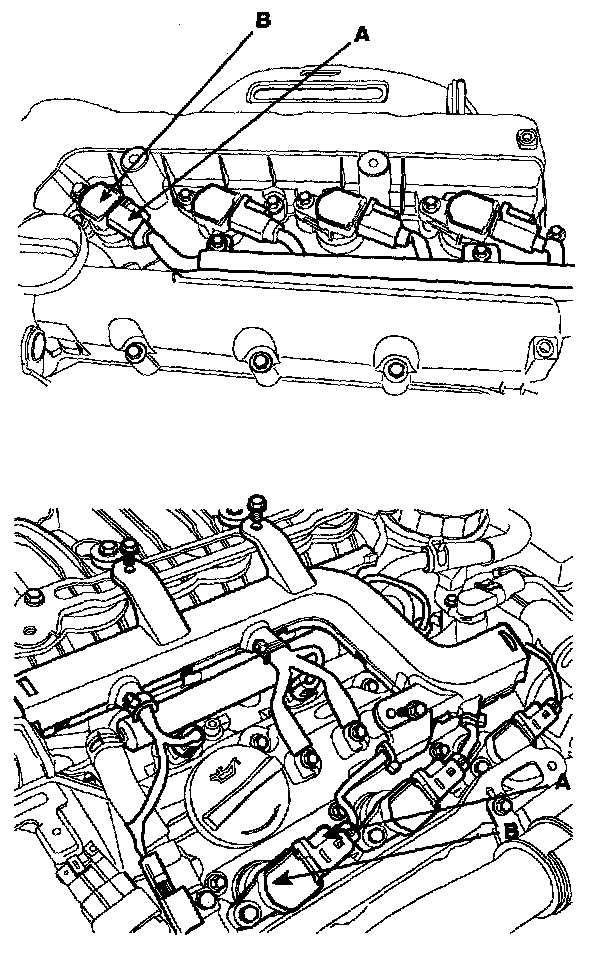

1. Remove the ignition coil connector(A).

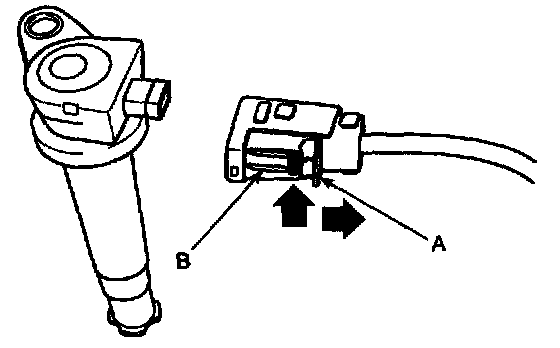

NOTE: when removing the ignition coil connector, pull the lock pin(A) and push the clip(B).

2. Remove the ignition coil(B).

3. Using a spark plug socket, remove the spark plug.

CAUTION: Be careful that no contaminates enter through the spark plug holes.

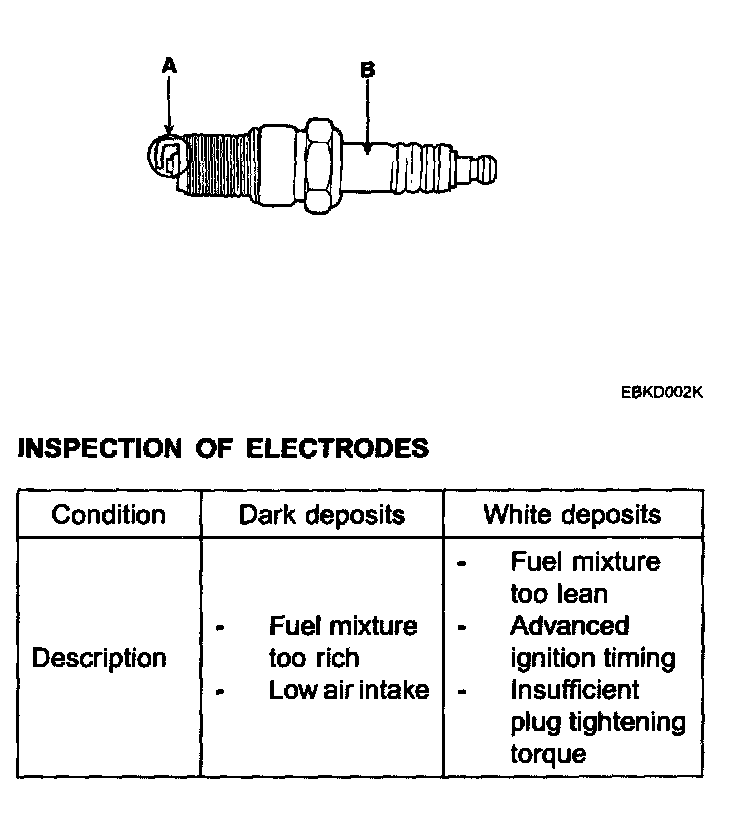

4. Inspect the electrodes (A) and ceramic insulator (B).

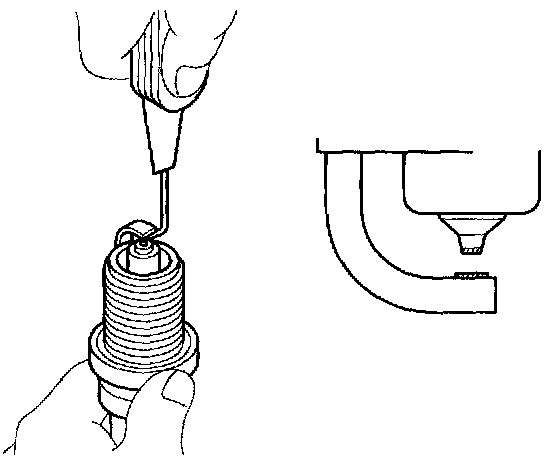

5. Check the electrode gap (A).

Standard
Unleaded:1.0 - 1.1 mm (0.0394 - 0.0433 in.)
