Timing Component Alignment Marks: Locations

Timing Mark Alignment

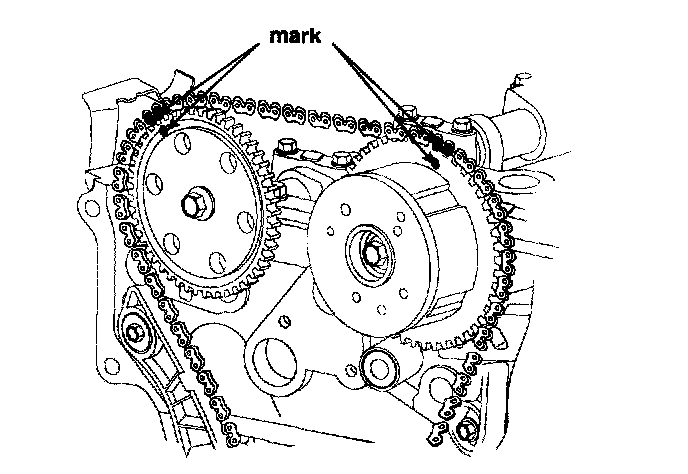

Cam With Chain Installed:

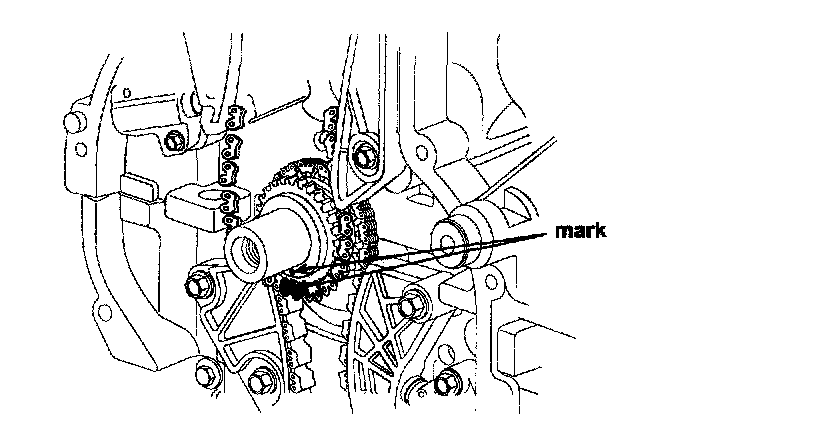

Crank With Chain Installed:

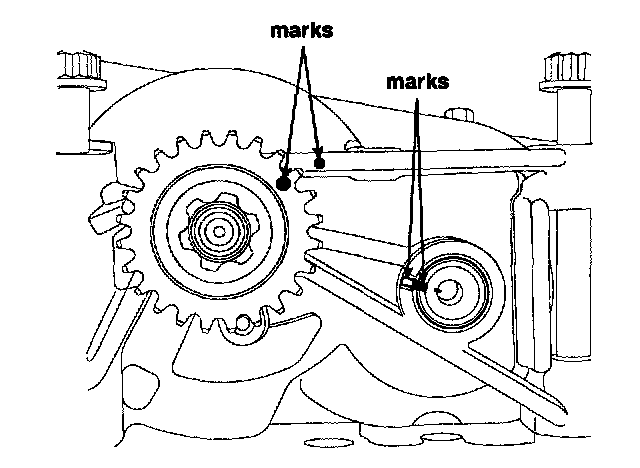

Balance Shaft Module Timing Mark:
