Keyless Entry Receiver: Service and Repair

RECEIVER

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the console rear cover.

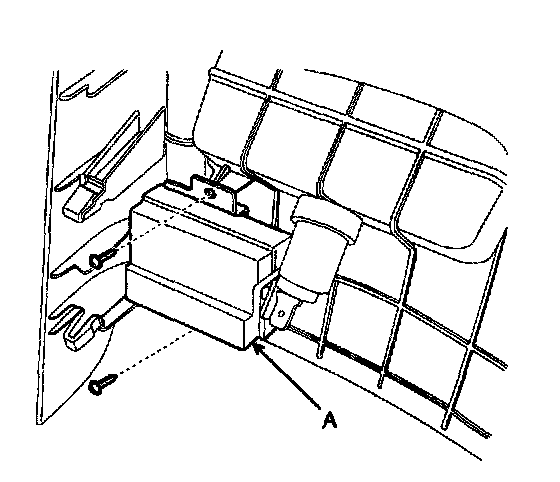

3. Remove the receiver (A) from console rear cover after disconnecting the connector.
4. Installation is the reverse of removal.
