Rear Wheel Alignment
REAR WHEEL ALIGNMENTTOE-IN
Standard value
Toe-in mm(in): 2 - 6 (0.078 - 0.236)
CAMBER
Standard value -1' ± 30'

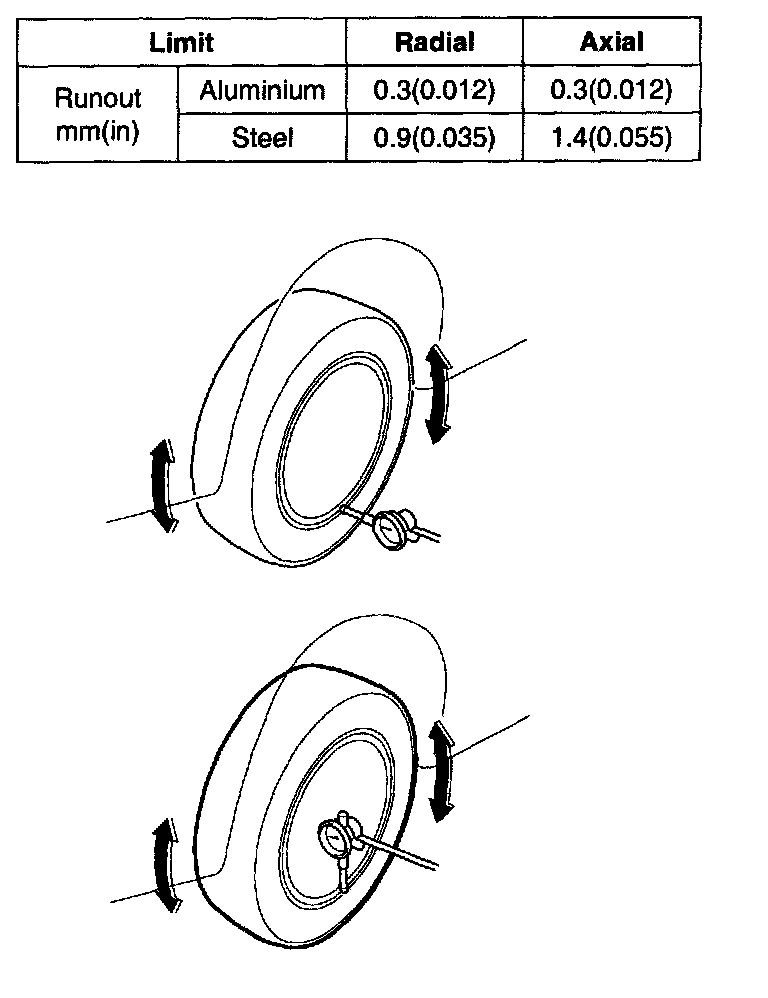

WHEEL RUNOUT
1. Jack up the vehicle and support it with jack stands.
2. Measure the wheel runout with a dial indicator as illustrated.
3. Replace the wheel if the wheel runout exceeds the limit.
