ECM




ECM HARNESS CONNECTOR

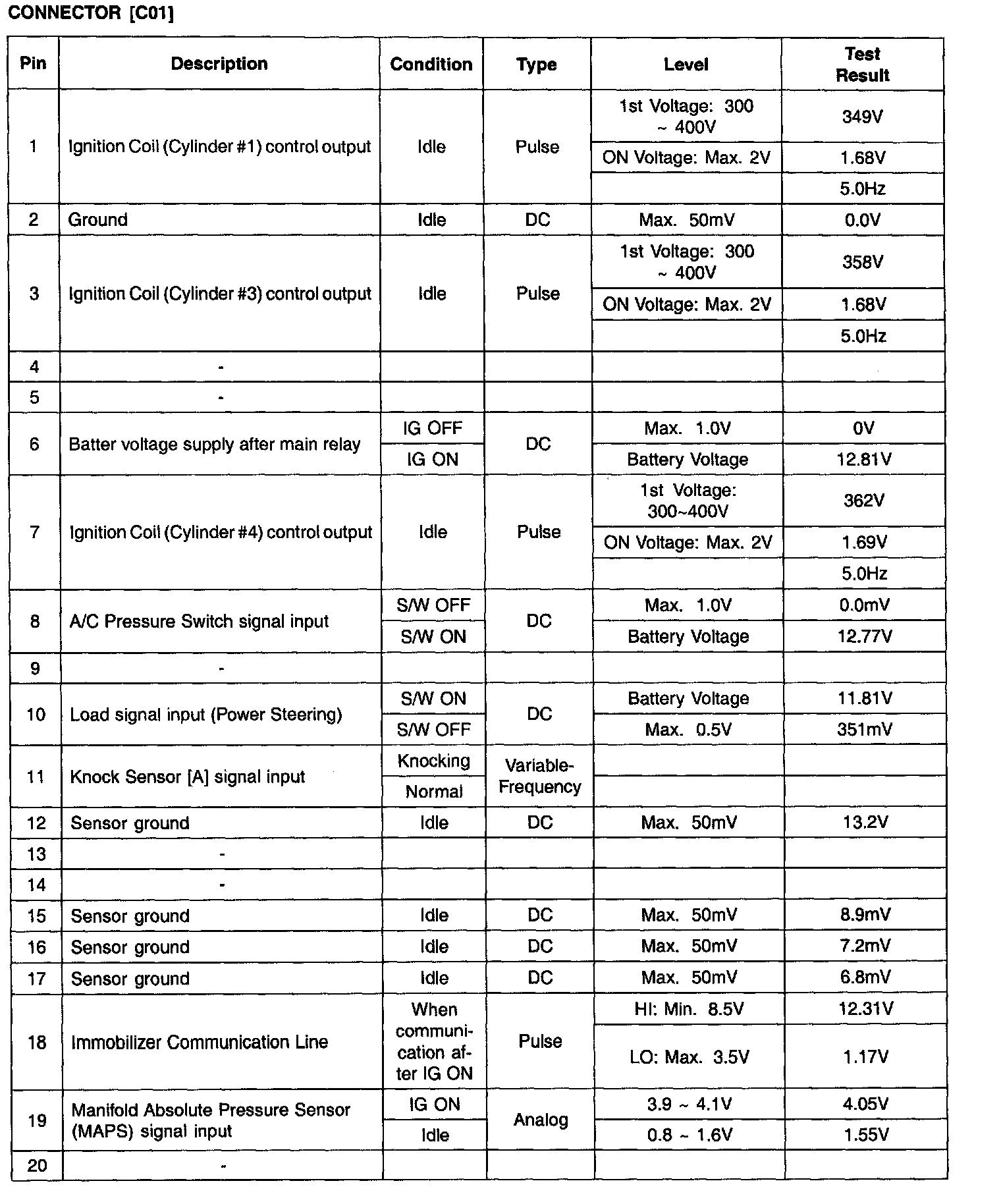

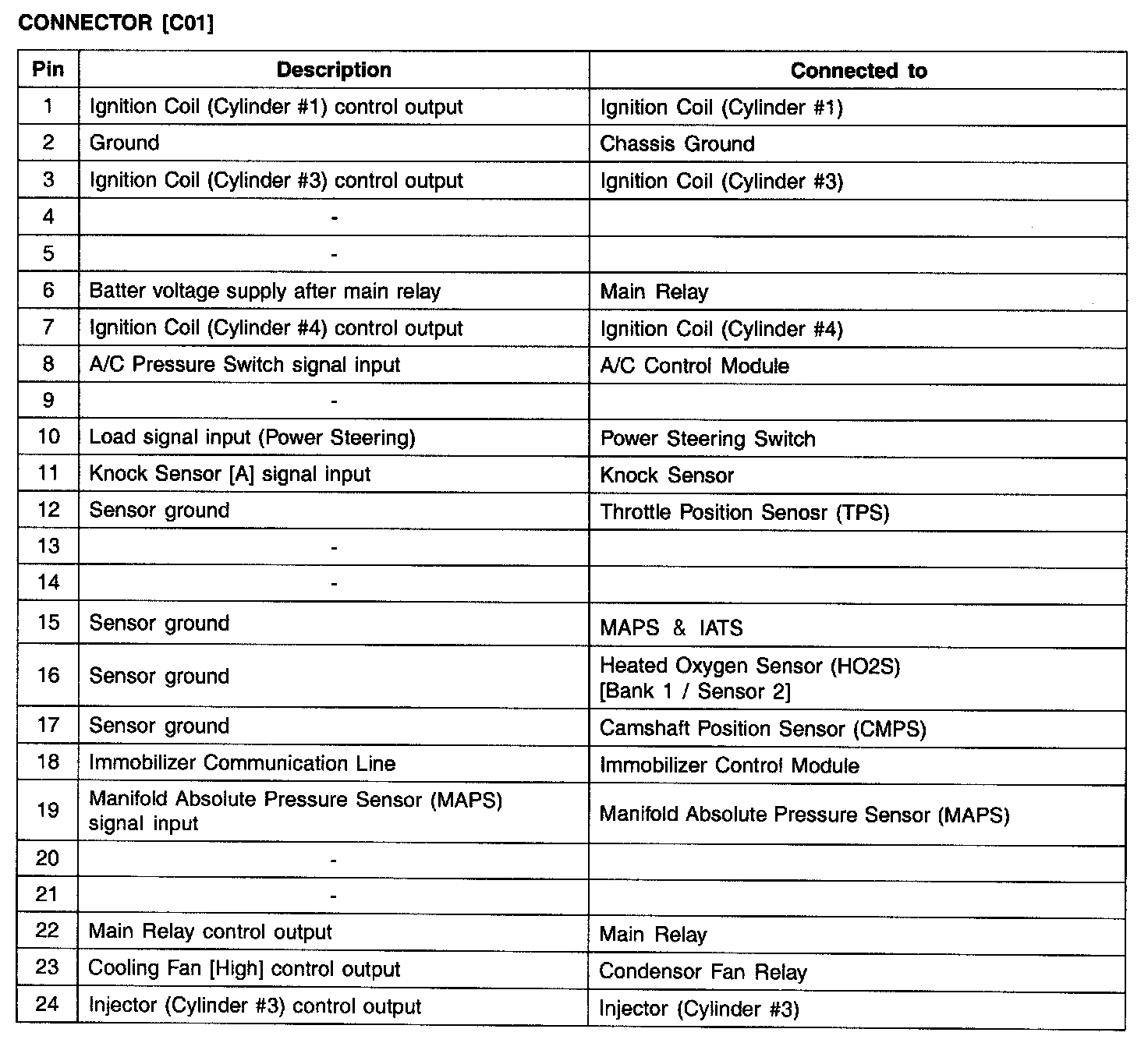

ECM Terminal Function (M/T) - Connector [CO1] Part 1:

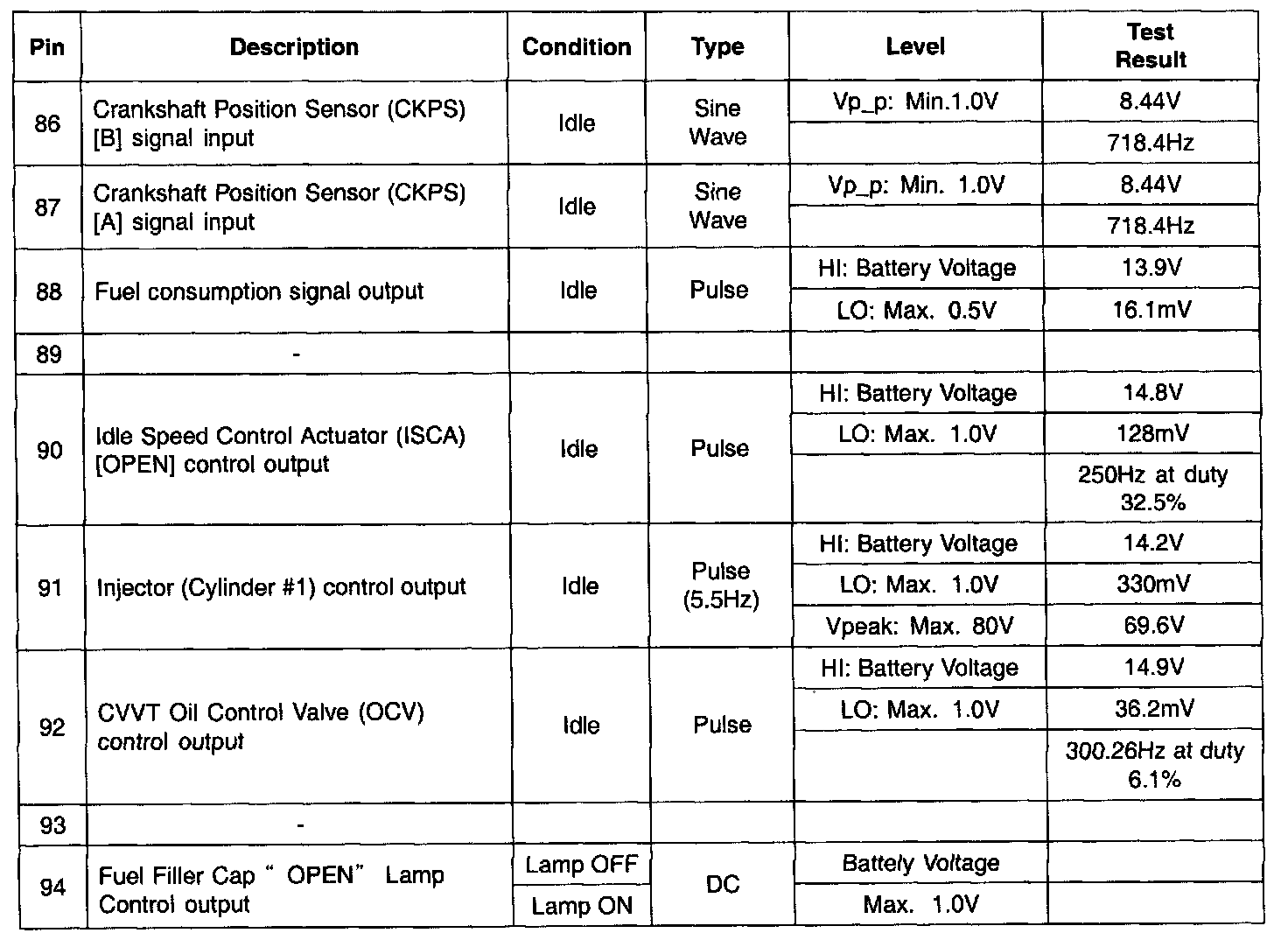

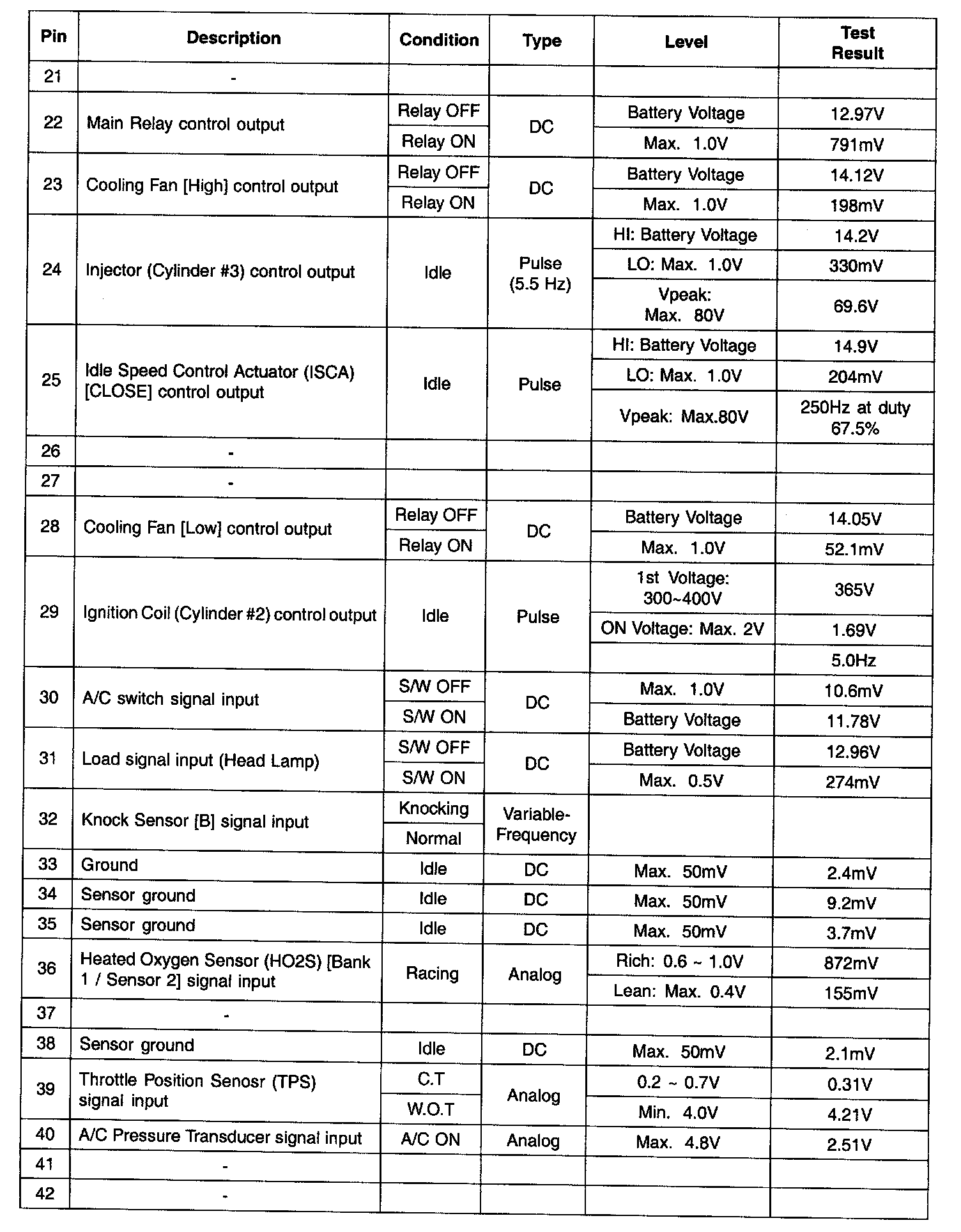

ECM Terminal Function (M/T) - Connector [CO1] Part 2:

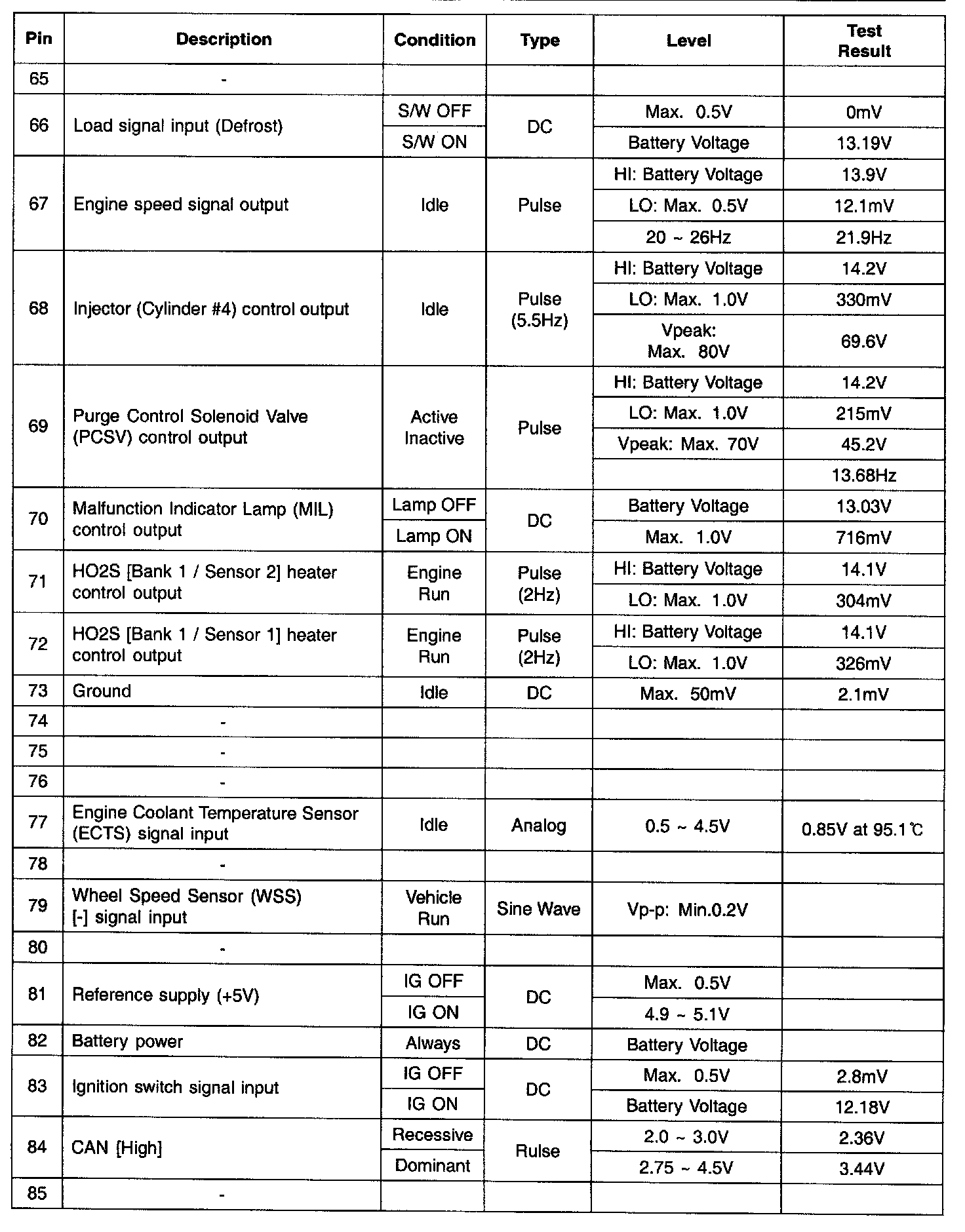

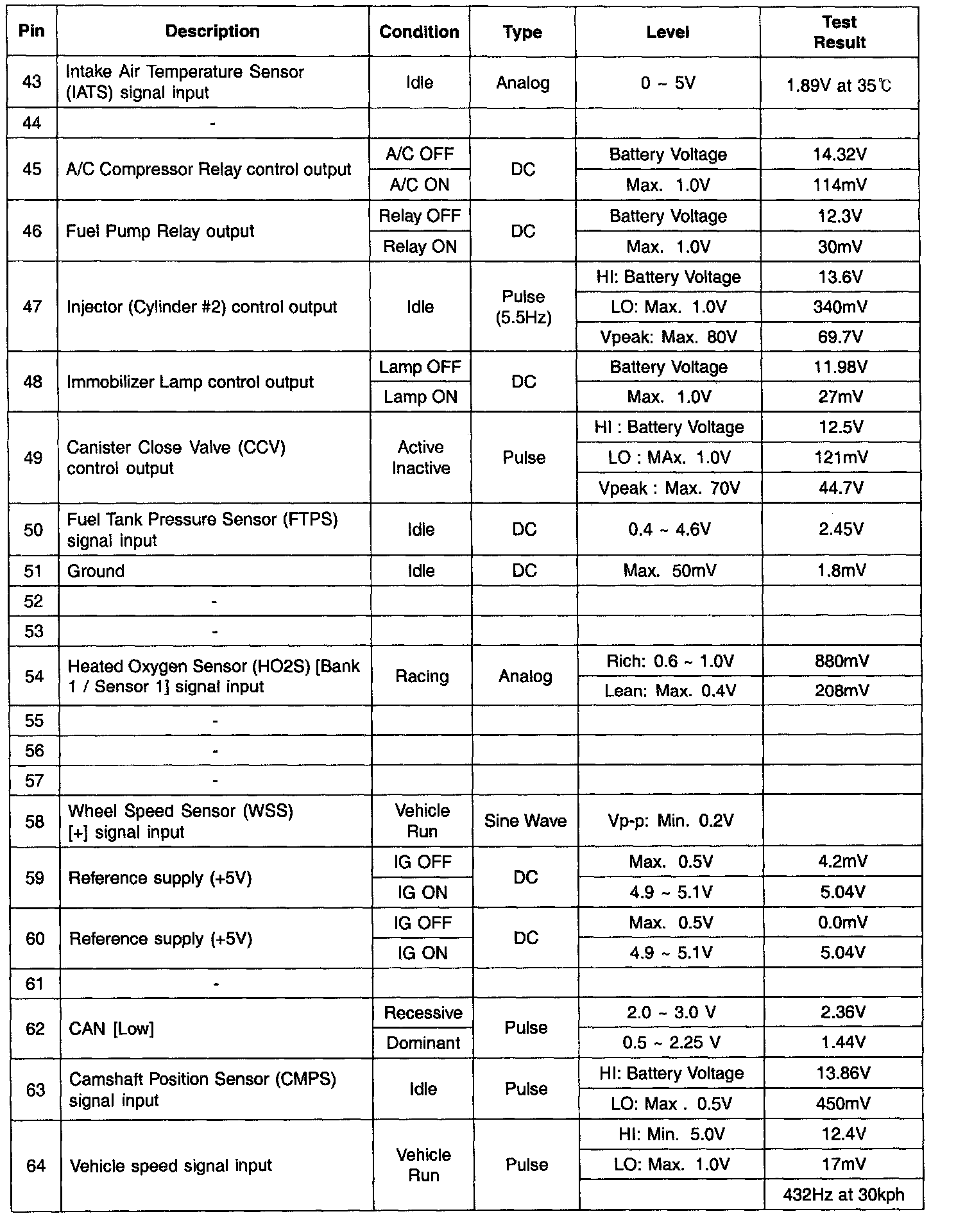

ECM Terminal Function (M/T) - Connector [CO1] Part 3:

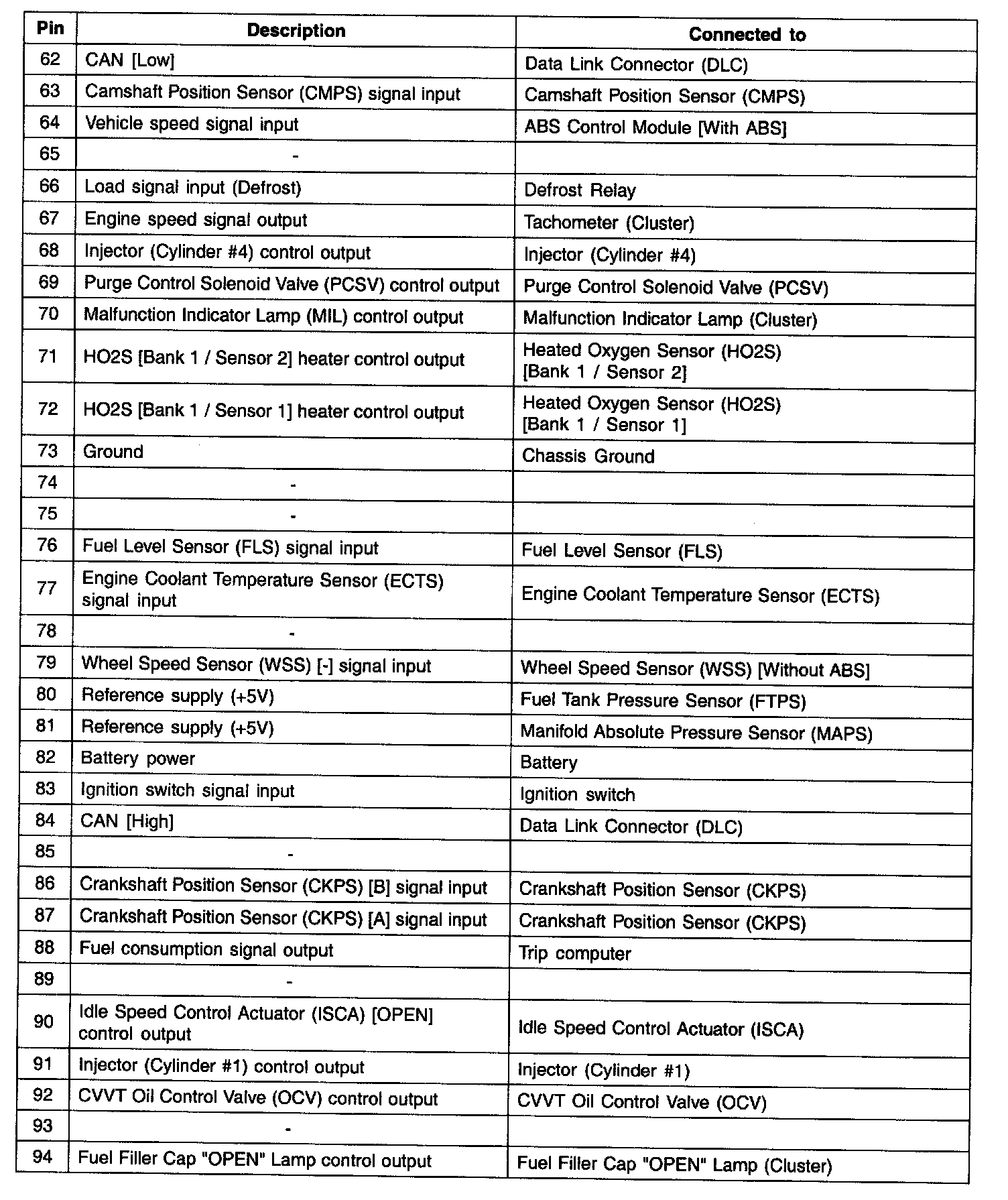

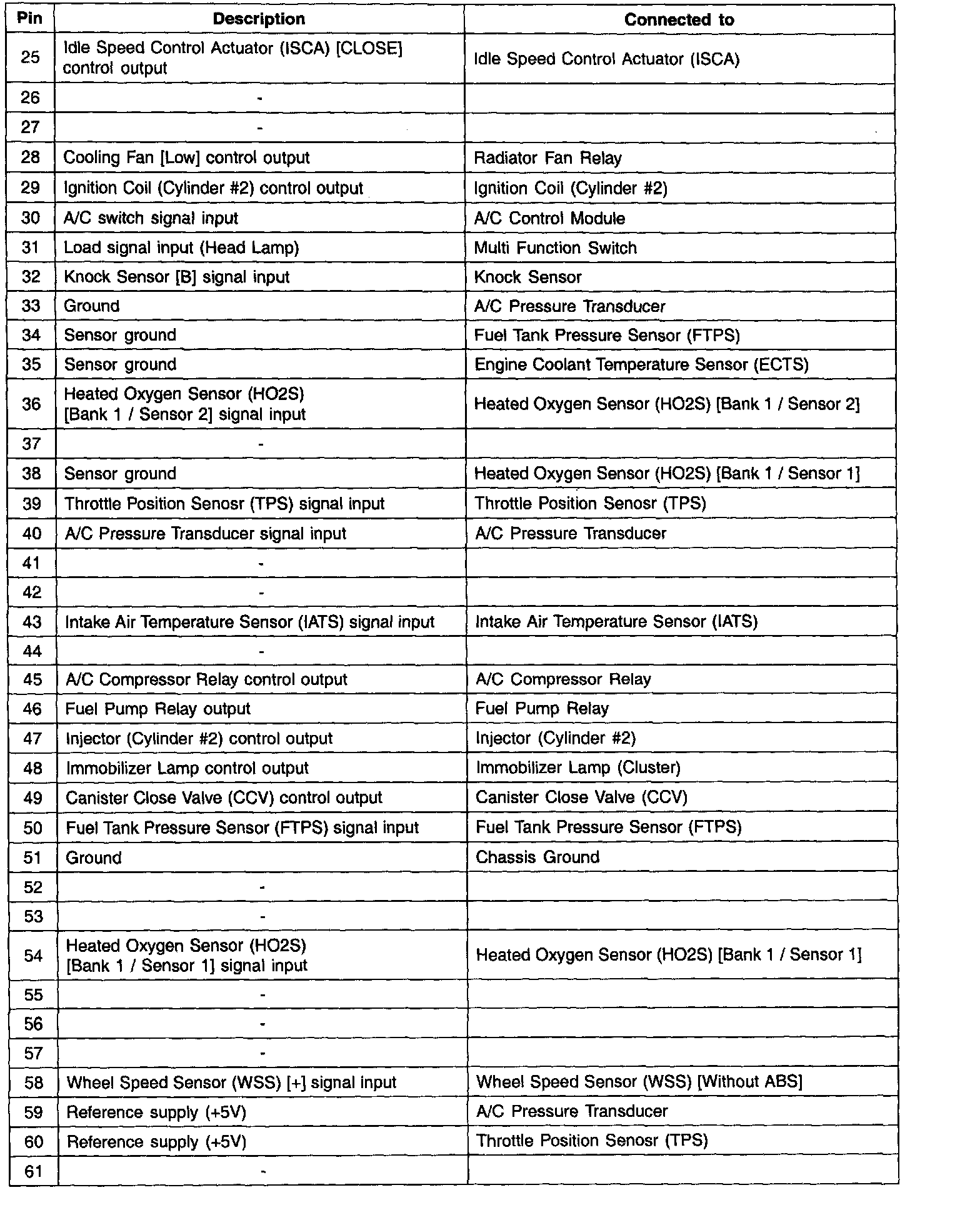

ECM TERMINAL FUNCTION - CONNECTOR [C01]

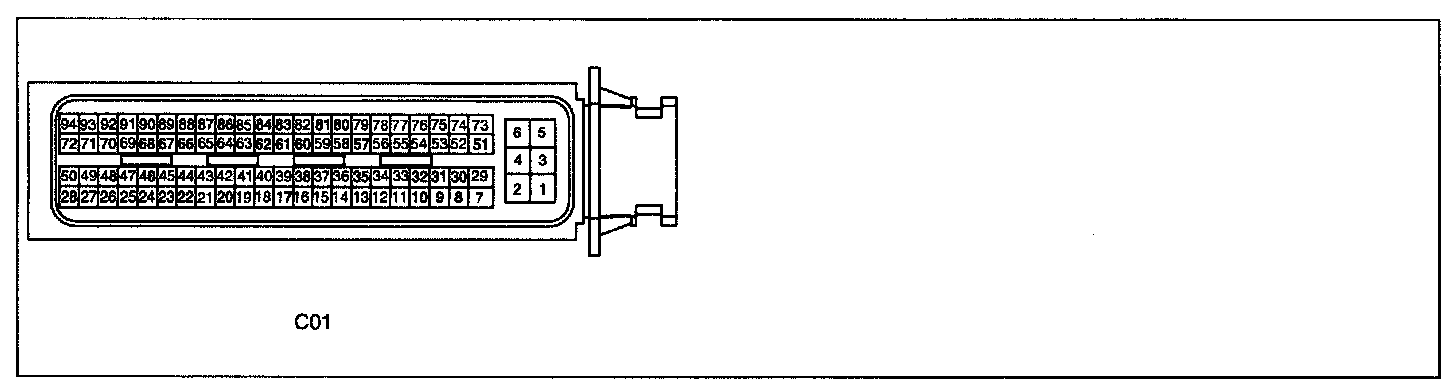

Ecm Harness Connector (M/T) - Connector [CO1] Part 1:




Ecm Harness Connector (M/T) - Connector [CO1] Part 2:




Ecm Harness Connector (M/T) - Connector [CO1] Part 3:




Ecm Harness Connector (M/T) - Connector [CO1] Part 4:




Ecm Harness Connector (M/T) - Connector [CO1] Part 5:




ECM TERMINAL FUNCTION - CONNECTOR [C01]
