Home >> Hyundai >> 2006 >> Tucson L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Testing and Inspection >> Inhibitor Switch

Inhibitor Switch

Inhibitor Switch

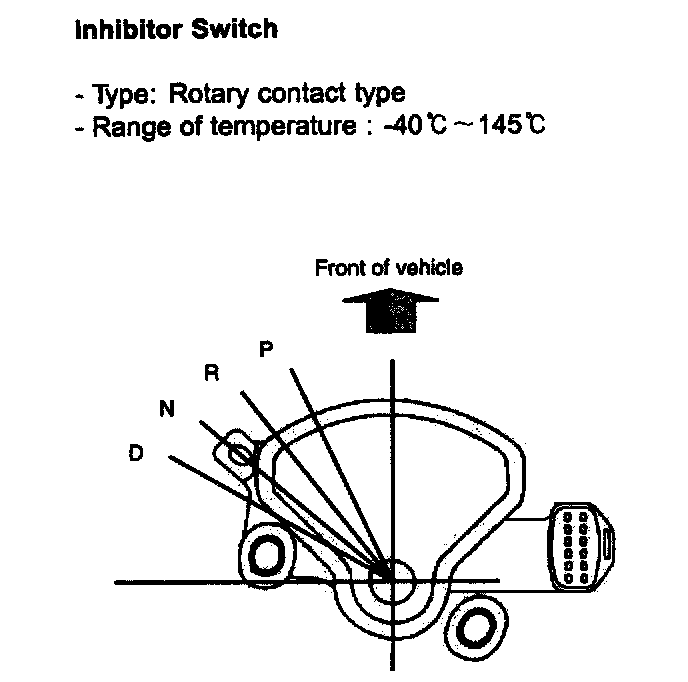

Inhibitor Switch:





- Type: Rotary contact type
- Range of temperature: -40°C - 145°C

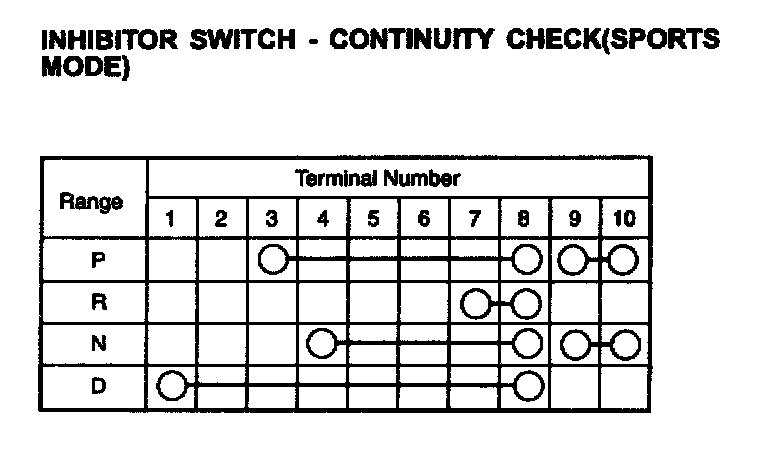

INHIBITOR SWITCH - CONTINUITY CHECK (SPORTS MODE)

INHIBITOR SWITCH - CONTINUITY CHECK (SPORTS MODE):
