Home >> Hyundai >> 2006 >> Santa Fe L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

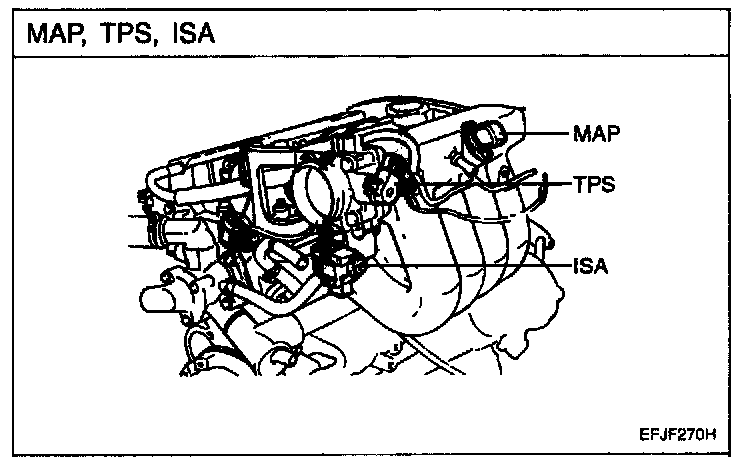

Throttle Position Sensor: Locations

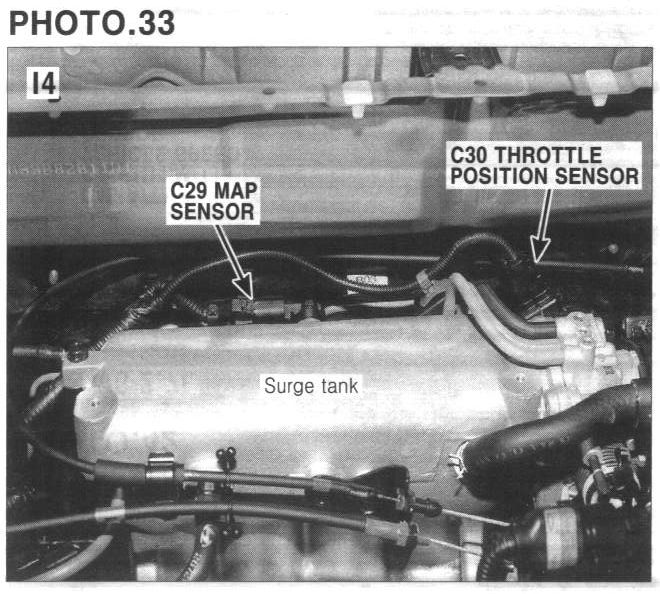

Photo 33:

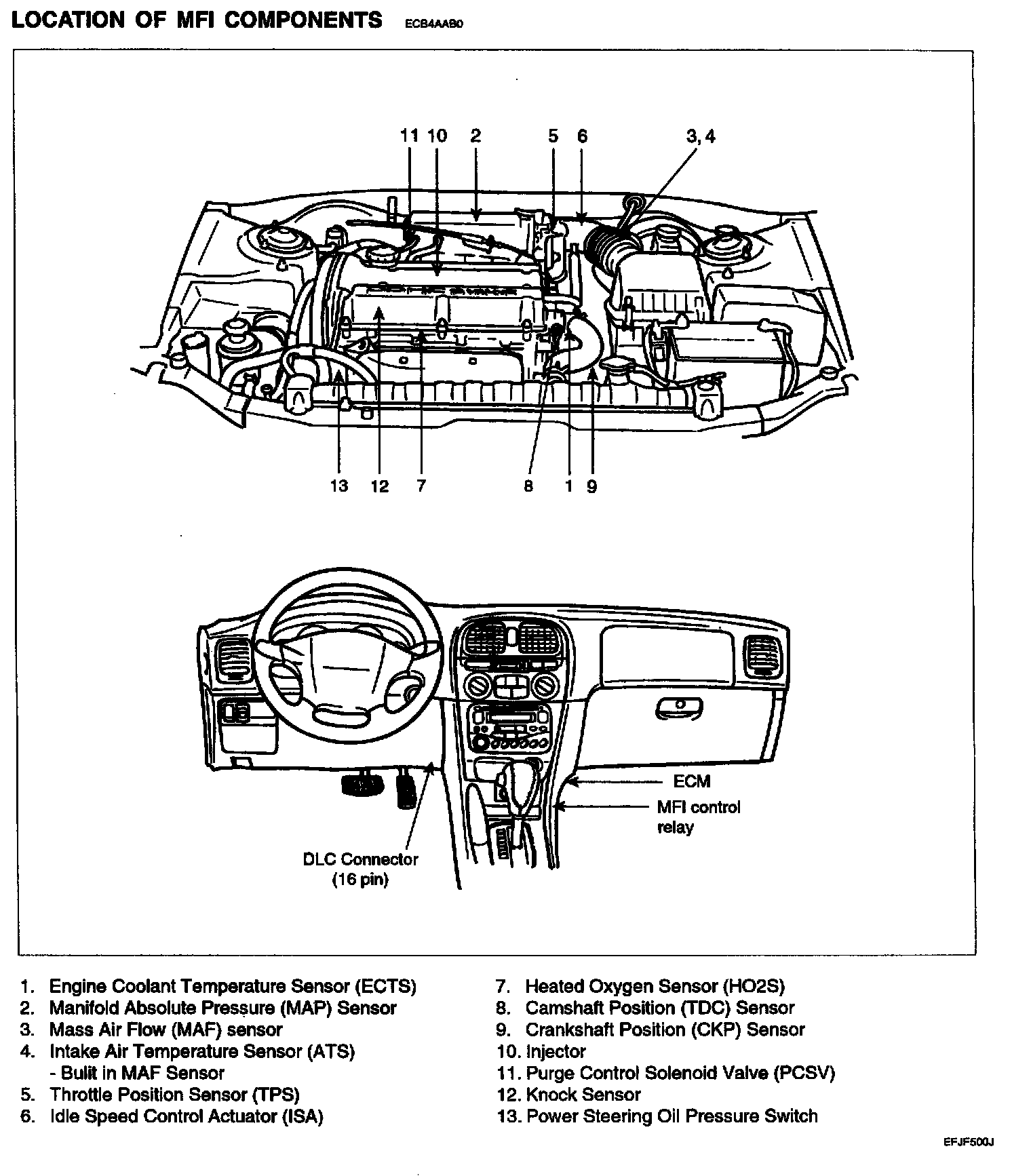

Location Of MFI Components:
