Body Control Module: Service and Repair

ETACS (Electronic Time And Alarm Control System)

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

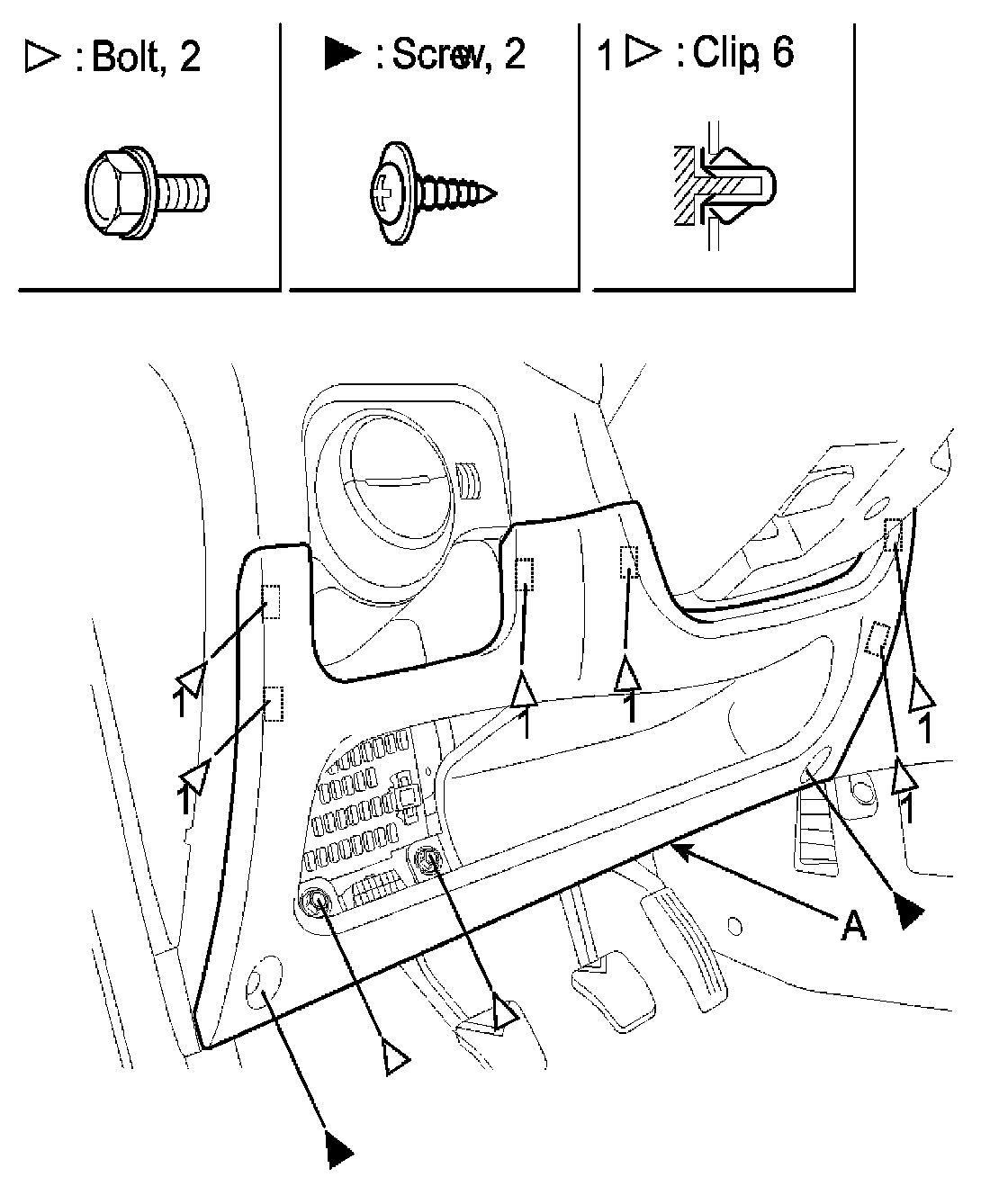

2. Remove the crash pad lower panel (A).

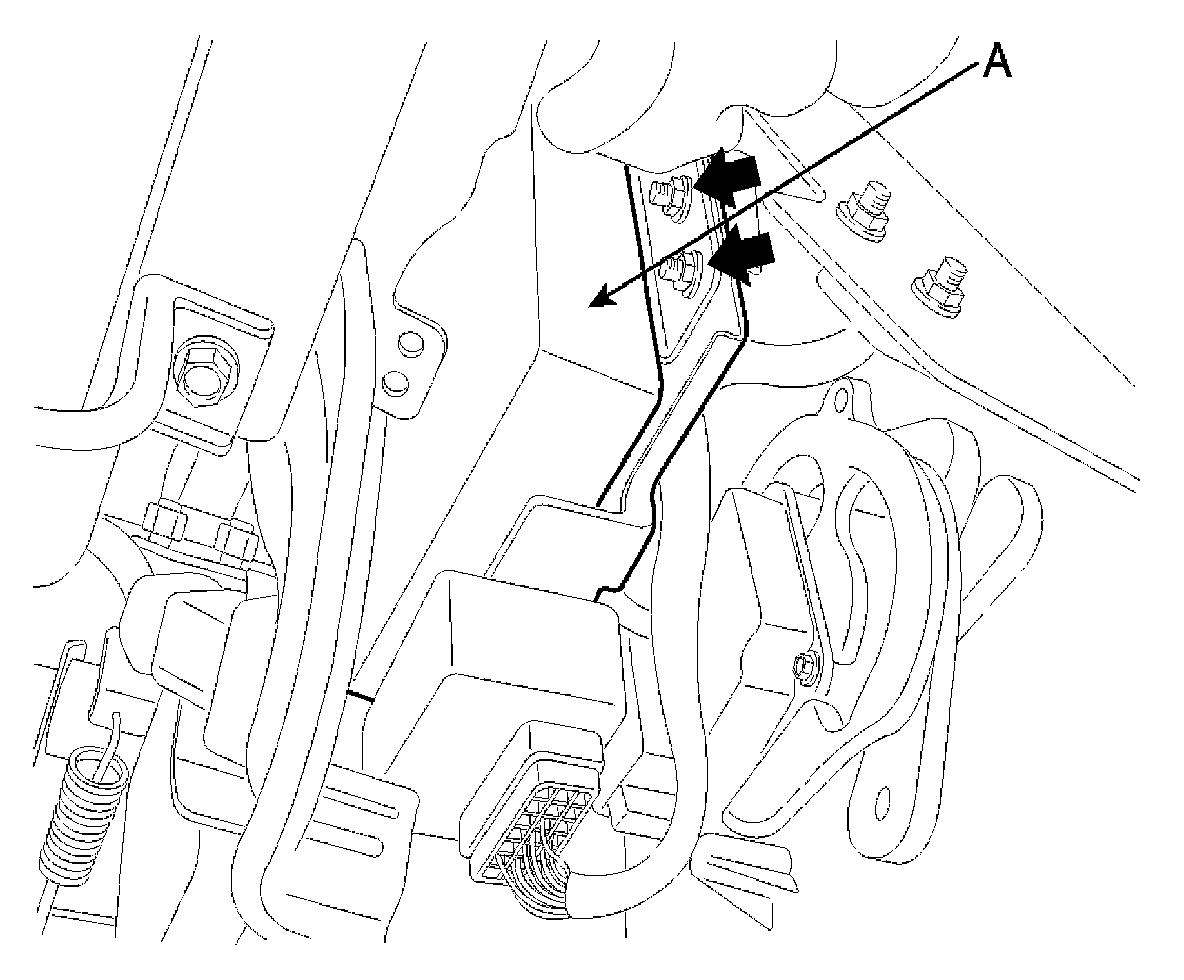

3. Remove the body control module (A) after loosening 2 nuts.
4. Installation is the reverse of removal.
