Hyundai
>>
2005
>>
Tucson V6-2.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

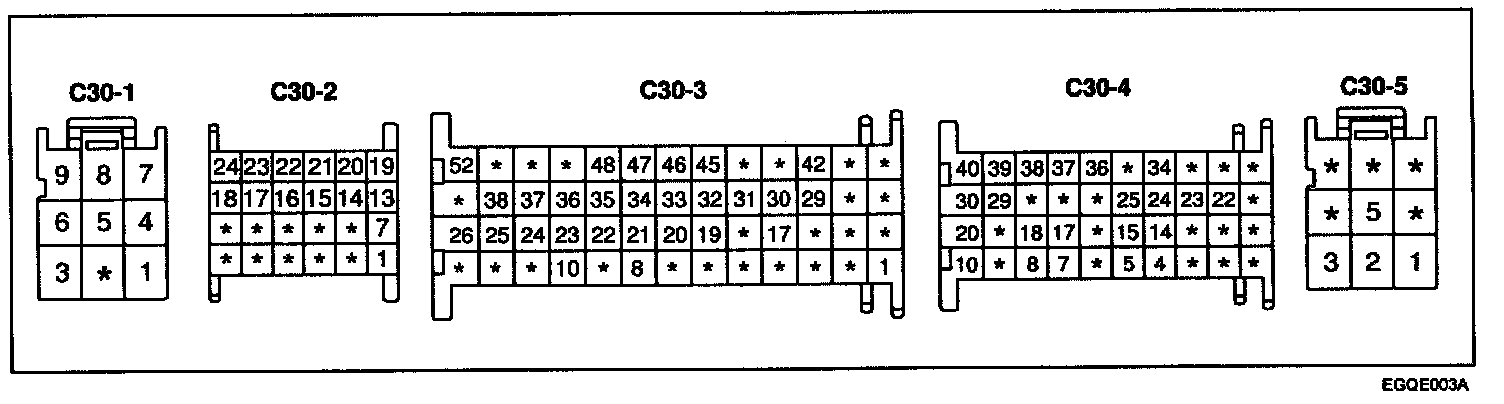

ECM HARNESS CONNECTOR
ECM Harness Connector:
ECM TERMINAL FUNCTION

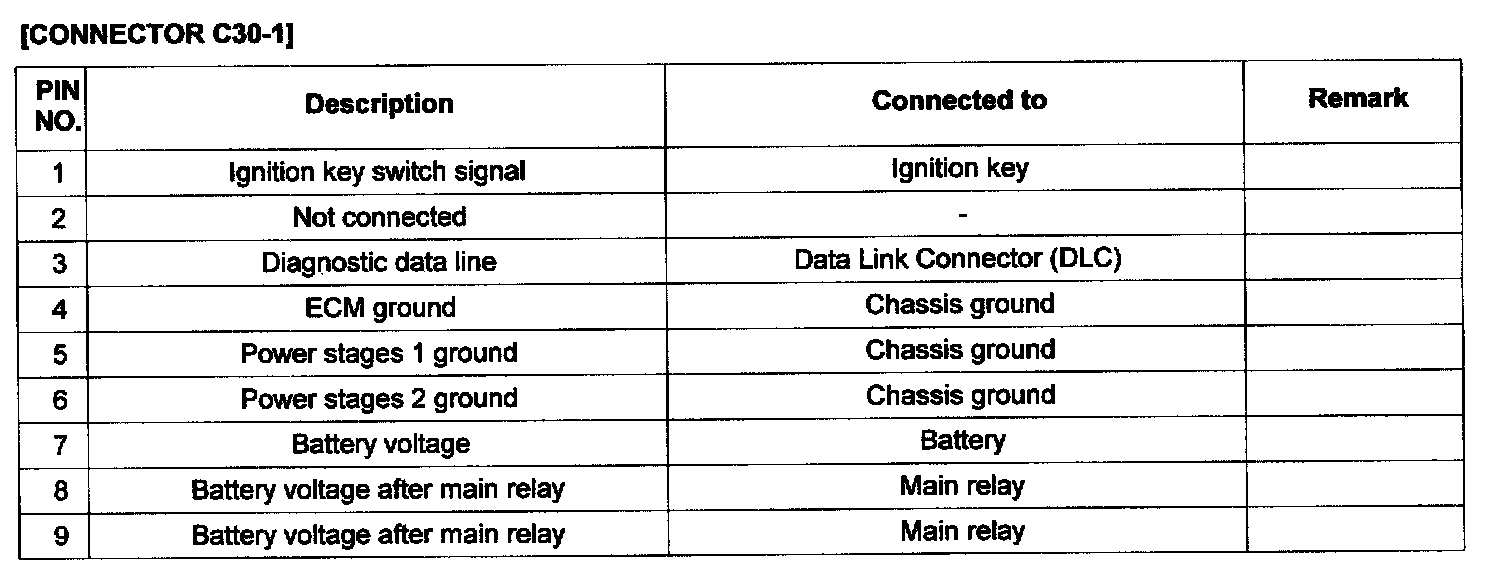

Pin No. 1 - 9:

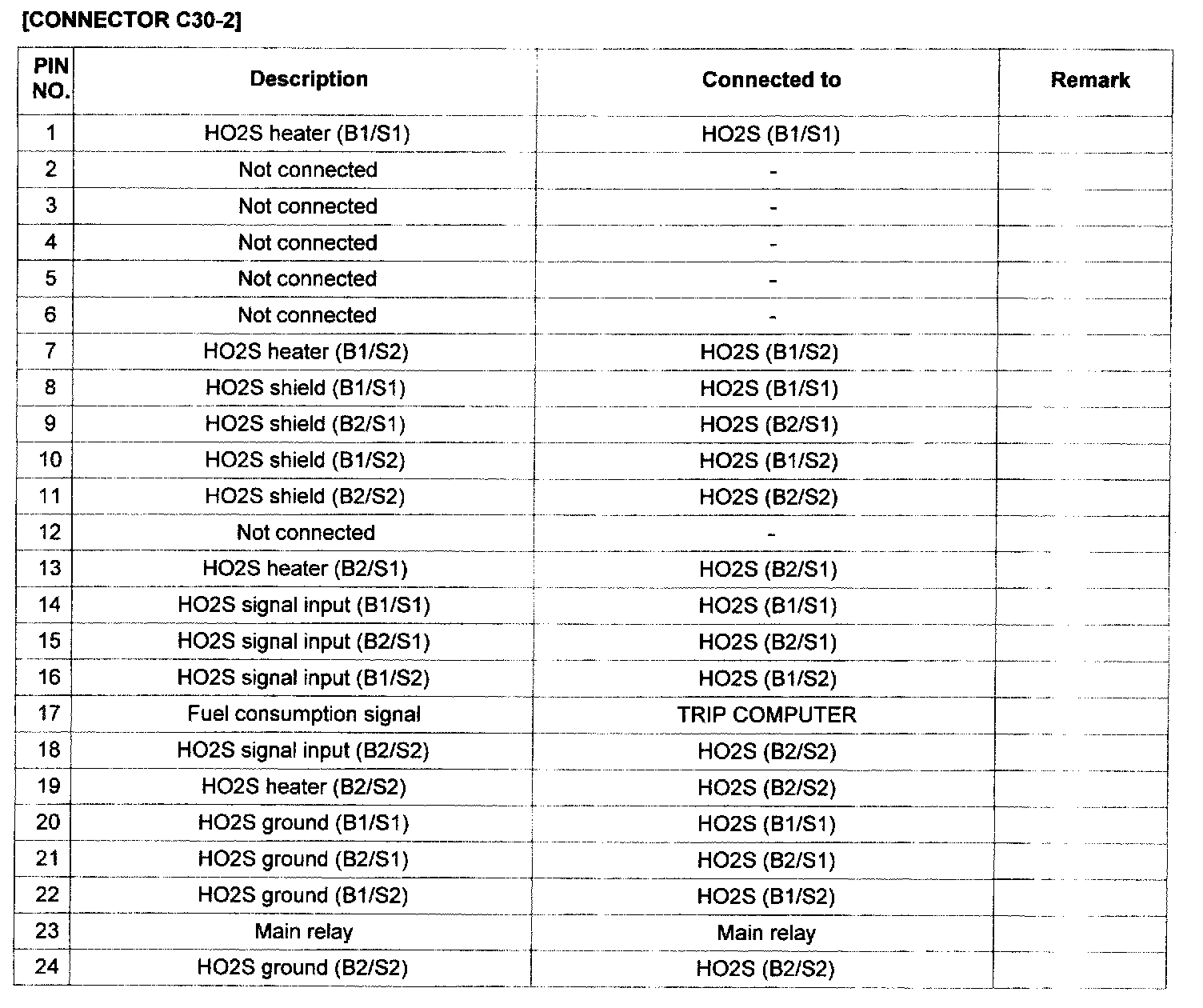

Pin No. 1 - 24:

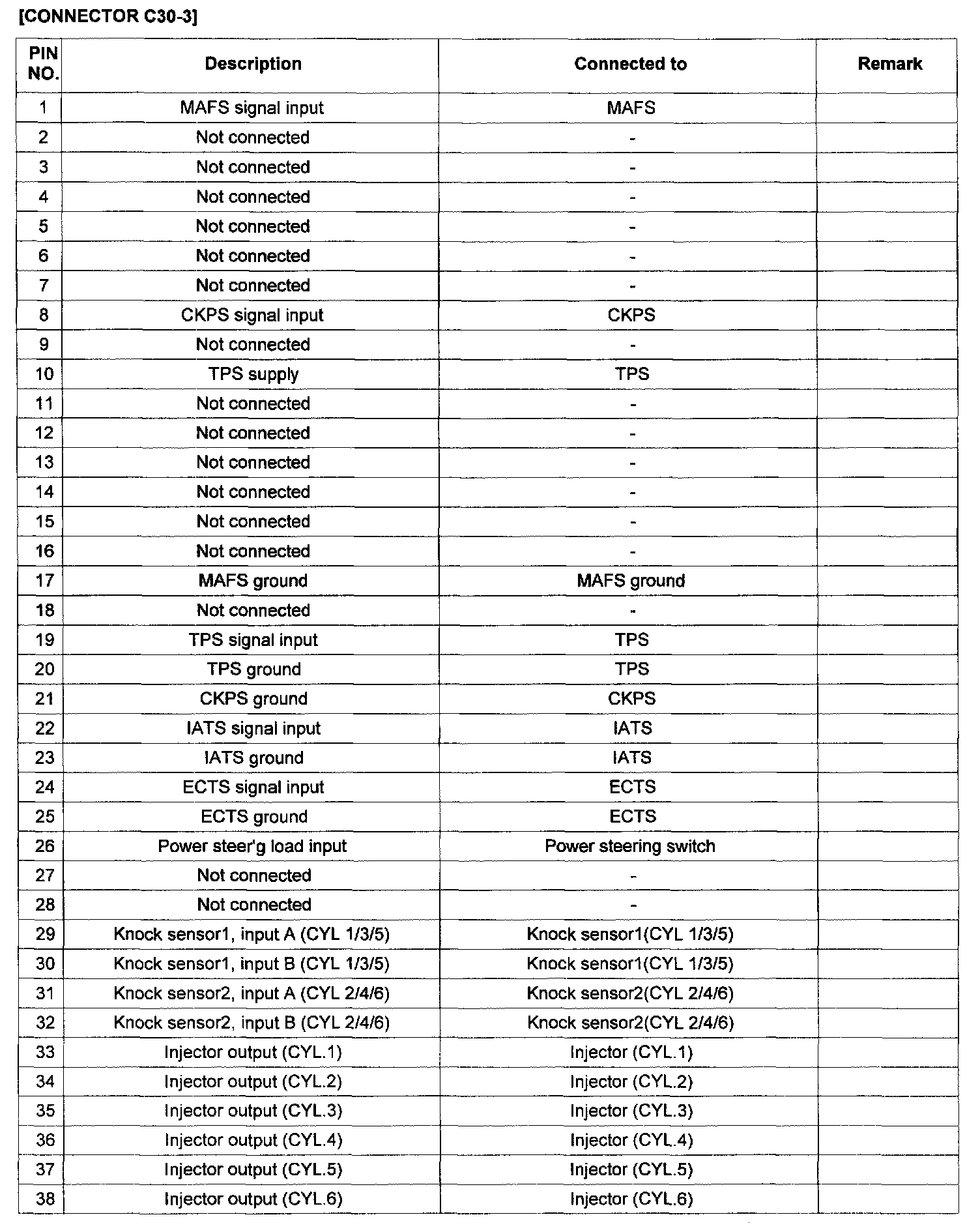

Pin No. 1 - 38:

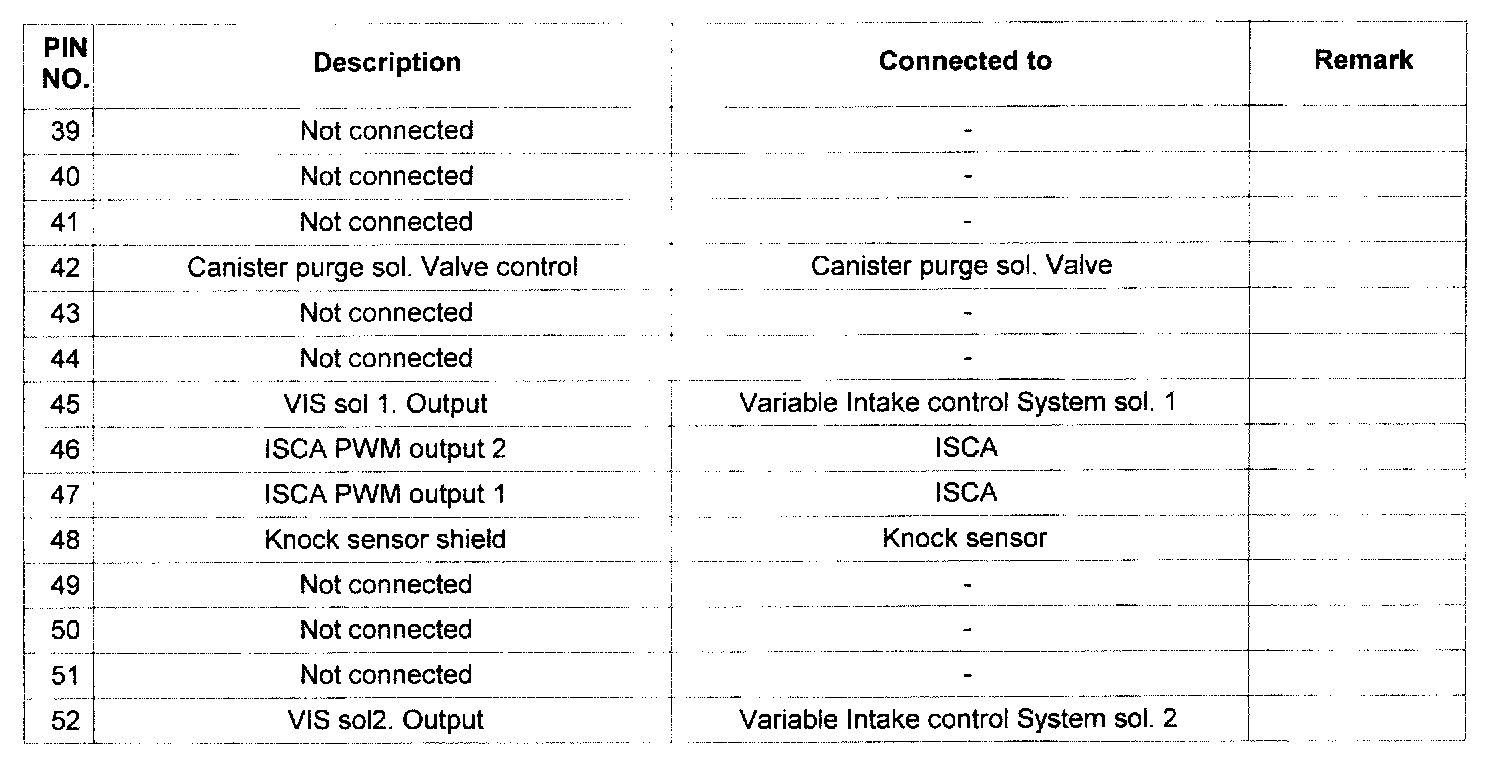

Pin No. 39 - 52:

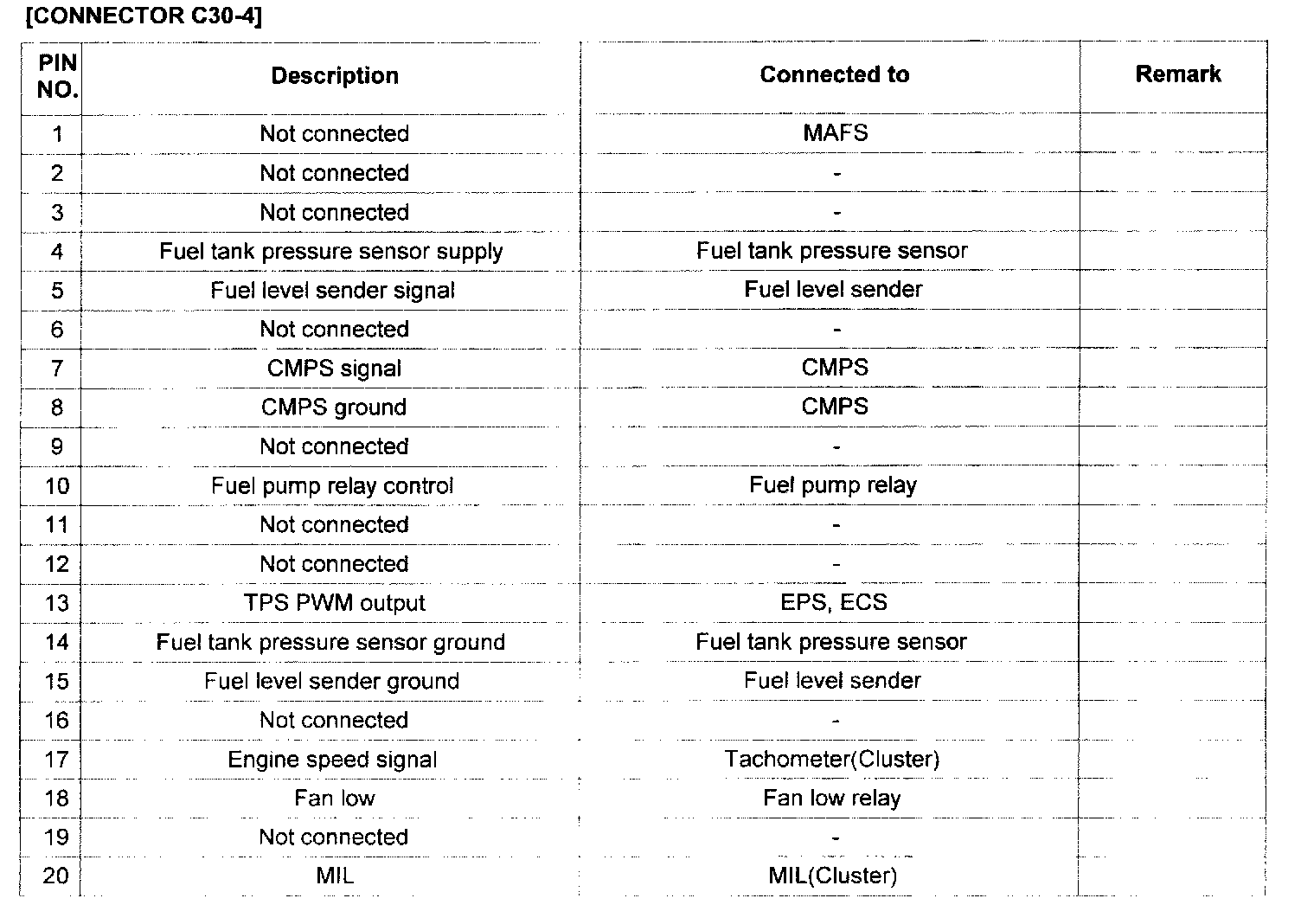

Pin No. 1 - 20:

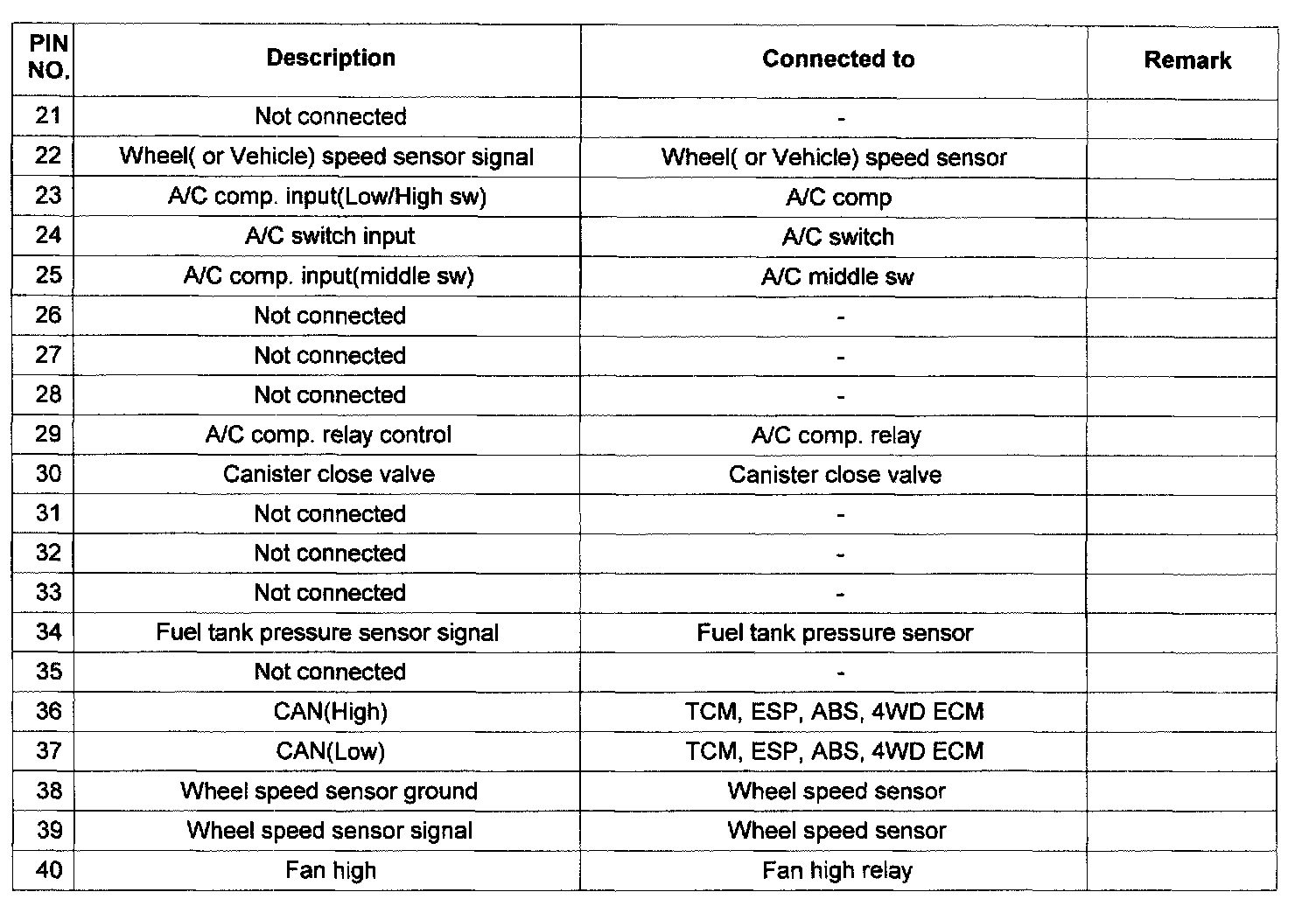

Pin No. 21 - 40:

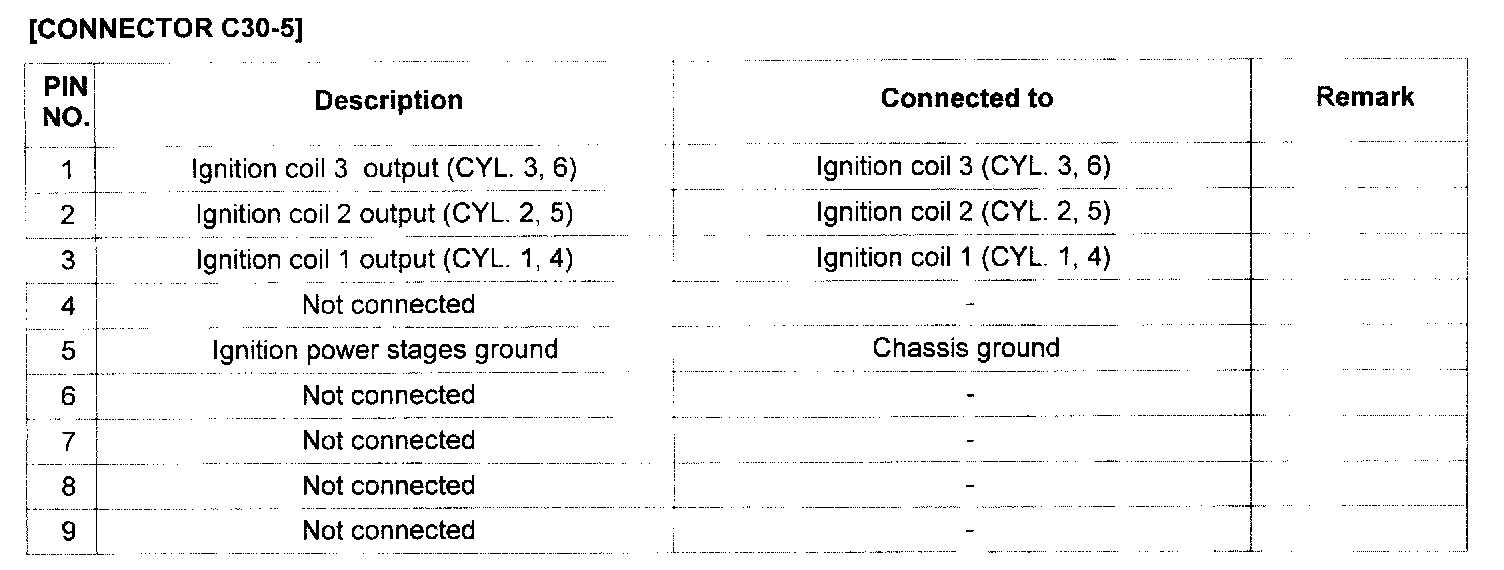

Pin No. 1 - 9:
