Pinout Values and Diagnostic Parameters

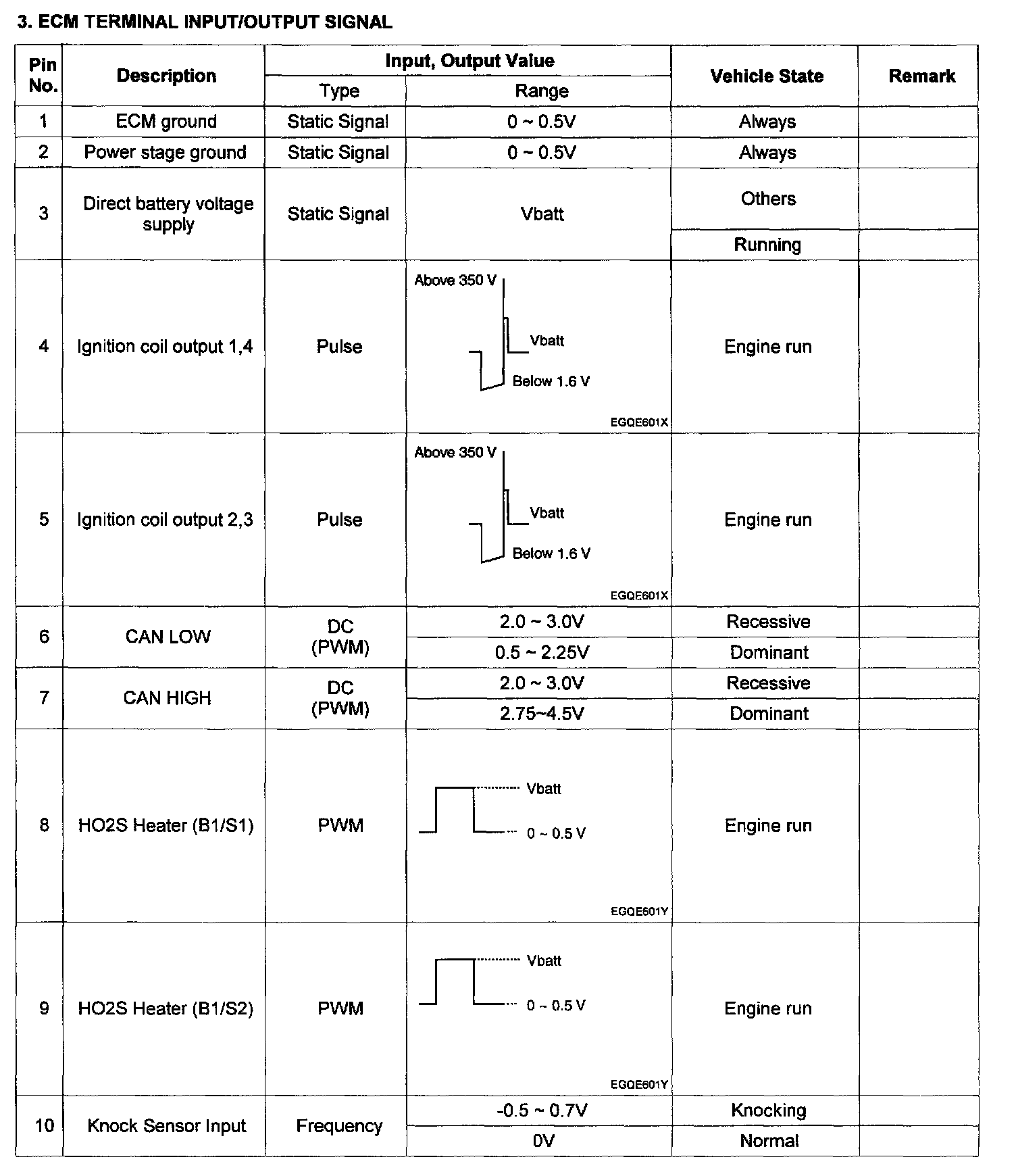

Pin No. 1 - 10:

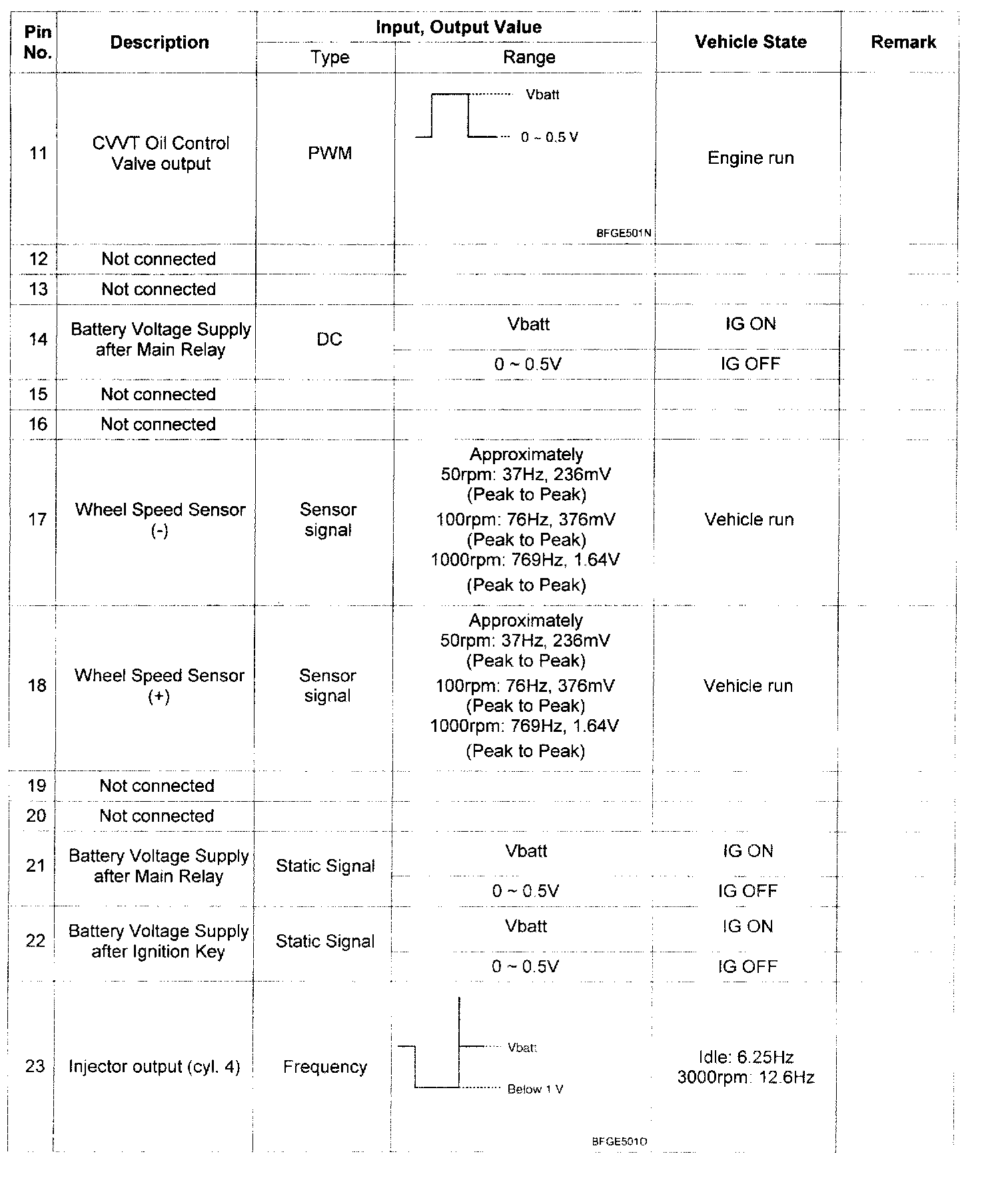

Pin No. 11 - 23:

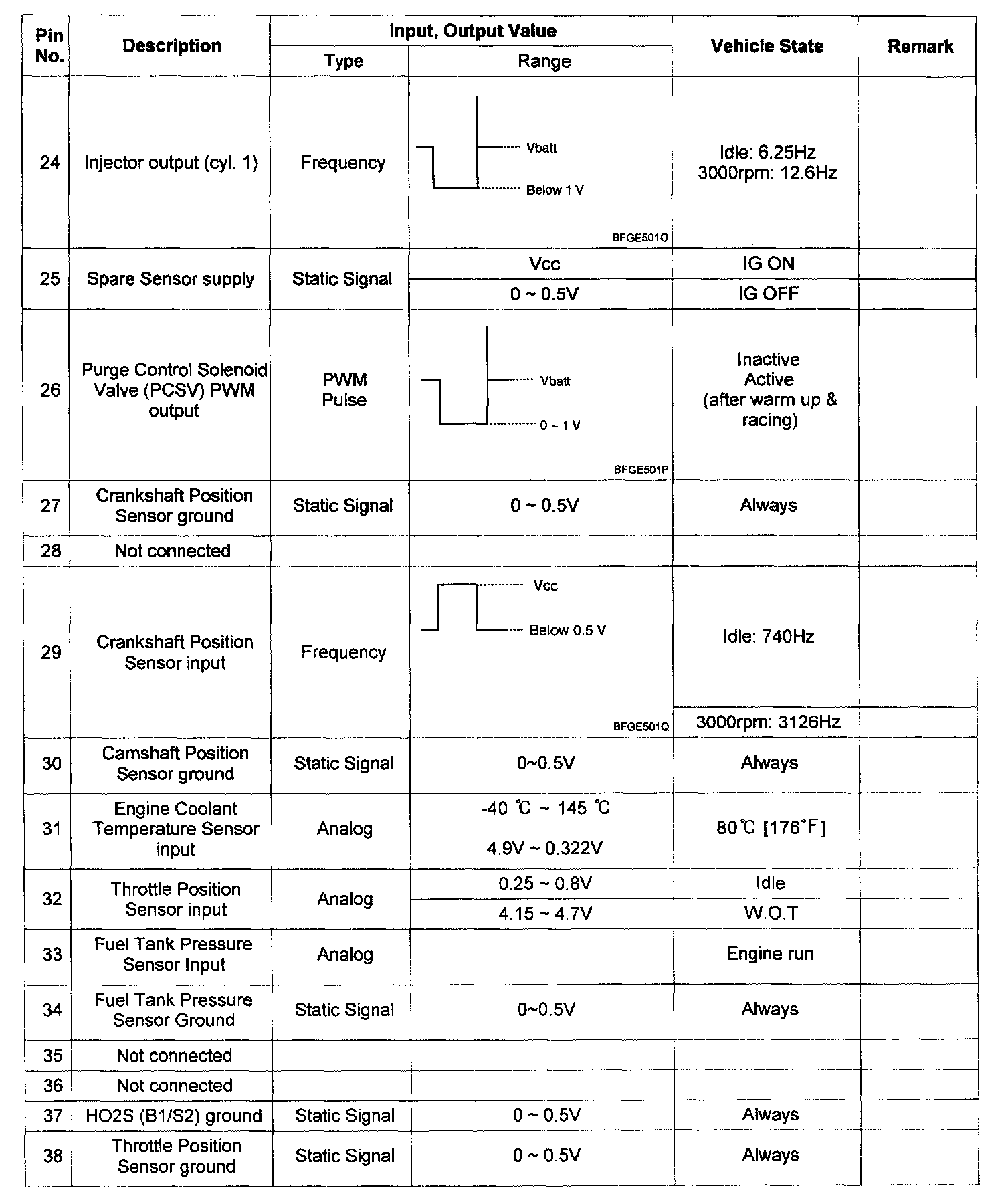

Pin No. 24 - 38:

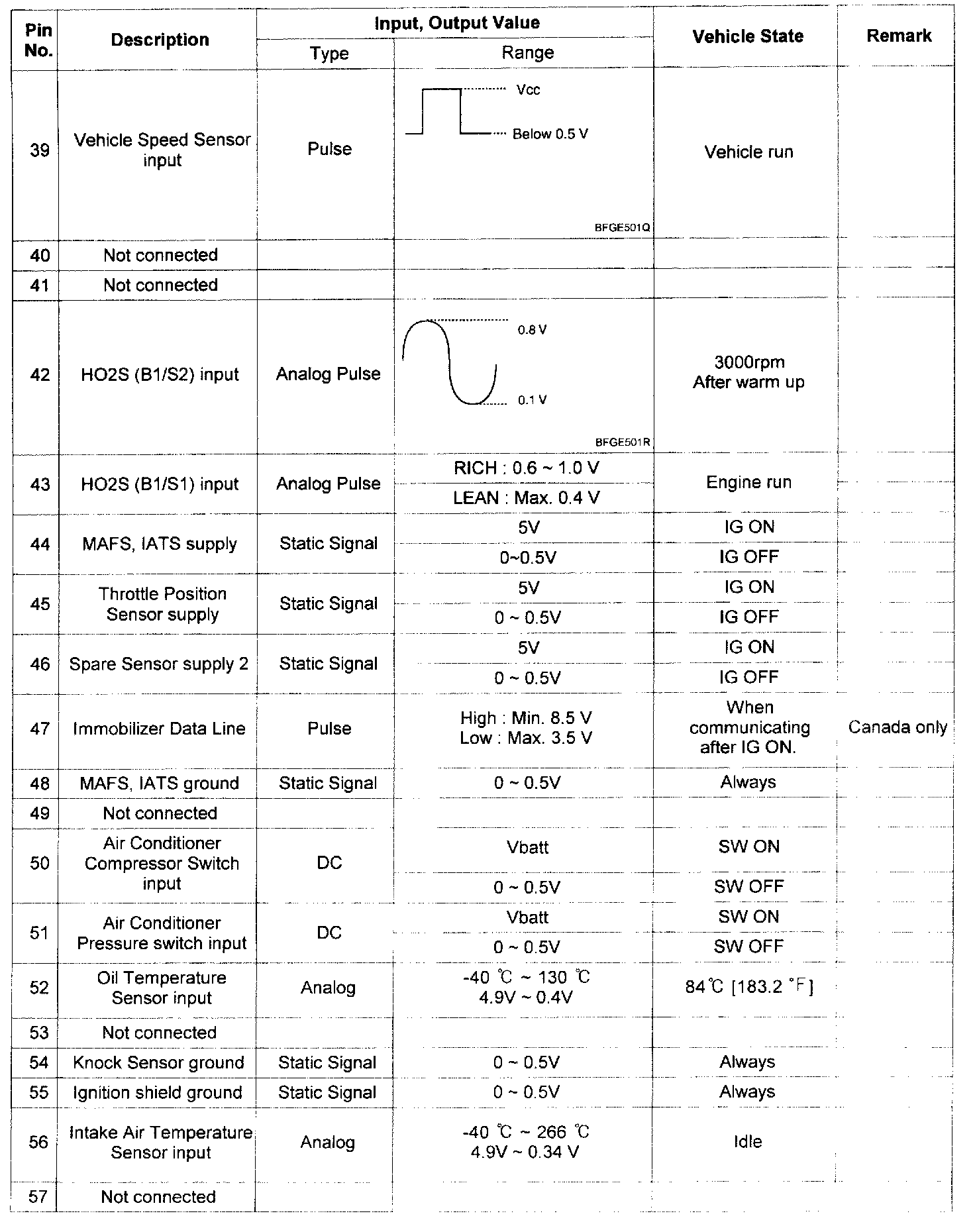

Pin No. 39 - 57:

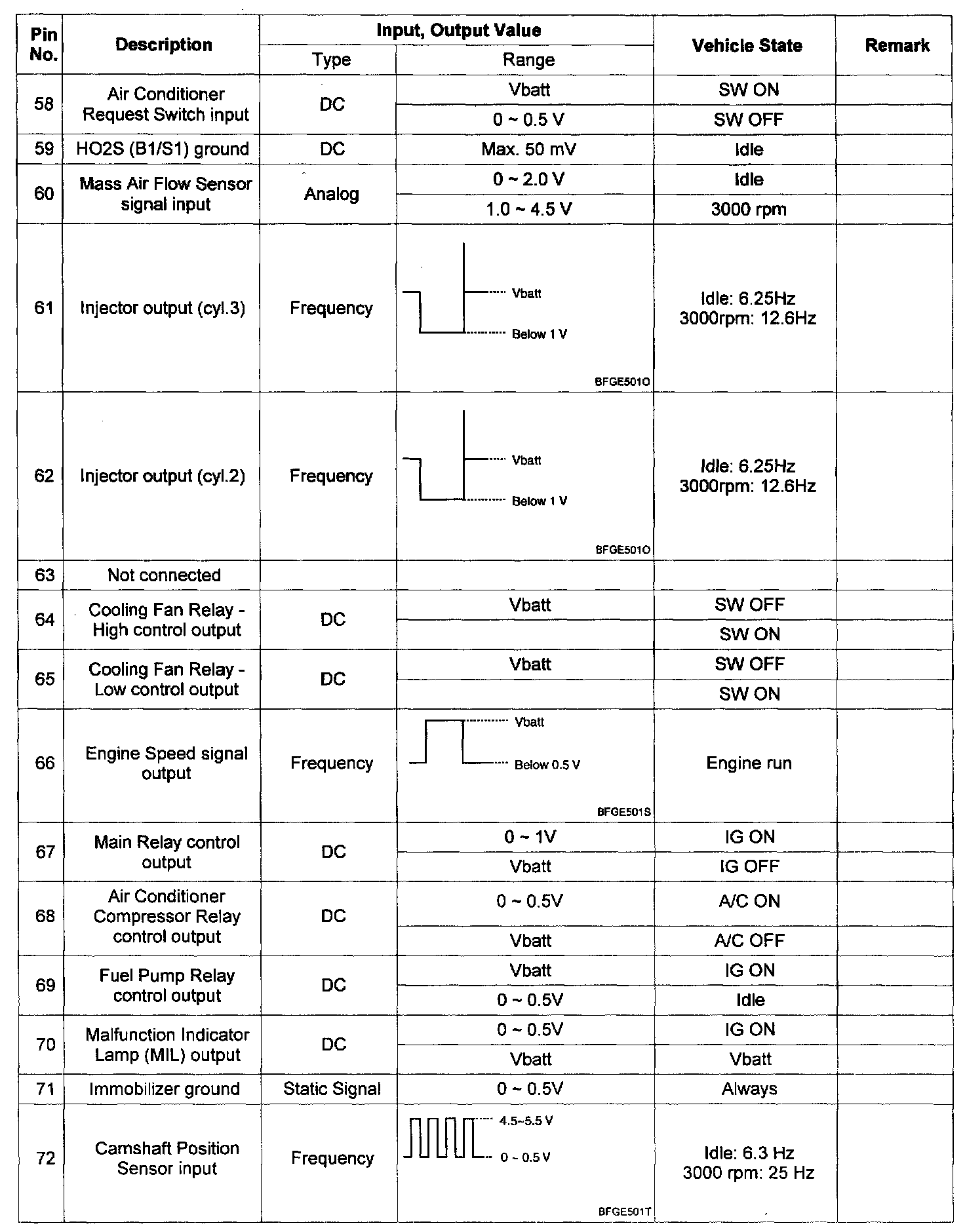

Pin No. 58 - 72:

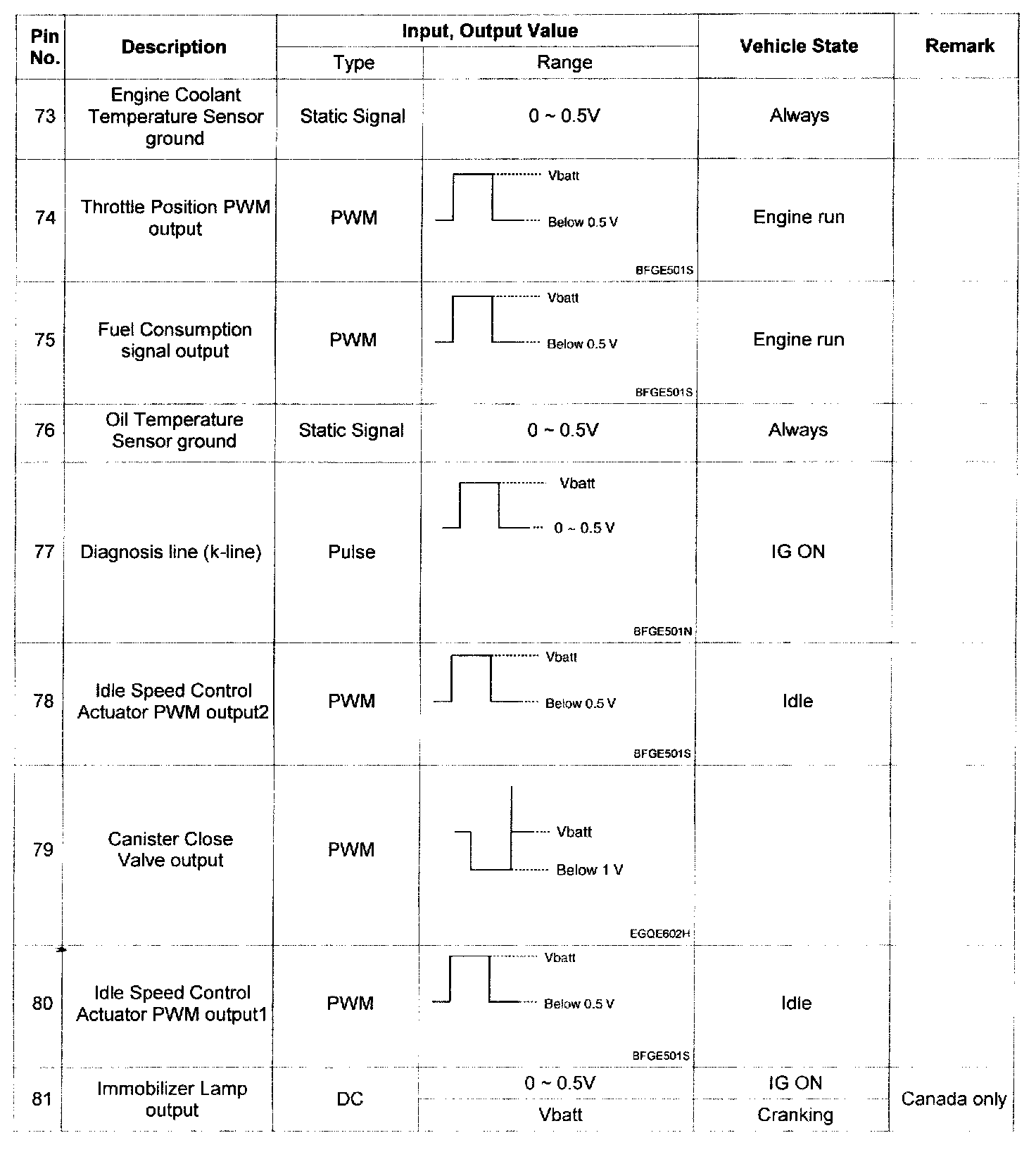

Pin No. 73 - 81:
