Engine Control Module
Engine Control Module
ECM HARNESS CONNECTOR
ECM Harness Connector:
ECM TERMINAL FUNCTION

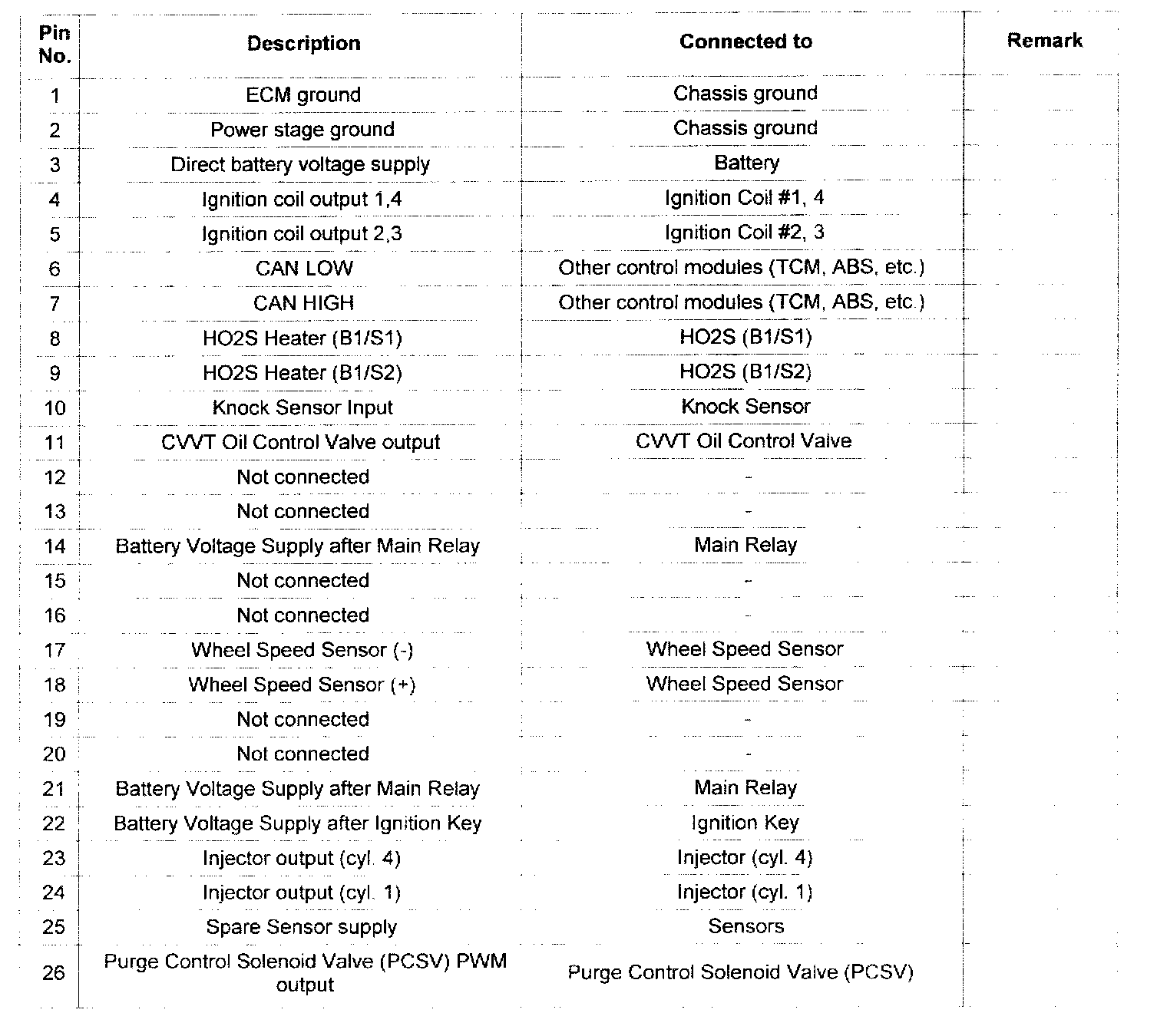

Pin No. 1 - 26:

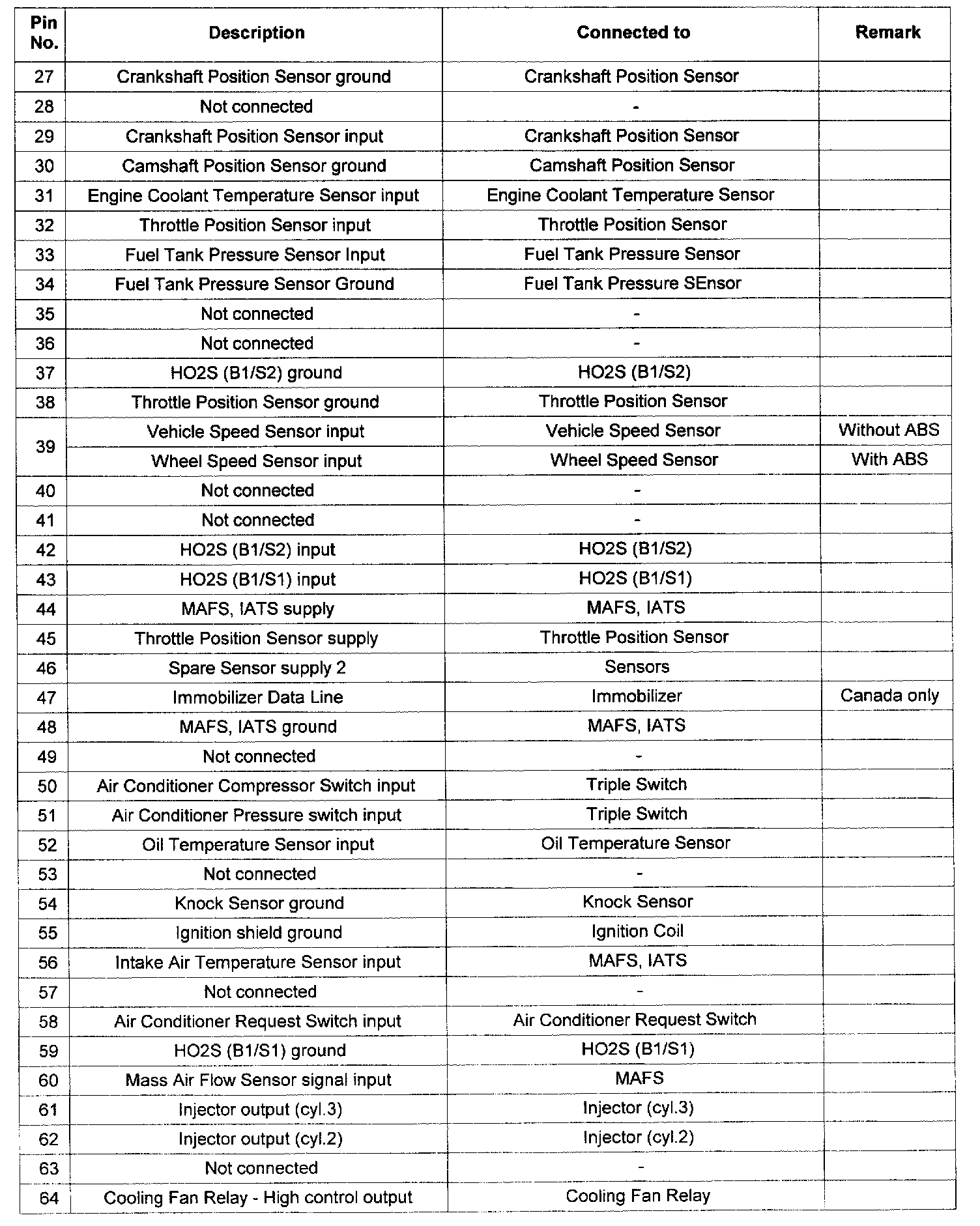

Pin No. 27 - 64:

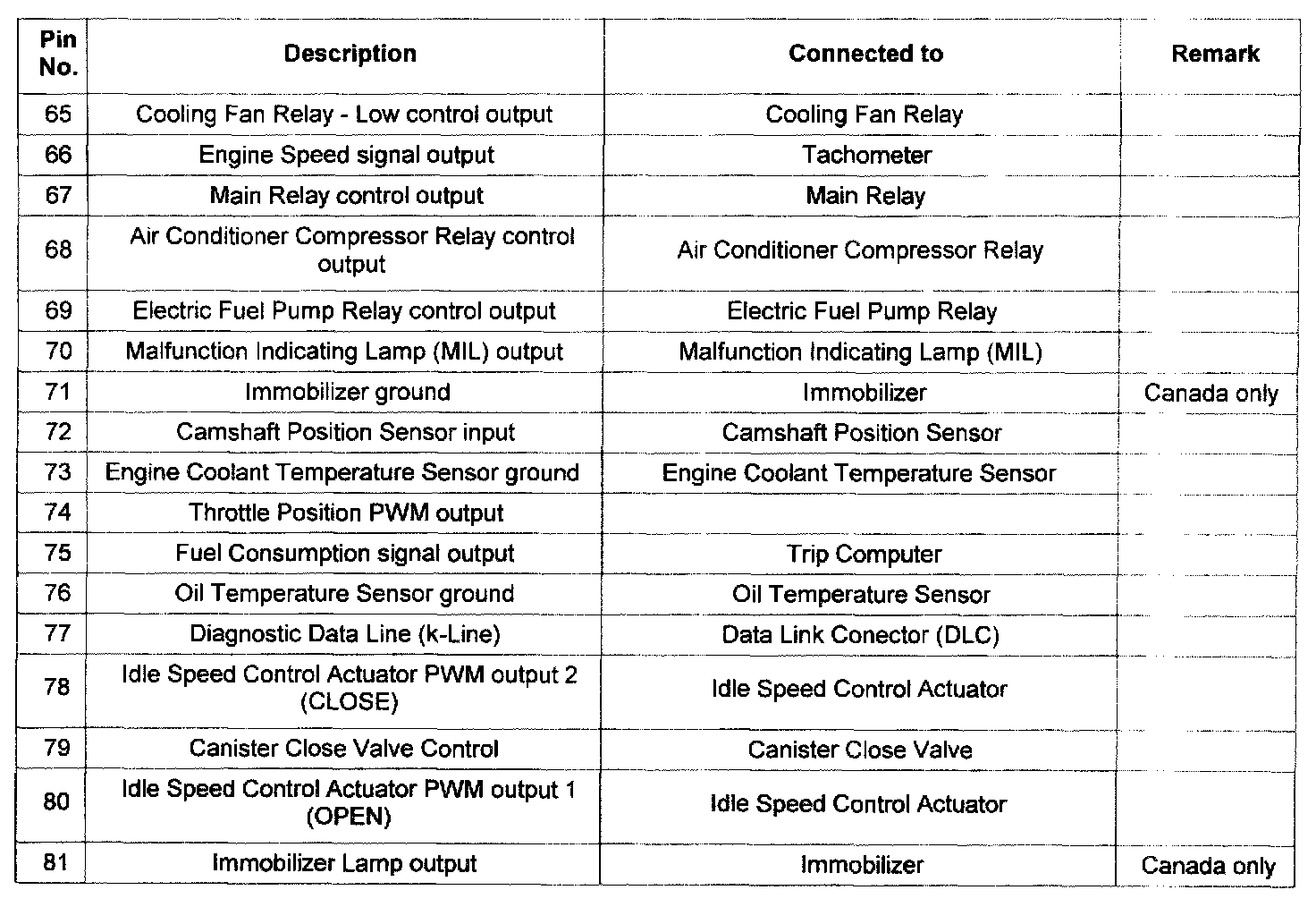

Pin No. 65 - 81:
