Tucson L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Automatic Temperature Control
Automatic Temperature Control

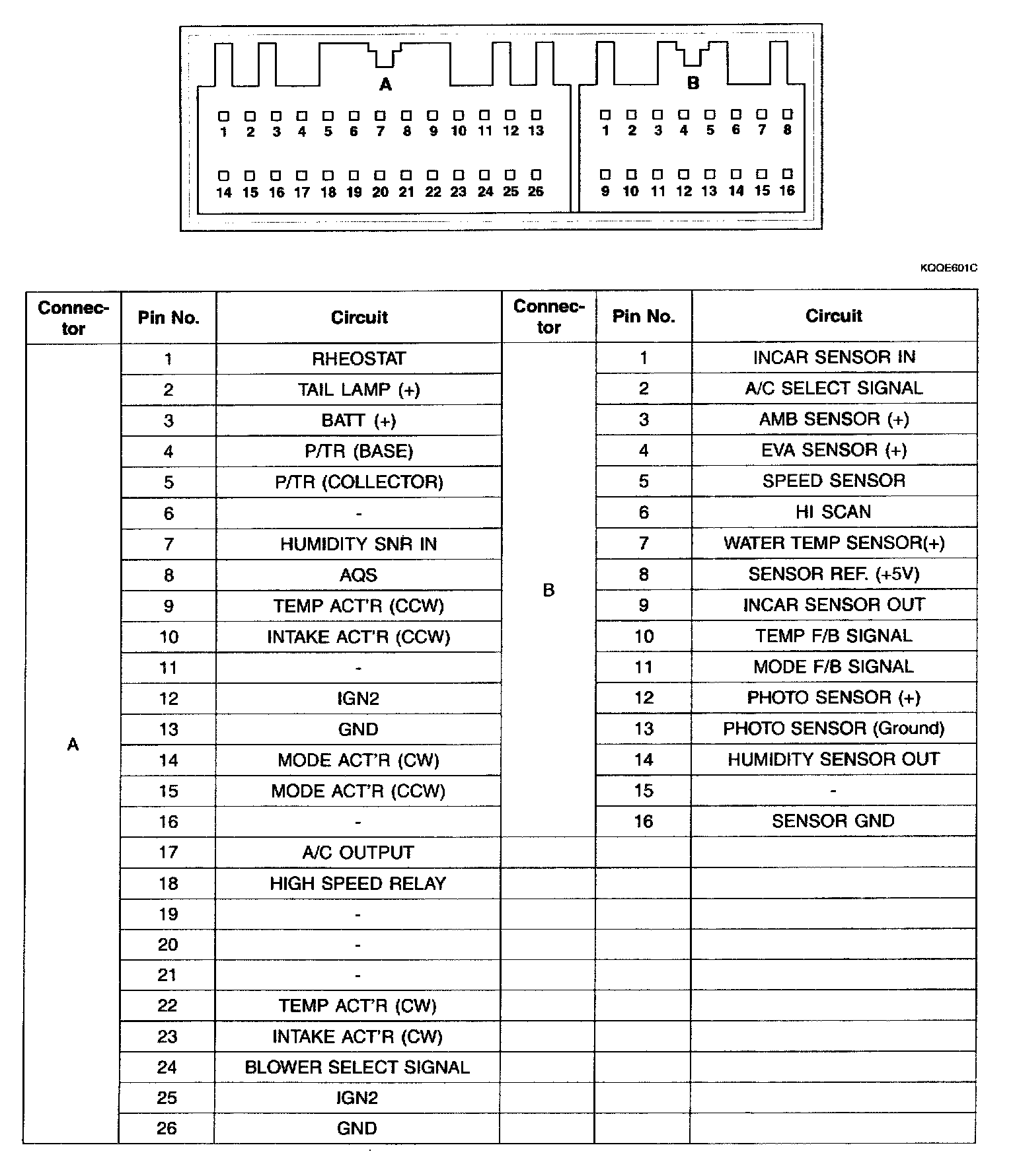

Blower and A/C Controls (Automatic) Connector:
