Pinout Values and Diagnostic Parameters

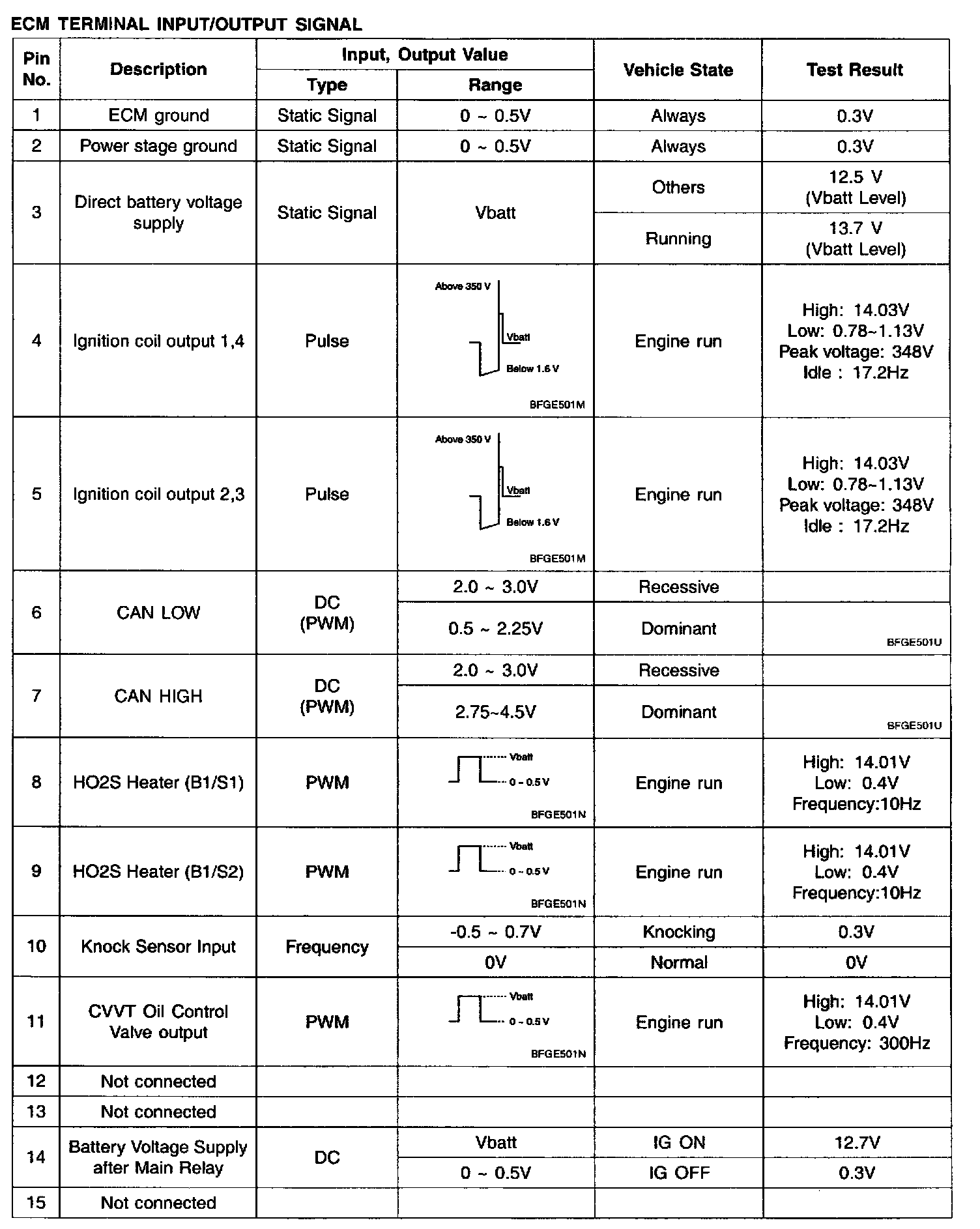

Pin No. 1-15:

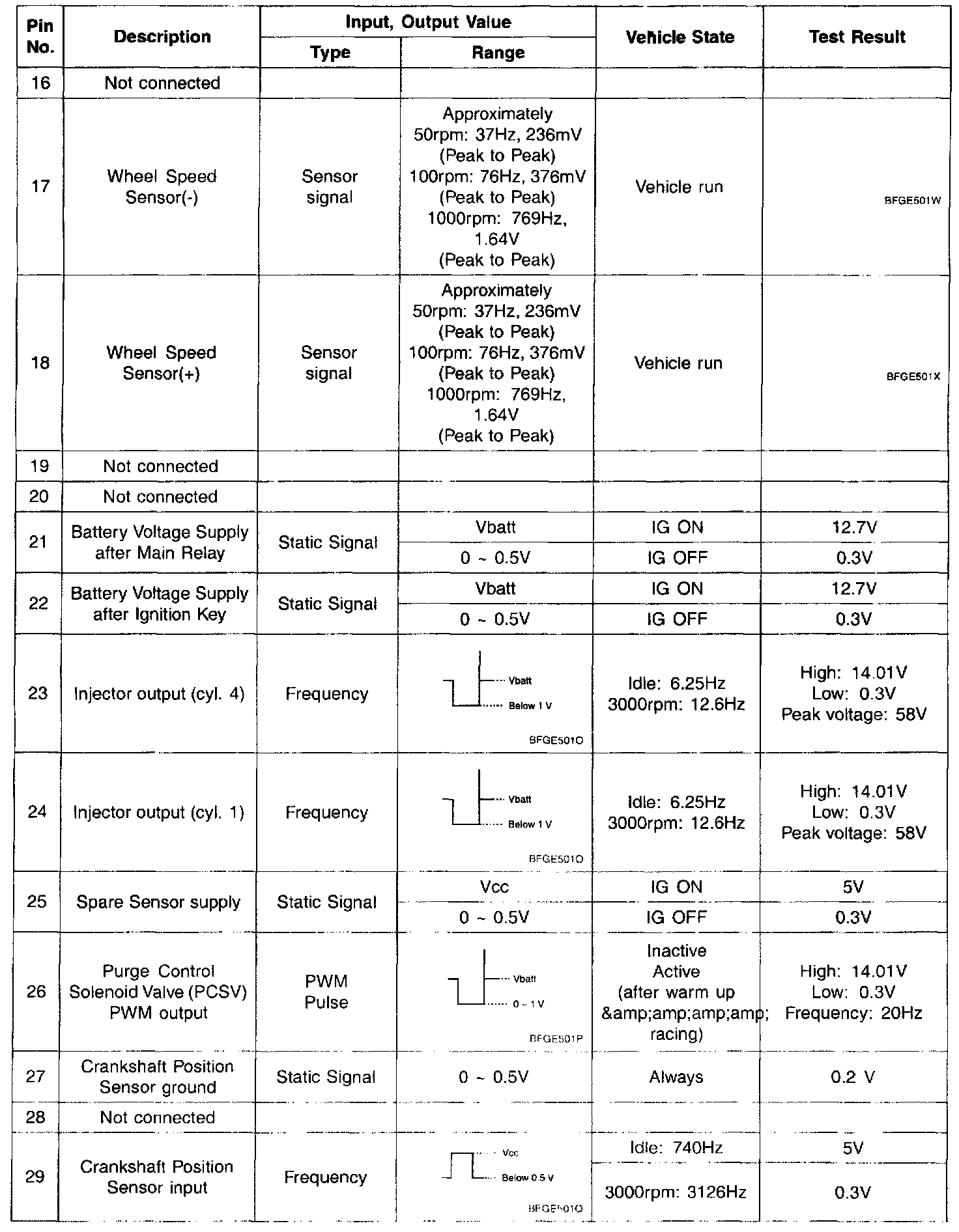

Pin No. 16-29:

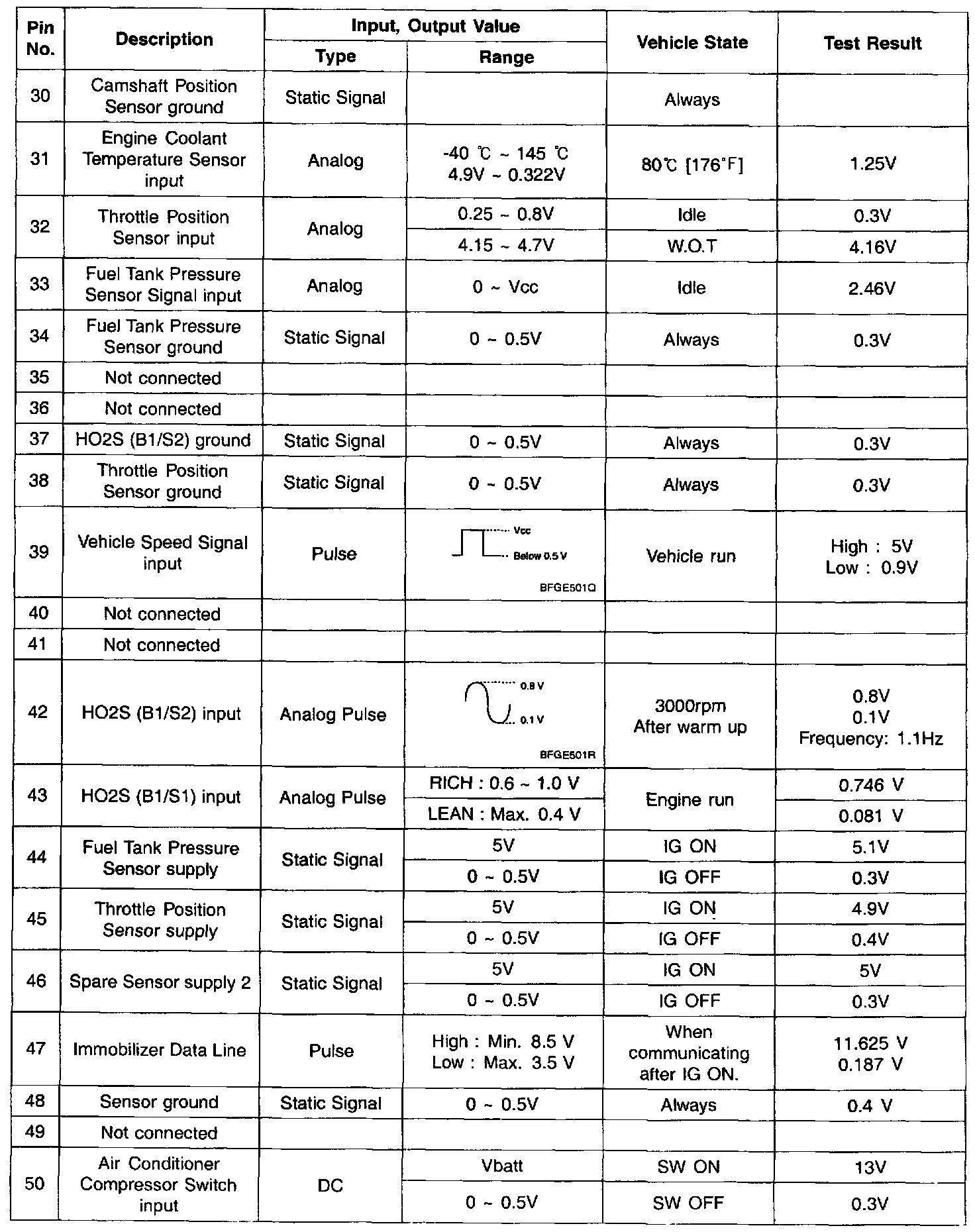

Pin No. 30-50:

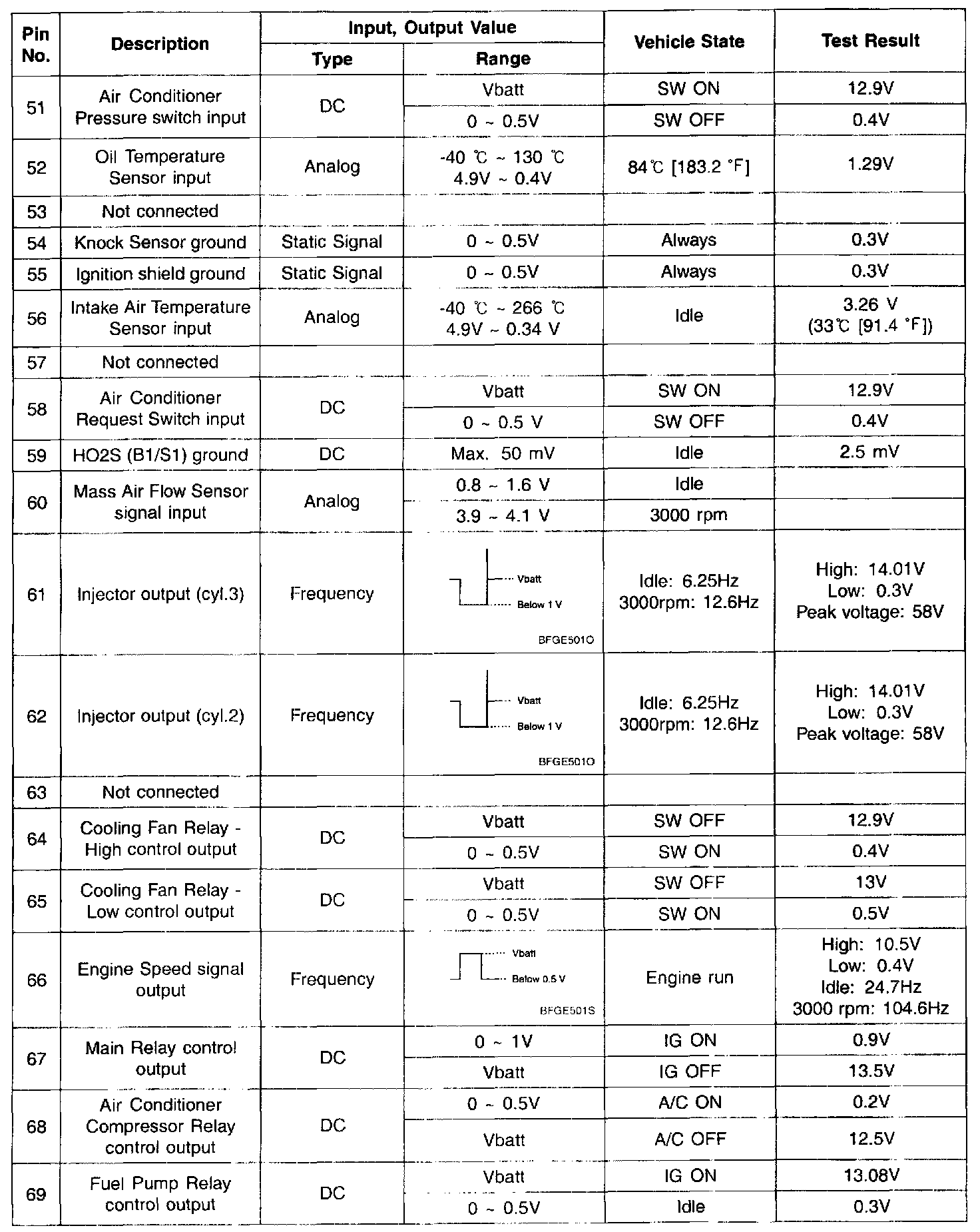

Pin No. 51-69:

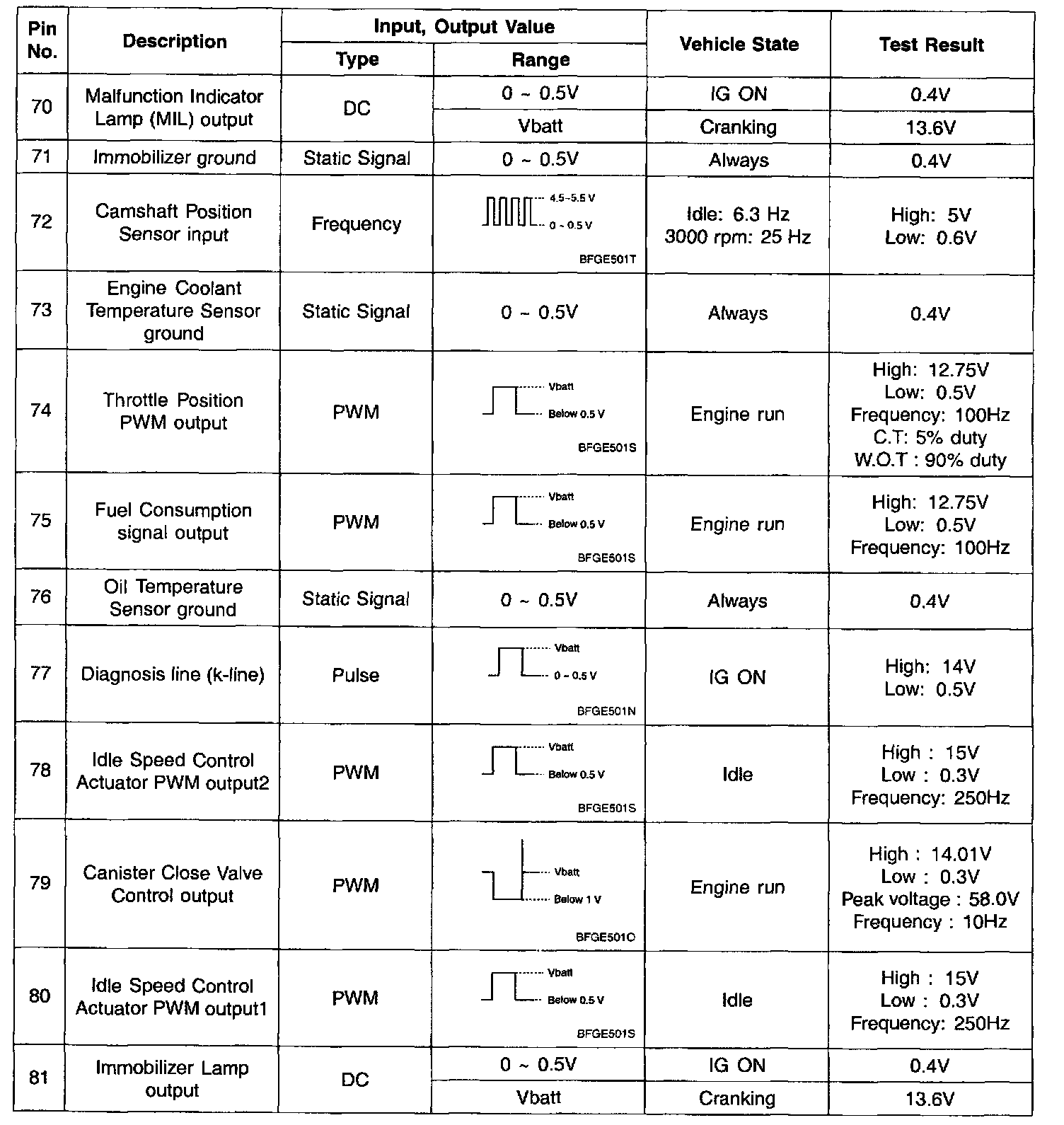

Pin No. 70-81:
