Engine Control Module

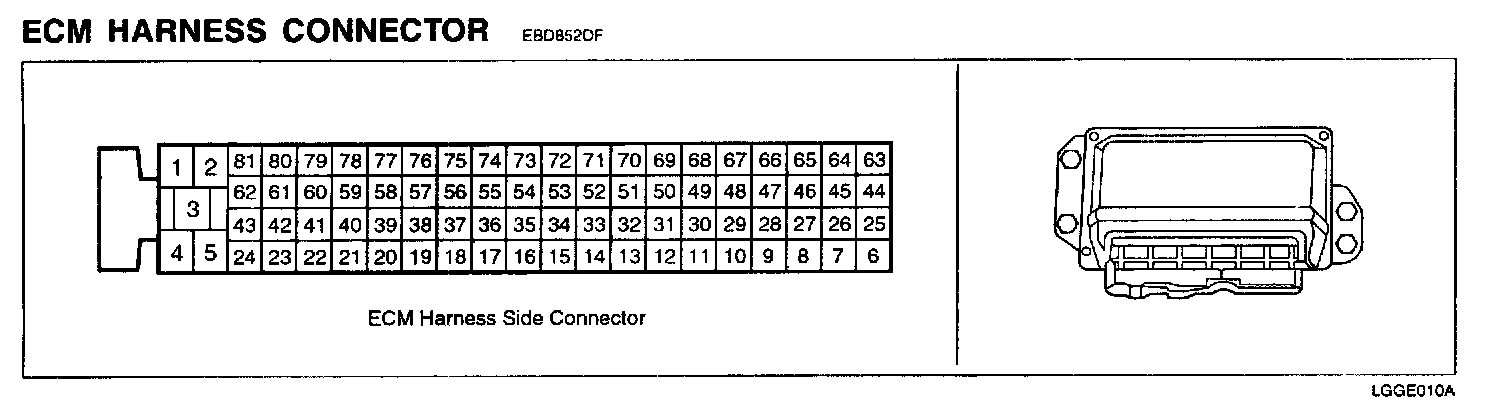

ECM HARNESS CONNECTOR
Connector View:

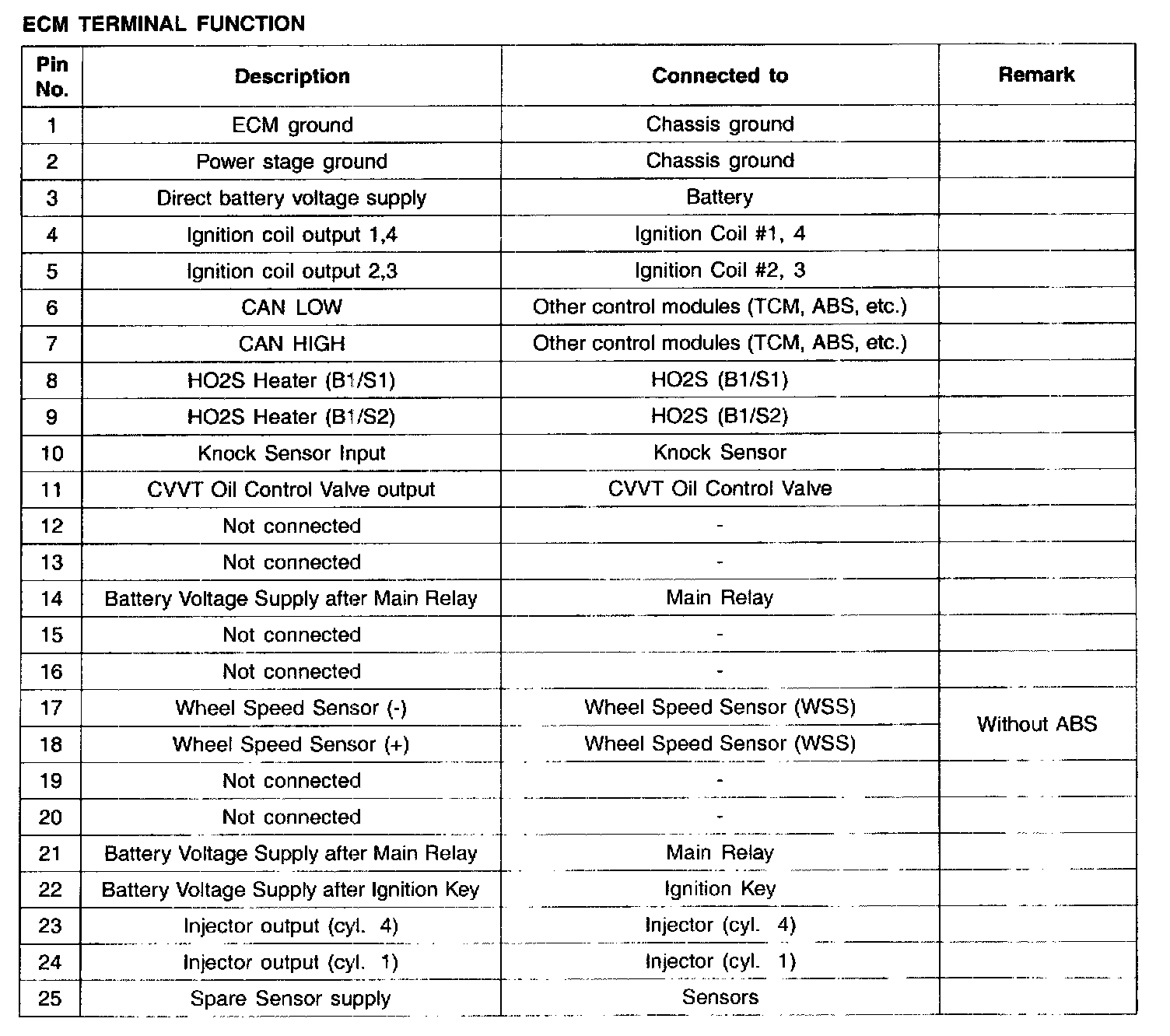

ECM TERMINAL FUNCTION
Pin No. 1-25:

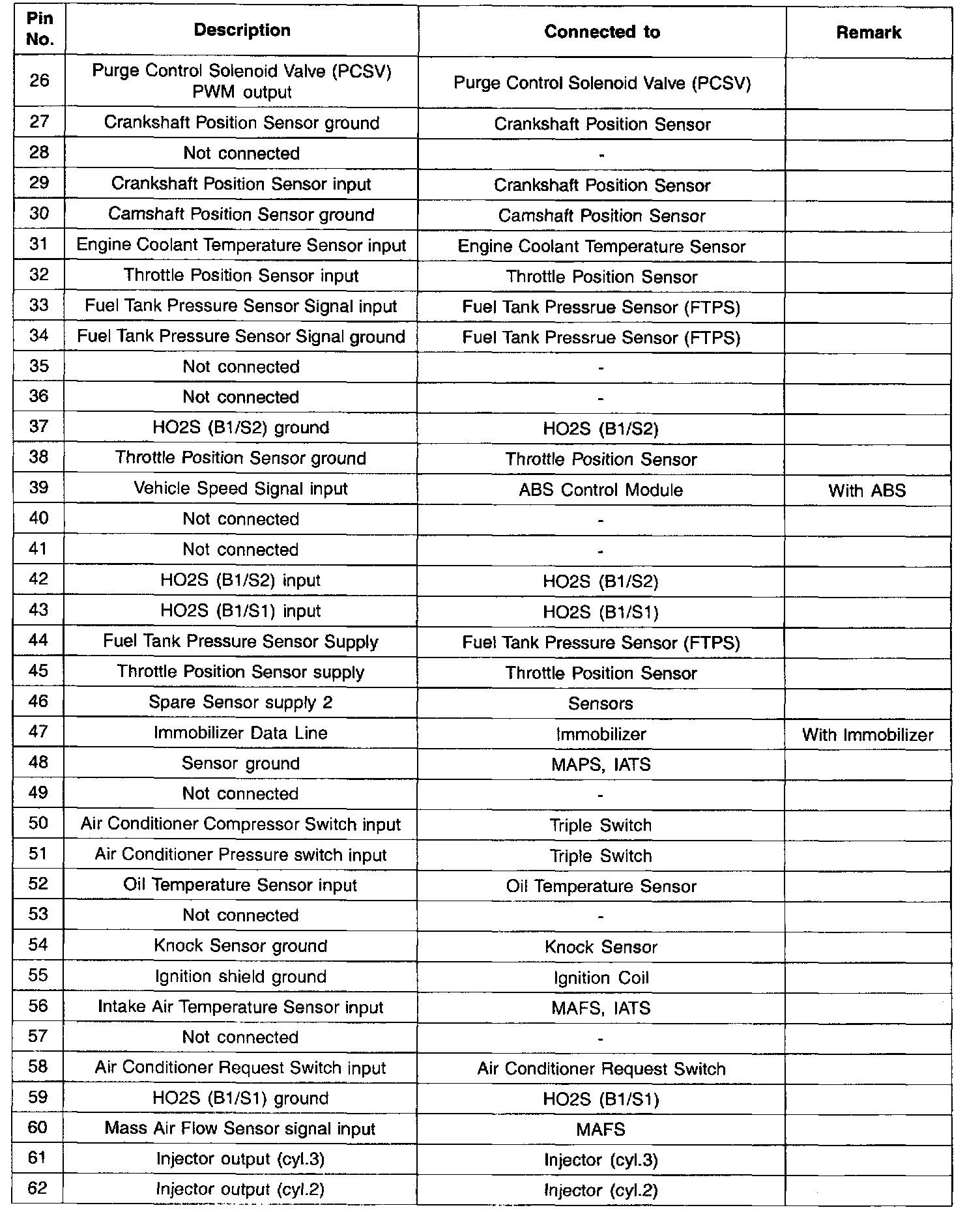

Pin No. 26-62:

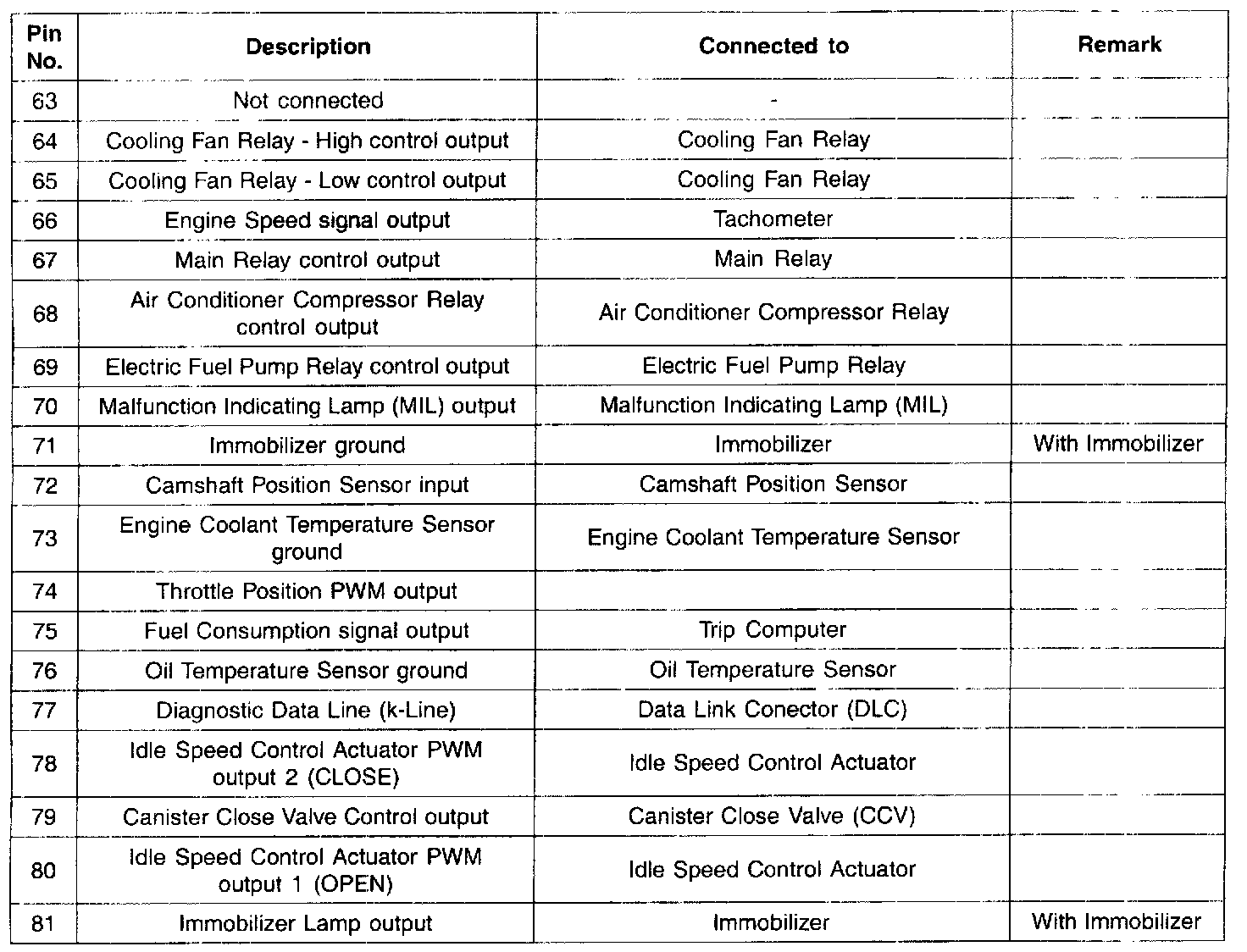

Pin No. 63-81:
