With TCU (Vehicle With Automatic Transaxle)

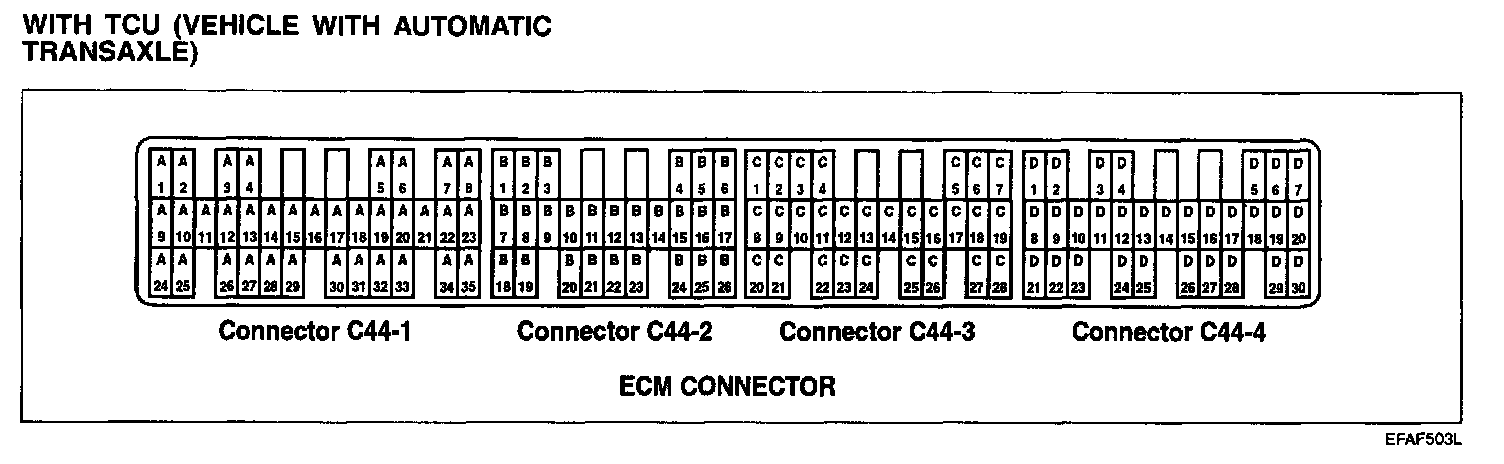

ECM Terminal Layout

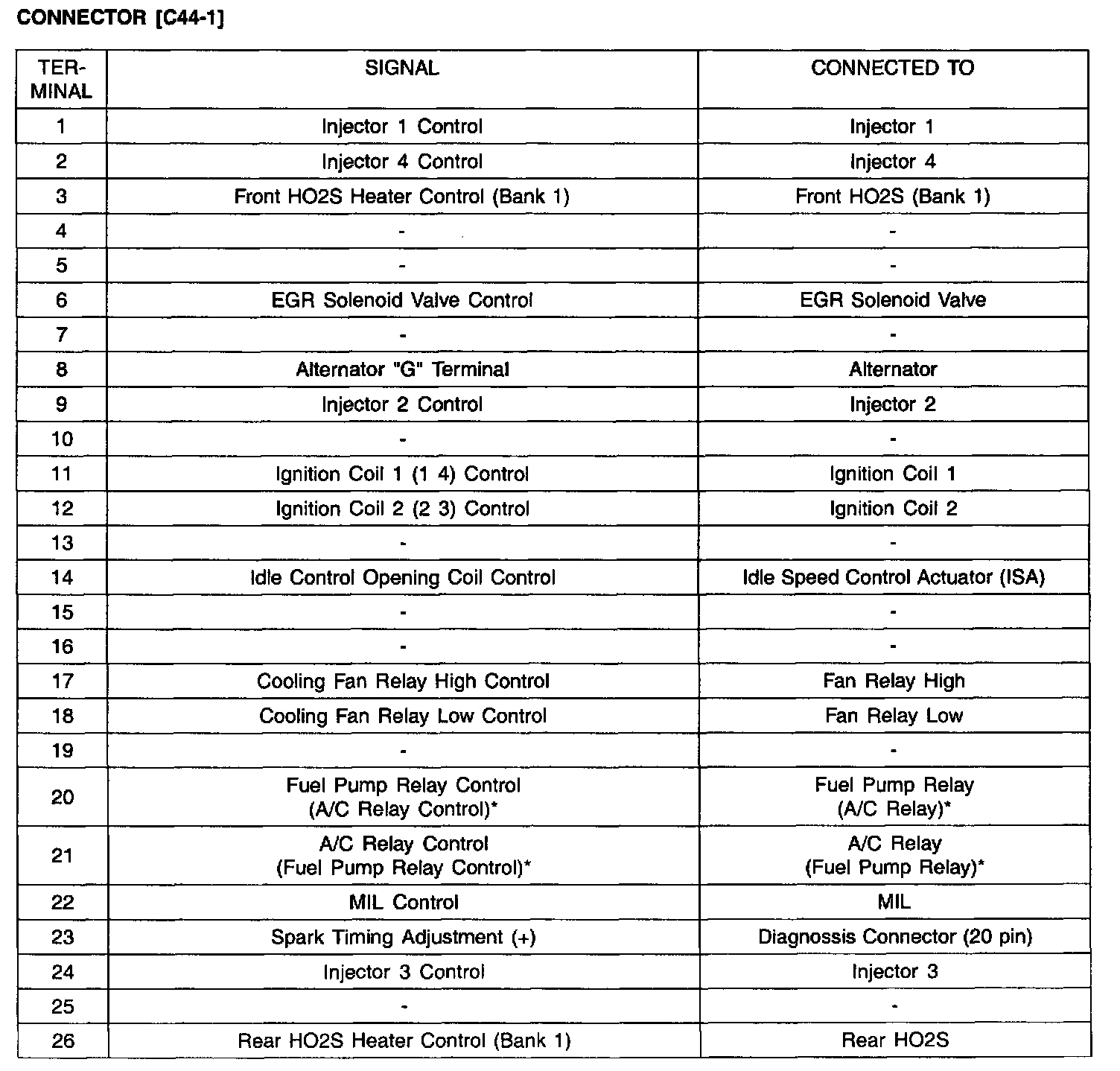

CONNECTOR (C44-1)

Terminal 1 - 26:

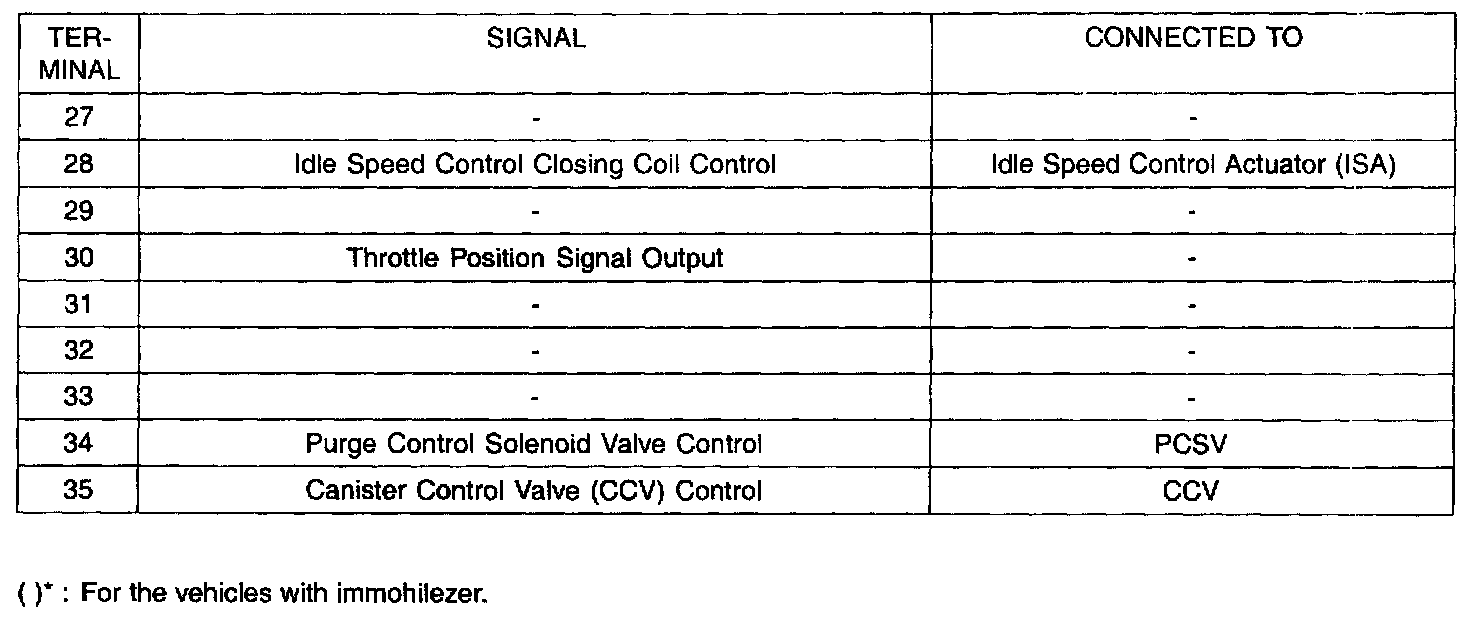

Terminal 27 - 35:

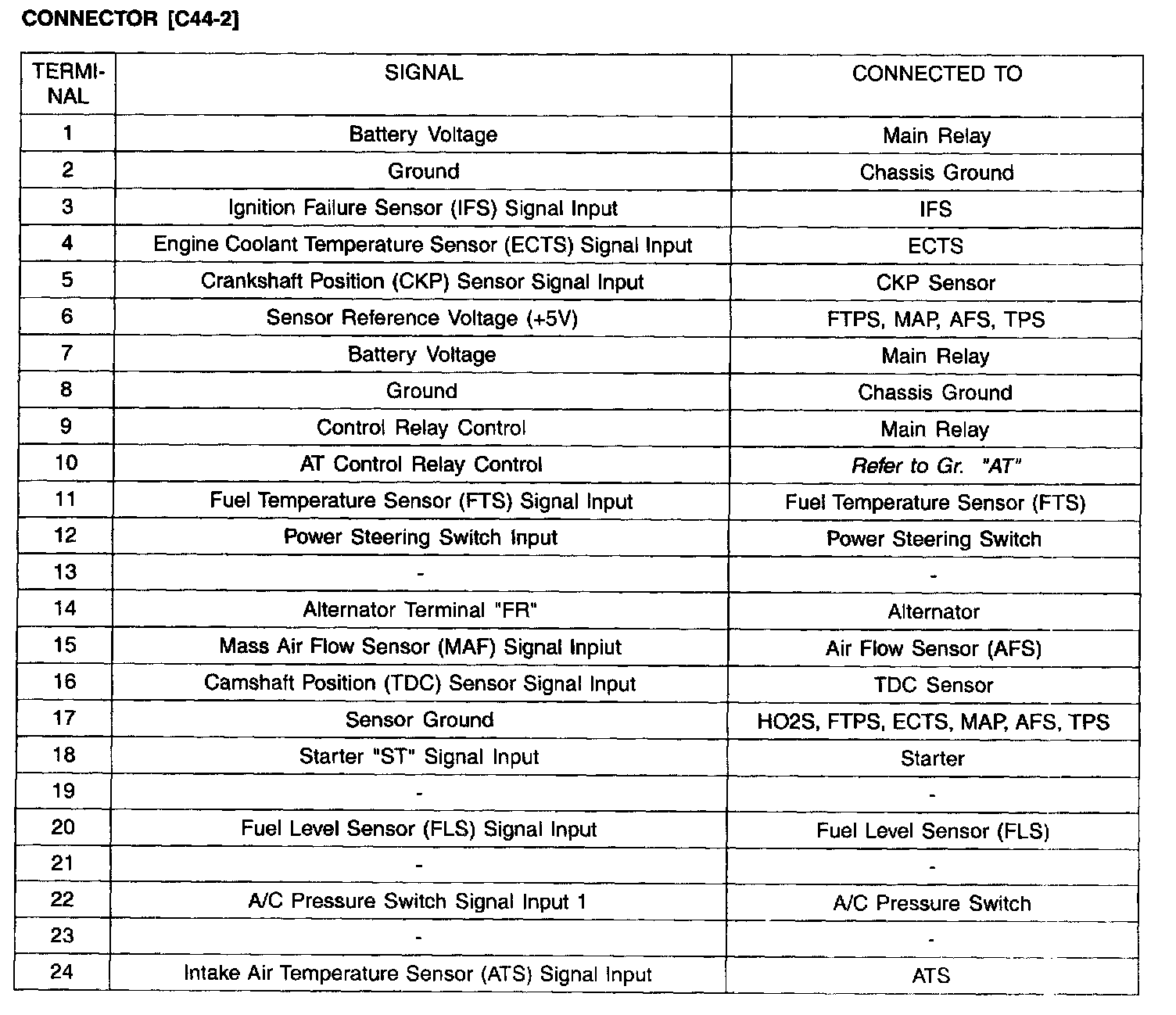

CONNECTOR (C44-2)

Terminal 1 - 24:

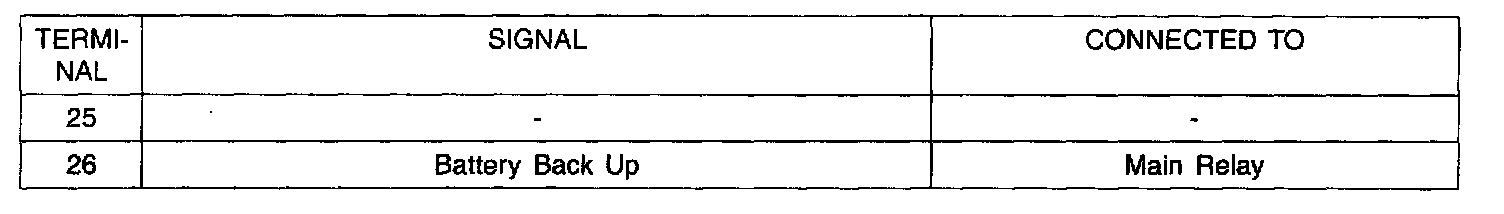

Terminal 25 - 26:

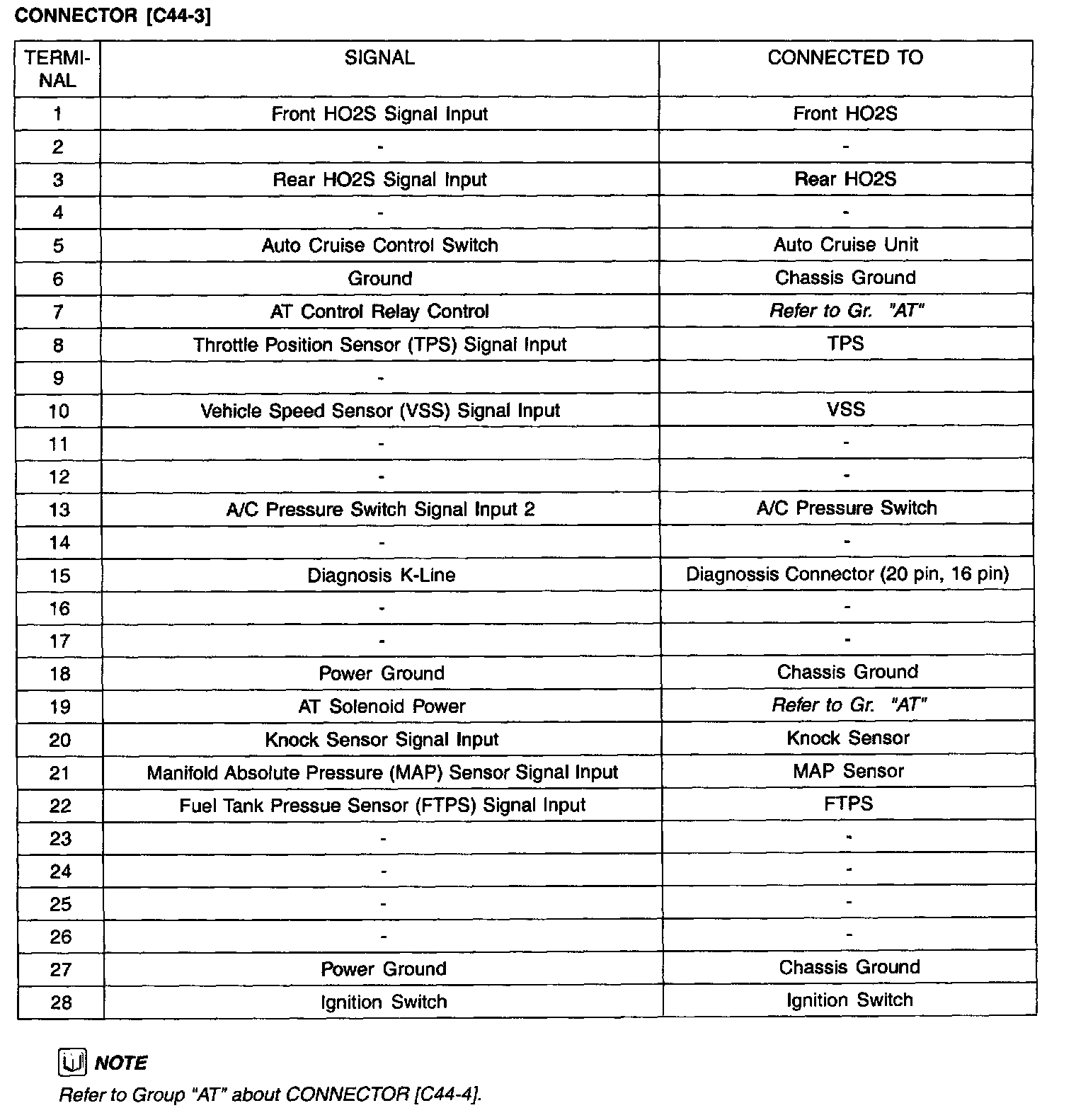

CONNECTOR (C44-3)

Terminal 1 - 28:
