With TCU (Vehicle With Automatic Transaxle)
With TCU (Vehicle With Automatic Transaxle)

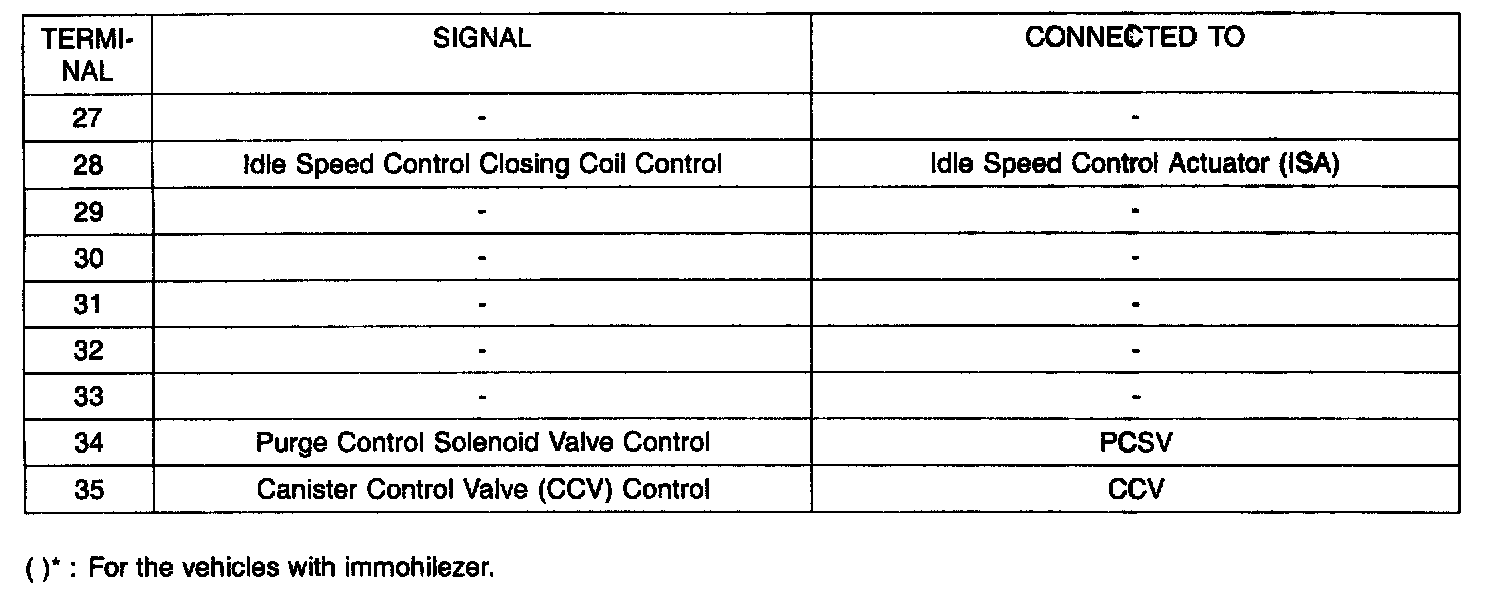

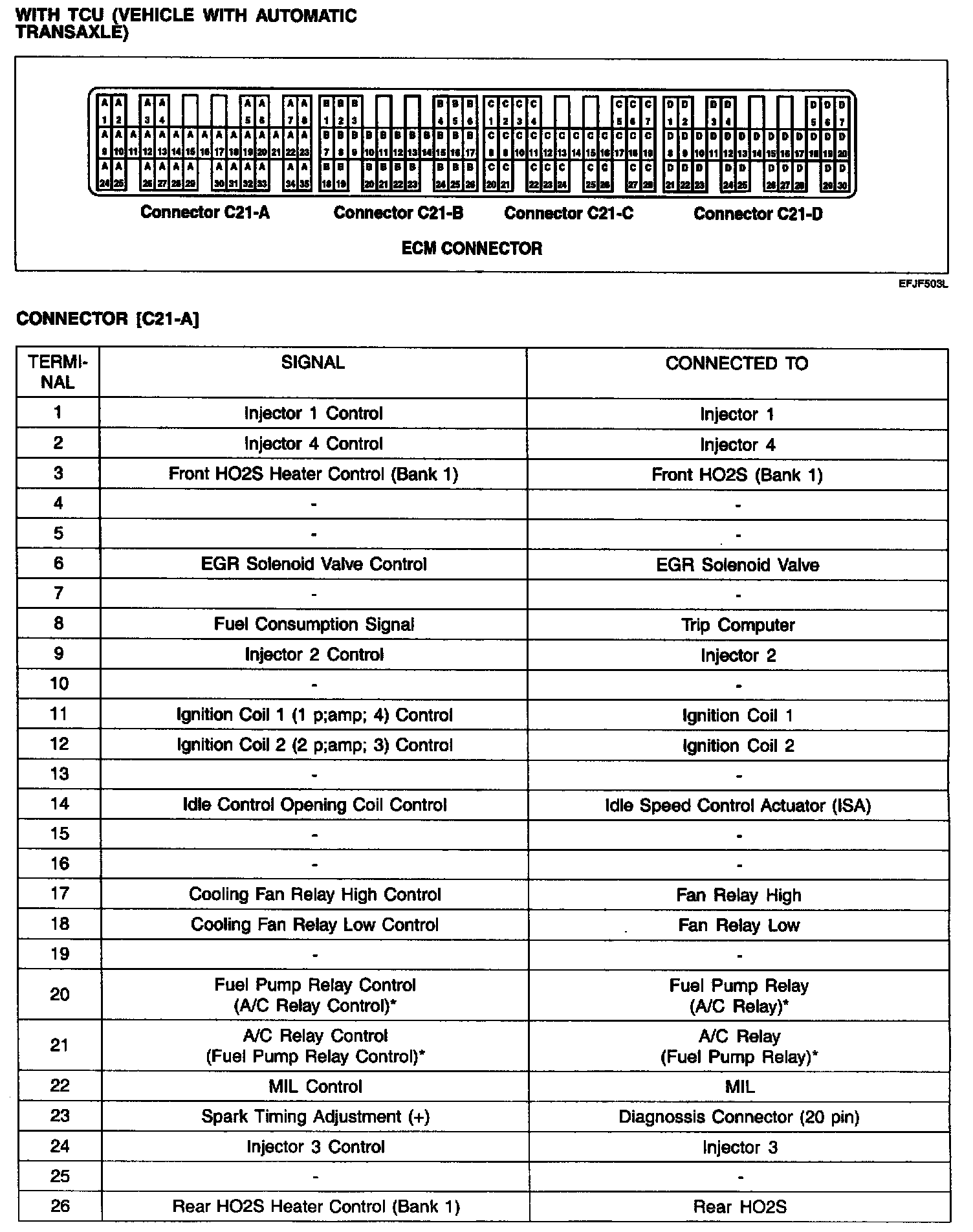

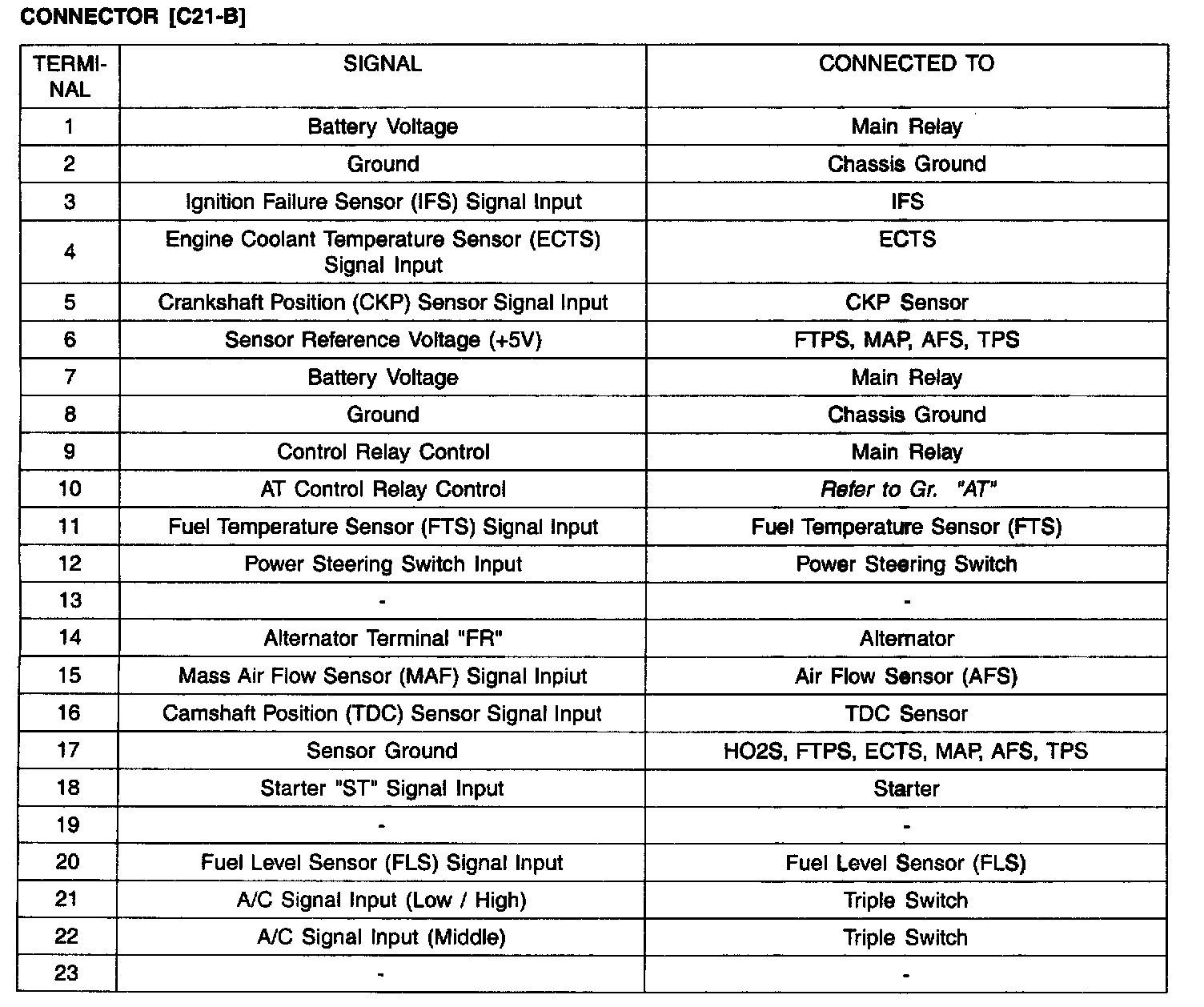

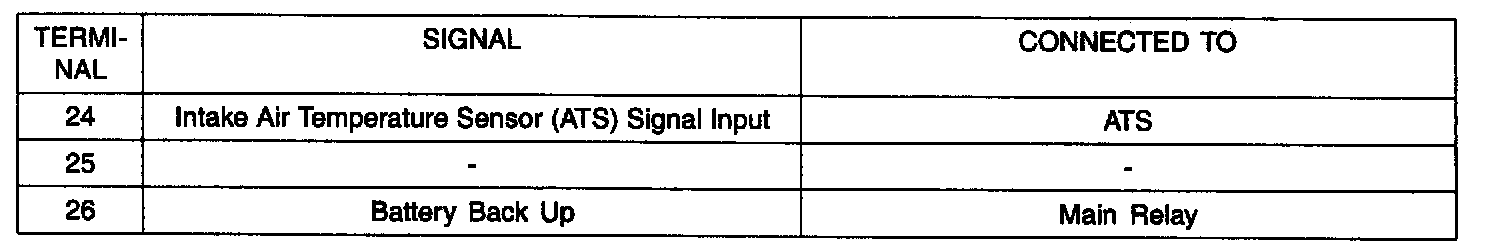

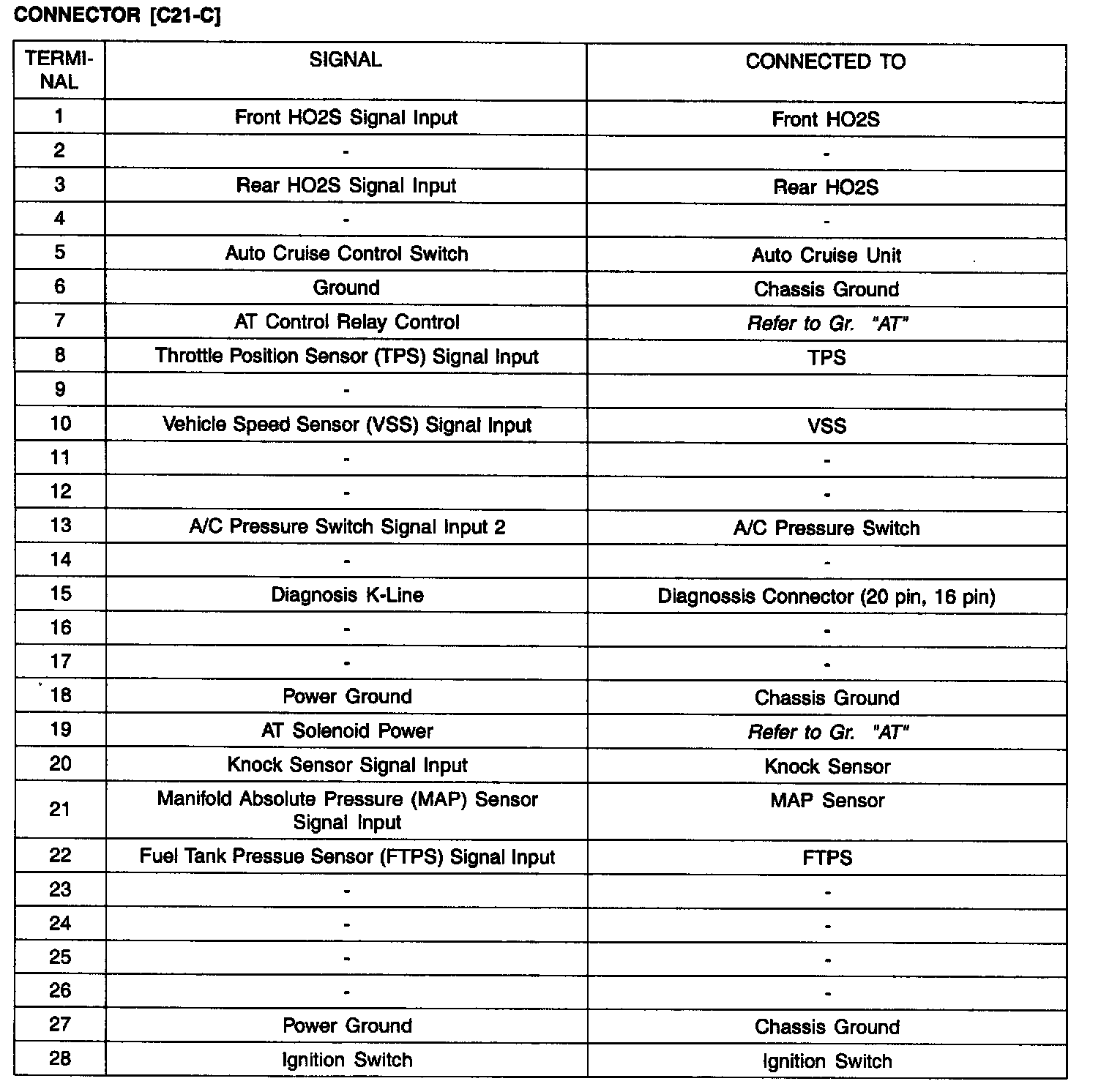

ECU Terminal Layout With TCU:
