Checking Steering Angle

CHECKING STEERING ANGLE





1. Place the front wheel on a turning radius gauge and measure the steering angle.

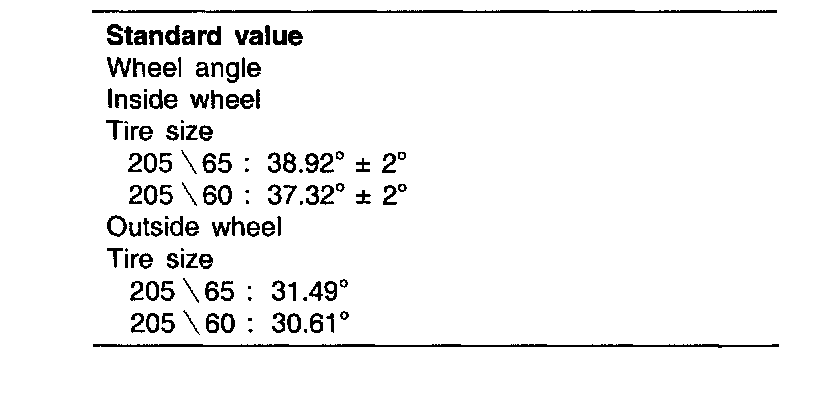

Standard value
Wheel angle
Inside wheel
Tire size
205 \ 65: 38.92° ± 2°
205 \ 60: 37.32° ± 2°
Outside wheel
Tire size
205 \ 65: 31.49°
205 \ 60: 30.61°
2. If the measured value is not within the standard value, adjust the toe and inspect again.
